Page 1: Table Of Contents

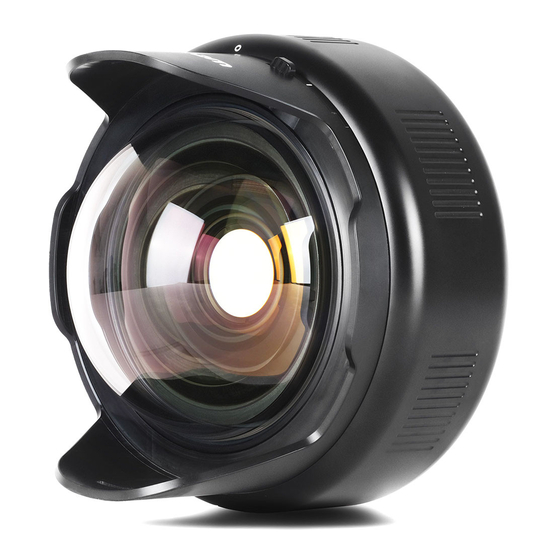

FCP-1 N120/N100 Fisheye Conversion Port with Integrated Float Collar (FCP-1) 170 Deg. FOV with Compatible 28mm Lenses PN 85207 User Manual Underwater Optics Introduction Package Contents Important Instructions Part Names Interchangeable Port Mounting Ring Removable Shade FCP-1 to Adaptor/Extension Ring... -
Page 2: Introduction
PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. FCP-1 N100 Mounting Ring... -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS Water-tight test of the housing (without Do not use any kind of abrasive solution to camera inside) along with WACP-1B be- clean the glass surfaces. fore usage is recommended. Do not expose the housing in direct Do not point of the lens directly towards sunlight for a prolonged period. -
Page 4: Part Names
PART NAMES Top & Rear View Removable shade Shade remove button Lens mount index mark Bayonet Mount N120 Mounting Ring N100 Mounting Ring... -
Page 5: Interchangeable Port Mounting Ring
* drawings as illustrations only N100 N120 remove the o-ring from N120 mounting ring unscrew the eleven screws from FCP-1 body take out the N120 mounting ring replace with the N100 mounting ring and screw back the eleven screws onto FCP-1 body... -
Page 6: Removable Shade
* drawings as illustrations only To Assemble Shade Align the ‘I’ index on the FCP-1 with the ‘O’ index on Turn the shade until the ‘O’ index on the lens is aligned the shade with ‘O’ index on the shade... -
Page 7: Fcp-1 To Adaptor/Extension Ring
Align the ‘O’ index on the FCP-1 with the ‘I’ index on the adaptor/extension ring, and gently push the adaptor/ extension ring towards the FCP-1 until it cannot go... -
Page 8: Specifications
SPECIFICATIONS 85207 FCP-1 Outer diameter x Length DIA 175mm×160mm Weight in air 2.70 kg Buoyancy in water Negative 0.10 kg Body construction Hard-anodized aluminum alloy Lens construction 6 elements in 5 groups Lens coating Anti-corrosion Coating on the outside of dome... -
Page 9: Care/Storage
O-ring should be discarded immediately (e.g. by sand) (Dry and clean the dome sur- and replaced only with one that is provided face with a microfiber cloth. / Do not use by NAUTICAM. any kind of abrasive solutions to clean the dome surface.) -
Page 10: Warranty
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/ or poor maintenance; it is the responsibility of the owner to carefully follow the instructions in our manuals. - Page 11 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
