For SmallHD Ultra5 Camera Monitor
User Manual
July, 2023
PN 17926
Housing
Monitor

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NA-Ultra5 Housing and is the answer not in the manual?

Questions and answers

Summary of Contents for Nauticam NA-Ultra5 Housing

  • Page 1: Table Of Contents

    July, 2023 NA - Ultra5 Housing For SmallHD Ultra5 Camera Monitor PN 17926 User Manual Housing Monitor Introduction Package Contents Important Instructions Part Names and Functions Opening the Housing Closing the Housing Setup Options Cable Connection Preparation for Use Care/Storage Warranty Specifications...
  • Page 2: Introduction

    PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. Monitor Hood Hand Pump...
  • Page 3: Important Instructions

    O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories specified by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product.
  • Page 4: Part Names And Functions

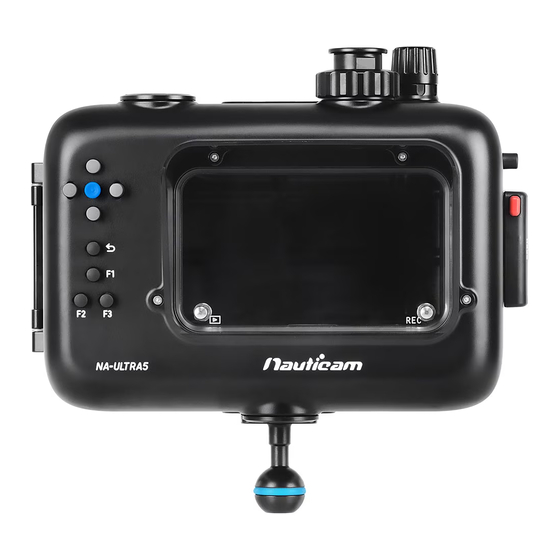

    PART NAMES AND FUNCTIONS Rear View Joystick - Right button Joystick - Up button Joystick - Left button Joystick - Down button Back button Custom - F1 button Custom - F2 button Custom - F3 button Joystick - Center...
  • Page 5 PART NAMES AND FUNCTIONS Front + Bottom Views Mounting ball M28 Accessory port Sacrificial zinc anodes...
  • Page 6 PART NAMES AND FUNCTIONS Top + Side Views Moisture alarm window M28 Accessory port Pre-installed M16 Vacuum valve II Pre-installed M28 HDMI 2.0 Adaptor ON/OFF button Housing unlock button...
  • Page 7: Opening The Housing

    OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock latch anti-clockwise to open the housing flip open the back housing when lock latch is aligned to ‘open’ position...
  • Page 8: Closing The Housing

    CLOSING THE HOUSING * drawings as illustrations only before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking main O-ring insert the housing shaft into the shaft hole and then rotate the lock latch clockwise until you hear and feel it click into place...
  • Page 9: Setup Options

    SETUP OPTIONS - HDMI 1.4 * drawings as illustrations only Connection with Camera Housing HDMI IN 25089 M28 HDMI 2.0 Adapter (pre-installed) 25082 HDMI 1.4 Cable 25033 + 25081 or 25080 M16 HDMI Bulkhead + Internal HDMI Cable M24 to M16 Adaptor or M28 to M16 Adaptor (depending on camera housing) HDMI IN + SDI OUT...
  • Page 10 SETUP OPTIONS - HDMI 2.0 * drawings as illustrations only Connection with Camera Housing HDMI IN 25089 M28 HDMI 2.0 Adapter (pre-installed) HDMI 2.0 Cable 25089 + 25086 M28 HDMI 2.0 Adaptor or M24 HDMI 2.0 Adaptor (depending on camera housing) HDMI IN + SDI OUT 25064 or 25065 SDI Surface monitor cable...
  • Page 11 SETUP OPTIONS - SDI ONLY * drawings as illustrations only Connection with Cinema Housing SDI IN 25089 M28 HDMI 2.0 Adapter (pre-installed) 17926S SDI Cable Set Heightened M28 Adaptor (included in 17926S packaging) * for Raptor housings before SN:A545638, please use #96184 M24 Adaptor instead SDI IN + SDI OUT 25064 or 25065...
  • Page 12 SETUP OPTIONS - CAMERA CONTROL * drawings as illustrations only Connection with Cinema Housing SDI, Ethernet, Power All-in-one 25089 M28 HDMI 2.0 Adapter (pre-installed) 16265A or 16265R or 16265S SDI, Ethernet, Power All-In-One Camera control cable bundle for ARRI mini LF/Alexa 35 or RED Raptor/XL or Sony Venice/II * 16265R includes LEMO 4-pin to...
  • Page 13: Cable Connection

    CABLE CONNECTION - INTO MONITOR HOUSING * drawings as illustrations only HDMI IN / SDI IN / Camera Control Cable Bundle - Page 1 unscrew the M28 plug from the accessory port with a coin remove the cap of M28 HDMI 2.0 Adaptor and screw it onto the monitor housing M28 Plug...
  • Page 14 CABLE CONNECTION - INTO MONITOR HOUSING * drawings as illustrations only HDMI IN / SDI IN / Camera Control Cable Bundle - Page 2 turn the three locking levers in the direction as shown HDMI In SDI In Camera Control connect the HDMI cable, then place the connect the SDI cable, then place the connect the All-in-one cable, then place...
  • Page 15 CABLE CONNECTION - SDI OUT * drawings as illustrations only *Please note that M16 SDI Bulkhead, 25060 SDI cable and SDI surface cable is not included in the package SDI Surface Cable Cap M16 SDI Bulkhead Cap M16 SDI Bulkhead M28 to M16 adaptor M 28 Plug unscrew the M28 plug on the monitor housing with a...
  • Page 16: Preparation For Use

    PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
  • Page 17 PREPARATION FOR USE * drawings as illustrations only Setting up moisture alarm Alarm ON/OFF CR2032 Battery remove battery press the battery down until it insulation film click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will flash in dampened cotton bud;...
  • Page 18 PREPARATION FOR USE * drawings as illustrations only Pre-installed #25625 M16 Vaccum Valve II remove the cap from the pre-installed vacuum valve connect hand pump to the valve hand pump vacuum valve moisture alarm window pump several times until it reaches the target vacuum level close vacuum valve cap Moisture alarm window colour indication :...
  • Page 19: Care/Storage

    CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommand cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation.
  • Page 20: Warranty

    NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals.
  • Page 21: Specifications

    17951 Nauticam Monitor Housing Mounting System Housing body Hard Anodized Aluminium Alloy Display window Abrasion Resistant Polycarbonate 17952 Nauticam Atomos Shogun Housing Mounting Adaptor for NA-A7RIII/α2020/ A7SIII/α1//XT4/Z50 17953 Nauticam Atomos Shogun Housing Mounting Adaptor for NA-GH5SV Dimensions 17954 Universal Tripod Plate for Nauticam Housings...
