Stm32H5 Nucleo-144 Board Layout; Figure 4. Stm32H5 Nucleo-144 Board Top Layout - ST STM32H5 User Manual

6.1

STM32H5 Nucleo-144 board layout

MIPI20 connector (CN5)
User LEDs (LD1-LD3)
External debug (JP1)
VDD_MCU power selection (JP4)
IDD measurement (JP5)
Zio connector (CN8)
STM32 microcontroller (U14)
ST morpho pin header (CN11)
Zio connector (CN9)
User button (B1)
User USB connector (CN13)
USB V
BUS
UM3115 - Rev 2

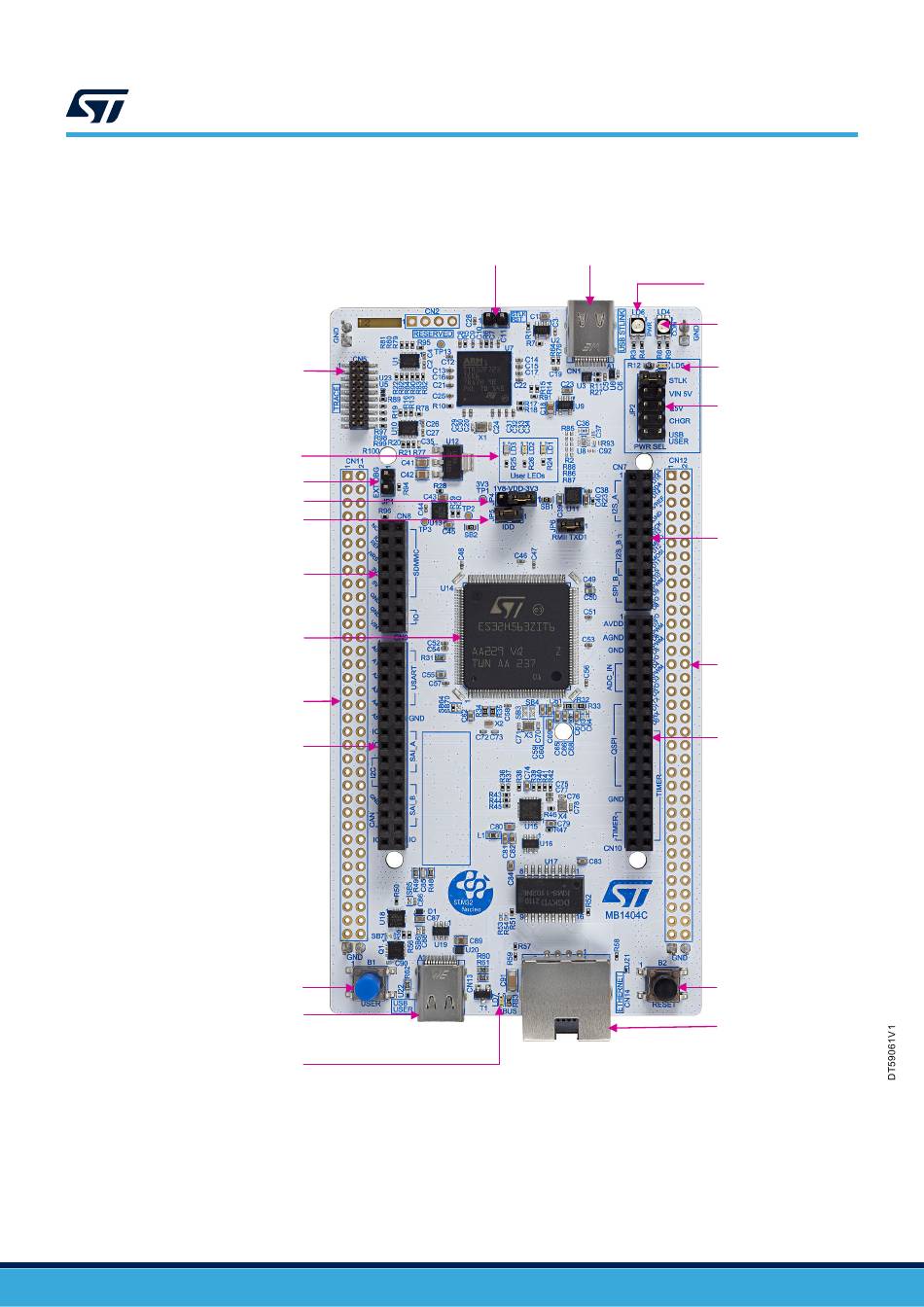

Figure 4. STM32H5 Nucleo-144 board top layout
LED (LD7)
ST-LINK RST (JP3) ST-LINK USB Type-C
UM3115
STM32H5 Nucleo-144 board layout
®
connector (CN1)
ST-LINK power status LED (LD6)
ST-LINK COM LED (LD4)
5V Power LED (LD5) (green)
Power source selection (JP2)
Zio connector (CN7)
ST morpho pin header (CN12)
Zio connector (CN10)
Reset button (B2)
Ethernet RJ45 connector
(CN14)
