StarTech.com F35023-USB-EXTENDER Quick Start Manual

2-Port USB 3.2 Gen 1 Extender Over Multimode Fiber - 5Gbps - Up to 350m

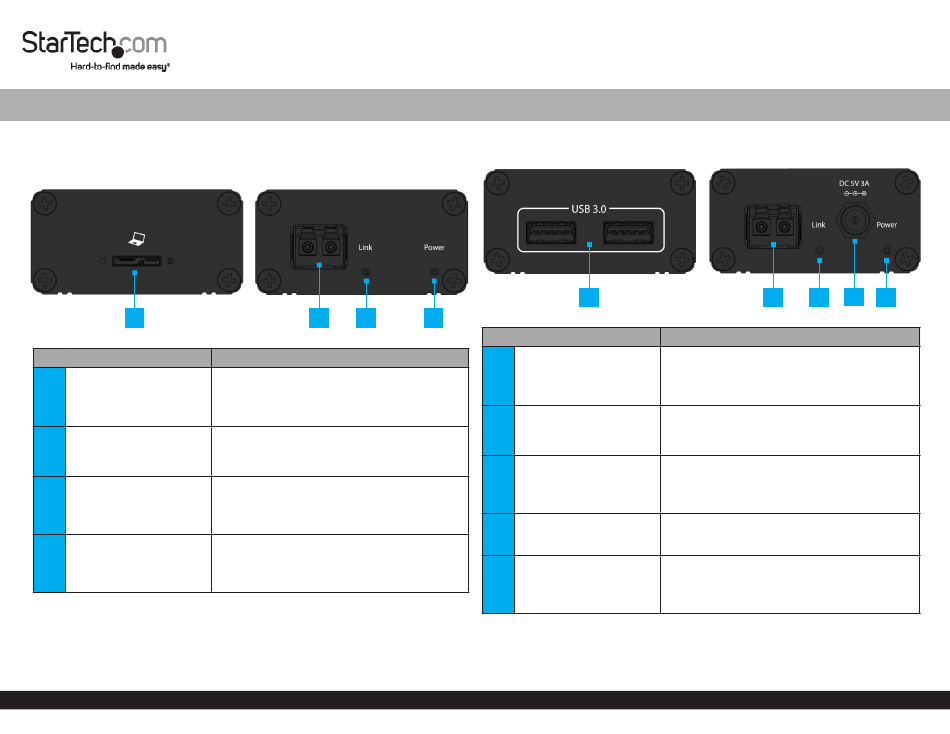

Product Diagram (F35023-USB-EXTENDER)
Transmitter
Front
1
Component
1
USB Micro-B Host Port
2 SFP Fiber Slot
3
Link LED
4
Power LED
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
Back
2 3
Function
• Used to connect the USB Extender Over Fiber
to a Host Computer
• USB 3.2 Gen 1 (5 Gbps)
• Backward compatible with USB 2.0 and 1.1
• Multimode LC connector
• For fiber cable up to 1148 ft (350 m)
Note: Not to be used with network equipment
• Indicates if the Link is established between
Transmitter and Receiver
• Solid blue = Link
• Off = No Link
• Indicates if the Host Computer is supplying
power
• Solid blue = Power
• Off = No Power
*Product may vary from image
Receiver
Front
1
4
Component
1
2x USB-A Peripheral Ports
2 SFP Fiber Slot
3
Link LED
4 DC Power Port
5 Power LED
Quick-Start Guide
Back
2 3
Function
• Connect USB-A Peripheral devices
• USB 3.2 Gen 1 (5 Gbps)
• Backward compatible with USB 2.0 and 1.1
• Supports up to 5 V and 0.9 A (4.5 W)
• Multimode LC connector
• For fiber cable up to 1148 ft (350 m)
Note: Not to be used with network equipment
• Indicates if the Link is established between
Transmitter and Receiver
• Solid blue = Link
• Off = No Link
• Connect the USB Extender Over Fiber to
a Power Source using the included Power
Adapter (5 V and 3 A)
• Indicates if the included Power Adapter is
supplying power
• Solid blue = Power
• Off = No Power
