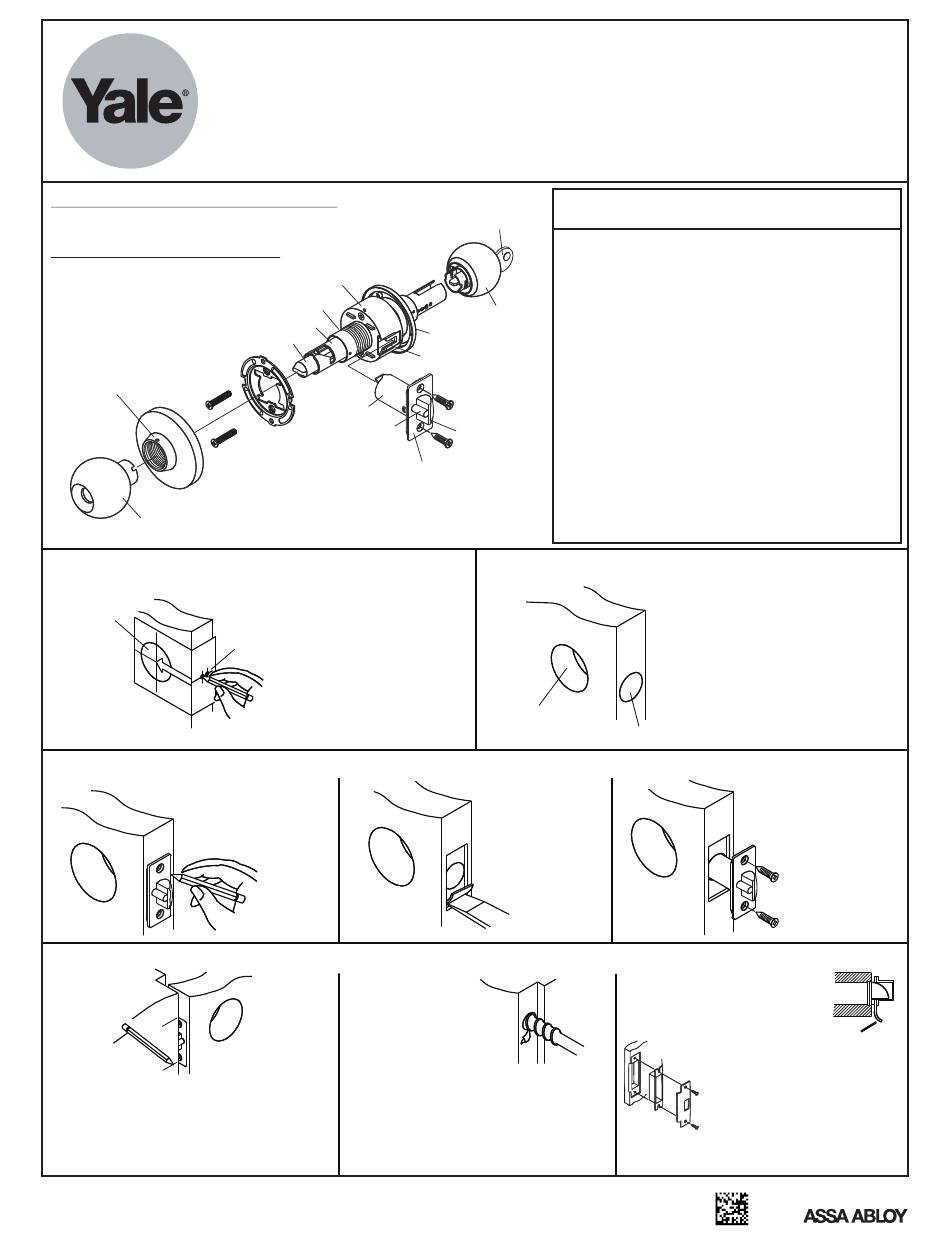

Assa Abloy Yale 4700 Series Installation Instructions

Tools Required For Replacement Installation
(#2) phillips head screwdriver
!
Tools Required For New Installation
(#2) phillips head screwdriver
!
2-1/8" (54) hole saw
!
1" (25) drill bit
!
Chisel
!
Push Button
Inside Rose Nut
Inside Knob
1. Mark Door
Mark one
hole 2-1/8"
(54mm)
on door
face.
(Note: Backset on door face must be same as backset of lock.)
3. Install Latch
Insert latch in hole
A
keeping it parallel to
face of door. mark
outline and remove
latch.
4. Install Strike
A
Close door until latchbolt touches jamb
to locate strike in jamb and centerline of
strike. Open door and extend line from
mark to door stop. Measure one half of
door thickness from door stop and
vertically mark drill point center for strike.
An ASSA ABLOY Group brand
Cylindrical Knob Lockset
Cylindrical Case
Inside Sleeve
Spindle
Latch Unit
Guardbolt
Latch Face
Fold and apply
Mark for
template to edge of
1" (25mm)
door and mark center
hole in
of door edge as
door edge.
indicated on template.
Mark ccenter hole on
door face through
guide on template.
B
B
Drill 1" (25mm) hole
1/2" (13mm) deep
in door jamb on drill
point for strike.
CAUTION: To ensure proper lockset
function, hole in jamb must be drilled a
full 1/2" (12mm) deep.
4700 Series Grade 1
Installation Instructions
Key
Replacing Existing Entrance Locks:
Before beginning, measure from center of lock to door edge
in order to check length of backset on existing lock. The
backset length of the new lock is printed on the front of the
package. If backset size is the same, continue; otherwise,
Outsi e Knob d
you'll have to replace lock with proper size backset.
Installation of cylindrical locks and latches must be
Outside Rose Nut
through bolted in all doors. If installation instructions are
Latch Retractor
not followed this may result in damage to the lock and void
the factory warranty.
Any retrofit or other field modification to a fire rated
opening can potentially impact the fire rating of the
opening, and Yale Locks & Hardware makes no
Latchbolt
representations or warranties concerning what such
impact may be in any specific situation. When retrofitting
any portion of an existing fire rated opening, or specifying
and installing a new fire-rated opening, please consult
with a code specialist or local code official (Authority
Having Jurisdiction) to ensure compliance with all
applicable codes and ratings.
2. Drill Holes
2-1/8" (54mm)
Hole
Chisel 5/32" (4mm)
deep or until latch
face is flush with
door edge.
Attention Installer
Drill 2-1/8" (54mm) hole through
door face, drill 1" (25mm) hole
in center of door edge for latch.
1" (25m)
Insert latch and tighten
C
screws. (NOTE:
Latchbolt bevel must
face to closing direction.)
C Cut out jamb 9/64"
(4mm) deep for strike.
Tighten screws.
ANSI STRIKE
Optional Strike Box
#202
Guardbolt stops against
strike, as illustrated,
preventing forcing when door
is closed. Adjustable tab on
strike permits bending in or
out to eliminate too loose fit between door
and door stop.
80-9510-0060-000 (08-12)
Guardbolt
Strike
