- Page 1 ORIGINAL INSTRUCTIONS>EN PETROL BRUSH CUTTER & GRASS TRIMMER RACDBT51ES USER GUIDE CAUTION: Read this manual before use this machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. SAFETY SYMBOLS..........................7 3. PRODUCT DESCRIPTION........................9 4. TECHNICAL INFORMATION......................10 5. ASSEMBLY............................11 6. FILLING FUEL TANK.......................... 13 7. OPERATION ............................14 8. MAINTENANCE AND STORAGE..................... 17 9. DISPOSAL............................. 19 10. TROUBLESHOOTING........................20 11. DECLARATION OF CONFORMITY....................21 12. -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING! When using this type of tool, basic precautions should always be followed to reduce the risk of fire and injury. Read all instructions carefully before attempting to use this product and retain these instructions. Be familiar with all the operations described in these operating instructions. This product must be operated by experienced users. - Page 4 otherwise specified in this instruction manual. Do not use the tool if the switch is not working (if it cannot be turned ON or OFF). Immediately stop the tool in the event of a malfunction of the motor or in case of unusual noise. ...
- Page 5 MAINTENANCE AND STORAGE Stop the tool and wait until it stops. Make sure all moving parts have come to a standstill. Allow the machine to cool before performing inspection, adjustments, maintenance, servicing, and storage. Maintenance and cleaning shall always be done after operation. Follow the instructions given in this manual for maintenance, cleaning, and storage.
- Page 6 Do not store in locations where the temperature may exceed 40°C (104°F). Charge only at ambient temperatures between 4°C and 40°C (39.2°F and 104°F). Charge only using the charger provided with the tool. Store your batteries in a cool dry place (5°C-20°C/41°F-68°F). Never store batteries in a discharged state.
-
Page 7: Safety Symbols
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard. CAUTION: Do not recharge non-rechargeable batteries. - Page 8 Warning! Cutting elements Caution: the accessible surface maybe hot when using the tool Keep 15 meters away from other people Wait until all machine components have completely stopped before touching them， Poisonous fumes or toxic gases Do not expose to rain or humidity No naked fire near the machine Caution! Beware of blade thrust GASOLINE+OIL mixed 40:1 - Position: FUEL TANK CAP...
-
Page 9: Product Description

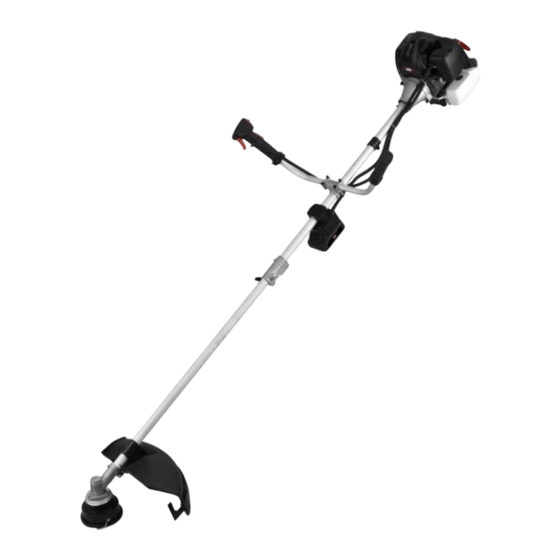

3. PRODUCT DESCRIPTION Primer Bulb 25 Engine Housing Knob Upper part for attaching Air Filter Knob Shaft the handle Lower part for attaching Choke Lever Carter of protection the handle... -
Page 10: Technical Information
Battery Power Indicator 35 Charging Connector Shaft Connection Throttle Safety Sleeve 4. TECHNICAL INFORMATION MODEL RACDBT51ES Maximum rotational frequency of the spindle 9500/min Idle speed of engine 3000/min Measured vibration value Brush cutter: 7.824m/s², K=1.5 m/s Grass trimmer: 8.856 m/s², K=1.5 m/s... -
Page 11: Assembly
5. ASSEMBLY HANDLE INSTALLATION Remove the upper part of the handle attachment (1) by unscrewing the four screws. Install the operating handles (3 and 5). The right-hand grip (3) is equipped with engine controls, the trigger of the right-hand grip should be directed toward the gearbox. Install the rod assembly to the engine using four screws. - Page 12 To disassemble the blade, insert a metal locking tool in the hole on the side of the drive sprocket and on the drive. Loosen the retaining nut and then remove all elements. NOTE: After installation, always check if the installation is correct. If blade is not installed, it will vibrate excessively and can cause injury.
-
Page 13: Filling Fuel Tank
6. FILLING THE FUEL TANK WARNING: When filling the tank: The tool must always be stopped and cooled. Never smoke during refueling. It must not have flames or sparks near the fuel. Before refueling, allow the tool to cool completely. Do not attempt to refuel when the engine is hot. -
Page 14: Operation
If you are not using the product for a long time, remove the fuel mixture and add it to a container. Do not leave the fuel for a long time in the product. The fuel may clog the carburetor and the engine will not operate properly. - Page 15 NOTE: Remove battery pack from charger stand which use your thumb or fingers, press thebattery’s release button in and pull the battery pack off at the same time. Battery capacity indicator There are battery capacity indicators on the battery pack; you can check the capacity status of the battery if you squeeze the button.
- Page 16 WARNING! The cutting attachment will engage and rotate as the engine starts and accelerates. If the engine did not continue to run, repeat the appropriate cranking procedure (warm or cold engine). When the engine starts, clear excess fuel from the combustion chamber by revving the engine several times with the throttle trigger (operating the trigger will automatically disengage the "fast idle"...
-
Page 17: Maintenance And Storage
Before cutting growth, inspect for obstructions such as boulders, metal stakes or strands of wire from broken fences. If an obstruction cannot be removed, mark its location so that you can avoid it with the blade. Rocks and metal will dull or damage a blade. Wire can catch on the blade head and flap around or be thrown into the air. - Page 18 Remove the air cleaner element from the air cleaner housing and clean it thoroughly. Rinse and dry thoroughly. Add a few drops of oil, then reassemble the element. c. Adjusting the carburetor Do not adjust the carburetor unless necessary. If you have trouble with the carburetor, see your dealer.
-
Page 19: Disposal
CAUTION! Gasoline stored in the carburetor for extended periods can cause hard starting, and could also lead to increased service and maintenance costs. Drain all the fuel from the carburetor and the fuel tank. IMPORTANT! All stored fuel should be stabilized with a fuel stabilizer. Remove the spark plug and pour about 3cm°... -
Page 20: Troubleshooting
10. TROUBLESHOOTING Problems Causes Resolutions The starting process is not Follow the instructions of use of this followed manual The tool cannot be Spark plug dirty or moist Clean the spark plug or replace it by a started new one Incorrect carburettor Contact your dealer or contact SWAP adjustment... -
Page 21: Declaration Of Conformity
ZI, 32 RUE ARISTIDE BERGES 31270 CUGNAUX, FRANCE Tel: +33 (0)534.502.50 Fax: +33 (0)534.502.503 Declares that the machines: PETROL BRUSH CUTTER & GRASS TRIMMER RACDBT51ES Serial No.: 20250200001-20250202065 have been designed in compliance with the following standards: EN ISO 11806-1 :2022... -
Page 22: Warranty
12. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 23: Product Failure
13. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 24: Warranty Exclusions
14. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 25 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France MADE IN PRC...
