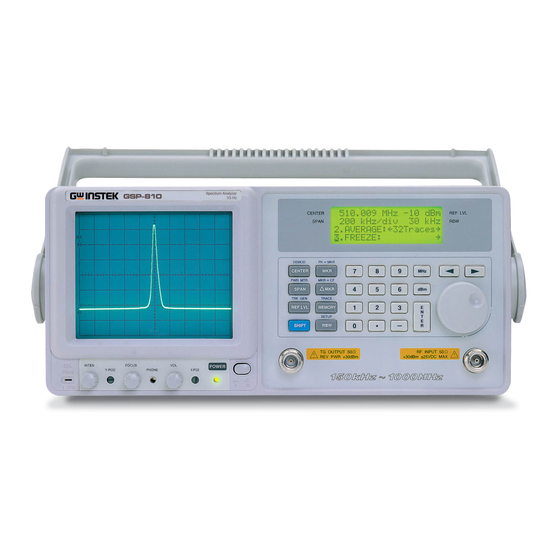

GW Instek GSP810TGPM User Manual

Spectrum analyzer
Hide thumbs

Advertisement

Quick Links

Download this manual
Spectrum Analyzer
GSP-810
USER MANUAL
GW INSTEK PART NO. 82SP-81000MF1
1.800.561.8187
information@itm.com
www.
.com
ISO-9001 & ISO-14001 CERTIFIED MANUFACTURER

Advertisement

loading
Need help?

Need help?

Do you have a question about the GSP810TGPM and is the answer not in the manual?

Questions and answers

Related Manuals for GW Instek GSP810TGPM

Summary of Contents for GW Instek GSP810TGPM

  • Page 1 Spectrum Analyzer GSP-810 USER MANUAL GW INSTEK PART NO. 82SP-81000MF1 1.800.561.8187 information@itm.com www. .com ISO-9001 & ISO-14001 CERTIFIED MANUFACTURER...
  • Page 2 This manual contains proprietary information, which is protected by copyrights. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company. The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.

  • Page 3: Table Of Contents

    GSP-810 User Manual Table of Contents 1.0 GENERAL DESCRIPTION AND FEATURES................2 2.0 USAGE PRECAUTIONS AND RECOMMENDATIONS ...............3 3.0 PANEL DESCRIPTIONS .......................7 4.0 SETUP AND USE ........................11 5.0 QUICK USE INDEX ........................27 6.0 SPECIFICATIONS ........................28 APPENDIX 1 - REMOTE OPERATION (STANDARD AND OPTION) ..........32 Due to continuous improvements in the GSP-810 Spectrum Analyzer, information contained in this Manual is subject to change without notice.
  • Page 4 GSP-810 User Manual Declaration of Conformity GOOD WILL INSTRUMENT CO., LTD. No. 7-1, Jhongsing Rd, Tucheng City, Taipei County 236. Taiwan. GOOD WILL INSTRUMENT (SUZHOU) CO., LTD. No. 69 Lushan Road, Suzhou New District Jiangsu, China. declare that the below mentioned product Type of Product: Spectrum Analyzer Model Number : GSP-810 is herewith confirmed to comply with the requirements set out in the Council...

  • Page 5: General Description And Features

    GSP-810 User Manual 1.0 General Description and Features The GSP-810 is designed for minimal set-up and adjustment. The user interface allows fast and accurate measurements. The fully synthesized design of the GSP- 810 permits stable operation down to 2 kHz / division. 2.0 Usage Precautions and Recommendations The following precautions are recommended to insure your safety and to provide the best condition of the GSP-810.
  • Page 6 GSP-810 User Manual FOR UNITED KINGDOM ONLY NOTE: This lead / appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow: Earth Blue: Neutral...
  • Page 7 GSP-810 User Manual Use and Wear CAUTION • Do not exceed +30 dBm into the RF INPUT or +30 dBm reverse power into the TG OUTPUT. • Do not place any heavy object on the instrument. • Avoid severe impacts or rough handling that could damage the GSP-810. •...
  • Page 8 GSP-810 User Manual 3) Grounding WARNING • To avoid electrical shock, the power cord protective grounding conductor must be connected to earth ground. 4) Fuse Replacement WARNING • For continued fire protection, replace the fuse with the specified type and rating only.

  • Page 9: Panel Descriptions

    GSP-810 User Manual 3.0 Panel Descriptions Front Panel 1.800.561.8187 information@itm.com www. .com...
  • Page 10 GSP-810 User Manual Item Description Cathode Ray Tube (CRT) Display, 8 x 10 graticule, 5 inch Liquid Crystal Display (LCD), 4 line x 20 character Keypad, field selection and data entry Spinner, field selection and data change RF Input, Coaxial, Type N Female Tracking Generator Output, Coaxial, Type N Female (optional) Switch, Power ON / OFF Adjustment, CRT Trace Rotation, potentiometer...
  • Page 11 GSP-810 User Manual Rear Panel 1.800.561.8187 information@itm.com www. .com...
  • Page 12 GSP-810 User Manual Item Description Panel Label, Usage Warning External Frequency Reference Input, BNC (optional) Connector, DB9, Female, RS-232 Panel Label, Serial Number Cooling Fan Vent Adjustment, CRT Trace Rotation, potentiometer Adjustment, Internal Frequency Reference , potentiometer Adjustment, LCD Contrast, potentiometer Panel Label, Input Voltage AC Input, Connector, Voltage Select and Fuse 1.800.561.8187...

  • Page 13: Setup And Use

    GSP-810 User Manual 4.0 Setup and Use 4.1 General Description The RF input is used to connect to the device under test, or to an external circuit or antenna. The characteristic frequency and level of the signals received are detected displayed on the CRT. 4.2 Use The settings and control for the GSP-810 are easily accessed from the keypad.
  • Page 14 GSP-810 User Manual Field Selection Key Data Entry Resolution Bandwidth SPINNER to scroll (SPAN OF 0 Hz / div ONLY) Demodulation (Optional SPINNER to select demod type SHIFT , DEMOD Receiver) Power Meter (Optional) SPINNER selects change line; SHIFT , PWR MTR to select an item;...
  • Page 15 GSP-810 User Manual CENTER FREQ This field is the value for the frequency located at the mid-point (center screen) of the selected span. This frequency value may be changed by entering the digits, decimal point, followed by the ENTER or MHz key, or the keys can select a digit to increment or decrement using the SPINNER.
  • Page 16 GSP-810 User Manual SPAN This field is the value for the frequency range covered by the GSP-810 as it sweeps its receiver. This span value may be changed by the SPINNER to roll through the list of valid spans. The range of valid entries is 2 kHz / division through 100 MHz / division plus zero span (0 Hz / div).
  • Page 17 GSP-810 User Manual REF LVL This field is the value (on the top of screen) for the received input signal. This reference level value may be changed by the rotating the SPINNER to scroll through the list of valid reference levels. The range of valid entries is +20 dBm to -30 dBm in 10 dB steps.
  • Page 18 GSP-810 User Manual MARKERS The GSP-810 supports 2 markers. To access the marker screen, press the MRK key. Displayed will be 2 marker frequencies. Accessing the marker frequency fields is performed through the left column of numbers. Cursor to the left most position, then use the SPINNER to switch between marker 1 and marker 2.
  • Page 19 GSP-810 User Manual 100.000MHz 20dBm CENTER 100.000MHz 20dBm REF LVL SPAN 1 MHz/div 220kHz 1MHz/div 220kHz 1 : 95.000 - 51.7dBm 2 : 105.000 - 51.2dBm 1: 95.000 - 51.7dBm 2: 105.000 - 51.2dBm PK->MKR DEMOD CENTER MTR. MKR->CF SPAN TRK GEN TRACE REF LVL...
  • Page 20 GSP-810 User Manual DELTA MARKERS The delta marker function is similar to the marker function. To access the marker screen, press the ΔMKR key. In this function marker 1 is used as the reference marker level and the marker 2 level is level difference between marker 1 and marker 2.
  • Page 21 GSP-810 User Manual TRACE The TRACE key provides access to the Peak Hold, Average, and Freeze features of the GSP-810. These items are shown on the bottom half of the LCD display. By scrolling, all three items can be accessed. The Max Hold Function, when enabled, will maintain a trace showing the maximum signal received for each point in the trace.
  • Page 22 GSP-810 User Manual MEMORY OPERATIONS: SAVE / RECALL The save and recall functions are accessed by pressing the MEMORY key. The bottom half of the screen shows one line for saving and one line for recalling up to 10 setups. The “Recall”...
  • Page 23 GSP-810 User Manual SETUP SCREEN The setup screen provides access to various parameters. The setup screen functions are accessed by pressing the SHIFT RBW key. The trace will stop updating while in the setup screen. The parameters are accessible using the SPINNER.
  • Page 24 GSP-810 User Manual 5. LO2 Status This displays the status of LO2. An internal status is monitored to determine if it is “Locked” or “Unlocked” with the result being displayed. 6. LO3 Status This displays the status of LO3. An internal status is monitored to determine if it is “Locked”...
  • Page 25 GSP-810 User Manual Operation Next figure shows a typical spectrum display. This example shows the settings for a 100 MHz center frequency, a 1 MHz / division span and a reference level of -10 dBm. The 8 by 10 division display indicates RF level on the vertical or y-axis, and frequency on the horizontal or x-axis.
  • Page 26 GSP-810 User Manual DEMOD (Optional) The GSP-810 can be optionally configured to perform FM and AM demodulation. To access this feature, press the SHIFT DEMOD key. The bottom half of the LCD display will show the current demodulation selection that can be changed with the SPINNER.
  • Page 27 GSP-810 User Manual TRACKING GENERATOR (Optional) The optional tracking generator screen is accessed through the SHIFT TRK GEN key. Upon entering the screen, 3 fields are displayed. The “TRK GEN” label displays the status of the tracking generator. Pressing the key will turn the tracking generator on and off if the option is installed.
  • Page 28 GSP-810 User Manual POWER METER (Optional) To access the power meter in the GSP-810, press the SHIFT PWR MTR. The bottom half of the screen will show the power level in mW or dBm based on the units selected in the setup screen. The range field will allow the user to change the range of 2mW, 20mW, 200mW and 2W (or equivalently 3dBm, 13dBm, 23dBm and 33dBm).

  • Page 29: Quick Use Index

    GSP-810 User Manual 5.0 Quick Use Index (1) Full Span : Set CENTER=500MHz, SPAN=100MHz/Div, REF LVL=20dBm. See CENTER FREQ, SPAN, REF LVL(P. 13~15). (2) Max. Hold : SHIFT + TRACE → 1.Max Hold. See TRACE (P. 19). (3) Average : SHIFT + TRACE → 2.Average. See TRACE (P. 19). (4) View the trace : SHIFT + TRACE →...

  • Page 30: Specifications

    GSP-810 User Manual 6.0 Specifications Specifications are subject to change without notice. Refer to Goodwill Instrument Co., LTD. for latest specifications. SPECIFICATIONS FREQUENCY Frequency Range 150kHz ~ 1GMHz ±10ppm, 0 ~ 50ºC, ±2ppm/yr Aging Rate Span Range Zero, 2kHz ~ 100MHz/div in 1-2-5 sequence Phase Noise -77dBc/Hz @ 1GHz 30kHz offset Frequency Resolution...
  • Page 31 GSP-810 User Manual DISPLAY SYSTEM Display Device CRT Display, 8 x 10 graticule, 6-inch waveform screen LCD Display, 4 line x 20 character data screen Display Function Center Frequency Control, Bandwidth, Reference Level, Span Range, Amplitude FUNCTIONS Marker Mode Absolute, relative, PK->marker, marker->center Number of Markers Marker Resolution 0.1dB, 1 kHz...
  • Page 32 GSP-810 User Manual OPDERING INFORMATION GSP-810 1GHz Spectrum Analyzer ACCESSORIES : User manual x 1, Power cord x 1 OPTION Opt. 01 TRACKING GENERATOR (Factory Installed) Frequency Range 150kHz ~ 1GHz Amplitude Range -50dBm ~ 0dBm Amplitude Resolution ±1dB @ 0dBm, 80MHz Amplitude Accuracy ±1dB @ 50MHz Attenuation Accuracy...
  • Page 33 GSP-810 User Manual OPTIONAL ACCESSORIES ATA-001 BNC Antenna (An additional ADP-001 is needed for fitting GSP spectrum analyzers) ATA-002 Near Fied Probe Wideband, 0.1 ~ 1000MHz, Low Noise, 2.9dB Typical RLB-001 Return Loss Bridge RLB Frequency Range 10MHz ~ 1GHz GKT-001 General Kit set ADP-002 : adaptor, SMA(J/F) ~ N(P/M) x 2 ATN-100 : 10dB attenuator, N(J/F) ~ N(P/M) x 1...

  • Page 34: Appendix 1 - Remote Operation (Standard And Option)

    GSP-810 User Manual Appendix 1 - Remote Operation (Standard and Option) With remote operation, the GSP-810 is capable of communicating with a computer over the RS-232 port. No setup is required on the GSP-810 to enable the remote interface. The GSP-810 will monitor the RS-232 port and respond when a PC is connected.
  • Page 35 GSP-810 User Manual GSP810try To install GPS810try, download the GSP-810 Remote display software to get “GSP810try.zip” file. Extract the GSP810try.zip to execute “setup.exe”. It is easy to setup this application by following the prompt instructions. After the successful installation, there will be an icon of GSP810try added onto program files.
  • Page 36 GSP-810 User Manual There are File, Setting, About and Help functions on the display area. File To quit this application, same as Quit in Control Panel. Setting To set the configuration of the display. About Information of this application program. Help Help file of this application program.
  • Page 37 GSP-810 User Manual GSP810 To install GPS810, download the GSP-810 Remote control software to get “GSP810.zip” file. Extract the GSP810.zip to execute “setup.exe”. It is easy to setup this application by following the prompt instructions. After the successful installation, there will be an icon of GSP810 added onto program files.
  • Page 38 GSP-810 User Manual Display Area Edit To edit the limit line. See “Limit” function in following. License To enter the license code. The others are the same as GSP810try. Control Panel There are four divisions of the control functions. They are Basic Function, Marker, Limit, TG Function, Trace Record and General Function.
  • Page 39 GSP-810 User Manual TG Function All TG control functions can be remote control. The control is worked when the TG mode is in use. Clicking TG Mode/SA Mode can toggle the TG and SA control. Trace Record Trace Record offers the ability to store the dynamic trace in memory. It is very convenient to long term recording for tracking the sudden interference or signal.
  • Page 40 GSP-810 User Manual RS-232 (9 Pin Female) Some DTE devices may have female connectors. Also, the RS-232 parts of personal computers may be configured as DCE or DTE devices, with either a 25-pin or a 9-pin connector. Refer to the documentation that accompanies your computer or terminal to determine if it is a DTE or a DCE device.
