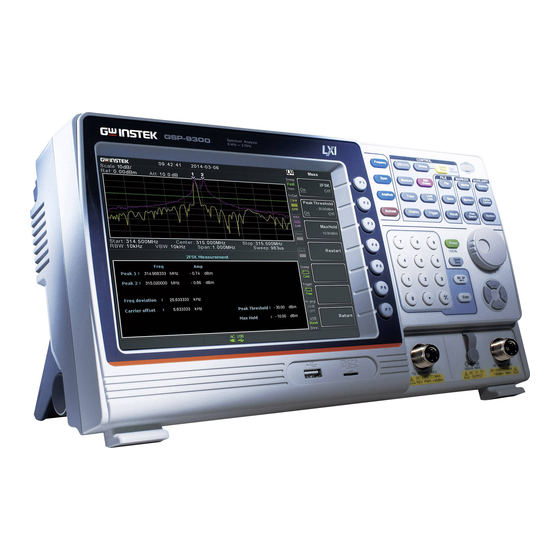

Page 1 Spectrum Analyzer GSP-9300 USER MANUAL GW INSTEK PART NO. 82SP-930A0EB1 ISO-9001 CERTIFIED MANUFACTURER...
Page 2 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company. The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.
Page 3: Table Of Contents
Table of Contents Table of Contents SAFETY INSTRUCTIONS ........... 3 GETTING STARTED ............8 GSP-9300 Introduction ......9 Accessories .......... 12 Appearance .......... 14 First Use Instructions ......26 BASIC OPERATION ............38 Frequency Settings ....... 41 Span Settings ........45 Amplitude Settings ......
Page 4 Interface Configuration ...... 266 FAQ ................281 APPENDIX ..............282 Replace the Clock Battery ....282 Glossary of Acronyms ......283 GSP-9300 Default Settings ....285 Menu Tree .......... 287 GSP-9300 Specifications ....326 GSP-9300 Dimensions ....... 335 Declaration of Conformity ....336...
Page 5: Safety Instructions
SAFETY INSTRUCTIONS AFETY INSTRUCTIONS This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to ensure your safety and to keep the instrument in the best possible condition. Safety Symbols These safety symbols may appear in this manual or on the instrument.
Page 6 GSP-9300 User Manual Safety Guidelines Do not place any heavy object on the General  Guideline instrument. Avoid severe impact or rough handling that  CAUTION leads to damaging the instrument. Do not discharge static electricity to the  instrument.
Page 7 SAFETY INSTRUCTIONS Rating: 10.8V, 6 cell Li-ion battery Battery  Turn off the power and remove the power cord  CAUTION before installing or removing the battery. Disconnect the power cord before cleaning. Cleaning  Use a soft cloth dampened in a solution of mild ...
Page 8 GSP-9300 User Manual Do not dispose this instrument as unsorted Disposal municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Please make sure discarded electrical waste is properly recycled to reduce environmental impact.
Page 9 SAFETY INSTRUCTIONS Power cord for the United Kingdom When using the instrument in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow:...
Page 10 GSP-9300 User Manual ETTING STARTED This chapter provides a brief overview of the GSP-9300, the package contents, instructions for first time use and an introduction to the front panel, rear panel and GUI. GSP-9300 Introduction ............9 Main Features ......................9...
Page 11: Getting Started
GETTING STARTED GSP-9300 Introduction The GSP-9300 builds on the strong feature set of the GSP-930 and significantly increases performance in almost every aspect; making this the most comprehensive and feature-rich spectrum analyzer GW Instek has released. Like the GSP-930, the GSP-9300 features a split window display to view data in spectrum, topographic or spectrographic views.
Page 12 GSP-9300 User Manual Gate sweep  Marker Frequency counter  Two operating modes: Spectrum and Power  Meter mode EMI Pretest functions  SEM measurement  ACPR measurement  OCBW measurement  2FSK measurement  Phase jitter measurement  Harmonics measurement ...
Page 13 GETTING STARTED 8.4 color LCD (800600) Interface  On-screen menu icons  DVI-I video output  RS-232 with RTS/CTS hardware flow control  USB 2.0 with support for USB TMC  LAN TCP/IP with LXI support  Optional GPIB/IEEE488 interface ...
Page 14: Accessories
GSP-9300 User Manual Accessories Standard Part number Description Accessories Region dependant Power cord User manual CD: Includes: User manual, Programming manual, SpectrumShot quick start guide, SpectrumShot software, IVI driver Quick start guide Certificate of calibration Options Option number Description Opt1.
Page 15 GETTING STARTED Software Downloads PC Software for Windows System (SpectrumShot quick start guide, SpectrumShot software) IVI Driver Supports LabView & LabWindows/CVI Programming Android System (“GSP-9300 Remote Control”, available on Google play.)
Page 16: Appearance
GSP-9300 User Manual Appearance GSP-9300 Front Panel Function Main Control File keys display keys keys keys Power key Marker keys G S P - 9 3 0 0 Spectrum Analyzer CONTROL 9 kHz 3 GHz Sweep Fast/ Frequency BW / AVG...
Page 17 GETTING STARTED Sets the span, with options for full Span span, zero span and last span. Sets the amplitude reference level, Amplitude attenuation, pre-amplifier controls, scale and other options for attenuation and scale. Automatically searches the peak Autoset signal with maximum amplitude and displays it with appropriate horizontal and vertical scales.
Page 18 GSP-9300 User Manual The Display key configures the Display windowing mode and basic display properties. Sets the triggering modes. Trigger File utilities options File File Save the trace, state etc., and save Save options. Recall the trace, state etc., and Recall recall options.
Page 19 GETTING STARTED The Preset key will restore the Preset / Local key Preset spectrum analyzer to the Factory LOCAL or User Preset settings. The Preset key will also return the instrument back to local control after it has been in remote control mode.
Page 20 GSP-9300 User Manual SMB port supplies power for DC power supply optional accessories. 500mA MAX. DC +7V DC 7V  OUTPUT 500mA Max.  The numeric Numeric keypad keypad is used to enter values and parameters. It is often used in...
Page 21 GETTING STARTED Rear Panel IF OUT DVI-I USB-B, Power port LAN port socket RS232 port TRIG IN/GATE AC 100 AC 100 240V 240V 60 Hz 60 Hz 82W MAX. 82W MAX. IN port ALARM OUT/ OPEN COLLECTOR REF OUT REF IN Battery cover/ GPIB port Optional...
Page 22 GSP-9300 User Manual Voltage: 10.8V Battery pack Capacity: 5200mAH BNC female reference input. REF IN BNC female reference output: REF OUT 10MHz, 50Ω impedance Security Lock BNC female open collector Alarm ALARM OUT output. BNC female 3.3V CMOS trigger TRIG IN/GATE IN input/gated sweep input.
Page 23 GETTING STARTED Display Attenuation Date Marker Function level and time information LXI icon menu Sweep Scale and settings Reference level Trace/ Detection settings Traces and waveforms Unassigned setting Sweep icons progress Sweep, Trigger, Entry / Pre-amp Frequency/Bandwidth Status icons Message and USB settings area...
Page 24 GSP-9300 User Manual This icon indicates the status of the LXI connection. LXI icon For details, see page 267. Soft menu keys associated with the F1 to F7 Function menu function keys to the right of the display. This icon displays the sweep mode, Sweep Mode as set by the Sweep Mode key.
Page 25 GETTING STARTED Displays the Start, Center and Stop frequencies, Frequency/ RBW, VBW, Span and Sweep settings. Bandwidth settings This area is used to show system messages, errors Entry/Message and input values/parameters. area Main display showing the input signals, traces Trace and (page 81), limit lines (220) and marker positions waveforms (94).
Page 26 GSP-9300 User Manual Status Icon Overview Indicates that the 3G adapter is 3G Adapter installed and turned on. Indicates that the demo kit is Demo Kit installed and turned on. Indicates that the pre amplifier is PreAmp Shown when running on AC power.
Page 27 GETTING STARTED Indicates that the Average function Average is active. Indicates that the system is now External Lock locked and refers to the external reference input signal External trigger signal is being External Trigger used. Trace math is being used. Math Shown when a sequence is running.
Page 28: First Use Instructions
GSP-9300 User Manual First Use Instructions Use the procedures below when first using the GSP-9300 to tilt the stand, insert the battery pack, power up the instrument, set the internal clock, set the wake-up clock, update the firmware and to restore the default settings.
Page 29 GETTING STARTED Inserting the Battery Pack The GSP-9300 has an optional battery pack. Description The battery should be inserted before power is connected to the AC power socket and before the unit is turned on. 1. Ensure the power is off and the AC power is Steps disconnected.
Page 30 3. Press the power button for a few seconds to turn the GSP-9300 on. 4. The power button will turn orange and the GSP-9300 will start to boot up. It takes a little less than 1 minute for the GSP-9300 Note to fully startup.
Page 31 Press and hold the power button for ~4 Forced Power Down seconds until the system turns off and the power button turns blue. The forced power down mode might cause the Note GSP-9300 to perform a longer system check the next time it is powered up.
Page 32 GSP-9300 User Manual Setting the Date, Time and Wake-Up Clock The GSP-9300 can be setup to power-up Description automatically using the Wakeup Clock function. This feature is useful to wake-up the instrument early and eliminate settling time. Example: Set the System Date to July 1, 2014 System Date 1.
Page 33 GETTING STARTED The System Time will be shown at the top of the Note display. Example: Set the GSP-9300 to wake up at 9.00 System Wake-Up Clock 1. Press >Date/Time[F4]>Wake-Up System Clock[F3]>Select Clock[F1]. 2. Press Clock 1[F1] ~ Clock 7[F7] to choose a clock (1 ~ 7).
Page 34 GSP-9300 User Manual Firmware Update The GSP-9300 allows the firmware to be Description updated by end-users. Before using the GSP- 9300, please check the GW Instek website or ask your local distributor for the latest firmware. Before updating the firmware, please check the System version firmware version.
Page 35 GETTING STARTED 5. Press >More 1/2[F7]>Upgrade[F2]. System 6. The spectrum analyzer will automatically find the firmware on the USB flash drive and start to update the firmware. When finished, the message “Upgrade is finished” will be shown at the bottom of the screen followed by “Rebooting”.
Page 36 The following conventions are used throughout the user manual. Read the conventions below for a basic grasp of how to operate the GSP-9300 menu system and front panel keys. The F1 to F7 function keys on the right side of...
Page 37 GETTING STARTED Toggle State & Input Parameter Pressing this menu key will allow you to toggle the state of the function between Auto and Man(ual) state. When in the Man state, the parameter value can be manually edited. Use the numeric keypad to enter the new value or use the scroll wheel to increment/decrement the current value.
Page 38 GSP-9300 User Manual Parameter input Numerical keypad Scroll wheel Preset LOCAL Quick Save BK SP Enter Directional arrow keys Backspace, Enter keys Parameter values can be entered using the numeric keypad, the scroll wheel and occasionally with the arrow keys.
Page 39 GETTING STARTED Use the scroll wheel to alter the current value. Using the scroll Clockwise increases the value, anti-clockwise wheel decreases the value. Use the directional arrows to select discrete Directional arrows parameters or to alter values by a coarser resolution than the scroll wheel.
Page 40 GSP-9300 User Manual ASIC OPERATION Frequency Settings ............41 Center Frequency ..................... 41 Start and Stop Frequency ..................42 Center Frequency Step .................... 43 Frequency Offset ..................... 44 Span Settings ..............45 Span ........................... 45 Full Span ........................46 Zero Span ......................... 46 Last Span ........................
Page 41: Basic Operation
BASIC OPERATION Limiting the Autoset Vertical Search Range ............65 Limiting the Autoset Horizontal Search Range ........... 65 Bandwidth/Average Settings ..........66 Resolution Bandwidth Setting (RBW) ..............66 Video Bandwidth Settings (VBW) ................. 68 VBW/RBW Ratio ....................68 Average Trace ......................69 Average Type ......................
Page 42 GSP-9300 User Manual Show Markers in Table ..................102 Peak Search ......................103 Move Marker to Peak ................103 Move Marker and Peak to Center ............103 Search for Peaks ..................104 Peak Configuration .................. 105 Peak Table ....................... 106 Display ................
Page 43: Frequency Settings
BASIC OPERATION Frequency Settings Center Frequency The center frequency function sets the center Description frequency and centers the display to the center frequency. Operation 1. Press >Center[F1] and enter the Frequency frequency and unit. 0kHz~3GHz Range: Resolution: Default 1.5GHz Display Center frequency Set Center Frequency...
Page 44: Start And Stop Frequency
GSP-9300 User Manual Start and Stop Frequency The start/stop frequency function will set the Description start and stop frequency of the span. Operation 1. To set the start frequency, press > Start Frequency Freq[F2] and enter the frequency and unit.
Page 45: Center Frequency Step
BASIC OPERATION Center Frequency Step The CF Step function sets the step size of the Description center frequency when using the arrow keys or scroll wheel. When the scroll wheel or arrow keys or are used to alter the center frequency, each turn/press will move the center frequency by the step size specified by the CF Step function.
Page 46: Frequency Offset
GSP-9300 User Manual Frequency Offset The Freq Offset function allows you to add an Description offset to the Center, Start and Stop frequencies as well as the marker frequencies. The offset value does not affect displaying the trace on the display.
Page 47: Span Settings
BASIC OPERATION Span Settings Span The Span function will set the frequency range Description of the sweep. The sweep will be centered around the center frequency. Setting the span will alter the start and stop frequencies. Operation 1. Press > Span[F1] and enter the span Span frequency range and unit.
Page 48: Full Span
GSP-9300 User Manual Full Span The Full Span function will set the span to the Description full frequency range. This function will set the start and stop frequencies to 0Hz and 3GHz respectively. Operation 1. Press > Full Span[F2]. Span...
Page 49: Last Span
BASIC OPERATION Display Time domain 0Hz Span Example: Amplitude modulation The measurement functions such as TOI, SEM, Note CNR, CTB, CSO, ACPR, OCBW, phase, Jitter, Harmonics, NdB, P1dB and other measurement functions are not available with the zero span setting: Last Span The last span function returns the spectrum Description...
Page 50: Amplitude Settings
GSP-9300 User Manual Amplitude Settings The vertical display scale is defined by the reference level amplitude, attenuation, scale and external gain/loss. Reference Level The reference level defines the absolute level of Description the amplitude on the top graticule in voltage or power.
Page 51: Attenuation
BASIC OPERATION Attenuation The attenuation of the input signal level can be Description set to automatic (Auto) or manual (Man). When the attenuation is set to Man, the input attenuator can be changed manually in 1dB steps. Operation 1. Press >...
Page 52: Scale/Div
GSP-9300 User Manual Scale/Div Sets the logarithmic units for the vertical Description divisions when the scale is set to Log. Operation 1. Press > Scale/Div[F3] repeatedly to select Amplitude the vertical division units. 10, 5, 2, 1 Unit Range: Display...
Page 53: Scale Type
BASIC OPERATION Scale Type Sets the vertical scale in linear or logarithmic Description units. By default the linear scale is set to volts and the logarithmic scale is set to dBm. Operation 1. Press > More[F7] > Scale Type[F2] and set Amplitude the vertical scale to Log or Lin.
Page 54 GSP-9300 User Manual Display Scale Left The vertical scale is displayed on the left-hand side by default.
Page 55: Vertical Scale Units
BASIC OPERATION Vertical Scale Units Change the vertical units for both linear or Description logarithmic scales. Operation 1. Press > More[F7]>Y Axis[F1] and then Amplitude choose the desired units. 2. The units are changed accordingly. dBm, dBmV, dBuV, Units: Watts, Volts Reference Level Offset The Reference Level Offset function sets an Description...
Page 56: Amplitude Correction
GSP-9300 User Manual Example: Ref: 0dBm Before reference level offset(offset: 0dB) Reference level Ref: 10dBm offset: 10dB After reference level offset (offset: 10dB) Amplitude Correction Amplitude correction adjusts the frequency Description response of the spectrum analyzer by altering the amplitudes at specified frequencies. This...
Page 57: Create A Correction Set
Create a Correction Set The GSP-9300 can create and edit up to 5 sets of Description correction points. The correction points and associated values are all tabulated for ease of use.
Page 58 GSP-9300 User Manual 2. Press Edit[F3]. The GSP-9300 will split into two screens. The top screen will show the waveform and the bottom screen will provide an overview of the correction points. Frequency of Spectrum display selected point Correction points 3.
Page 59: Amplitude Correction On/Off
BASIC OPERATION The frequency of the point values are displayed in the correction table on the bottom display. Correction Table 6. Repeat steps 3 to 5 for any other correction points. 7. To delete the selected point, press Delete Point[F6]. 8.
Page 60: Delete Correction Set
GSP-9300 User Manual 2. Press Correction[F2] and toggle correction on. Deactivate 1. Press > More[F7]>Correction[F3]> Amplitude Correction Correction[F2] to turn correction back off. Delete Correction Set Operation 1. Press > More[F7]>Correction[F3]> Amplitude Correction Set[F1] and choose the correction set to delete.
Page 61 BASIC OPERATION Limitations: No spaces  Only 1~9, A~Z, a~z characters allowed  ABCDE FGHIJ KLMNO Lowercase PQRST Return Name> UVWXY Return Return 5. The filename appears on the bottom of the screen as it is created. Filename Press to confirm the filename. Enter If the file name is not user-defined, a file name will Note...
Page 62: Recall Correction Set From Memory
GSP-9300 User Manual 6. Press Save Now[F7]. 7. The correction set will be saved to the selected location. For more information on Save and Recall, please see page 258. Recall Correction Set From Memory Operation 1. Press > Recall[F1] and choose the recall...
Page 63: Input Impedance
BASIC OPERATION Input Impedance Sets the input impedance to 75Ω or 50Ω. Description Operation 1. Press > More[F7]> More[F7] > Input Z[F1] Amplitude to toggle the input impedance. 75Ω, 50Ω Range: Input Impedance Calibration When an external impedance converter module Description (optional accessory ADP-101) is used to convert the impedance of a device from 50Ω...
Page 64: Using The Built-In Pre-Amplifier
EMI testing signals, to levels that are easy to handle, over the entire frequency range. The built-in pre-amplifier on the GSP-9300 has a nominal gain of 20dB. In the Auto setting, the pre-amplifier will be automatically turned on when the reference level is less than -30dBm.
Page 65 BASIC OPERATION When the pre-amplifier is on, the attenuator Note becomes fixed at 0dB (i.e. Attenuation = 0dB).
Page 66: Autoset
GSP-9300 User Manual Autoset The Autoset function searches the peak signals in two stages (full span & 0Hz - 100MHz limited span), picks the signal peak with the maximum amplitude, and then shows it in the display. Using Autoset Operation 1.
Page 67: Limiting The Autoset Vertical Search Range
BASIC OPERATION RBW, VBW and sweep settings are reset to Auto Note when the Autoset function is used. Limiting the Autoset Vertical Search Range You can set the amplitude floor so that the Description signals lower than the setting will be ignored by the Autoset search.
Page 68: Bandwidth/Average Settings
GSP-9300 User Manual Bandwidth/Average Settings BW/AVG key sets the resolution bandwidth (RBW), video bandwidth (VBW) and averaging functions. The resolution, sweep time, and averaging are in a trade-off relationship, so configuration should be done with care. Resolution Bandwidth Setting (RBW)
Page 69 BASIC OPERATION Operation 1. Press > RBW[F1] and set the RBW to BW/Avg Auto or Man. 2. Set the resolution bandwidth and unit for Man mode. Auto, Man Mode: 1Hz~1MHz (1-3-10 step) Frequency Range(3dB): Frequency Range(6dB): 200Hz, 9kHz, 120kHz, 1MHz If the setting is in Auto mode, using the scroll Note wheel or arrow keys will automatically set the RBW...
Page 70: Video Bandwidth Settings (Vbw)
GSP-9300 User Manual Video Bandwidth Settings (VBW) VBW (Video Bandwidth) defines the Description smoothness of the trace on the display. Combined with RBW, VBW defines the ability to sort out the target signal from surrounding noise or adjacent peaks. Operation 1.
Page 71: Average Trace
BASIC OPERATION Display VBW/RBW Ratio Signals that are masked by the noise floor level should have a ratio of less than 1 to smooth the noise out. Signals with strong frequency components should use a ratio equal to or greater than 1. Average Trace The Average function averages the trace for a Description...
Page 72 GSP-9300 User Manual Example: Average:Off Number of traces that have been averaged Average: On (20)
Page 73: Average Type
BASIC OPERATION Average Type The Average Type function determines how the Description GSP-9300 determines the average value. LOG Average: Averages the trace points on a logarithmic scale. Volt Average: Averages the amplitudes of the trace points on a linear voltage scale.
Page 74: Emi Filter
GSP-9300 User Manual EMI Filter The built-in EMI filter is used for specific Description measurement situations such as EMI average detection, where a higher level of sensitivity is required compared to the standard configuration. When turned on, the RBW is set to -6dB, indicated by an asterisk (*).
Page 75: Sweep
BASIC OPERATION Sweep The GSP-9300 has a number of sweep options including setting the sweep time, the sweep run mode(continuous, single) and sweep mode (fast, slow). The GSP-9300 also has gated sweep modes. Sweep Time Sweep time defines the length of time the Description system takes to "sweep”...
Page 76: Single Sweep
GSP-9300 User Manual Single Sweep The single sweep function is used to perform a Description single sweep. When Sweep Single is pressed the GSP-9300 will perform a single sweep and then stop. Operation 1. Press > Sweep Single[F2] to put the Sweep spectrum analyzer into single sweep mode.
Page 77: Continuous Sweep
BASIC OPERATION Continuous Sweep The GSP-9300 has two main sweeping run Description modes: single and continuous. Use the continuous mode to have the sweep constantly updated. Operation 1. Press > Sweep Cont[F3] to put the Sweep spectrum analyzer into continuous sweep mode.
Page 78 GSP-9300 User Manual 3. The end of the gate time is determined by the set gate length. 4. The gated sweep should not be positioned at either end of the transmission. period RF Burst Trigger Gate Delay Length Example: The diagram above demonstrates the...
Page 79: Using The Gated Sweep Mode
BASIC OPERATION Using the Gated Sweep Mode 1. Connect a trigger signal (3.3v CMOS) to the Connection GATE IN port on the rear panel. Trigger RBW must be equal to or greater than 10kHz for Note the gated sweep mode function to be available. Operation 1.
Page 80 GSP-9300 User Manual Example: The example below shows the spectrum of an FSK modulated signal when gated sweep mode is off. The example below shows the same signal with the gated sweep timed to sweep when only the desired frequency is output.
Page 81: Sweep Control / Sweep Mode
BASIC OPERATION Sweep Control / Sweep Mode The Sweep Control function and the Sweep Description Sweep Mode key toggles the Sweep Mode from Mode Normal to Fast. The Fast setting speeds up the signal processing and the display update rate to increase the overall sweep time.
Page 82 GSP-9300 User Manual 42.2ms 655us 127ms 1.96ms 63.8ms 1.31ms 500k 6.88ms 6.88ms 200k 22.9ms 22.9ms 100k 9.83ms 9.83ms 76.4ms 76.4ms 219ms 219ms 109ms 109ms 710ms 710ms 1.98s 1.98s 1.32s 1.32s 2.65s 2.65s 5.3s 5.3s 2.65s 2.65s...
Page 83: Trace
BASIC OPERATION Trace The GSP-9300 is able to set the parameters of up to 4 different traces on the display at once. Each trace is represented by a different color and is updated with each sweep. Selecting a Trace Each trace (1, 2, 3, 4) is represented by a Description different color.
Page 84 GSP-9300 User Manual The maximum or minimum Hold Max/ points are maintained for the Hold Min selected trace. The trace points are updated each sweep if new maximum or minimum points are found. The Hold Max setting also has a threshold setting.
Page 85: Trace Math
BASIC OPERATION 2. Select the trace type: Clear & Write[F2] Max Hold[F3] Min Hold[F4] View[F5] Blank[F6] 3. If Max Hold[F3] was selected, set the threshold level. Blank Traces, 2, 3 and 4 are set to by default. Note Trace Math Performs trace math from two traces (TR1, TR2) Description and stores the result in the currently selected...
Page 86 GSP-9300 User Manual Adds a reference to the TR1 LOG Offset trace Operation 1. Press > More[F1]>Trace Math[F1]. Trace 2. Press TR1[F1] and select the first trace source: Trace 1,2, 3, 4* TR1: 3. Press TR2[F2] and select the second trace...
Page 87: Trace Detection Mode
BASIC OPERATION Display Icon The Math icon is displayed when trace math is turned on. Trace Detection Mode Each time the spectrum analyzer samples data Description for each point on the trace, a number of samples are usually taken for each point, known as a sample bucket.
Page 88 GSP-9300 User Manual Detects negative peak signals Peak- by selecting the lowest peak value for each point from each bucket. This mode is not recommended for amplitude measurement. Randomly selects a value from Sample the bucket sample. Useful for noise signals.
Page 89 BASIC OPERATION Below is a flow chart diagram showing the Auto Detector Selection Method Detector selection for the Auto mode. Detector (Auto mode) Are any windows Peak+ set to Topographic? Is Phase Jitter Sample measurement on? Is (trace) Average Is Average Type set to Power? Sample Average...
Page 90 GSP-9300 User Manual 3. The display will return to the Trace menu. Display Icon Normal Average icon Peak+ icon Peak - icon Sample icon...
Page 91: Trigger
BASIC OPERATION Trigger The Trigger function sets the signal conditions upon which the spectrum analyzer triggers captured waveforms, including frequency, amplitude, and delay. An external trigger signal, instead of the default internal signal, may be used as required for special conditions.
Page 92 GSP-9300 User Manual Determines the polarity of the Parameters Video Edge: video trigger. Positive: The signal voltage exceeds the video level at the trigger frequency. Negative: The signal voltage is lower than the video level at the trigger frequency. The trigger voltage level.
Page 93: Activate External Trigger
BASIC OPERATION Set the trigger back to Free Run to disable the Note video trigger. Activate External Trigger The external trigger is used when an external Description trigger signal is input into the rear panel TRIG IN port. The external trigger signal can be configured as positive or negative edge.
Page 94: Selecting The Trigger Mode
GSP-9300 User Manual The trigger will revert back to the Free Run mode if Note any parameter settings are changed, such as the span or amplitude settings. Selecting the Trigger Mode In free run mode all signals are captured and Description the trigger conditions are not used.
Page 95: Set The Trigger Delay Time
BASIC OPERATION Set the Trigger Delay Time Sets the delay time between when the analyzer Description triggers and when the analyzer begins to capture the signal. Delay time range: 1ns to 1ks Operation 1. Press >Trigger Delay[F4] and set the Trigger trigger delay time.
Page 96: Marker
Marker A Marker shows the frequency and amplitude of a waveform point. The GSP-9300 can activate up to 6 markers or marker pairs simultaneously as well as up to 10 peak markers in the marker table. The marker table helps editing and viewing multiple markers in a single display.
Page 97: Activating A Marker
BASIC OPERATION Activating a Marker There are two basic marker types, normal markers and delta markers. Normal markers are used to measure the frequency/time or amplitude of a point on the trace. Delta markers are used to measure the difference between a reference point and a selected point on the trace.
Page 98: Move Marker Manually
GSP-9300 User Manual Move Marker Manually Operation 1. Press > Select Marker[F1] and select a Marker marker number. 2. Use the left/right arrow keys to move the marker one grid division. 3. Use the scroll wheel to move the marker in fine increments.
Page 99: Activate Delta Marker
BASIC OPERATION Operation 1. Press > Select Marker[F1] and select a Marker marker number. 2. Press and select a marker position: Marker Mkr>Center[F1] Mkr>Start [F2] Mkr>Stop[F3] Mkr>CF Step[F4] Mkr>Ref Lvl[F5] Activate Delta Marker Delta markers are marker pairs that measure Description the difference in frequency/time and amplitude between a reference marker and a delta marker.
Page 100: Move Delta Marker(S)Manually
GSP-9300 User Manual Move Delta Marker(s)Manually Move Delta or 1. Press > Delta[F4]> MoveRef[F2] to move Marker Reference Marker the reference marker. 2. Press > Delta[F4]> MoveDelta[F3] to move Marker the Delta marker. 3. Move the selected marker in the same fashion as a normal marker, see page 96 1.
Page 101: Marker Functions
BASIC OPERATION Marker Functions Marker Noise The noise marker function calculates the Description average noise level over a bandwidth of 1Hz, referenced from the marker position. Operation 1. Press > Select Marker[F1] and select a Marker marker number. 2. Press [F2] to turn the selected marker on. 3.
Page 102: Frequency Counter
GSP-9300 User Manual Frequency Counter The frequency counter function is used to make Description accurate frequency measurements. Operation 1. Press > Select Marker[F1] and select a Marker marker number. 2. Press [F2] to turn the selected marker on. 3. Press Normal[F3] and then position the marker to the desired location.
Page 103: Move Marker To Trace
BASIC OPERATION Move Marker to Trace The Marker Trace function moves the selected Description marker to any of the currently active traces. Operation 1. Press > Select Marker[F1] and select a Marker marker number. 2. Press [F2] to turn the selected marker on. 3.
Page 104: Show Markers In Table
GSP-9300 User Manual Show Markers in Table The GSP-9300 has a Marker Table function to Description show all the active markers and measurements at once. Operation 1. Press > More[F7]>Marker Table[F2] and Marker turn the marker table on. 2. The display will split into two screens. The...
Page 105: Peak Search
BASIC OPERATION Peak Search Move Marker to Peak Description key is used to find trace peaks. Peak Search Operation 1. Press > Select Marker[F1] and select a Marker marker number. 2. Press >Peak Search[F1]. The marker will Peak Search move to the highest signal peak. 3.
Page 106: Search For Peaks
GSP-9300 User Manual Search for Peaks Description key can be used to search for a Peak Search number of different peaks. Searches for next highest Peak Search Next Peak: peak visible on the display. Searches for the next peak to Next Peak Right: the right of the marker.
Page 107: Peak Configuration
BASIC OPERATION Example: Next Peak Right Example: Next Peak Left Peak Configuration There are two peak search configuration Description options: Peak Excursion and Peak Threshold. Peak Excursion sets the Peak Excursion: minimum value above the peak threshold for which peaks will be detected.
Page 108: Peak Table
GSP-9300 User Manual Peak threshold sets the Peak Threshold: minimum threshold level for the analyzer to detect peaks. Any value above the Peak Threshold + Peak Excursion will be detected as a peak. Peak detection area Peak Excursion Peak Threshold Operation 1.
Page 109 BASIC OPERATION 2. Press Peak Sort[F2] and set the sorting type: Sort by frequency in Freq: ascending order. Amp: Sort by amplitude in ascending order. 3. Press Peak Table[F1] to turn the peak table on. 4. The display splits in two. The bottom screen shows the peak table with the peak marker ID, X-axis position and amplitude.
Page 110: Display
GSP-9300 User Manual Display The Display key configures the basic display settings as well as setting up the display mode (spectrum, spectrographic, topographic) and the split screen modes. Adjusting the LCD Brightness The LCD brightness levels can be adjusted to Description three pre-set levels.
Page 111: Setting A Display Line (Reference Level Line)
2. Set the display line level and unit. Example: Display line Display line set at -50dBm Using the Video Out Port The GSP-9300 has a dedicated DVI terminal to Description output the display to an external monitor. The video output is always on. 800 x 600 (fixed) Output resolution 1.
Page 112: Setting The Display Mode
GSP-9300 User Manual Setting the Display Mode The GSP-9300 has three different display modes Description for viewing: spectrum, spectrograph and topographic. It is also possible to view the spectrum with the spectrographic or topographic views using a split screen. Default display mode.
Page 113 BASIC OPERATION Example: Spectrogram The Spectrogram view shows signals in both the frequency and time domain. The X-axis represents frequency, the Y-axis represents time and the color of each point represents the amplitude at a particular frequency & time (Red = high dark blue = low). Each new trace is shown at the bottom of the display and older traces are pushed up toward the top of the display until they are removed.
Page 114 GSP-9300 User Manual Topographic The topographic view shows the frequency of events. The topographic view is useful for observing smaller signals that have been overpowered by stronger signals or to easily observe intermittent events. Color is used to represent the frequency of an event. Red represents a high frequency of occurrence, while blue represents events that occur rarely.
Page 115: Spectrogram And Topographic Markers
BASIC OPERATION Topographic +Spectrum Displays both topographic and spectrum views of the signal. Spectrogram and Topographic Markers The Spectrogram and Topographic display Description view can also use markers and delta markers to mark the frequency and amplitude of points of interest.
Page 116 GSP-9300 User Manual 1. When in the Topographic view (single or split Operation screen), press Topographic Marker and turn on. 2. When in the Spectrographic view (single or split screen), press Spectrogram Marker and turn 3. To set the reference marker, press Ref.[F2]>X Axis[F1] and set x-axis position (frequency).
Page 117: Split Spectrum View
BASIC OPERATION Example Reference Marker Delta marker Ref. marker and Delta marker positions/measurements Spectrogram view is shown as an example. Split Spectrum View The split spectrum view is able to view two Description different sweep ranges on the display at the same time using a split screen view.
Page 118 GSP-9300 User Manual Operation 7. Press >Window Setup[F1]>Split Display Spectrum[F2]>Active Win[F1] to activate the upper split screen. 8. Pressing Active Win.[F1] will toggle the sweep between the upper and lower screen. 9. Press Alternate Sweep[F2] for the analyzer to alternate the sweep between the upper and lower screen at the end of each sweep.
Page 119: System Settings
BASIC OPERATION System Settings System Information The System Information displays the following: Description Serial Number Installed Options Version: Calibration Date: Software Firmware File sys DNS Hostname MAC Address LXI Password Wordlist Core Operation 1. Press >System Information[F1] to bring up System a list of the system information.
Page 120: Set The System Language
GSP-9300 User Manual 3. Press Clear Error Queue[F6] to clear the error messages from the list. Set the System Language The GSP-9300 supports a number of languages. Description The system language sets the soft menu keys to the selected language.
Page 121: Display The Date And Time On The Screen
Operation 1. Press >Date/Time[F4]>Clock[F4] and turn System the clock display on or off. Using the Wake-Up Clock The GSP-9300 has a wake-up clock to allow the Description spectrum analyzer to automatically turn on at a set time. Operation 1. Press >Date/Time[F4]>Wake-Up Clock[F3]...
Page 122: Alarm Output
GSP-9300 User Manual Alarm Output Allows the pass/fail output to be output via the Description ALARM OUT port. Output: Open collector Alarm Out Operation 1. Press >Alarm Output[F6] and toggle the System ALARM OUT port on or off.
Page 123: Preset
BASIC OPERATION Preset The Preset function loads either factory default states or the user- defined states – depending on the Preset configuration settings. Using the Preset Key → from page 121  Save the User Preset Settings→ from page 121 ...
Page 124: Preset Type Settings
GSP-9300 User Manual Preset Type Settings Description Each time the key is pressed, a set of Preset preset configuration settings are loaded. The preset configuration settings can be either the factory default settings or the user-defined settings. Operation 1. Press >Pwr On/Preset[F5]>Preset Type[2]...
Page 125: Advanced Operation
ADVANCED OPERATION DVANCED OPERATION Measurement ..............125 Channel Analysis Overview .................. 125 ACPR ......................127 OCBW ....................... 130 AM/FM Analysis ....................132 AM Analysis ....................132 AM Pass Fail Testing ................136 FM Analysis ....................138 FM Pass Fail Testing ................141 AM/FM Demodulation ................
Page 126 GSP-9300 User Manual Creating a Limit (Point by Point) ................ 220 Creating a Limit (from Trace Data) ..............222 Creating a Limit (from marker data) ..............223 Delete Limit Line ..................224 Pass Fail Testing ..................225 Sequence ............... 227 Editing a Sequence ...................
Page 127: Measurement
ADVANCED OPERATION Measurement This section describes how to use the automatic measurement modes. The GSP-9300 includes the following measurements: ACPR → from page 127  OCBW → from page 130  AM Analysis→ from page 132  FM Analysis → from page 138 ...
Page 128 GSP-9300 User Manual The frequency Parameters Channel bandwidth bandwidth the target channel occupies. Range: Between 0Hz~3GHz (0Hz excepted) The frequency distance Channel Space between each main channel. Range: Between 0Hz~3GHz The frequency Adjacent channel bandwidth the adjacent bandwidth 1 & 2 channels occupy.
Page 129: Acpr
ADVANCED OPERATION ACPR Adjacent channel power refers to the amount of Description power leaked to the adjacent channel from the main channel. This measurement is a ratio of the main channel power to power in the adjacent channel. Example Main CHBW Offset 1 Offset 2...
Page 130 GSP-9300 User Manual Main CH ADJCH1 ADJCH2 ADJCH3 Channel power results 3. Press > Channel Analysis[F1]>ACPR Measure Setup[F1]> and set the following: Main CHBW[F1] Set the bandwidth of the main channel. Main CH H Limit[F2] Set the low limit for the main channel.
Page 131 ADVANCED OPERATION Set the adjacent channel ADJCH Offset[F4] offset. Set the adjacent channel ADJCH HLimit[F5] high limit. ADJCH LLimit[F5] Set the adjacent channel low limit. 2. Repeat the above steps for the other adjacent channels, if needed. Move Channels 1. Press >...
Page 132: Ocbw
GSP-9300 User Manual OCBW Occupied bandwidth measurements are used to Description measure the power of the occupied channel as a percentage to the power of the channel. Example OCBW CH BW Operation: 1. Press > Channel Analysis[F1]>OCBW[F4] Measure Setting up the and turn OCBW on.
Page 133 ADVANCED OPERATION CH BW Channel power and total power results 3. Press OCBW Setup[F3] to enter the OCBW setup: Set the channel CHBW[F1] bandwidth. Set the channel space CH SPC[F2] between main channels. OCBW%[F3] Set the % of the OCBW to CHBW.
Page 134: Am/Fm Analysis
GSP-9300 User Manual AM/FM Analysis AM Analysis When amplitude modulation is turned on, the Description input signal is centered on the center frequency and the span is automatically set to zero-span. Current, Min, Max Measurement AM Depth: items Current, Min, Max Mod.
Page 135 ADVANCED OPERATION AM waveform AM modulation measurements 4. Press Setup[F2]>IF Bandwidth[F1] and set the Intermediate frequency bandwidth. Set with adequate bandwidth to accommodate  spectrum contained in the carrier. 5. Press LPF[F2] to set the low pass filter frequency, alternatively the frequency can be set to bypass: AM Signal Frequency (Hz) Selectable bandwidth of LPF (Hz)
Page 136 GSP-9300 User Manual 6. Press Time Axis [F3] to set horizontal axis parameters: Sets the starting time on Ref. Value[F1] the time axis. Shifts the waveform X Ref. Pos[F2] number of grid subdivisions. Sets the grid division Scale/Div[F3] scale when Auto Scale is Off.
Page 137 ADVANCED OPERATION 9. Press AF Trigger[F5]>Trigger Setup[F1] to set the Operation: trigger triggering conditions: configuration Edge Slope[F1] Sets the trigger to rising or falling edge. Sets the triggering mode: Trigger Mode[F2] Nor.: Normal trigger Sgl.: Single trigger Cont.: Continuously trigger Trigger Level[F3] Sets the trigger level as a percentage of the depth.
Page 138: Am Pass Fail Testing
GSP-9300 User Manual The MAX and MIN measurements are held until Note higher or lower values are found. To reset the MAX and MIN measurements, press > Measure Demod[F2]>AM Analysis[F1]>Min/Max Reset[F3]. AM Pass Fail Testing The Limit Edit function puts a pass limit on the Description AM depth, carrier offset and carrier power.
Page 139 ADVANCED OPERATION 3. The AM Measurement area in the bottom half of the screen will now include Pass/Fail indicators for the AM depth, carrier offset and carrier power. Fail: Pass: Example Pass/Fail judgments...
Page 140: Fm Analysis
GSP-9300 User Manual FM Analysis When frequency modulation is turned on, the Description input signal is centered on the carrier frequency and the span is automatically set to zero-span. Current, Min, Max Freq. Deviation: Measurement items Current, Min, Max Mod. Rate:...
Page 141 ADVANCED OPERATION 4. Press Setup[F2]>IF Bandwidth[F1] and set the Intermediate frequency bandwidth. (10kHz, 30kHz, 100kHz, 300kHz, 1MHz, ) Set with adequate bandwidth to accommodate  spectrum contained in the carrier. 5. Press LPF[F2] to set the low pass filter frequency, alternatively the frequency can be set to bypass: FM Signal Frequency (Hz) Selectable bandwidth of LPF (Hz)
Page 142 GSP-9300 User Manual Toggles auto-scaling Auto Scale[F4] on/off. 7. Press Deviation Axis[F4] to set deviation (vertical) parameters: Offsets the reference Ref.Value[F1] position (in frequency). Ref.Pos[F2] Sets the reference position of the waveform on a vertical grid subdivision (1:10). Sets the vertical grid Scale/Div[F3] division scale.
Page 143: Fm Pass Fail Testing
ADVANCED OPERATION Disables the trigger, this FreeRun[F1] is the default setting. Sets the start time for the Start Time[F3] x-axis for the FM waveform in the top-half of the screen. Sets the stop time for the Stop Time[F4] x-axis for the FM waveform in the top-half of the screen.
Page 144 GSP-9300 User Manual If the measured carrier Carr. Offset[F2] offset is above this limit, it will be judged as Fail. If the measured carrier Carr. Power[F3] power is above this limit, it will be judged as Fail. 2. Press Pass/Fail[F6] and turn Pass/Fail on.
Page 145: Am/Fm Demodulation
ADVANCED OPERATION AM/FM Demodulation The GSP-9300 has a convenient AM/FM Description demodulation function to tune into AM or FM broadcast signals and listen to the demodulated baseband signals using the ear phone out socket. 1. Set the center frequency to the desired FM/AM Operation: carrier frequency.
Page 146: 2Fsk Measurement
GSP-9300 User Manual ASK Measurement The ASK function can be used to analyze ASK Description signals. It can either display the demodulated waveform or the symbols encoded in the signal. Manchester or Miller line codes can also be decoded. Current, Min, Max...
Page 147 ADVANCED OPERATION Wave view Symbol view ASK measurements 4. Press Symbol Rate[F2] and set the Symbol rate. The symbol rate determines the number of symbols  for a unit of time. 5. To toggle the top half of the screen between the Display View Symbol view or Wave view, press View[F4]>Symbol[F1] or View[F4]>Wave[F2].
Page 148 GSP-9300 User Manual 7. Press Depth Axis[F6] to set depth (vertical) parameters: Offsets the reference Ref.Value[F1] position as a percentage of the vertical scale/div. Sets the reference Ref.Pos[F2] position of the waveform on a vertical grid subdivision (1:10). Sets the vertical grid...
Page 149 ADVANCED OPERATION 9. Press Return[F7] to return to the previous menu and to set the sweep options: Sets the sweep to Single Sweep[F5] or Cont. When set to Single the Sweep Single[F6] soft-key must be pressed to initiate a sweep. Sweep Single[F6] Initiates a single sweep when Sweep[F5] is set to...
Page 150 Manchester Encoding Definition: Manchester encoding encodes a “1” or “0” on each transition in a data period. The Manchester definition used for the GSP-9300 uses a low to high transition to indicate “0”, and a high to low transition to indicate “1”.
Page 151 ADVANCED OPERATION Operation: 1. Press > Demod[F2]>ASK[F4]> Measure configuration More[F7]>Limit[F45] and set the limits. If the measured depth is AM Depth[F2] above this limit, it will be judged as Fail. If the measured carrier Carr. Offset[F3] offset is above this limit, it will be judged as Fail.
Page 152 GSP-9300 User Manual FSK Measurement The FSK function can be used to analyze FSK Description signals. It can either display the demodulated waveform or the symbols encoded in the signal. Manchester or Miller line codes can also be decoded. Current, Min, Max...
Page 153 ADVANCED OPERATION Wave view Symbol view FSK demodulation measurements 4. Press Symbol Rate[F2] and set the Symbol rate. The symbol rate determines the number of symbols  for a unit of time. 5. Press Freq.Deviation[F3] to set the frequency Frequency Deviation deviation band for the FSK signal: 10kHz, 30kHz, 100kHz,...
Page 154 GSP-9300 User Manual Shifts the waveform X Ref. Pos[F2] number of grid subdivisions. Sets the grid division Scale/Div[F3] scale when Auto Scale is Off. Toggles auto-scaling Auto Scale[F4] on/off. 8. Press Deviation Axis[F6] to set deviation (vertical) parameters: Offsets the reference Ref.Value[F1]...
Page 155 ADVANCED OPERATION Sets the trigger delay Trigger Delay[F5] time: 0 to 1ks Turns FreeRun mode off Action Now[F6] and uses the user- defined trigger settings. See the trigger section on page 89. 10. Press Return[F7] to return to the previous menu and to set the sweep options: Sets the sweep to Single Sweep[F5]...
Page 156 Manchester Encoding Definition: Manchester encoding encodes a “1” or “0” on each transition in a data period. The Manchester definition used for the GSP-9300 uses a low to high transition to indicate “0”, and a high to low transition to indicate “1”.
Page 157 ADVANCED OPERATION Operation: 1. Press > Demod[F2]>FSK[F5]>More[F7]> Measure configuration Limit[F4] and set the limits. If the measured Freq. Deviation[F2] deviation is above this limit, it will be judged as Fail. If the measured carrier Carr. Offset[F3] offset is above this limit, it will be judged as Fail.
Page 158 GSP-9300 User Manual 2FSK Measurement 2FSK is a binary FSK (frequency shift keying) Description form of modulation. 2FSK is commonly used to transmit data where an FSK modulated signal is composed of two different frequencies, one frequency represents the “1” data and the other frequency represents the “0”...
Page 159 ADVANCED OPERATION 3. The display splits into two screens. The top shows the trace with peak markers for the first and second FSK frequencies (carrier and hop frequency). The bottom screen shows the 2FSK measurement results in real time. Peak 1, Peak 2 2FSK measurement 4.
Page 160: 2Fsk Pass Fail Testing
GSP-9300 User Manual 2FSK Pass Fail Testing The Limit Edit function puts a pass limit on the Description frequency deviation and carrier power and a high/low limit on the amplitude of each peak. 1Hz ~ 400kHz Freq. Deviation: Measurement Range 1Hz ~ 400kHz Carr.
Page 161 ADVANCED OPERATION 3. The 2FSK area in the bottom half of the screen will now include Pass/Fail indicators for the frequency depth, carrier offset, high limit and low limit. Fail: Pass: Example Pass/Fail judgments...
Page 162: Phase Jitter Measurement
GSP-9300 User Manual Phase Jitter Measurement Phase Jitter refers to the amount of phase Description fluctuation and can be used to evaluate stability of a signal in the time domain. The start frequency with Parameters Start Offset: respect to the center frequency.
Page 163 ADVANCED OPERATION Start Stop offset offset Phase jitter measurements 3. Press Start Offset[F2] to set the start offset: (0Hz ~ ½ span freq) Offset: 4. Press Stop Offset[F3] to set the stop offset: (0Hz ~ ½ span freq) Offset: The phase jitter measurements are strongly tied to Note the RBW and VBW.
Page 164: Spectrum Emission Mask Overview
SEM measurements are often carried out for a number of different wireless standards. For 3GPP, the GSP-9300 supports BS (base station) and UE (user equipment) testing standards for both FDD (frequency-division duplexing) and TDD (time-division duplexing) modes.
Page 165 ADVANCED OPERATION power. Used to define the span of Chan Span: the main channel when measuring the channel power. Sets the resolution RBW: bandwidth for the main channel when measuring the in-channel power. The total power of the carrier Total Pwr Ref: that is used as the reference for calculating the offset power.
Page 166 GSP-9300 User Manual lock Abs Stop to the Abs Start level limit. Sets the relative level limit at Rel Start: the Start Freq for the selected offset number. Sets the relative level limit at Rel Stop: the Stop Freq for the selected offset number.
Page 167 ADVANCED OPERATION 2500~2570MHz 2620~2690MHz VIII 880~915MHz 925~960MHz 1749.9~1784.9MHz 1844.9~1879.9MHz 1710~1770MHz 2110~2170MHz 1427.9~1452.9MHz 1475.9~1500.9MHz 698~716MHz 728~746MHz XIII 777~787MHz 746~756MHz 788~796MHz 758~768MHz Reserved Reserved Reserved Reserved XVII Reserved Reserved XVIII Reserved Reserved 830~845MHz 875~890MHz 832~862MHz 791~821MHz 1447.9~1462.9MHz 1495.9~1510.9MHz 1850~1915MHz 1930~1995MHz *for FDD, referenced from ETSI: 3GPP TS 25.101 version 10.2.0 Release 10 3GPP TS 25.104 version 10.2.0 Release 10...
Page 168 GSP-9300 User Manual 3GPP-FDD BS For the FDD configuration, different limits can by chosen based on the total channel power, P. The default value for Δfmax is 12.5MHz. Δfmax can be user-defined. The channel span is set to 5MHz. Note: A, B, C, D, E denote offsets 1 to 5, respectively.
Page 169 ADVANCED OPERATION...
Page 170 GSP-9300 User Manual For P<31, two additional power limits (shown below) Additional Max Out. Pwr can be selected via the option for Home BS applications: (The default value for Δfmax is 14.5 MHz. Δfmax can be user-defined) Unit: MHz 6≤P≤20 12.5 ≤E<...
Page 171 ADVANCED OPERATION 3.5 ≤B<7.5 -35~-39dBc -55.8dBm 1MHz 7.5 ≤C<8.5 -39~-49dBc -55.8dBm 1MHz 8.5 ≤D<12.5 -49~-49dBc -55.8dBm 1MHz 3GPP-FDD UE Additional requirements for 3GPP-FDD UE. Additional Unit: MHz Additional Requirements Bands 2.5 ≤A<3.5 -15dBm 30kHz II, IV, X 3.5≤B<12.5 -15dBm 1MHz Unit: MHz Additional Band V...
Page 172 GSP-9300 User Manual Unit: MHz 31≤P<39 2.5 ≤A<2.7 P-53dBm 30kHz 2.7≤B<3.5 P-53~P-65dBm 30kHz 3.5≤C<7.5 P-52dBm 1MHz 7.5≤C<12 P-56dBm 1MHz Unit: MHz P≤31 2.5 ≤A<2.7 -22dBm 30kHz 2.7≤B<3.5 -22 ~ -34dBm 30kHz 3.5≤C<7.5 -21dBm 1MHz -25dBm 1MHz 7.5≤D<12 *referenced from ETSI: 3GPP TS 25.102 version 10.2.0 Release 10...
Page 173 ADVANCED OPERATION 3GPP-TDD BS The channel span: 7.68 Mcps 7.68Mcps: 10MHz. Unit: MHz P≥43 5 ≤A<5.2 -17dBm 30kHz 5.2≤B<6 -17 ~ -29dBm 30kHz 6≤C<24.5 -16dBm 1MHz Unit: MHz 39≤P<43 5≤A<5.2 -17dBm 30kHz 5.2≤B<6 -17 ~ -29dBm 30kHz 6≤C<15 -16dBm 1MHz 15≤D≤24.5 P-59dB 1MHz...
Page 174 GSP-9300 User Manual 3GPP-TDD UE The channel span: 3.84Mcps: 5MHz. 1.28Mcps: 1.6MHz. 7.68Mcps: 10MHz. Note: A, B, C, D, E denote offsets 1 to 5, respectively. Unit: MHz 3.84Mcps 2.5 ≤A<3.5 -35~-50dBc 30kHz 3.5≤B<7.5 -35 ~ -39dBc 1MHz 7.5≤C<8.5 -39~-49dBc 1MHz 8.5≤D<12.5...
Page 175 ADVANCED OPERATION 802.11g The channel span: ERP-OFDM/DSSS-OFDM : 18MHz ERP-DSSS/ERP-PBCC/ERP-CCK: 22MHz Note: A, B, C, D denote offsets 1 to 4, respectively. Here the default value of “f” is 40MHz (ERP-OFDM/ DSSS-OFDM) or 25MHz (ERP-DSSS/ ERP-PBCC/ ERP-CCK). This can be user-defined. Unit: MHz ERP-OFDM/ 9 ≤A<11...
Page 176 GSP-9300 User Manual Unit: MHz CH BW 19 ≤A<21 0~-20dBc 100kHz 40MHz 21≤B<40 -20~-28dBc 100kHz 40≤C<60 -28~-45dBc 100kHz 60≤D<f -45dBc 100kHz *reference: IEEE Std 802.1n-2009 802.16* The channel span: CH BW 20MHz: 19MHz CH BW 10MHz: 9.5MHz Note: A, B, C, D denote offsets 1 to 4, respectively.
Page 177: Spectrum Emission Mask Testing
Spectrum Emission Mask Testing For spectrum emission mask testing, the GSP- Description 9300 has pre-defined testing parameters for 3GPP, 802.11x and 802.16. The GSP-9300 also allows you to perform user-defined SEM testing. Operation: 1. Press > SEM[F5]>SEM[F2] and turn SEM...
Page 178 GSP-9300 User Manual Absolute limit line SEM measurements 1. Press Setup[F1]>User Define[F6]to set SEM User Defined measurement to user defined parameters. Parameters 2. Press Meas Type[F1] choose between TotalPwrRef[F1] or PSDRef[F2]. 3. Press Ref. Channel[F2] and set the following: Sets the channel ChanIntegBW[F1] integration bandwidth.
Page 179 ADVANCED OPERATION 5. Press Offset/Limit[F3] to set the offset parameters: Select which offset to SelectOffset[F1] edit. Toggles the selected [F2] offset on/off. StartFreq[F3] Sets the start frequency of the selected offset. StopFreq[F4] Sets the Stop Frequency of the selected offset. RBW[F5] Sets the RBW of the selected offset.
Page 180 GSP-9300 User Manual Sets the relative stop Rel Stop[F5] level for the selected offset. Man: Allows a user- defined Abs Stop level. Couple: Sets the Rel Stop level to the Rel Start level. 7. Press Fail Mask[F6] to set the Fail Mask...
Page 181 ADVANCED OPERATION 2. Press Ref. Channel[F2] and set the following: Sets the resolution RBW[F3] bandwidth. 3. All other reference channel settings are pre- defined. 4. Press Return[F7] to return the previous menu. 5. Press Offset/Limit[F3]>Duplexing Mode[F1] and choose FDD or TDD duplexing: 6.
Page 182 GSP-9300 User Manual Selects the operating Add.limits[F4] bands for FDD duplexing: None BandII BandIV BandV BandX BandX11 BandXIII BandXIV Allows you to view the MinOffset/ Limit Value[F5] parameters of each of the offsets, including start/stop frequency, RBW, Abs Start/Stop and Rel Start/Stop.
Page 183 ADVANCED OPERATION 3. Press Offset/Limit[F3] to view the parameter values of each of the offsets, including Start and Stop Frequency, RBW, Rel Start and Stop...
Page 184: Third Order Intermodulation Distortion (Toi)
GSP-9300 User Manual Third Order Intermodulation Distortion (TOI) Third order intermodulation distortion Description measurement is used to calculate the TOI products caused by two signals that are close together in frequency in a non-linear system. Both the upper and lower third order intercept points (IP3) are calculated.
Page 185 ADVANCED OPERATION Example Δf Limit Order Upper Base Lower Base Upper Order Lower Operation: 1. Press > TOI[F6]>TOI[F1] and turn TOI Measure Any other measurement mode will automatically be  disabled. 2. The display splits into two screens. The top shows the trace with markers in the upper and lower base frequencies and the upper and lower 3...
Page 186: Cnr/Cso/Ctb Measurement
GSP-9300 User Manual 3. Press Reference[F2] to set the reference to the upper or lower base frequencies. icon will be displayed next to the selected upper or lower reference. 4. Press Limit[F3] and set the limit for the upper and lower 3 order intermodulation product amplitude.
Page 187 ADVANCED OPERATION ΔMarker: User defined delta marker position. frequency, amplitude Measurement Visual Carrier items amplitude difference Δ f frequency difference between visual carrier and noise marker. Example Visual carrier marker Noise Δ1 marker Color subcarrier, Δf aural carrier Channel spacing To next main channel Operation: 1.
Page 188 GSP-9300 User Manual the previous menu. 5. Press CNR[F2] and turn CNR on. Any other measurement mode will automatically be  disabled. Ensure the aural and color subcarriers are disabled  before CNR is turned on. 6. The display splits into two screens. The top shows the trace with the visual carrier marker and the noise marker.
Page 189 ADVANCED OPERATION Ensure the aural and color subcarriers are turned Note off when making CNR measurements.
Page 190: Composite Second Order (Cso)
GSP-9300 User Manual Composite Second Order (CSO) Composite Second Order measurement Description calculates the difference in amplitude between the carrier signal and the composite second order beat. CSO CH SP: The channel space. Parameters Visual Carrier: frequency, amplitude Measurement Channel Space: frequency...
Page 191: Composite Triple Beat (Ctb)
ADVANCED OPERATION Visual carrier CSO beat marker marker CSO measurements 4. Press CSO CH SPC[F3] to set the channel space. 0~3GHz Range: 5. Press Channel Move Down[F4] or Channel Move Up [F5] to move to next or previous channel. Composite Triple Beat (CTB) Composite triple beat measurement calculates Description the difference in amplitude between the visual...
Page 192 GSP-9300 User Manual Example Visual carrier marker CTB Beat marker Channel spacing To next main channel Operation: 1. Press > More[F7]>CNR/CSO/CTB[F1]> Measure Setup[F1]> CTB[F3]>Return[F7] to choose CTB measurement and return to the previous menu. 2. Press CTB[F2] and turn CTB on.
Page 193 ADVANCED OPERATION 4. Turn off the visual carrier signal from the input and press the key on the front panel. Enter 5. A second trace will appear to mark the CTB amplitude. This will place a marker ( 2 ) on the second trace and ...
Page 194: Harmonic Measurements
GSP-9300 User Manual Harmonic Measurements The Harmonic function can be used to easily Description measure the amplitude of the fundamental frequency and its harmonic frequencies up to the 10 harmonic. The function can also measure the amplitude relative to the fundamental (dBc) and the total harmonic distortion (THD).
Page 195 ADVANCED OPERATION Any other measurement mode will automatically be  disabled. 2. The display splits into two screens. The top shows a bar graph with fundamental measurement (1) and the each of the harmonic frequencies (2~ 10). The bottom screen shows the amplitude, dBc and THD results.
Page 196: N Db Bandwidth
GSP-9300 User Manual N dB Bandwidth N dB bandwidth measurements are used to Description measure the frequency bandwidth that covers a specified amplitude (N dB) from the top of the peak. Example N dB N dB Operation 1. Press > More[F7]>NdB Bandwidth[F3]>...
Page 197 ADVANCED OPERATION NdB BW N dB BW Measurement 3. Press NdB[F2] to set the NdB amplitude: 0.1dB ~ 80.0 dB Amplitude: The NdB bandwidth measurements are strongly Note tied to the RBW and VBW.
Page 198: P1Db Measurement
GSP-9300 User Manual P1dB Measurement The P1dB compression point describes the Description point at which the gain of an active DUT is 1dB less than the ideal linear gain (or small signal gain) relative to the input. Example response Input power (dBm) Connect the DUT to the RF input.
Page 199 ADVANCED OPERATION 2. The display splits into two screens. After setup has been completed (see step 3), the top shows the trace (yellow) with the ideal response in red. The P1dB measurement is shown in green. The bottom screen shows the P1dB measurement results in real time.
Page 200 GSP-9300 User Manual -99.00dB ~ 99.00 dB Gain: 6. To help smooth the actual frequency response and measure the P1dB compression point more accurately, press Average[F4] to set the average number. This is especially useful if Start is set around -50dB.
Page 201: P1Db Normalization
ADVANCED OPERATION P1dB Normalization The normalize function is used to compensate Description for any loss from a long cable that may cause inaccurate measurements. This function relies on the DUT being directly connected to either the TG or the RF input. The position of the long cable in relation to the DUT (input or output) will affect the P1dB measurement.
Page 202 GSP-9300 User Manual Example 1 Location = Prev Normalized DUT response DUT response with line loss before DUT input Input power (dBm) Example 2 Location = Post Normalized DUT response DUT response with line loss after DUT output Input power (dBm)
Page 203 ADVANCED OPERATION 2. Press > More[F7]>P1dB[F4] Measure >Normalize[F3]. 3. Press Execute Norm[F3]. This will normalize the cable loss. The cable loss will be shown in the Execute Norm icon. 4. Next connect the DUT either directly to the TG or directly to the RF input. The location of the DUT will determine whether the cable loss is normalized before or after the DUT.
Page 204: Emc Pre-Compliance Testing
GSP-9300 User Manual EMC Pre-Compliance Testing The GSP-9300 EMC Pretest function is a comprehensive suite for performing, debugging or estimating radiated or conducted emissions as well as the ability to troubleshoot immunity tests. The EMC Prestest function is divided into 5 main functions: EMI Test, EMI-M Probe, EMI-E Probe, Voltage Probe and EMS Test.
Page 205: Emi Test
ADVANCED OPERATION EMI Test The EMI Test function is used to greatly Description simplify the process of EMI pretesting for radiated or conductive emissions testing. You only need to specify the testing frequency, standard used and any corrective factors. In addition, the peak table function can be used and the results can be shown logarithmically.
Page 206 GSP-9300 User Manual The following is a basic overview of radiated Radiated tests. There are a number of different standards, Emissions Tests each that have specific test configurations and methods. Most radiated tests are performed in an anechoic chamber or in an open area, where...
Page 207 ADVANCED OPERATION For conducted emissions testing, a LISN (line Conducted Emissions impedance stabilization network) is required. A LISN is used for two main reasons. Firstly, it is used to filter any noise from the mains power that is fed to the DUT. Secondly, it filters RF noise from the DUT that would normally be coupled to the mains power and passes it to the spectrum analyzer.
Page 208 As with the Horizontal correction set, this correction set is configured for use with GW Instek antennas only. Other factor[F4] Load or create a custom correction set to use with a third party antenna.
Page 209 ADVANCED OPERATION 5. Press Recall Limit[F3] to add EN55022A/B or Recall Limit FCC A/B limit lines to the display. The limit line that is produced is matched to the selected test frequency range. No limit line None EN5502A Euro commercial standard EN5502B Euro residential standard American non-residential standard FCC A...
Page 210 GSP-9300 User Manual Example Limit line Standard Trace Pass/Fail and alarm indicator 8. Press Peak Table[F4] to turn on the peak table function. The peak table function will split the display and add peak markers to the top ten peaks and list them at the bottom.
Page 211: Near Field Testing ~ Emi M Probe
PCB traces with high current. The 3m and 10m simulated results are based on Note the probe factors of the GW Instek EMI M probe antennas, and as such can only be used with a GW Instek M probe.
Page 212 GSP-9300 User Manual Example Setup With the DUT turned on, scan the DUT with the EMI-E probe parallel to the DUT. The response of the probe from the DUT may fluctuate based on a number of different factors:  The position of the probe ...
Page 213 ADVANCED OPERATION Create, edit or select a correction set Other to use. This option is useful if a third factor[F4] party M-field antenna is used. See page 54 for details on creating a correction set. This option will not allow you to simulate the 3m or 10m radiated emissions.
Page 214: Near Field Testing ~ Emi E Probe
GSP-9300 User Manual Example Limit line Standard Trace Pass/Fail and alarm indicator Near Field Testing ~ EMI E Probe The EMI E Probe function allows you to Description perform near field testing of electric fields (E- fields) so that you can narrow down sources of strong electric fields before compliance testing.
Page 215 ADVANCED OPERATION Example Setup With the DUT turned on, touch the EMI-E probe anywhere on one of the PCB traces, PCB pins, I/O cable pins or one of the other exposed conductors. Block RF In Probe When using an EMI-E probe, please make use of a Warning DC block or other limiter to protect the RF input of the spectrum analyzer.
Page 216 GSP-9300 User Manual For traces of approx. 6cm 6cm trace[F5] For traces of approx. 4cm 4cm trace[F6] No correction is used. For I/OCablePIN None[F1] For cables of approx. 2m 2m cable[F2] For traces of approx. 1.5m 1.5m cable[F3] For traces of approx. 1m 1m cable[F4] For traces of approx.
Page 217: Voltage Probe
LISN. This function is only to be used with the GW Instek EMI Voltage Probe (GW Instek part number PR-01). To perform this test, touch the voltage probe to Testing Example the Line, Neutral or Ground lines of the DUT’s...
Page 218 GSP-9300 User Manual GW Instek and should be user-sourced. The voltage probe should only be used with Warning general electric devices connected to mains power (AC100~240V). When testing, care must be taken to avoid conditions are not prone to lightning, flooding or other dangerous conditions.
Page 219 ADVANCED OPERATION Example Trace...
Page 220: Ems Test
The EMS Test function allows you to debug Description immunity (susceptibility) of a DUT using the GW Instek EMI-M probes. The test function is designed to output a frequency sweep of a user- defined range with a user-defined signal strength.
Page 221 ADVANCED OPERATION 4. Press Source Strength and set the source output power. -50dBm ~ 0dBm Power: dBm, W Units: 5. Press EMS Source[F1] and turn the source on to start testing. 6. Check to see that the DUT is operating correctly when the signal is output from the probe.
Page 222: Limit Line Testing
Limit Line [F1] and choose a limit line. Limit line: 2. Press Point by Point[F2]. The GSP-9300 is split into two screens. The top screen shows the trace and limit lines and the bottom screen shows the limit line table.
Page 223 ADVANCED OPERATION Spectrum display Limit Line Table 3. Press Point Num[F1] and choose a point number to edit with the number pad (must start at #1). 4. Press Frequency[F2] and set the frequency of the point. 5. Press Limit[F3] and set the amplitude level of the point.
Page 224: Creating A Limit (From Trace Data)
[F1] and choose a limit line. Limit line: 2. Press Trace Data to Limit Line[F3]. The GSP-9300 is split into two screens. The top screen shows the trace and limit lines and the bottom screen shows the limit line table.
Page 225: Creating A Limit (From Marker Data)
[F1] and choose a limit line. Limit line: 2. Press Mkr Data to Limit Line[F4]. The GSP-9300 is split into two screens. The top screen shows the trace and limit lines and the bottom screen shows the limit line table.
Page 226: Delete Limit Line
GSP-9300 User Manual to edit (must start at #1). 4. Press Limit Offset[F3] and set the offset level for the point. This will only create an offset for the currently  selected point, not all the points. 5. Press Mkr Data to Point[F2].This adds the currently active marker’s position to the...
Page 227: Pass Fail Testing
ADVANCED OPERATION Pass Fail Testing Before pass/fail testing can begin, limit lines for Description the upper and lower limits must first be saved. See page 220, 222 & 223 to save limit lines. Operation 1. Press >Pass/Fail Test. Limit Line 2.
Page 228 GSP-9300 User Manual Display Icon The alarm icon is shown at the bottom of the display whenever testing is turned on. Example Limit line Pass/Fail inidicator At least one limit line (high or low) must be turned Note on to enable testing.
Page 229: Sequence
ADVANCED OPERATION Sequence The Sequence function records and plays back user-defined macros. There are up to 5 sequences available in repeat or single running mode, with up to 20 steps each. Delays and pauses can also be introduced into a sequence to view measurement results during a sequence.
Page 230 GSP-9300 User Manual Start Edit/ Sequence Main display Stop Edit icon function menu Sequence Editor window Up to 20 steps can be added to each sequence. Add a Step Each panel operation is recorded as a step. After each panel operation is performed, press...
Page 231 ADVANCED OPERATION The arrow keys can be used to move the cursor to Note Sequence the desired step when in the menu. The delay function adds a delay between steps. Add Delay to Sequence 1. Press Delay Time[F2]> and enter the delay time. 100ms ~ 10s Range: 2.
Page 232 GSP-9300 User Manual Inserts another sequence into the current Insert Sequence sequence. 1. Press Do Sequence[F4]> and select a sequence to insert into the current sequence. The selected sequence will be inserted as a step.  The current sequence cannot be inserted into Note itself.
Page 233: Running A Sequence
ADVANCED OPERATION After a sequence has been edited (and stopped) Save Current Sequence it can be saved. 1. Press >Save Sequence[F4] > to save the Sequence sequence. 2. The selected sequence will be saved. Delete Current 1. Press >Delete Sequence [F5] > to delete Sequence Sequence the current sequence.
Page 234: Tracking Generator
The tracking generator is a factory installed option that generates a sweep signal with its sweep time and frequency range matching the GSP-9300. The amplitude is maintained at a constant value over the entire frequency range. This is useful for testing the frequency response of a DUT.
Page 235 ADVANCED OPERATION the set TG Level and increases/decreases linearly to the set Power Sweep level at the end of the sweep. -5dB to +5dB Range: Normalize the Tracking Generator The normalize function subtracts the trace after Background each sweep with a reference trace. The resultant trace is added to a normalized reference level.
Page 236 GSP-9300 User Manual 4. Press Norm. Ref. Position[F3] offsets the normalized trace on the screen. 10~0 grid divisions. Range: (top to bottom)
Page 237 ADVANCED OPERATION 5. Press Norm.[F5] to toggle the normalized data on/off. Alternatively, press Exe. Norm.[F1] to perform the normalization again. Trace without normalization Trace with normalization on and the reference position set to the 5 grid. Response of the DUT...
Page 238 GSP-9300 User Manual The normalized data will be turned off Note automatically if any X-axis related parameters are changed or if the TG output level is changed. The warning message, “Execute Normalization again!” will appear under these circumstances.
Page 239: Power Meter
Data Logging Power Meter Measurements → from page 239  Activating Power Meter Mode Connect the power meter (PWS-06) to the front Connection panel USB A port on the GSP-9300. Connect the RF source to the power meter. USB A PORT PWS-06...
Page 240 GSP-9300 User Manual Power meter bar Power meter measurement Data log of power measurements 3. Press Power Unit[F2] and choose the unit: dBm, W Unit 4. Press Frequency[F3] choose measurement frequency (use the number pad): 1MHz~6200MHz Frequency 1MHz Resolution: 5. Press Sensor Mode[F4] to choose measurement...
Page 241 ADVANCED OPERATION Fail Icon: 7. Press More[F6]>Trigger[F1] to toggle between a free run (internal) trigger and an external trigger. Free, Ext Trigger: 3.3V CMOS Ext trigger input: 8. Press More[F6]> MAX/MIN HOLD[F2] to toggle the MAX/MIN hold measurements on/off in the power meter bar.
Page 242 GSP-9300 User Manual 3. Data Source[F3] will automatically be set to Power State. 4. Press PMET Record Option[F4] and set the recording options: Sets the recording time for Record Stop[F1]: automatic data logging: 00 :00 :00 (continuous) or 00 :00 :01 ~ 23 : 59: 59...
Page 243 ADVANCED OPERATION ABCDE FGHIJ KLMNO Lowercase PQRST Return Name> UVWXY Return Return 8. The filename appears on the bottom of the screen as it is created. Filename Press to confirm setting the filename. Enter If the file name is not user-defined, a file name will Note be automatically created in the following format: File name: type_data source_file number.file...
Page 244 GSP-9300 User Manual To manually stop the recording, press Record Stop Recording Stop[F2].
Page 245: Demo Kit
Frequency shift keying → from page 245.  Amplitude Shift Keying Connect the demo kit to the front panel USB A Connection port on the GSP-9300. Connect the demo kit output to the RF input on the GSP-9300. USB A PORT...
Page 246 GSP-9300 User Manual 4. Press Baudrate[F5] and select the baud: 4800, 9600, 20000 Baud 5. Press Output Mode[F6] and select gated, normal mode or fixed data. The gated and normal modes will output random data while the fixed data option will output one of 5 pre-defined data sequences.
Page 247 ASK on. See page 144 for setting details. Frequency Shift Keying Connect the demo kit to the front panel USB A Connection port on the GSP-9300. Connect the demo kit output to the RF input on the GSP-9300. USB A PORT...
Page 248 GSP-9300 User Manual 4. Press Deviation[F4] and select the frequency deviation: 25MHz, 50MHz Deviation 5. Press Baudrate[F5] and select the baud: Baud 4800, 9600, 20000 6. Press Output Mode[F6] and select gated, normal mode or fixed data. The gated and normal...
Page 249 ADVANCED OPERATION FSK modulation, frequency=315MHz, Deviation=25MHz, Baudrate=4800, Output Mode=Norm. 1. Press >Center[F1] and set the center Frequency frequency to 315MHz. 2. Press >Span[F1] and set the span to Span 200kHz. 3. Press >Demod[F2]>FSK[F5] and toggle Measure FSK on. See page 150 for setting details.
Page 250: File
File Overview The File function is used for basic file related operations including navigation, sorting copying and deleting. The GSP-9300 has a number of different file formats for trace data, limit lines, amplitude correction, sequences and other panel operations. File source and destination locations (local, USB or micro SD) can also be chosen with the file function.
Page 251 FILE File Type Overview The GSP-9300 has 16MB of local memory to Local save data to. The GSP-9300 can save to an external USB flash memory drive. 1.1/2.0 (FAT32 and USB Type: NTFS formatted) The GSP-9300 can save to a micro SD card.
Page 252 GSP-9300 User Manual File Types The file types are listed in order as shown in the Overview File menu. State data contains the state of the each of the State panel operations: Frequency Limit Line   Span Sequence ...
Page 253 FILE Correction data contains the following Correction correction (line) data: Point number  Frequency value of point  Gain offset of point  Unit  The sequence files contain the sequence number Sequence and step operations for that sequence. This data is not designed to be user editable.
Page 254 GSP-9300 User Manual Internal memory Local[F1]: USB[F2]: Front panel USB memory. SD Card[F3]: Micro SD card. 3. The up/down arrow keys or the scroll wheel can be used to move up/down the file list. 4. The left/right arrow keys can be used to move to the next/previous page of files in the file list.
Page 255 FILE Files can be sorted in ascending order by either Sort Files name or by date. By default, files are sorted by name. 1. Press Sort By[F3] and choose the sorting type: Sort by alphabetical order Name: Sort by file creation date Date Image files can be previewed on the screen by Preview Image...
Page 256 GSP-9300 User Manual Copy Files Files from local memory can be copied to Description external memory such as a USB flash drive or micro SD card and vice versa. Insert either a USB flash drive or micro SD card Connect External into the front panel ports.
Page 257 FILE Selecting files 1. Press >File Explorer. File 2. Select a file from local or external memory. 3. Press Move to[F7]. 4. Press Media [F1] and select the destination to move to (local, USB, SD card). 5. Press Move Now [F2]. 6.
Page 258 GSP-9300 User Manual 1. To disable the prompt to confirm the deletion of Delete Warning a file, press Delete Warning[F2] and select an option: The user won’t be prompted Don’t Ask to confirm when a file is deleted. Will prompt for the user to confirm whether to delete the file or not.
Page 259 FILE Limitations: No spaces  Only 1~9, A~Z, a~z characters allowed  ABCDE FGHIJ KLMNO Lowercase PQRST Return Rename> UVWXY Return Return Cancel renaming the file 5. The filename appears in the list as it is renamed. Filename 6. Press to confirm the renaming of the file.
Page 260 GSP-9300 User Manual Save Files Any function settings or configurations that Description have been applied to the spectrum analyzer can be saved using the key. Save To save files on a USB flash drive or micro SD Connect External Memory card, insert the appropriate device into the front panel ports.
Page 261 FILE For screen shots: Normal: Screen shot is saved as is Save Toner: inverts the image file color to reduce ink when printing. Limit line 1~5 For limit line: Correction data 1~5 For correction: Sequence 1~5 For sequence: For power meter: Power state* *see page 239 for details.
Page 262 GSP-9300 User Manual Only 1~9, A~Z, a~z characters allowed  ABCDE FGHIJ KLMNO Lowercase PQRST Return Name> UVWXY Return Return Cancel naming the file 8. The filename appears on the bottom of the screen as it is created. Filename 9. Press to confirm the naming of the file.
Page 263 FILE If the file name is not user-defined, a file name will Note be automatically created in the following format for data files: File name: Type_data source_XX.file extension The image file names will be automatically created in the following format: File name: QuickJpgX.jpg The X parameter is incremented each time the same file type is created.
Page 264 GSP-9300 User Manual See page 249 for details on file types: State data State: Trace data Trace: Limit line data Limit Line: Correction data Correction: Sequence files Sequence: 3. Press Destination[F3] to select the destination for the file type if possible:...
Page 265 FILE Quick Save Description key is a hot key to save files with a Quick Save single press. The type of file that is saved is pre-configured with the key. Save By default, the the key will save screen Quick Save shots to the local memory or to an external flash drive (if inserted).
Page 266 GSP-9300 User Manual The file name will be automatically created in the Note following format for data files: File name: Type_data source_XX.file extension The image file names will be automatically created in the following format: File name: QuickJpg_XX.jpg The XX parameter is incremented each time the same file type is created.
Page 267: Remote Control
EMOTE CONTROL This chapter describes basic configuration of IEEE488.2 based remote control. For a command list, refer to the programming manual, downloadable from the GW Instek website, www.gwinstek.com Interface Configuration ..........266 Configure to USB Remote Interface ..............266 Configure GPIB Interface ..................266 Configure the LAN and LXI Interface ...............
Page 268: Interface Configuration
GSP-9300 User Manual Interface Configuration Configure to USB Remote Interface Type A, host PC side configuration connector Rear panel Type B, slave GSP side connector 1.1/2.0 (full speed/high speed) Speed USB TMC (USB T&M class) USB Class 1. Connect the USB cable to the rear Panel operation panel USB B port.
Page 269: Configure The Lan And Lxi Interface
No loop or parallel connection  Configure the LAN and LXI Interface The GSP-9300 is a class C LXI compliant instrument. The LXI specification allows instrumentation to be configured for remote control or monitoring over a LAN or WLAN. The GSP-9300 also supports HiSlip.
Page 270 GSP-9300 User Manual Settings 1. Press >More[F7]>RmtInterface[F1]> System LAN[F2]>LAN Config[F1] to set the LAN settings: Sets the IP address. IP Address[F1] Subnet Mask[F2] Sets the subnet mask. Default Gateway[F3] Sets the default gateway. Sets the DNS server address DNS Server[F4]...
Page 271 REMOTE CONTROL Limitations: No spaces  Only 1~9, A~Z, a~z characters allowed  ABCDE FGHIJ KLMNO Lowercase PQRST Return Rename> UVWXY Return Return Cancel password Menu tree to enter the password 3. The password appears on the bottom of the screen as it is created.
Page 272: Configure The Wlan Interface
The WLAN settings operate using any standard 3G USB modem. For remote locations, using a 3G modem allows you to access the GSP-9300 web server or to control the GSP-9300 via remote control commands. To use the GSP-9300 as a server using a 3G...
Page 273 REMOTE CONTROL Connect the 3G USB modem to the front panel Connection USB A port. The 3G status icon will appear when the 3G USB adapter is connected. When it is first connected it will be grayed-out to indicate that it is connected but not activated.
Page 274 GSP-9300 User Manual WLAN settings Display Icon The 3G USB icon turns green when a successful connection has been made. The password on the LXI webpage can be set Set Password from the spectrum analyzer. The password is shown in the system information.
Page 275 Slip Port number. HiSlip port 4880 It may be necessary to reset the LAN Reset LAN configuration settings before the LAN can be used. 9. Press >More[F7]>RmtInterface System Config[F1]>LAN Reset[F3] to reset the LAN. 10. The GSP-9300 will now automatically reboot.
Page 276 GSP-9300 User Manual Each time the LAN is reset, the default Note password is restored. Default password: lxiWNpwd...
Page 277: Configure Rs232C
REMOTE CONTROL Configure RS232C The RS232C interface is used for remote control Background with a PC. RS232C Baud Rate Stop bit: 1 (fixed) Configuration Parity: none (fixed) Data bit: 8 (fixed) settings Connect an RS232C cable from Connection the PC to the rear panel RS232 port.
Page 278 Serial number, and Firmware version in the following format. GWINSTEK,GSP9300,XXXXXXXX,T.X.X.X.X  Manufacturer: GWINSTEK Model number : GSP9300 Serial number : XXXXXXXX Firmware version : T.X.X.X.X For further details, please see the programming Note manual, available on the GW Instek web site @ www.gwinstek.com.
Page 279: Lxi Browser Interface And Function Check
The Welcome Page lists all the LXI and Welcome Page LAN/WLAN configuration settings as well as the instrument identification. The instrument identification can be disabled from this page. The LXI icon on the GSP-9300 display will Note flash when the Identification setting is turned on.
Page 280 GSP-9300 User Manual The View & Modify Configuration allows you View & Modify to modify the LAN settings from the browser. Configuration Press the Modify Configuration button to modify any of the configuration files. A password must be entered to alter the settings.
Page 281 [Note: password is case sensitive.] The Get Image page allows the browser to Get Image remotely capture a screenshot of the GSP-9300 display. For further details, please see the programming Note manual, available on the GW Instek web site @ www.gwinstek.com.
Page 282: Gpib/Lan/Usb Control Function Check
Please use the National Instruments Functionality check Measurement & Automation Controller software to confirm GPIB/LAN functionality. See the National Instrument website, http://www.ni.com for details. For further details, please see the programming Note manual, available on the GW Instek web site @ www.gwinstek.com.
Page 283: Faq
• The performance does not match the specification I connected the signal but it does not appear on screen. Run Autoset and let the GSP-9300 find the best display scale for your target signal. Press the Autoset key, then press Autoset[F1].
Page 284: Appendix
The system clock and wake-up clock keep time Background using a button battery. Battery type: CR2032, 3V, 210mAh 1. Turn off the GSP-9300 and Connection remove the battery cover and battery (if connected). 2. Replace the battery with the same type and...
Page 285: Glossary Of Acronyms
APPENDIX Glossary of Acronyms Acronym Definition 2FSK Binary Frequency Shift Keying 3GPP Generation Partnership Project ACPR Adjacent Channel Power Ratio Base Station Center Frequency CH BW Channel Bandwidth CH SPC Channel Space Carrier to Noise Ratio Composite Second Order Composite Triple Beat DANL Displayed Average Noise Level Def.
Page 286 GSP-9300 User Manual Power Spectral Density P1dB One-dB compression point Resolution Bandwidth Reference Spectrum Emission Mask SINAD Signal to Noise and Distortion Ratio Time-Division Duplexing Tracking Generator Third Order Intercept User Equipment Up Link Video Bandwidth...
Page 287: Gsp-9300 Default Settings
APPENDIX GSP-9300 Default Settings The following default settings are the factory configuration settings for the spectrum analyzer (Function settings/Test settings). Frequency Center Frequency: 1.5GHz Start Frequency: 0Hz Stop Frequency: 3GHz CF Step: Auto Frequency Offset: 0Hz Span Span: 3GHz Amplitude Reference level: 0.00dBm...
Page 288 GSP-9300 User Manual Meas All measurement functions: Off EMC Pretest All EMC test functions: Off Limit Line Limit lines: Off Pass/Fail Test: Off Trigger Free Run Trigger Condition: Video Trigger Mode: Norm. Trigger Delay: 50ms File Type: All Sort by: Name...
Page 289: Menu Tree
APPENDIX Menu Tree Amplitude Amplitude Ref Level Y Axis> -30 dB Attenuation Scale Type 10dB dBmV Auto Scale/Div Correction> dBuV RefLvlOffset Auto Scale Watts 0.000dB Scale Preamp Volts Auto Bypass Scale Pos. Return Left Cent. Right More More Select Point Num Input Z Correction>...
Page 290 GSP-9300 User Manual Y Axis> dBmV dBmV dBuV Watts Volts dBuV dBmV dBuV...
Page 291 APPENDIX Frequency, Span, Autoset, BW Avg, Sweep Frequency Span Autoset Center Freq Span Autoset 1.2345GHz 1.2345GHz Amp. Floor Start Freq Full Span -80.00dBm 1.2345GHz Auto Span Stop Freq Zero Span 3.000000MHz 1.2345GHz Auto CF Step 1.00000MHz Last Span Auto Freq Offset 0.00Hz BW/Avg Sweep...
Page 292 GSP-9300 User Manual Limit Line Limit Line Edit Limit Line> Point Num Limit 1 Select Limit> Pass/Fail Frequency Point by Point> Limit 2 Test> Trace Data to Limit 0.00dBm Limit 3 Limit Line> Mkr Data to Limit 4 Limit Line>...
Page 293 APPENDIX Trigger, Sequence Trigger Video Edge Free Run Video> Trigger Ext. Edge Video Level Condition> 10.00dBm Video Trigger Mode Trigger Freq Nor. Sgl. Cont. 1.12345M Hz Trigger Delay 50.0 ms Action Now Return Return Only for when “Wait to go” is used in the sequence Sequence Sequence>...
Page 294 GSP-9300 User Manual Trace Trace Select Trace> TR1> Trace Math> Trace 1 Trace 2 Detection> TR2> Clear & Write Normal Trace 2 Trace 2 Auto Max Hold Power Diff Trace 3 -130.0dBm TR1-TR2 Log Diff Min Hold -50.00dBm Trace 4...
Page 295 APPENDIX Display Display Active Win. Window Setup> Spectrum Upper Lower LCD Brightness Alternate Split Spectrum> Sweep LCD Backlight Spectrogram Display Line -50.00dBm Topographic Spectrogram Spectrum Topographic Spectrum Return Return Spectrogram Topographic X Axis X Axis Marker Marker Y Axis Y Axis Ref.>...
Page 296 GSP-9300 User Manual Marker Marker Select Marker> Marker 1 Delta Marker 2 Move Ref Normal Marker 3 Move Delta Move Pair Delta> Marker 4 Span Move Pair Function> Marker 5 Center All Off Marker 6 More Return Marker Trace> Freq Counter...
Page 297 APPENDIX Peak Search, Marker Peak Search Peak Track Peak Table Peak Search Peak Excursion Peak Sort Mkr>Center 10.00dB Freq Peak Threshold Next Peak -50.00dBm Next Peak Right Next Peak Left Peak Table> Min Search More Return Return Marker Mkr>Center Mkr>Start Mkr>Stop Mkr>CF Step Mkr>RefLvl...
Page 298 GSP-9300 User Manual System System System Show Error Power On User Preset Information message Last Preset Error message> Prev Page Preset Type> Factory Preset Language> Save User Next Page English Preset Date/Time> Pwr On/preset> Alarm Output Clear Error queue More...
Page 299 APPENDIX From: System> Lan guage Eng lish 簡体中文繁體中文 Pусский 日本語 Return From: System>Date/ Time>Wake-Up Clo ck E dit> Sele ct Clo ck> Clock 1 Monda y State Clock 2 Tuesday Hour Clock 3 Wedne sda y Minute Clock 4 Thursday...
Page 300 GSP-9300 User Manual From: System>More 1/2> Rmt Interface Config> GPIB Addr IP Address LAN Config 0.0.0.0 Subnet Mask LAN> WLAN Config 0.0.0.0 Default LAN Reset LXIPassword Gateway 0.0.0.0 RS232 Hi SLIP Port DNS Server Baud Rate> 115200 4880 USB Mode...
Page 301 APPENDIX From: System>More 1/2> Rmt Interface Config>LAN>LXIPassword ABCDE FGHIJ KLMNO PQRST UVWXY Lowercase Return Return Return...
Page 302 GSP-9300 User Manual Option Control Option Control Tracking Exe. Norm. Generator> Norm. TG Level Power Meter> Ref. Level 0.00dBm 0.000dB Norm. TG Lvl Offset Ref. Position 0.000dB TG Lvl Step Norm Demo Kit> 0.000dB Auto Power Sweep 0.000dB Normalize> Return...
Page 303 APPENDIX From: Option Control>Demo Kit Demo Kit Modulation> Frequency> 315MHz Deviation> 25kHz Baudrate> 4800 Output Mode Gated Return Normal 4800 25kHz 315MHz Gated 9600 50kHz 433MHz Seq1 20000 868MHz 00110101 Seq2 10100101 Seq3 00010010 Seq4 11011100 Seq5 10101010...
Page 304 GSP-9300 User Manual File File File Explorer> Media> Media> Local Local Local Local Type> Copy Now Move Now Sort by SD Card Name Date Copy to> Delete> Rename> Move to> Return Return...
Page 305 APPENDIX From: File>Type From: File>Delete Sequence Delete Now .seq Delete Warning State Power Meter Don’t Ask Ask .sta .pmet Trace .tra Screen .jpg Limit Line Correction .cor More 1/2 Return 2/2 Return From: File>Rename ABCDE FGHIJ KLMNO PQRST UVWXY Lowercase Return Return Return...
Page 306 GSP-9300 User Manual Save (Mode = Power Meter) See: Save>Save To Save Save To> Record Stop Hour State Local 00: 00: 00 Type> Record Step Minute State Data Source> Second Screen Local State PMET Record Option> Name> Record Stop Record Now...
Page 307 APPENDIX From: Save>Save To Register> Register 1 Local Register 2 Register 3 SD Card Register 4 Register 5 Register 6 Return Return...
Page 308 GSP-9300 User Manual (Mode = Spectrum) See: Save>Save To Save Save To> State Trace Local Type> Trace Trace + State Trace Data Source> Screen Trace 1 Format> Line Line Trace Name> Correction Sequence Save Now Power Meter See: File>Rename Local State...
Page 309 APPENDIX Recall (Mode = Power Meter) Recall Recall From> Register> Register 1 Local Type> Local Register 2 State Destination> Register 3 Local State Recall Now SD Card Register 4 Register 5 Register 6 Return Return According to type: State Local State .sta...
Page 310 GSP-9300 User Manual (Mode = Spectrum) Recall Recall From> State Register> Register 1 Local .sta Type> Trace Local Register 2 Trace .tra Destination> Register 3 Trace 1 Recall Now Line Line SD Card Register 4 .lmt Correction Register 5 .cor...
Page 311 APPENDIX Measure See: Meas>Demod Measure Channel Main CHBW ACPR Setup> CNR/CSO/CTB> Analysis> 2.000000MHz Main CH ACPR Demod> HLimit Harmonic> 0.00dBm Main CH 2FSK OCBW Setup> LLimit Bandwidth> 0.00dBm OCBW CH SPC Phase Jitter> P1dB> 2.000000MHz Channel ADJCH SEM> Move Up Setup>...
Page 312 GSP-9300 User Manual From: Measure>More> From: Measure>Demod From: Measure>TOI NdB Bandwidth Earphone Out NdB BW AM Analysis> Volume Reference N dB FM Analysis> Lower Upper 0.000dB Digital Gain Limit - Sound> Control 30.00dBm 0.000dB Demod Type Pass/Fail Test ASK> FSK>...
Page 313 APPENDIX From: Measure>Demod>AM Analysis IF Bandwidth AM Analysis Bypass 300kHz LPF> 1.6MHz Setup> Bypass Time Axis> 781kHz Min/Max Reset Decimation Depth Axis> 521kHz frequency* AF Trigger> 391kHz Limit Edit> Squelch Level Pass/Fail 313kHz -130.0dBm Return Return Ref. Value Ref. Value Edge Slope Trigger Setup>...
Page 314 GSP-9300 User Manual From: Measure>Demod>FM Analysis IF Bandwidth FM Analysis Bypass 300kHz LPF> 16kHz Setup> Bypass Time Axis> 7.8kHz Min/Max Reset Decimation Deviation Axis> 5.2kHz frequency* AF Trigger> 3.9kHz Limit Edit> Pass/Fail 3.1kHz Return Return Ref. Value Ref. Value Edge Slope Trigger Setup>...
Page 315 APPENDIX From: Measure>Demod>ASK ASK Analysis Ref.Value Ref. Value Symbol X.XX ns Symbol Rate Ref.Pos Ref.Pos Wave X.XX ks Scale/Div Scale/Div 10Hz Auto Scale View> Auto Scale Time Axis> Depth Axis> More Return Return Return Limit Ext.Trigger> Free Run None Edge Slope Freq.
Page 316 GSP-9300 User Manual From: Measure>Demod>FSK FSK Analysis Ref.Value Ref. Value Symbol X.XX ns Symbol Rate Ref.Pos Ref.Pos Wave X.XX ks Freq.Deviation Scale/Div Scale/Div 10kHz 10Hz Auto Scale View> Auto Scale Time Axis> Deviation Axis> More Return Return Return Limit Ext.Trigger>...
Page 317 APPENDIX From: Measure>2FSK>Limit Edit From: Measure>Demod>AM Analysis>Limit Edit Freq. Deviation Freq. Deviation 200.000kHz 200.000kHz Carr.Offset Carr.Offset 200.000kHz 200.000kHz Carr.Power 0.00dBm Return Return From: Measure>Demod>FM Analysis>Limit Edit Freq. Deviation 200.000kHz Carr.Offset 200.000kHz Carr.Power 0.00dBm Return...
Page 318 GSP-9300 User Manual From: Measure>SEM SEM Setup> Meas Type> Meas Type> 3GPP> 3GPP Total pwr Ref PSD Ref 802.11b> Ref. Channel> Ref. Channel> Def. Help 802.11g> Offset/Limit> Offset/Limit> 802.11n> 802.16> User Define> Return Return Return Return From: Measure>SEM>3GPP> From: Measure>SEM>3GPP>...
Page 319 APPENDIX From: Measure>SEM>3GPP> Offset/Limit>FDD Setup Transmission P>=43 None BS Mode Max Out Pwr> 39<=P<43 6<=P<=20 P>=43 Additional Max Out Pwr> 31<=P<39 P<6 None Add. Limits P<31 None Min Offset/Limit Value> Return Offset Offset None Band XIII Abs Start Band II Band XIV -22 dBm Start Freq...
Page 320 GSP-9300 User Manual From: Measure>SEM>3GPP> Offset/Limit>FDD Setup Transmission None Band XIII UE Mode Band II Band XIV Band IV Add. Limits Band V None Min Offset/Limit Band X Value> Band XII Return More 1/2 Offset Offset Abs Start -22 dBm...
Page 321 APPENDIX From: Measure>SEM>3GPP> Offset/Limit>TDD Setup Chip Rate = 3.84/7.68M Transmission Offset Offset P>=43 Mode Chip Rate Abs Start 3.84M 1.28M 39<=P<43 -22dBm 7.68M Max Out Pwr> Start Freq Abs Stop 31<=P<39 P>=43 2.7MHz -22dBm Min Offset/Limit Stop Freq P<31 Value> 2.7MHz 3MHz More 1/2...
Page 322 GSP-9300 User Manual From: From: From: Measure>SEM> Measure>SEM> Measure>SEM> 802.11b/g/n/ 802.11g>Offset/ 802.11n>Offset/ 802.16>Ref. Channel Limit Limit Modulation> Chan Integ BW ERP-OFDM/ CH BW ERP-OFDM/ 3.84MHz DSSS-OPEM DSSS-OFDM ERP-DSSS/ Chan Span Min Offset/Limit Min Offset/Limit ERP-PBCC/ 3.96MHz Value> Value> ERP-CCK 10kHz PSD Ref -74.3dBm/Hz...
Page 323 APPENDIX From: Measure>SEM>802.11g> Offset/Limit>Min Offset/Limit 802.11g modulation=DSSS Offset Offset Start Freq 2.7MHz Stop Freq Rel Start 2.7MHz -22dBc Rel Start -22dBc More 1/2 Return Return From: Measure>SEM>802.11g> Offset/Limit>Min Offset/Limit 802.11g modulation=OFDM Offset Offset Start Freq 2.7MHz Stop Freq Rel Start 2.7MHz -22dBc Rel Start...
Page 324 GSP-9300 User Manual From: Measure>SEM> User Define> Meas Type> Chan Integ BW Total Pwr Ref Total Pwr Ref 3.84MHz Chan Span Ref. Channel> PSD Ref 3.96MHz Offset/Limit> 10kHz Auto Total Pwr Ref -74.3dBm Auto Return Return Offset Offset Absolute Abs Start...
Page 325 APPENDIX From: Measure>More From: Measure> >Harmonic More>NdB Bandwidth From: Measure>TOI NdB BW Harmonic Fundamental Reference Freq. 3.000dB Lower Upper 1.000000MHz Limit Number of Order 0.00dBm Pass/Fail Test Return Return Return From: Measure>More>P1dB P1dB Center Freq Exec. Norm 100.000MHz P1dB Gain Offset Location Setup >...
Page 326 GSP-9300 User Manual EMC Pretest Radiated testing Pretest Amb. Noise EMI Test> 9k-150kHz Reject None None High Correction EMI M Probe> 150k-30MHz None Horizontal Recall limit EMI E Probe> 30M-300MHz None Vertical Peak Table 300M-1GHz Other factor Scale Type Voltage Probe>...
Page 327 APPENDIX From: EMI Pretest>Voltage Probe> From: EMI Pretest>EMS Test> EMS Source Pretest Source Freq Start Debug 150.000kHz Source Freq Stop Scale Type 150.000kHz None Source Strength 0.00dBm Return Return From: EMI Pretest>EMI-E Probe Correction None None 30M-300MHz PCB trace Pin 20cm trace 2m cable 300M-1GHz...
Page 328: Gsp-9300 Specifications
GSP-9300 User Manual GSP-9300 Specifications The specifications apply when the GSP is powered on for 45 minutes * to warm-up to a temperature of 20˚C to 30˚C, unless specified otherwise. * 45 minutes typical, 90 minutes maximum Frequency Frequency Range 9 kHz to 3.0 GHz...
Page 329 APPENDIX Phase Noise Offset from Fc =1 GHz; RBW = 1 Carrier kHz, VBW = 10 Hz; Average ≥ 40 Typical 10 kHz <-88 dBc/Hz Typical 100 kHz <-95 dBc/Hz Typical 1 MHz <-113 dBc/Hz Resolution Bandwidth (RBW) Filter Filter Bandwidth 1 Hz to 1 MHz in 1-3-10 -3dB bandwidth sequence...
Page 330 GSP-9300 User Manual 1 dB Gain Compression Typical ;Fc ≥ 50 MHz; Total Power at 1st > 0 dBm Mixer preamp. off ;Fc ≥ 50 MHz; Typical Total Power at the > -22 dBm Preamp preamp. on mixer power level (dBm)= input power (dBm)-...
Page 331 APPENDIX Absolute Amplitude Accuracy Absolute Point Center=160 MHz ; RBW 10 kHz; VBW 1 kHz; span 100 kHz; log scale; 1 dB/div; peak detector; 23 1°C; Signal at Reference Level ± Preamp off ± 0.3 dB Ref level 0 dBm; 10 dB RF attenuation Preamp on ±...
Page 332 GSP-9300 User Manual Spurious Response Second Harmonic Preamp off; signal input -30dBm; 0 Intercept dB attenuation Typical +35 dBm ; 10 MHz < fc < 775 MHz Typical ; 775 MHz ≤ fc < 1.5 GHz +60 dBm Third-order Preamp off; signal input -30dBm; 0...
Page 333 APPENDIX Power for Option Connector Type SMB male Voltage/Current DC +7V / 500 mA max With short-circuit protection USB Host Connector Type A plug Protocol Version 2.0 Supports Full/High/Low speed MicroSD Socket Protocol SD 1.1 Supported Cards microSD, microSDHC Up to 32GB capacity Rear Panel Input/Output Reference Output Connector Type...
Page 334 GSP-9300 User Manual IF Output Connector Type SMA female Impedance 50 ohm Nominal IF Frequency 886 MHz Nominal Output level -25 dBm 10 dB attenuation; RF input: 0 dBm @ 1 GHz Earphone Output Connector Type 3.5mm stereo jack, wired for mono operation...
Page 335 APPENDIX Tracking Generator (Optional) Frequency Range 100 kHz to 3 GHz Output Power -50 dBm to 0 dBm in 0.5 dB steps Absolute Accuracy ± 0.5 dB @160 MHz, -10 dBm, Source attenuation 10 dB, 20 to 30°C Output Flatness Referenced to 160 MHz, -10 dBm 100 kHz to 2 GHz ±...
Page 336 GSP-9300 User Manual Power -30 dBm to +5 dBm: Measurement 1 MHz to 3GHz: ±0.1 dB typical; ±0.3 dB max. Uncertainty 3 GHz to 6 GHz: ±0.15 dB typical; ±0.3 dB max. @ 25 °C +5 dBm to +12 dBm: 1 MHz to 3GHz: ±0.15 dB typical;...
Page 337: Gsp-9300 Dimensions
APPENDIX GSP-9300 Dimensions G S P -9 3 0 0 Spectrum Analyzer CONTROL 9 kHz 3 GHz Sweep Fast/ Frequency BW/AVG Sweep Mode Normal FILE MARKER AUXILIARY Span Measure File Marker Sequence Pretest Limit Option Amplitude Trace Save Marker Line...
Page 338: Declaration Of Conformity
GSP-9300 User Manual Declaration of Conformity GOOD WILL INSTRUMENT CO., LTD. declare that the below mentioned product Type of Product: Spectrum Analyzer Model Number: GSP-9300 is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to the EMC: 2014/30/EU, LVD: 2014/35/EU, WEEE: 2012/19/EU and RoHS: 2011/65/EU.
Page 339: Index
INDEX NDEX 2FSK ........... 156 CNR ........... 184 Accessories ......... 12 Composite second order ..188 ACPR ......... 127 Composite triple beat ....189 Adjacent channel power ..127 Conventions ........ 34 Alarm output ......120 CSO ..........188 AM Analysis ......132 CTB ..........
Page 340 GSP-9300 User Manual EN61010 Deletion ........224 Overview ........220 Measurement category ....4 Pass/fail testing ......225 Pollution degree ......5 List of features ......9 Environment Manchester Decoding Safety instruction ......5 FAQ ........... 281 ASK ..........147 FKS ..........
Page 341 INDEX 3GPP ..........178 User settings ........ 121 802.XX..........180 Quick save ......... 263 Overview .........162 RBW ..........66 User ...........176 Rear panel diagram ....19 TOI ..........182 Remote control ......265 Menu tree GPIB configuration..... 266 Amplitude ........287 Hislip ..........269 Autoset .........
Page 342 GSP-9300 User Manual Sweep Control ....... 79 Selecting trace ....... 81 Sweep Mode ........79 Type ..........81 Sweep time ........73 Tracking generator System Activation ........232 Alarm output ......120 Normalization ......233 Date & time ........118 Trigger Date &...

GW Instek GSP-9300 User Manual

Table of Contents

Asic Operation

Dvanced Operation

Emote Control

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GW Instek GSP-9300

Summary of Contents for GW Instek GSP-9300

Table of Contents
