Page 1 Spectrum Analyzer GSP-9300B PROGRAMMING MANUAL ISO-9001 CERTIFIED MANUFACTURER...
Page 2 This manual contains proprietary information, which is protected by copyright. All rights are reserved. No part of this manual may be photocopied, reproduced or translated to another language without prior written consent of Good Will company. The information in this manual was correct at the time of printing. However, Good Will continues to improve products and reserves the rights to change specification, equipment, and maintenance procedures at any time without notice.
Page 3: Table Of Contents
Table of Contents Table of Contents SAFETY INSTRUCTIONS ..........2 GETTING STARTED ............7 GSP-9300B Introduction ......8 Accessories .......... 11 Appearance .......... 12 REMOTE CONTROL ............25 Interface Configuration ......26 Command Syntax ......... 49 Status Registers ........55 Command List ........
Page 4: Safety Instructions
GSP-9300B Programming Manual AFETY INSTRUCTIONS This chapter contains important safety instructions that you must follow during operation and storage. Read the following before any operation to ensure your safety and to keep the instrument in the best possible condition. Safety Symbols These safety symbols may appear in this manual or on the instrument.
Page 5 SAFETY INSTRUCTIONS Safety Guidelines  General Do not place any heavy object on the Guideline instrument.  Avoid severe impact or rough handling that CAUTION leads to damaging the instrument.  Do not discharge static electricity to the instrument.  Use only mating connectors, not bare wires, for the terminals.
Page 6 GSP-9300B Programming Manual  Battery Rating: 11.1V, 6 cell Li-ion battery  Turn off the power and remove the power cord CAUTION before installing or removing the battery.  Cleaning Disconnect the power cord before cleaning.  Use a soft cloth dampened in a solution of mild detergent and water.
Page 7 SAFETY INSTRUCTIONS Disposal Do not dispose this instrument as unsorted municipal waste. Please use a separate collection facility or contact the supplier from which this instrument was purchased. Please make sure discarded electrical waste is properly recycled to reduce environmental impact.
Page 8 GSP-9300B Programming Manual Power cord for the United Kingdom When using the instrument in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons WARNING: THIS APPLIANCE MUST BE EARTHED...
Page 9: Getting Started
GETTING STARTED ETTING STARTED This chapter provides a brief overview of the GSP-9300B, the package contents and an introduction to the front panel, rear panel and GUI. GSP-9300B Introduction ........... 8 Main Features ..............8 Accessories ..............11 Appearance ..............12 GSP-9300B Front Panel ..........
Page 10: Gsp-9300B Introduction

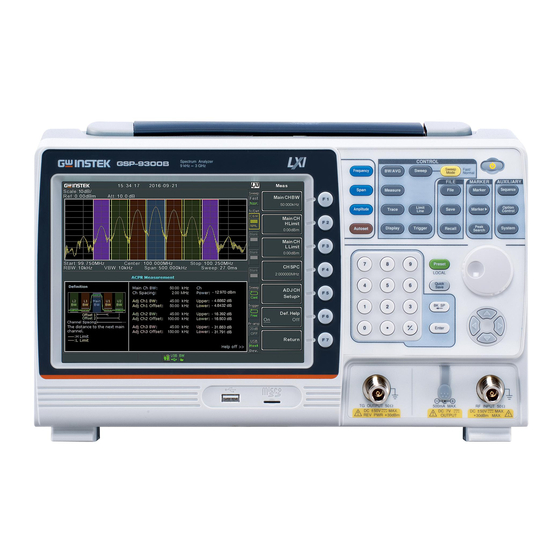

GSP-9300B Programming Manual GSP-9300B Introduction The GSP-9300B builds on the strong feature set of the GSP-9330 and significantly increases performance in almost every aspect; making this the most comprehensive and feature-rich spectrum analyzer GW Instek has released. Like the GSP-9330, the GSP-9300B features a split window display to view data in spectrum, topographic or spectrographic views.
Page 11 GETTING STARTED  Marker Frequency counter  Two operating modes: Spectrum and Power Meter mode  SEM measurement  ACPR measurement  OCBW measurement  Phase jitter measurement  Harmonics measurement  P1dB measurement  Channel power measurement  Demodulation analyzer ...
Page 12 GSP-9300B Programming Manual Interface  8.4 color LCD (800600)  On-screen menu icons  DVI-I video output  RS-232 with RTS/CTS hardware flow control  USB 2.0 with support for USB TMC  LAN TCP/IP with LXI support  Optional GPIB/IEEE488 interface ...
Page 13: Accessories
USB Average Power Sensor (up to 6200 MHz; -32 to 20 dBm) GRA-415 6U Rack mount kit Software Downloads PC Software for Windows System IVI Driver Supports LabView & LabWindows/CVI Programming Android System (“GSP-9300B Remote Control”, available on Google Play.)
Page 14: Appearance
GSP-9300B Programming Manual Appearance GSP-9300B Front Panel Function Main Control File keys display keys keys keys * Power key Marker keys Spectrum Analyzer CONTROL GSP-9300B 9 kHz 3 GHz Sweep Fast/ Frequency BW / AVG Sweep Mode Normal FILE MARKER...
Page 15 GETTING STARTED Sets the span, with options for full Span span, zero span and last span. Sets the amplitude reference level, Amplitude attenuation, pre-amplifier controls, scale and other options for attenuation and scale. Automatically searches the peak Autoset signal with maximum amplitude and displays it with appropriate horizontal and vertical scales.
Page 16 GSP-9300B Programming Manual Sets the triggering modes. Trigger File File utilities options File Save the trace, state etc., and save Save options. Recall the trace, state etc., and Recall recall options. Marker Turns the Markers on/off and Marker configures the markers.
Page 17 GETTING STARTED Preset / Local key The Preset key will restore the Preset spectrum analyzer to the Factory LOCAL or User Preset settings. The Preset key will also return the instrument back to local control after it has been in remote control mode.
Page 18 GSP-9300B Programming Manual DC power supply SMB port supplies power for optional accessories. 500mA MAX. DC 7V  DC +7V OUTPUT  500mA Max. Numeric keypad The numeric keypad is used to enter values and parameters. It is often used in...
Page 19: Rear Panel
GETTING STARTED Rear Panel IF OUT DVI-I USB-B, Power port LAN port socket RS232 port TRIG IN/GATE AC 100 AC 100 240V 240V 60 Hz 60 Hz 82W MAX. 82W MAX. IN port ALARM OUT/ OPEN COLLECTOR REF OUT REF IN Battery cover/ GPIB port Optional...
Page 20 GSP-9300B Programming Manual Power Socket Power Socket: 100~240V, 50/60Hz. Battery pack Voltage: 11.1V Capacity: 5200mAH REF IN BNC female reference input. REF OUT BNC female reference output: 10MHz, 50Ω impedance Security Lock ALARM OUT BNC female open collector Alarm output.
Page 21 GETTING STARTED RJ-45 10Base-T/100Base-Tx...
Page 22: Display
GSP-9300B Programming Manual Display Attenuation Date Marker Function level and time information LXI icon menu Sweep Scale and settings Reference level Trace/ Detection settings Traces and waveforms Unassigned setting Sweep icons progress Sweep, Trigger, Entry / Pre-amp Frequency/Bandwidth Status icons...
Page 23 GETTING STARTED Function menu Soft menu keys associated with the F1 to F7 function keys to the right of the display. Sweep Mode This icon displays the sweep mode, as set by the Sweep Mode key. Sweep settings Sweep icon that shows the sweep status.
Page 24 GSP-9300B Programming Manual Trace and Main display showing the input signals, traces, waveforms limit lines and marker positions. Sweep progress The sweep progress bar shows the progress of slow sweeps (greater than 2 seconds).
Page 25: Status Icon Overview
GETTING STARTED Status Icon Overview 3G Adapter Indicates that the 3G adapter is installed and turned on. Demo Kit Indicates that the demo kit is installed and turned on. PreAmp Indicates that the pre amplifier is Shown when running on AC power.
Page 26 GSP-9300B Programming Manual Average Indicates that the Average function is active. External Lock Indicates that the system is now locked and refers to the external reference input signal External Trigger External trigger signal is being used. Math Trace math is being used.
Page 27: Remote Control
REMOTE CONTROL EMOTE CONTROL This chapter describes the basic configuration of IEEE488.2 based remote control. This chapter includes interface configuration, a remote control overview as well as the control syntax and commands. Interface Configuration ..........26 Command Syntax ............49 Status Registers .............
Page 28: Interface Configuration
GSP-9300B Programming Manual Interface Configuration Configure to USB Remote Interface Type A, host PC side configuration connector Rear panel Type B, slave GSP side connector 1.1/2.0 (full speed/high speed) Speed USB TMC (USB T&M class) USB Class Panel operation 1. Connect the USB cable to the rear panel USB B port.
Page 29 No loop or parallel connection Configure the LAN and LXI Interface The GSP-9300B is a class C LXI compliant instrument. The LXI specification allows instrumentation to be configured for remote control or monitoring over a LAN or WLAN. The GSP-9300B also supports HiSlip.
Page 30 GSP-9300B Programming Manual Settings 1. Press >More[F7]>RmtInterface[F1]> System LAN[F2]>LAN Config[F1] to set the LAN settings: IP Address[F1] Sets the IP address. Subnet Mask[F2] Sets the subnet mask. Default Gateway[F3] Sets the default gateway. DNS Server[F4] Sets the DNS server address...
Page 31 REMOTE CONTROL Limitations:  No spaces  Only 1~9, A~Z, a~z characters allowed ABCDE FGHIJ KLMNO Lowercase PQRST Return Rename> UVWXY Return Return Cancel password Menu tree to enter the password 5. The password appears on the bottom of the screen as it is created.
Page 32 Configure the WLAN Interface The WLAN settings operate using any standard 3G USB modem. For remote locations, using a 3G modem allows you to access the GSP-9300B web server or to control the GSP-9300B via remote control commands. Background To use the GSP-9300B as a server using a 3G modem, you must first obtain a fixed IP address from a network provider.
Page 33 REMOTE CONTROL Connection Connect the 3G USB modem to the front panel USB A port. The 3G status icon will appear when the 3G USB adapter is connected. When it is first connected it will be grayed-out to indicate that it is connected but not activated.
Page 34 GSP-9300B Programming Manual WLAN settings Display Icon The 3G USB icon turns green when a successful connection has been made. Set Password The password on the LXI webpage can be set from the spectrum analyzer. The password is shown in the system information.
Page 35 REMOTE CONTROL ABCDE FGHIJ KLMNO Lowercase PQRST Return Rename> UVWXY Return Return Cancel password Menu tree to enter the password 6. The password appears on the bottom of the screen as it is created. Password 7. Press to confirm setting the password. Enter Hi SLIP Port 8.
Page 36 GSP-9300B Programming Manual Reset LAN It may be necessary to reset the LAN configuration settings before the LAN can be used. 9. Press >More[F7]>RmtInterface System Config[F1]>LAN Reset[F3] to reset the LAN. 10. It may take a few moments before the LAN is reset.
Page 37 REMOTE CONTROL Configure RS232C Background The RS232C interface is used for remote control with a PC. RS232C Baud Rate Stop bit: 1 (fixed) Configuration Parity: none (fixed) Data bit: 8 (fixed) settings Connection Connect an RS232C cable from the PC to the rear panel RS232 port.
Page 38 Serial number, and Firmware version in the following format.  GWINSTEK,GSP9300B,XXXXXXXX,V3.X.X.X Manufacturer: GWINSTEK Model number : GSP9300B Serial number : XXXXXXXX Firmware version : V3.X.X.X For further details, please see the programming Note manual, available on the GW Instek web site @ www.gwinstek.com.
Page 39 The Welcome Page lists all the LXI and LAN/WLAN configuration settings as well as the instrument identification. The instrument identification can be disabled from this page. The LXI icon on the GSP-9300B display will Note flash when the Identification setting is turned on.
Page 40 GSP-9300B Programming Manual View & Modify The View & Modify Configuration allows you Configuration to modify the LAN settings from the browser. Press the Modify Configuration button to modify any of the configuration files. A password must be entered to alter the settings.
Page 41 [Note: password is case sensitive.] Get Image The Get Image page allows the browser to remotely capture a screenshot of the GSP-9300B display. For further details, please see the programming Note manual, available on the GW Instek web site @ www.gwinstek.com.
Page 42 GSP-9300B Programming Manual GPIB Function Check Background To test the GPIB functionality, National Instruments Measurement and Automation Explorer can be used. This program is available on the NI website, www.ni.com., via a search for the VISA Run-time Engine page, or “downloads”...
Page 43 REMOTE CONTROL 4. Select the device (GPIB address of GSP-9300B) that now appears in the System>Devices and Interfaces > “GPIBX” >”Instrument X” node. 5. Click on the VISA Properties tab on the bottom. 6. Click Open Visa Test Panel.
Page 44 GSP-9300B Programming Manual 7. Click on Configuration. 8. Click on the GPIB Settings tab and confirm that the GPIB settings are correct. 9. Click on the I/O Settings tab. 10. Make sure the Enable Termination Character check box is checked, and the terminal character is \n (Value: xA).
Page 45 REMOTE CONTROL 14. Enter *IDN? in the Select or Enter Command drop down box. 15. Click Query. 16. The *IDN? query will return the Manufacturer, model name, serial number and firmware version in the dialog box. GWINSTEK,GSP9300B,ENXXXXXX,V3.X.X.X 9300B,...
Page 46 VISA Run-time Engine page, or “downloads” at the following URL, http://www.ni.com/visa/ In addition the IVI driver for the GSP-9300B must also be downloaded. The IVI driver can also be downloaded from the NI website with a search for the GSP-9300B in the thirdparty drivers section.
Page 47 2. From the Windows Device Manager sure the IVI driver recognizes the USB connection. The GSP-9300B will be recognized as a USB Test and Measurement device (IVI) when the connection is successful. If the connection is not recognized, reinstall the IVI driver and set the interface to USB again.
Page 48 GSP-9300B Programming Manual 4. Select the GSP-9300B device that now appears in the System>Devices and Interfaces > GSP9300B“USBX…” node. 5. Click on the VISA Properties tab on the bottom. 6. Click Open Visa Test Panel. GSP9300B 9300B...
Page 49 REMOTE CONTROL 7. Click on the I/O Settings tab. 8. Make sure the Enable Termination Character check box is checked, and the terminal character is \n (Value: xA). 9. Click Apply Changes. 10. Click on Input/Output. 11. Click on the Basic/IO tab. 12.
Page 50 GSP-9300B Programming Manual 9300B,...
Page 51: Command Syntax
REMOTE CONTROL Command Syntax Full compatibility IEEE488.2 Compatible Full compatibility Standard SCPI, 1999 Command SCPI (Standard Commands for Programmable Structure Instruments) commands follow a tree-like structure, organized into nodes. Each level of the command tree is a node. Each keyword in a SCPI command represents each node in the command tree.
Page 52 GSP-9300B Programming Manual Query A query is a simple or compound command followed by a question mark (?). A parameter (data) is returned. Example :CALCulate:CSO:STATe? Compound Two or more commands on the same command line. Compound commands are separated with either a semi- colon (;) or a semi-colon and a...
Page 53 REMOTE CONTROL Command Forms Commands and queries have two different forms, long and short. The command syntax is written with the short form of the command in capitals and the remainder (long form) in lower case. The commands can be written in capitals or lower-case, just so long as the short or long forms are complete.
Page 54 GSP-9300B Programming Manual Common Type Description Example Input Parameters <Boolean> Boolean logic 0, 1 <NR1> integers 0, 1, 2, 3 <NR2> decimal numbers 0.1, 3.14, 8.5 <NR3> floating point 4.5e-1, 8.25e+1 <NRf> any of NR1, 2, 3 1, 1.5, 4.5e-1 <freq>...
Page 55 REMOTE CONTROL <ampl> Input: 30 mv NR3 +unit type Note: The unit can be omitted. (Unit defaults to current y-axis unit). Return: <NR3> 3.0e-2 Note: Units = current y axis unit. <trace name> <NR1> trace1 <time> Input: <NR3> + unit 2.3e-6 ms Unit = ms, ns, ps, ks Note: The unit can be omitted...
Page 56 GSP-9300B Programming Manual Note: <digits> represents the data block length descriptor. Expressed as an integer number equal to the total number of <8 bit data bytes> that follows. <nonzero digit> represents the number of digits that are part of the data block length descriptor.
Page 57: Status Registers
REMOTE CONTROL Status Registers Status Registers Overview Description The status registers are used to determine the status of the spectrum analyzer. The status registers maintain the status of the pass/fail limits, trigger status and other operation statuses. The status registers are arranged in a number of groups: ...
Page 58 GSP-9300B Programming Manual Questionable Questionable Questionable Questionable Questionable Operation Status Status Status ACP Limit Status SEM Status TOI Limit Status Demod Register Frequency Register Limit Register Register Fail Register Register Not used Not used Not used Not used Offset 5...
Page 59  Event Enable Register Condition The condition registers report the state of the Registers GSP-9300B. Condition registers can only be read. PTR Registers The positive transistion registers are used to filter for events that occur from a negative to a positive transition.
Page 60 GSP-9300B Programming Manual To higher order register Condition PTR / Event Enable Register Register Register & & & & & & & & & & Status Byte Register (STB) Overview The Status Byte register consolidates the status events of all the status registers. The Status Byte register can be cleared with the *CLS command.
Page 61 REMOTE CONTROL ESB: This is the summary bit for the Standard Event Register. MSS/RQS: The MSS bit is the summary bit for the Service Request Enable Register. The RQS bit is set to 1 when the MSS bit is set to 1. Operation Status Summary Bit: This is the summary bit for the Operation Status Register.
Page 62 GSP-9300B Programming Manual Operation Status Register Overview The Operation Status Register Group indicates the operating status of the GSP-9300B. Bit Summary Weight Description Sweeping: Indicates that a sweep is in progress. Measuring: The instrument is currently performing a measurement. Waiting for Trigger: The instrument is in a “wait for trigger”...
Page 63 REMOTE CONTROL 32768 Demod Fail: This is the summary bit for the Demod Fail Register. Questionable Status Frequency Register Overview The Questionable Status Frequency Register indicates if the span or BW settings are invalid. Bit Summary Weight Description Invalid Span or BW: This bit is set to 1 when there is an invalid span or bandwidth (setting) during the frequency count.
Page 64 GSP-9300B Programming Manual Adj3 Low Fail: This bit is set to 1 when the ADJCH 3 LLimit has been violated. Questionable Status SEM Limit Register Overview The Questionable Status SEM Limit Register Group indicates if any of the SEM offset limits have been tripped.
Page 65 REMOTE CONTROL Questionable Status TOI Limit Register Overview The Questionable Status TOI Limit Register Group indicates if the 3rd Order Upper or Lower limit has been tripped. Bit Summary Weight Description 3rd Upper Fail: This bit is set to 1 when the 3rd Order Upper limit has been tripped.
Page 66: Command List
GSP-9300B Programming Manual Command List *CLS ................76 SCPI Commands *IDN? ................76 *ESE ................77 *ESR? ................77 *OPC ................77 *RST ................78 *SRE ................78 *STB? ................78 *TST? ................78 *WAI ................79 :CALCulate:ACPR:ACHannel<n>:HLIMit: CALCulate FAIL?................81 Commands :CALCulate:ACPR:ACHannel<n>:LLIMit:...
Page 67 REMOTE CONTROL :CALCulate:DEMod:FM:RESult:CURRent? ... 90 :CALCulate:DEMod:FM:RESult:MINimum? ..91 :CALCulate:DEMod:FM:RESult:MAXimum? ..91 :CALCulate:DEMod:FM:STATe ....... 92 :CALCulate:DEMod:LIMit:AMDepth...... 92 :CALCulate:DEMod:LIMit:FDEViation ....92 :CALCulate:DEMod:LIMit:CARRier:OFFSet ..93 :CALCulate:DEMod:LIMit:CARRier:POWer ..93 :CALCulate:DEMod:LIMit:FAIL? ......94 :CALCulate:DEMod:LIMit:STATe ......94 :CALCulate:HARMonic:DISTortion? ....... 95 :CALCulate:HARMonic:RESult? ....... 95 :CALCulate:HARMonic:STATe ......... 95 :CALCulate:JITTer:STATe..........
Page 68 GSP-9300B Programming Manual :CALCulate:MARKer:PEAK:THReshold: STATe ................107 :CALCulate:MARKer<n>:SET ........107 :CALCulate:MARKer<n>:STATe ......108 :CALCulate:MARKer:TABLe:STATe .....108 :CALCulate:MARKer<n>:TRACe ......108 :CALCulate:MARKer<n>:TRACe:AUTO ....109 :CALCulate:MARKer<n>:TYPE ......109 :CALCulate:MARKer<n>:X........110 :CALCulate:MARKer<n>:Y? ........110 :CALCulate:MATH:PDIF .........110 :CALCulate:MATH:LDIF .........111 :CALCulate:MATH:LOFF ........111 :CALCulate:NDB:STATe ..........111 :CALCulate:NDB:BANDwidth|BWIDth? ....112 :CALCulate:NORMalize:STATe ......112 :CALCulate:OCBW:STATe ........113 :CALCulate:OCBW:BANDwidth|BWIDth? ..113 :CALCulate:OCBW:CHPower? ........113 :CALCulate:OCBW:POWer? ........114 :CALCulate:OCBW:PSDensity? .......114...
Page 69 REMOTE CONTROL :DISPlay:DEMod[:WINDow]:TRACe:X [:SCALe]:AUTO ............124 :DISPlay:DEMod[:WINDow]:TRACe:X [:SCALe]:PDIVision ........... 124 :DISPlay:DEMod[:WINDow]:TRACe:X [:SCALe]:RPOSition ........... 125 :DISPlay:DEMod[:WINDow]:TRACe:X [:SCALe]:RVALue ............125 :DISPlay:DEMod[:WINDow]:TRACe:Y [: SCALe]:AUTO ............125 :DISPlay:DEMod[:WINDow]:TRACe:Y [:SCALe]:PDIVision ........... 126 :DISPlay:DEMod[:WINDow]:TRACe:Y [:SCALe]:RPOSition ........... 126 :DISPlay:DEMod[:WINDow]:TRACe:Y [:SCALe]:RVALue ............126 :DISPlay:P1DB[:WINDow]:TRACe:Y[:SCALe]: LEVel?................127 :DISPlay[:WINDow]:NORMal ........ 127 :DISPlay[:WINDow]:SPECtrogram ......
Page 70 GSP-9300B Programming Manual :DISPlay[:WINDow]:SPLit:SPECtrogram .....132 :DISPlay[:WINDow]:SPLit:TOPO ......132 :DISPlay[:WINDow]:TOPO ........133 :DISPlay[:WINDow]:TOPO:MARKer:PERCent ? ..................133 :DISPlay[:WINDow]:TOPO:MARKer:X ....133 :DISPlay[:WINDow]:TOPO:MARKer:Y ....134 :DISPlay[:WINDow]:TOPO:MARKer :FREQuency? ...............134 :DISPlay[:WINDow]:TOPO:MARKer :AMPLitude? ..............134 :DISPlay[:WINDow]:TOPO:MARKer:STATe ..134 :DISPlay[:WINDow]:TOPO:DELTamarker:X ..135 :DISPlay[:WINDow]:TOPO:DELTamarker:Y ..135 :DISPlay[:WINDow]:TOPO:DELTamarker :FREQuency? ...............136 :DISPlay[:WINDow]:TOPO:DELTamarker :AMPLitude? ..............136 :DISPlay[:WINDow]:TOPO:DELTamarker :PERCent? ..............136 :DISPlay[:WINDow]:TRACe<n>:MODE ....137 :DISPlay[:WINDow]:TRACe<n>:MODE :MAXHold? ..............137...
Page 71 REMOTE CONTROL :INITiate[:IMMediate] ..........142 Commands :INPut:ATTenuation ..........143 INPut :INPut:ATTenuation:AUTO ........143 Commands :INPut:IMPedance ............144 :INPut:OFFSet ............144 :MMEMory:CATalog? ..........145 MMEMory :MMEMory:CDIRectory ........... 146 commands :MMEMory:COPY ............. 146 :MMEMory:DELete ........... 147 :MMEMory:DESTination ......... 147 :MMEMory:LOAD:CORRection ......148 :MMEMory:LOAD:LIMit .........
Page 72 GSP-9300B Programming Manual [:SENSe]:ACPR:SPACe ..........160 [:SENSe]:ASET:AMPLitude ........160 [:SENSe]:ASET:AMPLitude:AUTO .......160 [:SENSe]:ASET:RUN ..........161 [:SENSe]:ASET:SPAN ..........161 [:SENSe]:ASET:SPAN:AUTO .........161 [:SENSe]:AVERage:COUNt ........162 [:SENSe]:AVERage:STATe ........162 [:SENSe]:AVERage:TYPE ........162 [:SENSe]:BANDwidth|BWIDth[:RESolution] ..163 [:SENSe]:BANDwidth|BWIDth [:RESolution]:AUTO ..........163 [:SENSe]:BANDwidth|BWIDth:VIDeo ....163 [:SENSe]:BANDwidth|BWIDth:VIDeo:AUTO ..164 [:SENSe]:CHANnel:SPACe:DOWN.......164 [:SENSe]:CHANnel:SPACe:UP .......164 [:SENSe]:CNR:CHANnel:SPACe ......165 [:SENSe]:CNR:DELTamarker:MODE ....165 [:SENSe]:CORRection:CSET<n>:DATA .....165 [:SENSe]:CORRection:CSET<n>:STATe .....166 [:SENSe]:CORRection:CSET<n>:DELete ...166...
Page 73 REMOTE CONTROL [:SENSe]:HARMonic:NUMBer ....... 174 [:SENSe]:LIMit<n>:DELete ........174 [:SENSe]:JITTer:OFFSet:STARt ......174 [:SENSe]:JITTer:OFFSet:STOP....... 175 [:SENSe]:NDB:BANDwidth|BWIDth ....175 [:SENSe]:OCBW:BANDwidth|BWIDth....175 [:SENSe]:OCBW:PERCent ........176 [:SENSe]:OCBW:SPACe ........... 176 [:SENSe]:P1DB:AVERage:COUNt ......176 [:SENSe]:P1DB:GAIN:OFFSet ....... 177 [:SENSe]:PMETer:FREQuency ....... 177 [:SENSe]:PMETer:HLIMit ........177 [:SENSe]:PMETer:HOLD:STATe ......178 [:SENSe]:PMETer:LLIMit ........178 [:SENSe]:PMETer:PSENsor:MODE ......
Page 74 GSP-9300B Programming Manual [:SENSe]:SEMask:OFFSet<n>:BANDwidth|B WIDth[:RESolution]:AUTO ........188 [:SENSe]:SEMask:OFFSet<n>:FREQuency: STARt ................188 [:SENSe]:SEMask:OFFSet<n>:FREQuency: STOP ................189 [:SENSe]:SEMask:OFFSet<n>:STARt: ABSolute ...............189 [:SENSe]:SEMask:OFFSet<n>:STARt: RELative ...............189 [:SENSe]:SEMask:OFFSet<n>:STATe ....190 [:SENSe]:SEMask:OFFSet<n>:STOP:ABSolute..190 [:SENSe]:SEMask:OFFSet<n>:STOP: ABSolute:COUPle ............191 [:SENSe]:SEMask:OFFSet<n>:STOP:RELative ..191 [:SENSe]:SEMask:OFFSet<n>:STOP: RELative:COUPle ............192 [:SENSe]:SEMask:OFFSet<n>:TEST ....192 [:SENSe]:SEMask:SELect ..........192 [:SENSe]:SEMask:TYPE ...........193 [:SENSe]:SEMask:W3GPP:DUPLex:TYPE ..193 [:SENSe]:SEMask:W3GPP:FDD:ADDition: LIMit ................194 [:SENSe]:SEMask:W3GPP:FDD:ADDition: MOPower ..............194...
Page 75 REMOTE CONTROL :SOURce:P1DB:TYPE ..........201 SOURce :SOURce:POWer[:LEVel][:IMMediate] commands [:AMPLitude] ............... 201 :SOURce:POWer[:LEVel][:IMMediate] [:AMPLitude]:OFFSet ..........202 :SOURce:POWer[:LEVel][:IMMediate] [:AMPLitude]:STEP ............ 202 :SOURce:POWer[:LEVel][:IMMediate] [:AMPLitude]:STEP:AUTO ........203 :SOURce:POWer:MODE ......... 203 :SOURce:POWer:SWEep .......... 203 :SYSTem:ALARm:STATe ......... 205 SYSTem :SYSTem:CLOCk<n>:DATE ........206 commands :SYSTem:CLOCk<n>:MODE ........ 206 :SYSTem:CLOCk<n>:STATe .........
Page 76 GSP-9300B Programming Manual :STATus:OPERation:NTRansition ......215 :STATus:OPERation:PTRansition ......215 :STATus:QUEStionable:CONDition? ....216 :STATus:QUEStionable:ENABle ......216 :STATus:QUEStionable[:EVENt]? ......217 :STATus:QUEStionable:NTRansition ....217 :STATus:QUEStionable:PTRansition .....218 :STATus:QUEStionable:FREQuency: CONDition? ..............218 :STATus:QUEStionable:FREQuency:ENABle ..219 :STATus:QUEStionable:FREQuency[:EVENt]? ..219 :STATus:QUEStionable:FREQuency: NTRansition ..............219 :STATus:QUEStionable:FREQuency: PTRansition ..............220 :STATus:QUEStionable:ACPLimit: CONDition? ..............220 :STATus:QUEStionable:ACPLimit:ENABle ..221 :STATus:QUEStionable:ACPLimit[:EVENt]? ..221 :STATus:QUEStionable:ACPLimit:NTRansition .222 :STATus:QUEStionable:ACPLimit:PTRansition ..222 :STATus:QUEStionable:SEMLimit :CONDition ? ..................223...
Page 77 REMOTE CONTROL :TRIGger[:SEQuence]:DEMod:VIDeo:SLOPe ..232 :TRIGger[:SEQuence]:DEMod:SOURce ....233 :TRIGger[:SEQuence]:DEMod:TIME:STARt ..233 :TRIGger[:SEQuence]:DEMod:TIME:STOP ..233 :TRIGger[:SEQuence]:EXTernal:SLOPe ....234 :TRIGger[:SEQuence]:MODE ......... 234 :TRIGger[:SEQuence]:PMETer:SOURce ....234 :TRIGger[:SEQuence]:SOURce ....... 235 :TRIGger[:SEQuence]:VIDeo:FREQuency ... 235 :TRIGger[:SEQuence]:VIDeo:LEVel ..... 235 :TRIGger[:SEQuence]:VIDeo:SLOPe ....236 :UNIT:PMETer:POWer ..........237 UNIT commands :UNIT:POWer .............
Page 78 GSP-9300B Programming Manual SCPI Commands *CLS ................76 *IDN? ................76 *ESE ................77 *ESR? ................77 *OPC ................77 *RST ................78 *SRE ................78 *STB? ................78 *TST? ................78 *WAI ................79 *CLS Description The *CLS command clears the Standard Event Status, Operation Status and Questionable Status registers.
Page 79 Returns the instrument identification as a Return parameter <charact character data in the following format: er data> GWINSTEK,GSP-9300B,XXXXXXXX,T.X.X.X.X Manufacturer: GWINSTEK Model number : GSP-9300B Serial number : XXXXXXXX Firmware version : V3.X.X.X *ESE Query Description Sets or queries the Standard Event Status Enable register.
Page 80 Return parameter <NR1> with the MSS bit (bit 6). *TST? Query Description Returns the result of a self-test. The GSP-9300B does not support performing a selftest and thus will always return “0” for this query. Query Syntax *TST? Returns “0”...
Page 81 REMOTE CONTROL *WAI Description Prevents any other commands or queries from being executed until all outstanding commands have completed. Syntax *WAI CALCulate Commands :CALCulate:ACPR:ACHannel<n>:HLIMit: FAIL? ................81 :CALCulate:ACPR:ACHannel<n>:LLIMit: FAIL? ................82 :CALCulate:ACPR:ACHannel<n>:LOWer? ... 82 :CALCulate:ACPR:ACHannel<n>:UPPer? ..... 82 :CALCulate:ACPR:ACHannel<n>:STATe ....83 :CALCulate:ACPR:CHANnel:HLIMit:FAIL? ..
Page 82 GSP-9300B Programming Manual :CALCulate:DEMod:LIMit:AMDepth ...... 92 :CALCulate:DEMod:LIMit:FDEViation ....92 :CALCulate:DEMod:LIMit:CARRier:OFFSet..93 :CALCulate:DEMod:LIMit:CARRier:POWer ..93 :CALCulate:DEMod:LIMit:FAIL?......94 :CALCulate:DEMod:LIMit:STATe ......94 :CALCulate:HARMonic:DISTortion? ....... 95 :CALCulate:HARMonic:RESult? ....... 95 :CALCulate:HARMonic:STATe ......... 95 :CALCulate:JITTer:STATe .......... 96 :CALCulate:JITTer:CARRier:POWer? ...... 96 :CALCulate:JITTer:PHASe? ........96 :CALCulate:JITTer:TIME? .......... 97 :CALCulate:LIMit<n>:CLEar ........
Page 83: Calculate:acpr:achannel:Hlimit: Fail
REMOTE CONTROL :CALCulate:MARKer:TABLe:STATe ..... 108 :CALCulate:MARKer<n>:TRACe ......108 :CALCulate:MARKer<n>:TRACe:AUTO .... 109 :CALCulate:MARKer<n>:TYPE ......109 :CALCulate:MARKer<n>:X ........110 :CALCulate:MARKer<n>:Y? ........110 :CALCulate:MATH:PDIF ......... 110 :CALCulate:MATH:LDIF ......... 111 :CALCulate:MATH:LOFF ........111 :CALCulate:NDB:STATe .......... 111 :CALCulate:NDB:BANDwidth|BWIDth? .... 112 :CALCulate:NORMalize:STATe ......112 :CALCulate:OCBW:STATe ........113 :CALCulate:OCBW:BANDwidth|BWIDth? ..
Page 84: Calculate:acpr:achannel:Llimit: Fail
GSP-9300B Programming Manual Parameter <n> <NR1>adjacent channel 1~3 Return parameter 0 <boolean>Pass <boolean>Fail Query Example :CALC:ACPR:ACH1:HLIM:FAIL? >0 :CALCulate:ACPR:ACHannel<n>:LLIMit: FAIL? Query Description Returns the ACPR lower limit pass/fail judgment for the selected adjacent channel. Query Syntax :CALCulate:ACPR:ACHannel<n>:LLIMit:FAIL? Parameter <n> <NR1>adjacent channel 1~3 Return parameter 0 <boolean>Pass...
Page 85: Calculate:acpr:achannel:State
REMOTE CONTROL Description Returns the ACPR (adjacent channel power ratio in dB) calculated for the selected higher adjacent channel. Query Syntax :CALCulate:ACPR:ACHannel<n>:UPPer? Parameter <n> <NR1>adjacent channel 1~3 Return parameter <NR3> Power ratio in dB Query Example :CALC:ACPR:ACH1:UPP? >1.921e+01 :CALCulate:ACPR:ACHannel<n>:STATe Query Description Sets or queries the state of the selected adjacent channel.
Page 86: Calculate:acpr:channel:llimit:fail
GSP-9300B Programming Manual Query Example :CALC:ACPR:CHAN:HLIM:FAIL? >0 :CALCulate:ACPR:CHANnel:LLIMit:FAIL? Query Description Returns the ACPR lower limit pass/fail judgment for the main channel. A pass indicates that every trace point in the main channel is higher than or equal to the lower limit.
Page 87: Calculate:cnr:result
REMOTE CONTROL Return parameter 0 ACPR is disabled. ACPR is enabled. Query Example :CALC:ACPR:STAT? >1 :CALCulate:CNR:RESult? Query Description Returns the CNR measurement result in dB. Query Syntax :CALCulate:CNR:RESult? Return parameter <NR3> CNR measurement in dB Query Example :CALC:CNR:RES? >-4.959e+01 :CALCulate:CNR:STATe Query Description Sets or queries the state of the CNR measurement...
Page 88: Calculate:cso:state
GSP-9300B Programming Manual Return parameter <NR3> CSO measurement in dB Query Example :CALC:CSO:RES? >4.04e+00 :CALCulate:CSO:STATe Query Description Sets or queries the state of the CSO measurement function. Syntax :CALCulate:CSO:STATe {ON|OFF|1|0} Query Syntax :CALCulate:CSO:STATe? Parameter CSO is off. CSO is on.
Page 89: Calculate:ctb:restart
REMOTE CONTROL Parameter CTB is off. CTB is on. CTB is off. CTB is on. Return parameter 0 CTB is off. CTB is on. Query Example :CALC:CTB:STAT? >0 :CALCulate:CTB:RESTart Description Restarts the CTB measurement. Syntax :CALCulate:CTB:RESTart :CALCulate:DELTamarker<n>:PAIR:SPAN Description Sets the span between the chosen marker and the delta marker.
Page 90: Calculate:deltamarker:X
GSP-9300B Programming Manual :CALCulate:DELTamarker<n>:X Query Description Sets or queries the selected delta marker position. Syntax :CALCulate:DELTamarker<n>:X <freq> Query Syntax :CALCulate:DELTamarker<n>:X? Parameter <n> Marker number. Return parameter <freq> <NR3> frequency in Hz. Example :CALC:DELT1:X? >1e+9 :CALCulate:DELTamarker<n>:Y? Query Description Returns the selected delta marker Y axis value.
Page 91: Calculate:demod:am:result:minimum
REMOTE CONTROL Query Example :CALC:DEM:AM:RES:CURR? >9.840e+1,1.02e+2,-1.12e+1,3.21e+1,1.61e+1 :CALCulate:DEMod:AM:RESult:MINimum? Query Description Returns the minimum recorded measurement results for AM demodulation as a comma separated string. Query Syntax :CALCulate:DEMod:AM:RESult:MINimum? Return parameter <depth,rate,power,offset,sinad> depth Modulation depth in %. rate Modulation rate in Hz. power Carrier power in the current Y-axis units.
Page 92: Calculate:demod:earphone:state
GSP-9300B Programming Manual Description Sets or queries the state of the AM Analysis function. Syntax :CALCulate:DEMod:AM:STATe {ON|OFF|1|0} Query Syntax :CALCulate:DEMod:AM:STATe? Parameter Turn AM Analysis off. Turn AM Analysis on. Turn AM Analysis off. Turn AM Analysis on. Return parameter 0 AM Analysis is off.
Page 93: Calculate:demod:fm:result:minimum
REMOTE CONTROL power Carrier power in the current Y-axis units. offset Carrier frequency offset in Hz. sinad Signal to noise and distortion ratio in dB. Query Example :CALC:DEM:FM:RES:CURR? >9.840e+1,1.02e+2,-1.12e+1,3.21e+1,1.61e+1 :CALCulate:DEMod:FM:RESult:MINimum? Query Description Returns the minimum recorded measurement results for FM demodulation as a comma separated string.
Page 94: Calculate:demod:fm:state
GSP-9300B Programming Manual :CALCulate:DEMod:FM:STATe Query Description Sets or queries the state of the FM Analysis function. Syntax :CALCulate:DEMod:FM:STATe {ON|OFF|1|0} Query Syntax :CALCulate:DEMod:FM:STATe? Parameter Turn FM Analysis off. Turn FM Analysis on. Turn FM Analysis off. Turn FM Analysis on. Return parameter 0 FM Analysis is off.
Page 95: Calculate:demod:limit:carrier:offset
REMOTE CONTROL Query Syntax :CALCulate:DEMod:LIMit:FDEViation? Parameter/ <freq> <NR3> deviation in Hz. Return Parameter Example :CALC:DEM:LIM:FDEV? >1.000000000e+02 :CALCulate:DEMod:LIMit:CARRier:OFFSet Query Description Sets or queries the carrier offset frequency limit. The carrier offset indicates the maximum offset for a pass judgement. Syntax :CALCulate:DEMod:LIMit:CARRier:OFFSet <freq> Query Syntax :CALCulate:DEMod:LIMit:CARRier:OFFSet? Parameter/...
Page 96: Calculate:demod:limit:fail
GSP-9300B Programming Manual :CALCulate:DEMod:LIMit:FAIL? Query Description Returns the demod limit pass/fail judgment. A pass indicates that the trace abides by every limit condition. Query Syntax :CALCulate:DEMod:LIMit:FAIL? Reutrn Parameter For AM Modulation: <AM Depth>,<Carrier Power>,<Carrier Frequency Offset> For FM Modulation: <Freq Deviation>,<Carrier Power>,<Carrier Freq Offset>...
Page 97: Calculate:harmonic:distortion
REMOTE CONTROL :CALCulate:HARMonic:DISTortion? Query Description Returns the harmonic distortion as a percentage of the fundamental and as dBc. Query Syntax CALCulate:HARMonic:DISTortion? Return parameter <%>,<dBc> <%> THD as %. <NR1> format <dBc> THD as dBc. <NRf> format Query Example :CALC:HARM:DIST? >32.34,-9.81e+00 :CALCulate:HARMonic:RESult? Query Description...
Page 98: Calculate:jitter:state
GSP-9300B Programming Manual Example :CALC:HARM:STAT ON :CALCulate:JITTer:STATe Query Description Sets or queries the state of the Jitter Analysis function. Syntax :CALCulate:JITTer:STATe {ON|OFF|1|0} Query Syntax :CALCulate:JITTer:STATe? Parameter Turn Jitter Analysis off. Turn Jitter Analysis on. Turn Jitter Analysis off. Turn Jitter Analysis on.
Page 99: Calculate:jitter:time
REMOTE CONTROL :CALCulate:JITTer:TIME? Query Description Returns the carrier jitter time in seconds. Query Syntax :CALCulate:JITTer:TIME? Return parameter <NR3> Seconds Query Example :CALC:JITT:TIME? >.5.31e-08 :CALCulate:LIMit<n>:CLEar Description Clears the High Limit, Low Limit and the Pass/Fail state for the selected limit line. Syntax :CALCulate:LIMit<n>:CLEar Parameter...
Page 100: Calculate:limit:fail
GSP-9300B Programming Manual :CALCulate:LIMit:FAIL? Query Description Returns the Pass/Fail judgment. Query Syntax :CALCulate:LIMit:FAIL? Return parameter 0 Pass Fail Query Example :CALC:LIM:FAIL? >1 :CALCulate:LIMit:LOW Description Selects which limit line is used for the low limit. Syntax :CALCulate:LIMit:LOW <limit num> Parameter <limit <NR1>...
Page 101: Calculate:limit:mode
REMOTE CONTROL Parameter <point> <NR1> point 1~10 <offset> <NR3> dB <n> Seleted limit line Example :CALC:LIM1:MARK 5, 20 :CALCulate:LIMit:MODE Query Description Sets or queries the Pass/Fail mode for limit line testing. Syntax :CALCulate:LIMit:MODE {SINGle|CONTinue} Query Syntax :CALCulate:LIMit:MODE? Parameter SINGle Stops triggering after a pass/fail result. CONTinue Continues triggering after a pass/fail result.
Page 102: Calculate:limit:Trace
GSP-9300B Programming Manual :CALCulate:LIMit<n>:TRACe Description Creates a limit line from the currently selected trace with a user defined offset. Syntax :CALCulate:LIMit<n>:TRACe <offset> Parameter <n> <NR1> limit line 1~5 <offset> <NR3> in dB Example :CALC:LIM2:TRAC 10 :CALCulate:LIMit:TYPE Query Description Sets or queries the Pass/Fail conditions for the limit line testing.
Page 103: Calculate:marker:Fcount: Resolution:auto
REMOTE CONTROL Query Syntax :CALCulate:MARKer<n>:FCOunt:RESolution? Parameter <n> <NR1>Maker number 1~6*. <freq> Frequency resolution in Hz**. Return parameter <freq> Frequency resolution in Hz. Note * Only one marker can be selected at a time to use the marker counter function. The selected marker counter will disable the previously selected marker counter.
Page 104: Calculate:marker:Fcount:state
GSP-9300B Programming Manual :CALCulate:MARKer<n>:FCOunt:STATe Query Description Sets or queries the state of the frequency counter function. Syntax :CALCulate:MARKer<n>:FCOunt:STATe {ON|OFF|1|0} Query Syntax :CALCulate:MARKer<n>:FCOunt:STATe? Parameter <n> <NR1>Marker number 1~6 Turn frequency counter off. Turn frequency counter on. Turn frequency counter off. Turn frequency counter on.
Page 105: Calculate:marker:Noise:y
REMOTE CONTROL Parameter <n> <NR1>Marker number 1~6. Turn marker noise off. Turn marker noise on. Turn marker noise off. Turn marker noise on. Return parameter 0 Marker noise is off. Marker noise is on. Example :CALC:MARK2:NOIS:STAT ON :CALCulate:MARKer<n>:NOISe:Y? Query Description Returns the normalized noise level over a BW of 1Hz from the marker position.
Page 106: Calculate:marker:Vswr:y
GSP-9300B Programming Manual :CALCulate:MARKer<n>:VSWR:Y? Query Description Returns the VSWR measurement value. Query Syntax :CALCulate:MARKer<n>:VSWR:Y? Parameter <n> <NR1> Maker number 1~6. Return parameter <NR2> VSWR value. Example :CALC:MARK1:VSWR:Y? >1.35 :CALCulate:MARKer<n>:PEAK Description Sets the selected marker to the selected peak. Query Syntax :CALCulate:MARKer<n>:PEAK {MAXimum|...
Page 107: Calculate:marker:peak:data
REMOTE CONTROL Parameter Turn peak track off. Turn peak track on. Turn peak track off. Turn peak track on. Return parameter 0 Peak track is off. Peak track is on. Example :CALC:MARK:PEAK:CTR:STAT ON :CALCulate:MARKer:PEAK:DATA? Query Description Returns all the top 10 peak data values in CSV format (returns the contents of the peak table).
Page 108: Calculate:marker:peak:sort:type
GSP-9300B Programming Manual :CALCulate:MARKer:PEAK:SORT:TYPE Query Description Sets or queries the peak sort type for the peak table. Syntax :CALCulate:MARKer:PEAK:SORT:TYPE {FREQuency|AMPLitude} Query Syntax :CALCulate:MARKer:PEAK:SORT:TYPE? Parameter/ FREQuency Sort by frequency. Return parameter AMPLitude Sort by amplitude. Example :CALC:MARK:PEAK:SORT:TYPE FREQ :CALCulate:MARKer:PEAK:TABLe:STATe Query Description Sets or queries the state of the Peak Table.
Page 109: Calculate:marker:peak:threshold: State
REMOTE CONTROL Return parameter <NR3> Peak threshold. Note: the unit returned depends on the currently set vertical units. Example :CALC:MARK:PEAK:THR -3 dBm :CALCulate:MARKer:PEAK:THReshold: STATe Query Description Sets or queries the state of the Peak Threshold. Syntax :CALCulate:MARKer:PEAK:THReshold:STATe {ON|OFF|1|0} Query Syntax :CALCulate:MARKer:PEAK:THReshold:STATe? Parameter Turn peak threshold off.
Page 110: Calculate:marker:State
GSP-9300B Programming Manual :CALCulate:MARKer<n>:STATe Query Description Sets or queries the state of the selected marker. Syntax :CALCulate:MARKer<n>:STATe {ON|OFF|1|0} Query Syntax :CALCulate:MARKer<n>:STATe? Parameter <n> <NR1> Marker number 1~6 Turn the selected marker off. Turn the selected marker on. Turn the selected marker off.
Page 111: Calculate:marker:Trace:auto
REMOTE CONTROL Query Syntax :CALCulate:MARKer<n>:TRACe? Parameter/ <n> <NR1> Marker number 1~6 Return parameter <trace The name of the trace: (1, 2, 3, 4) name> Example :CALC:MARK2:TRAC 1 :CALCulate:MARKer<n>:TRACe:AUTO Query Description Sets or queries the state of the Marker Trace function. Allows the selected marker to be automatically assigned to a trace (on) or be to manually assigned a trace (off).
Page 112: Calculate:marker:X
GSP-9300B Programming Manual :CALCulate:MARKer<n>:X Query Description Sets or returns the marker position in Hz. Syntax :CALCulate:MARKer<n>:X <freq> Query Syntax :CALCulate:MARKer<n>:X? Parameter/ <n> <NR1> Marker number 1~6 Return parameter <freq> Example :CALC:MARK4:X 2.0e+6 :CALCulate:MARKer<n>:Y? Query Description Returns the marker’s vertical position in the current unit.
Page 113: Calculate:math:ldif
REMOTE CONTROL :CALCulate:MATH:LDIF Description Calculates the logarithmic difference between two traces (T1 – the first trace operand and T2 – the second trace operand) and assigns the designated reference level to the destination trace. Syntax :CALCulate:MATH:LDIF <Destination Trace,T1,T2, Ref> Parameter <...
Page 114: Calculate:ndb:bandwidth|Bwidth
GSP-9300B Programming Manual Parameter Turn NdB BW off. Turn NdB BW on. Turn NdB BW off. Turn NdB BW on. Return parameter 0 NdB BW is off. NdB BW is on. Example :CALC:NDB:STAT ON :CALCulate:NDB:BANDwidth|BWIDth? Query Description Returns the NdB bandwidth measurement.
Page 115: Calculate:ocbw:state
REMOTE CONTROL :CALCulate:OCBW:STATe Query Description Turns the OCBW measurement on/off or queries its state. Syntax :CALCulate:OCBW:STATe {ON|OFF|1|0} Query Syntax :CALCulate:OCBW:STATe? Parameter Turn OCBW off. Turn OCBW on. Turn OCBW off. Turn OCBW on. Return parameter 0 OCBW is off. OCBW is on. Example :CALC:OCBW:STAT ON :CALCulate:OCBW:BANDwidth|BWIDth?
Page 116: Calculate:ocbw:power
GSP-9300B Programming Manual :CALCulate:OCBW:POWer? Query Description Returns the OCBW total power measurement. Query Syntax :CALCulate:OCBW:POWer? Return parameter <NR3> OCBW total power in the current Y-axis unit. Example :CALC:OCBW:POW? >1.33e+01 :CALCulate:OCBW:PSDensity? Query Description Returns the OCBW power spectral density. Query Syntax :CALCulate:OCBW:PSDensity? Return parameter <NR3>...
Page 117: Calculate:p1Db:normalize:state
REMOTE CONTROL :CALCulate:P1DB:NORMalize:STATe Query Description Turns the P1DB function on or off. Syntax :CALCulate:P1DB:NORMalize:STATe {ON|OFF|1|0} Query Syntax :CALCulate:P1DB:NORMalize:STATe? Parameter OFF | 0 Turns the normalize function off. ON | 1 Turns the normalize function on. Return parameter 0 Normalize function is off. Normalize function is on.
Page 118: Calculate:p1Db:result
GSP-9300B Programming Manual Return parameter <NR3>,<NR3>……<NR3> (31 return values) <NR3> Gain in dB. Starting at -30dBm and ending at 0dBm Example :CALC:P1DB:GAIN:RES? >0.00e+00,0.00e+00,0.00e+00,0.00e+00,0.00e+00,0.00 e+00,0.00e+00,0.00e+00,0.00e+00,0.00e+00,0.00e+00, 0.00e+00,0.00e+00,0.00e+00,0.00e+00,0.00e+00,0.00e +00,0.00e+00,0.00e+00,0.00e+00,1.382e+01,1.406e+01 ,1.401e+01,1.404e+01,1.423e+01,1.419e+01,1.434e+01 ,1.441e+01,1.449e+01,1.460e+01,1.426e+01\n :CALCulate:P1DB:RESult? Query Description Returns the P1dB result as x-y coordinates. Query Syntax :CALCulate:P1DB:RESult? Return parameter <x>,<y>...
Page 119: Calculate:pmeter:limit:fail
REMOTE CONTROL Syntax :CALCulate:PMETer:LIMit:STATe {ON|OFF|1|0} Query Syntax :CALCulate:PMETer:LIMit:STATe? Parameter Turns limits off. Turns limits on. Turns limits off. Turns limits on. Return parameter 0 Turns limits off. Turns limits on. Example :CALC:PMET:LIM:STAT? >1 :CALCulate:PMETer:LIMit:FAIL? Query Description Returns the pass/fail judgment. Query Syntax :CALCulate:PMETer:LIMit:FAIL? Return parameter 0...
Page 120: Calculate:sem:offset:Result
GSP-9300B Programming Manual :CALCulate:SEM:OFFSet<n>:RESult? Query Description Returns the start, stop frequencies as well as the pass/fail limits and judgements for the chosen offset. Query syntax :CALCulate:SEM:OFFSet<n>:RESult? Parameter <n> Offset number 1~5. Return parameter <start freq> Start frequency of the selected channel <low dBm>...
Page 121: Calculate:toi:limit:state
REMOTE CONTROL Δf: Hz Return parameter <NR3> Example :CALC:TOI:FREQ:DIFF? >6.65e+5 :CALCulate:TOI:LIMit:STATe Query Description Turns the TOI pass/fail limit on/off or queries its state. Syntax :CALCulate:TOI:LIMit:STATe {ON|OFF|1|0} Query Syntax :CALCulate:TOI:LIMit:STATe? Parameter Turns pass/fail limit off. Turns pass/fail limit on. Turns pass/fail limit off. Turns pass/fail limit on.
Page 122 GSP-9300B Programming Manual Description Turns TOI measurement on/off or queries its state. Syntax :CALCulate:TOI:STATe {ON|OFF|1|0} Query Syntax :CALCulate:TOI:STATe? Parameter Turns TOI measurement off. Turns TOI measurement on. Turns TOI measurement off. Turns TOI measurement on. Return parameter 0 TOI measurement is off.
Page 123 REMOTE CONTROL DISPlay Commands :DISPlay:BRIGhtness ..........123 :DISPlay:ENABle............123 :DISPlay:DEMod[:WINDow]:TRACe:X [:SCALe]:AUTO ............124 :DISPlay:DEMod[:WINDow]:TRACe:X [:SCALe]:PDIVision ........... 124 :DISPlay:DEMod[:WINDow]:TRACe:X [:SCALe]:RPOSition ........... 125 :DISPlay:DEMod[:WINDow]:TRACe:X [:SCALe]:RVALue ............125 :DISPlay:DEMod[:WINDow]:TRACe:Y [: SCALe]:AUTO ............125 :DISPlay:DEMod[:WINDow]:TRACe:Y [:SCALe]:PDIVision ........... 126 :DISPlay:DEMod[:WINDow]:TRACe:Y [:SCALe]:RPOSition ........... 126 :DISPlay:DEMod[:WINDow]:TRACe:Y [:SCALe]:RVALue ............126 :DISPlay:P1DB[:WINDow]:TRACe:Y[:SCALe]: LEVel?................
Page 124 GSP-9300B Programming Manual :DISPlay[:WINDow]:SPECtrogram:MARKer :AMPLitude? ..............131 :DISPlay[:WINDow]:SPECtrogram:MARKer :TIME? ................131 :DISPlay[:WINDow]:SPLit:NORMal:ALTernate . 132 :DISPlay[:WINDow]:SPLit:NORMal:ACTive ..132 :DISPlay[:WINDow]:SPLit:SPECtrogram ..... 132 :DISPlay[:WINDow]:SPLit:TOPO ......132 :DISPlay[:WINDow]:TOPO ........133 :DISPlay[:WINDow]:TOPO:MARKer:PERCen t? ..................133 :DISPlay[:WINDow]:TOPO:MARKer:X ....133 :DISPlay[:WINDow]:TOPO:MARKer:Y ....134 :DISPlay[:WINDow]:TOPO:MARKer :FREQuency? ............... 134 :DISPlay[:WINDow]:TOPO:MARKer :AMPLitude? ..............
Page 125: Display:brightness
REMOTE CONTROL :DISPlay[:WINDow]:TRACe:Y[:SCALe]: SPACing ................ 141 :DISPlay[:WINDow]:TRACe:Y[:SCALe]:STATe . 141 :DISPlay:BRIGhtness Query Description Sets or queries the LCD brightness level. Syntax :DISPlay:BRIGhtness {HIGH|MIDDle|LOW} Query Syntax :DISPlay:BRIGhtness? Parameter/ <HIGH> High brightness level Return parameter <MIDDle> Mid brightness level <LOW> Low brightness level Example :DISP:BRIG HIGH :DISPlay:ENABle...
Page 126: Display:demod[:Window]:Trace:x [:Scale]:Auto
GSP-9300B Programming Manual :DISPlay:DEMod[:WINDow]:TRACe:X [:SCALe]:AUTO Query Description Turns auto scale on/off for AM/FM demodulation or queries its state. When set to ON, the auto scale function will be executed continuously. Syntax :DISPlay:DEMod[:WINDow]:TRACe:X[:SCALe]:AUTO {OFF|ON|0|1} Query Syntax :DISPlay:DEMod[:WINDow]:TRACe:X[:SCALe]:AUTO? Parameter Turn Auto Scale off.
Page 127: Display:demod[:Window]:Trace:x [:Scale]:Rposition
REMOTE CONTROL :DISPlay:DEMod[:WINDow]:TRACe:X [:SCALe]:RPOSition Query Description Sets or queries the Reference Position of the trace for AM/FM demodulation (x-axis grid division). Syntax :DISPlay:DEMod[:WINDow]:TRACe:X[:SCALe]: RPOSition <integer> Query Syntax :DISPlay:DEMod[:WINDow]:TRACe:X[:SCALe]: RPOSition? Parameter/ <integer> <NR1>1~10 Return parameter Example :DISP:DEM:TRAC:X:RPOS 2 :DISPlay:DEMod[:WINDow]:TRACe:X [:SCALe]:RVALue Query Description Sets or queries the Reference value time.
Page 128: Display:demod[:Window]:Trace:y [:Scale]:Pdivision
GSP-9300B Programming Manual :DISPlay:DEMod[:WINDow]:TRACe:Y [:SCALe]:PDIVision Query Description Sets or queries the Y-axis scale per division. Syntax :DISPlay:DEMod[:WINDow]:TRACe:Y[:SCALe]: PDIVision <NRf> Query Syntax :DISPlay:DEMod[:WINDow]:TRACe:Y[:SCALe]: PDIVision? Parameter <NRf> AM Unit: %, FM Unit: Hz Return parameter <NR3> AM Unit: %, FM Unit: Hz Example :DISP:DEM:TRAC:Y:PDIV 2.3e+1...
Page 129: Display:p1Db[:Window]:Trace:y[:Scale]: Level
REMOTE CONTROL Query Syntax :DISPlay:DEMod[:WINDow]:TRACe:Y[:SCALe]: RVALue? Parameter <NRf> AM Unit: %, FM Unit: Hz Return parameter <NR3> AM Unit: %, FM Unit: Hz Example :DISP:DEM:TRAC:Y:RVAL 2 :DISPlay:P1DB[:WINDow]:TRACe:Y[:SCALe]: LEVel? Query Description Returns the P1dB normalization value (offset) in dB. Equivalent to the “Execute Norm.” value in the P1dB Normalize function.
Page 130: Display[:Window]:Spectrogram :Deltamarker:y
GSP-9300B Programming Manual Description Sets or queries spectrogram delta marker’s x-axis. Syntax :DISPlay[:WINDow]:SPECtrogram:DELTamarker:X <NR1> Query Syntax :DISPlay[:WINDow]:SPECtrogram:DELTamarker:X? Parameter/Return <NR1> X axis value. parameter Example :DISP:SPEC:DELT:X 200 :DISPlay[:WINDow]:SPECtrogram :DELTamarker:Y Query Description Sets or queries spectrogram delta marker’s y-axis. Syntax :DISPlay[:WINDow]:SPECtrogram:DELTamarker:Y <NR1>...
Page 131: Display[:Window]:Spectrogram :Deltamarker:amplitude
REMOTE CONTROL :DISPlay[:WINDow]:SPECtrogram :DELTamarker:AMPLitude? Query Description Returns spectrogram delta marker amplitude value. Query syntax :DISPlay[:WINDow]:SPECtrogram:DELTamarker:AMPLi tude? Return parameter <NR3> Amplitude in dB. Example :DISP:SPEC:DELT:AMPL? >7.347e+00 :DISPlay[:WINDow]:SPECtrogram :DELTamarker:INVerse:TIME? Query Description Returns the frequency delta between the refence and delta marker in the spectrogram display view. Query syntax :DISPlay[:WINDow]:SPECtrogram:DELTamarker :INVerse:TIME?
Page 132: Display[:Window]:Spectrogram:marker :State
GSP-9300B Programming Manual :DISPlay[:WINDow]:SPECtrogram:MARKer :STATe Query Description Sets or queries the state of the spectrogram marker. Syntax :DISPlay[:WINDow]:SPECtrogram:MARKer:STATe {OFF|ON|0|1} Query Syntax :DISPlay[:WINDow]:SPECtrogram:MARKer:STATe? Parameter OFF | 0 Turn spectrogram marker off. ON | 1 Turn spectrogram marker on. Return parameter 0 Spectrogram marker is off.
Page 133: Display[:Window]:Spectrogram:marker :Frequency
REMOTE CONTROL Syntax :DISPlay[:WINDow]:SPECtrogram:MARKer:Y <NR1> Query Syntax :DISPlay[:WINDow]:SPECtrogram:MARKer:Y? Parameter/Return <NR1> Y axis value. parameter Example :DISP:SPEC:MARK:Y 50 :DISPlay[:WINDow]:SPECtrogram:MARKer :FREQuency? Query Description Returns spectrogram marker frequency value. Query syntax :DISPlay[:WINDow]:SPECtrogram:MARKer :FREQuency? Return parameter <NR3> Frequency in Hz. Example :DISP:SPEC:MARK:FREQ? >3.333e+03 :DISPlay[:WINDow]:SPECtrogram:MARKer :AMPLitude? Query Description...
Page 134: Display[:Window]:Split:normal:alternate
GSP-9300B Programming Manual Return parameter <NR3> Time in seconds Example :DISP:SPEC:MARK:TIME? >4.92e-01 :DISPlay[:WINDow]:SPLit:NORMal: ALTernate Description Turns on the Alternate Sweep function for split window mode, both windows are in the normal trace mode. (we also have Spectrogram and Topographic mode)
Page 135: Display[:Window]:Topo
REMOTE CONTROL Description Sets the split screen mode to Topographic + Spectrum. Syntax :DISPlay[:WINDow]:SPLit:TOPO Example :DISP:SPL:TOPO :DISPlay[:WINDow]:TOPO Description Sets the display window to topographic. Syntax :DISPlay[:WINDow]:TOPO Example :DISP:TOPO :DISPlay[:WINDow]:TOPO:MARKer:PERCen Query Description Returns the percentage of traces that cross the reference marker position in the topographic display view.
Page 136: Display[:Window]:Topo:marker:y
GSP-9300B Programming Manual :DISPlay[:WINDow]:TOPO:MARKer:Y Query Description Sets or queries topographic marker’s y-axis value. Syntax :DISPlay[:WINDow]:TOPO:MARKer:Y <NR1> Query Syntax :DISPlay[:WINDow]:TOPO:MARKer:Y? Parameter/Return <NR1> Y axis value. parameter Example :DISP:TOPO:MARK:Y 75 :DISPlay[:WINDow]:TOPO:MARKer :FREQuency? Query Description Returns topographic marker frequency value. Query syntax :DISPlay[:WINDow]:TOPO:MARKer:FREQuency? Return parameter <NR3>...
Page 137: Display[:Window]:Topo:deltamarker:x
REMOTE CONTROL Syntax :DISPlay[:WINDow]:TOPO:MARKer:STATe {OFF|ON|0|1} Query Syntax :DISPlay[:WINDow]:TOPO:MARKer:STATe? Parameter OFF | 0 Turn topographic marker off. ON | 1 Turn topographic marker on. Return parameter 0 Topographic marker is off. Topographic marker is on. Query Example :DISP:TOPO:MARK:STAT? >1 :DISPlay[:WINDow]:TOPO:DELTamarker:X Query Sets or queries topographic delta marker’s x-axis Description value.
Page 138: Display[:Window]:Topo:deltamarker :Frequency
GSP-9300B Programming Manual :DISPlay[:WINDow]:TOPO:DELTamarker :FREQuency? Query Description Returns topographic delta marker frequency value. Query syntax :DISPlay[:WINDow]:TOPO:DELTamarker:FREQuency? Return parameter <NR3> Frequency in Hz. Example :DISP:TOPO:DELT:FREQ? >-4.166e+04 :DISPlay[:WINDow]:TOPO:DELTamarker :AMPLitude? Query Description Returns topographic delta marker’s amplitude value. Query syntax :DISPlay[:WINDow]:TOPO:DELTamarker:AMPLitude? Return parameter <NR3>...
Page 139: Display[:Window]:Trace:Mode
REMOTE CONTROL :DISPlay[:WINDow]:TRACe<n>:MODE Description Sets the operation mode of the selected trace. Syntax :DISPlay[:WINDow]:TRACe<n>:MODE {WRITe|VIEW|BLANk|MAXHold|MINHold} Parameter <n> <NR1> Trace number 1~4 WRITe Clear and Write VIEW Hold the last trace BLANK Clears the trace MAXHold Hold the maximum/minimum points MINHold from each sweep Example :DISP:TRAC4:MODE VIEW...
Page 140: Display[:Window]:Trace:y:dline:state
GSP-9300B Programming Manual Parameter <ampl> <NRf> Power or voltage in the current Y- axis unit. Return parameter <NR3> Example :DISP:TRAC:Y:DLIN -5.0e+01 :DISPlay[:WINDow]:TRACe:Y:DLINe:STATe Query Description Turns the display line on/off or queries its state. Syntax :DISPlay[:WINDow]:TRACe:Y:DLINe:STATe {OFF|ON|0|1} Query Syntax :DISPlay[:WINDow]:TRACe:Y:DLINe:STATe? Parameter Turn display line off.
Page 141: Display[:Window]:Trace:y[:Scale]: Nrposition
REMOTE CONTROL Query Syntax :DISPlay[:WINDow]:TRACe:Y[:SCALe]:NRLevel? Parameter <ampl> <NRf> Power or voltage in the current Y- axis unit. Return parameter <NR3> Example :DISP:TRAC:Y:NRLevel 5 dB :DISPlay[:WINDow]:TRACe:Y[:SCALe]: NRPosition Query Description Sets or queries the position of the normalized reference level. The 0~10 Y-axis grid divisions correspond to the bottom~top grid divisions.
Page 142: Display[:Window]:Trace:y[:Scale]: Position
GSP-9300B Programming Manual :DISPlay[:WINDow]:TRACe:Y[:SCALe]: POSition Query Description Sets or queries the position of the on-screen scale. Syntax :DISPlay[:WINDow]:TRACe:Y[:SCALe]:POSition {LEFT|CENTer|RIGHt} Query Syntax :DISPlay[:WINDow]:TRACe:Y[:SCALe]:POSition? Parameter/ LEFT Position the scale to left Return parameter CENTer Position the scale to the center RIGHt Position the scale to right...
Page 143 REMOTE CONTROL Example :DISP:TRAC:Y:RLEV:OFFS -5.0e+1 dB :DISPlay[:WINDow]:TRACe:Y[:SCALe]: SPACing Query Description Sets or queries the type of scale: logarithmic or linear. Syntax :DISPlay[:WINDow]:TRACe:Y[:SCALe]:SPACing {LINear|LOGarithmic} Query Syntax :DISPlay[:WINDow]:TRACe:Y[:SCALe]:SPACing? Parameter/ LINear Linear scale Return parameter LOGarithmic Logarithmic scale Example :DISP:TRAC:Y:SPAC LOG :DISPlay[:WINDow]:TRACe:Y[:SCALe]: STATe Query Description Turns the on-screen scale on/off or queries its...
Page 144 GSP-9300B Programming Manual INITiate Commands :INITiate:CONTinuous ..........142 :INITiate[:IMMediate] ..........142 :INITiate:CONTinuous Query Description Sets the sweep mode to continuous or single mode or queries its state. Syntax :INITiate:CONTinuous {OFF|ON|0|1} Query Syntax :INITiate:CONTinuous? Parameter single continuos single continuos Return parameter 0...
Page 145 REMOTE CONTROL INPut Commands :INPut:ATTenuation ..........143 :INPut:ATTenuation:AUTO ........143 :INPut:IMPedance ............144 :INPut:OFFSet ............144 :INPut:ATTenuation Query Description Sets or queries the input attenuation. Syntax :INPut:ATTenuation <integer> Query Syntax :INPut:ATTenuation? Parameter/ <integer> <NR1> 0 to 50 Return parameter Example :INP:ATT 10 dB :INPut:ATTenuation:AUTO Query...
Page 146 GSP-9300B Programming Manual :INPut:IMPedance Query Sets or queries the input impedance in Ω. Description Syntax :INPut:IMPedance {50|75} Query Syntax :INPut:IMPedance? <NR1> Ω Parameter/ <NR1> Ω Return parameter Example :INP:IMP 75 :INPut:OFFSet Query Description Sets or queries the input offset (Input Z Calibration).
Page 147: Mmemory:catalog
REMOTE CONTROL MMEMory Commands :MMEMory:CATalog? ..........145 :MMEMory:CDIRectory ........... 146 :MMEMory:COPY ............. 146 :MMEMory:DELete ........... 147 :MMEMory:DESTination ......... 147 :MMEMory:LOAD:CORRection ......148 :MMEMory:LOAD:LIMit ......... 148 :MMEMory:LOAD:PMETer ........148 :MMEMory:LOAD:SEQuence ........ 148 :MMEMory:LOAD:STATe ........149 :MMEMory:LOAD:TRACe ........149 :MMEMory:MOVE ............ 149 :MMEMory:REName ..........
Page 148: Mmemory:cdirectory
GSP-9300B Programming Manual :MMEMory:CDIRectory Description Sets the source directory for memory related commands. When you use a single USB drive/SD card with multiple partitions inside, the system will automatically name these partitions in the numeric order, so you need to specify the partition number.
Page 149: Mmemory:delete
REMOTE CONTROL :MMEMory:DELete Description Deletes the designated file from the current directory. Syntax :MMEMory:DELete <src_file_name> Parameter <src_file_name> :MMEM:DEL “QuickJpg1.jpg” Example :MMEMory:DESTination Description Sets the destination directory for memory related commands. When you use a single USB drive/SD card with multiple partitions inside, the system will automatically name these partitions in the numeric order, so you need to specify the partition number.
Page 150: Mmemory:load:correction
GSP-9300B Programming Manual :MMEMory:LOAD:CORRection Description Loads correction data from a file to the internal memory. Syntax :MMEMory:LOAD:CORRection <corr num>, <src_file_name> Parameter <corr num> <NR1> correction set 1~5 <src_file_name> XXX.cor Example :MMEM:LOAD:CORR 2,”test.cor” :MMEMory:LOAD:LIMit Description Loads limit line data from a file to the internal memory.
Page 151: Mmemory:load:state
REMOTE CONTROL Syntax :MMEMory:LOAD:SEQuence <seq num>, <src_file_name> Parameter <seq num> <NR1>sequence number 1~5 <src_file_name> XXX.seq Example :MMEM:LOAD:SEQ 2,”test.seq” :MMEMory:LOAD:STATe Description Loads the instrument state from a file to the internal memory. Syntax :MMEMory:LOAD:STATe <src_file_name> Parameter <src_file_name> XXX.sta :MMEM:LOAD:STAT “test.sta” Example :MMEMory:LOAD:TRACe Description Loads trace data from a file to the internal...
Page 152: Mmemory:rename
GSP-9300B Programming Manual :MMEMory:REName Description Renames the designated file from the current file. Syntax :MMEMory:REName <old_file_name>,<new_file_name> Parameter <old_file_name> <new_file_name> :MMEM:REN “QuickJpg1.jpg”,”QuickJpg2.jpg” Example :MMEMory:STORe:CORRection Description Store correction data to a file from the internal memory. Syntax :MMEMory:STOR:CORRection <corr num>,<new_dest_file_name> Parameter <corr num>...
Page 153: Mmemory:store:pmeter
REMOTE CONTROL :MMEMory:STORe:PMETer Description Store power meter data to a file from the internal memory. Syntax :MMEMory:STORe:PMETer <new_dest_file_name> Parameter <new_dest_file_name> XXX.pmet :MMEM:STOR:PMET “test.pmet” Example :MMEMory:STORe:SCReen Description Store a screen-shot to the current file directory. Syntax :MMEMory:STORe:SCReen <new_dest_file_name> Parameter <new_dest_file_name> XXX.jpg :MMEM:STOR:SCR “test.jpg”...
Page 154: Mmemory:store:trace
GSP-9300B Programming Manual Parameter <new_dest_file_name> XXX.sta :MMEM:STORe:STAT “test.sta” Example :MMEMory:STORe:TRACe Description Store trace data to a file from the internal memory. Syntax :MMEMory:STORe:TRACe <trace name>, <new_dest_file_name> Parameter <trace name> <NR1> 1~4 <new_dest_file_name> XXX.tra Example :MMEM:STORe:TRAC 2,”test.tra”...
Page 155 REMOTE CONTROL OUTPut Commands :OUTPut[:STATe]............153 :OUTPut[:STATe] Query Description Turns the tracking generator output on/off or queries its state. Syntax :OUTPut[:STATe] {OFF|ON|0|1} Query Syntax :OUTPut[:STATe]? Parameter Turn TG output off. Turn TG output on. Turn TG output off. Turn TG output on. Return parameter 0 TG output is off.
Page 156 GSP-9300B Programming Manual SENSe Commands [:SENSe]:ACPR:ACHannel<n>:BANDwidth| BWIDth ................ 157 [:SENSe]:ACPR:ACHannel<n>:HLIMit ....157 [:SENSe]:ACPR:ACHannel<n>:LLIMit ....158 [:SENSe]:ACPR:ACHannel<n>:OFFSet ....158 [:SENSe]:ACPR:BANDwidth|BWIDth ....158 [:SENSe]:ACPR:HLIMit ..........159 [:SENSe]:ACPR:LLIMit ..........159 [:SENSe]:ACPR:HELP:STATe ........ 159 [:SENSe]:ACPR:SPACe ..........160 [:SENSe]:ASET:AMPLitude ........160 [:SENSe]:ASET:AMPLitude:AUTO ....... 160 [:SENSe]:ASET:RUN ..........161 [:SENSe]:ASET:SPAN ..........
Page 157 REMOTE CONTROL [:SENSe]:EMIFilter:BANDwidth|BWIDth [:RESolution]..............170 [:SENSe]:FREQuency:CENTer ....... 171 [:SENSe]:FREQuency:CENTer:STEP ....171 [:SENSe]:FREQuency:CENTer:STEP:AUTO ..171 [:SENSe]:FREQuency:OFFSet ......... 172 [:SENSe]:FREQuency:SPAN ........172 [:SENSe]:FREQuency:SPAN:FULL ....... 172 [:SENSe]:FREQuency:SPAN:PREVious ....173 [:SENSe]:FREQuency:STARt........173 [:SENSe]:FREQuency:STOP ........173 [:SENSe]:HARMonic:FUNDamental :FREQuency ..............173 [:SENSe]:HARMonic:NUMBer ....... 174 [:SENSe]:LIMit<n>:DELete ........174 [:SENSe]:JITTer:OFFSet:STARt ......
Page 158 GSP-9300B Programming Manual BANDwidth|BWIDth ..........183 [:SENSe]:SEMask:OFFSet<n>:ADDition: BANDwidth|BWIDth[:RESolution]?..... 184 [:SENSe]:SEMask:OFFSet<n>:ADDition: FREQuency:STARt?........... 186 [:SENSe]:SEMask:OFFSet<n>:ADDition: FREQuency:STOP? ............ 186 [:SENSe]:SEMask:OFFSet<n>:ADDition: STARt:ABSolute? ............187 [:SENSe]:SEMask:OFFSet<n>:ADDition: STOP:ABSolute? ............187 [:SENSe]:SEMask:OFFSet<n>:BANDwidth| BWIDth[:RESolution] ..........187 [:SENSe]:SEMask:OFFSet<n>:BANDwidth|B WIDth[:RESolution]:AUTO ........188 [:SENSe]:SEMask:OFFSet<n>:FREQuency: STARt ................188 [:SENSe]:SEMask:OFFSet<n>:FREQuency: STOP ................189 [:SENSe]:SEMask:OFFSet<n>:STARt:...
Page 159: [:Sense]:Acpr:achannel:Bandwidth| Bwidth
REMOTE CONTROL ODE ................196 [:SENSe]:SEMask:WIMax:CHANnel: BANDwidth|BWIDth..........197 [:SENSe]:SEQuence<n>:DELete ......197 [:SENSe]:SWEep:EGATe:DELay ......197 [:SENSe]:SWEep:EGATe:LENGth ......198 [:SENSe]:SWEep:EGATe:STATe ......198 [:SENSe]:SWEep:MODE .......... 198 [:SENSe]:SWEep:TIME ..........199 [:SENSe]:SWEep:TIME:AUTO ....... 199 [:SENSe]:TOI:REFerence ......... 199 [:SENSe]:TOI:LIMit ........... 200 [:SENSe]:ACPR:ACHannel<n>:BANDwidth| BWIDth Query Description Sets or queries the adjacent channel bandwidth for the selected adjacent channel.
Page 160: [:Sense]:Acpr:achannel:Llimit
GSP-9300B Programming Manual Parameter <ampl> <NRf> power or voltage Return parameter <NR3> Example :ACPR:ACH1:HLIM -3.0e+1 [:SENSe]:ACPR:ACHannel<n>:LLIMit Query Description Sets or queries the low limit for the selected adjacent channel. Used with ACPR measurement. Syntax [:SENSe]:ACPR:ACHannel<n>:LLIMit <ampl> Query Syntax [:SENSe]:ACPR:ACHannel<n>:LLIMit? Parameter <ampl>...
Page 161: [:Sense]:Acpr:hlimit
REMOTE CONTROL Parameter <freq> <NRf> Return parameter <NR3> Example :ACPR:BAND 2.0e+6 [:SENSe]:ACPR:HLIMit Query Description Sets or queries the high limit for the main channel. Used with ACPR measurement. Syntax [:SENSe]:ACPR:HLIMit <ampl> Query Syntax [:SENSe]:ACPR:HLIMit? Parameter <ampl> <NRf> power or voltage Return parameter <NR3>...
Page 162: [:Sense]:Acpr:space
GSP-9300B Programming Manual Example :ACPR:HELP:STAT ON [:SENSe]:ACPR:SPACe Query Description Sets or queries the channel spacing between the main channels. Syntax [:SENSe]:ACPR:SPACe <freq> Query Syntax [:SENSe]:ACPR:SPACe? Parameter <freq> <NRf> Return parameter <NR3> Example :ACPR:SPAC 2.0e+6 [:SENSe]:ASET:AMPLitude Query Description Sets or queries the autoset amplitude floor level.
Page 163: [:Sense]:Aset:run
REMOTE CONTROL Return parameter 0 Autoset amplitude floor is in manual. Autoset amplitude floor is in auto. Example :ASET:AMPL:AUTO 1 [:SENSe]:ASET:RUN Description Activates the Autoset function. Syntax [:SENSe]:ASET:RUN Example :ASET:RUN [:SENSe]:ASET:SPAN Query Description Sets or queries the Autoset span. Syntax [:SENSe]:ASET:SPAN <freq>...
Page 164: [:Sense]:Average:count
GSP-9300B Programming Manual [:SENSe]:AVERage:COUNt Query Description Sets or queries the number of traces that are used with the average function. Syntax [:SENSe]:AVERage:COUNt <integer> Query Syntax [:SENSe]:AVERage:COUNt? Parameter/ <integer> <NR1> Return parameter Example :AVER:COUN 20 [:SENSe]:AVERage:STATe Query Description Turns the Average function on/off or queries its state.
Page 165: [:Sense]:Bandwidth|Bwidth[:Resolution]
REMOTE CONTROL Parameter/Return VOLTage Sets Average to voltage parameter LOGarithmic Sets Average to logarithmic POWer Sets Average to power Example :AVER:TYPE VOLT [:SENSe]:BANDwidth|BWIDth[:RESolution] Query Description Sets or queries the resolution bandwidth (RBW). Syntax [:SENSe]:BANDwidth|BWIDth[:RESolution] <freq> Query Syntax [:SENSe]:BANDwidth|BWIDth[:RESolution]? Parameter <freq> <NRf>...
Page 166: [:Sense]:Bandwidth|Bwidth:video:auto
GSP-9300B Programming Manual Syntax [:SENSe]:BANDwidth|BWIDth:VIDeo <freq> Query Syntax [:SENSe]:BANDwidth|BWIDth:VIDeo? Parameter <freq> <NRf> Return parameter <NR3> Example :BAND:VID 1.0e+6 [:SENSe]:BANDwidth|BWIDth:VIDeo:AUTO Query Description Turns the VBW to auto (on) or manual (off) or queries its state. Syntax [:SENSe]:BANDwidth|BWIDth:VIDeo:AUTO {OFF|ON|0|1} Query Syntax [:SENSe]:BANDwidth|BWIDth:VIDeo:AUTO? Parameter Turn VBW to manual (off).
Page 167: [:Sense]:Cnr:channel:space
REMOTE CONTROL Example :CHAN:SPAC:UP [:SENSe]:CNR:CHANnel:SPACe Query Description Sets or queries the channel space bandwidth for CNR measurements. Syntax [:SENSe]:CNR:CHANnel:SPACe <freq> Query Syntax [:SENSe]:CNR:CHANnel:SPACe? Parameter <freq> <NRf> Return parameter <NR3> Example :CNR:CHAN:SPAC 6.0e+6 [:SENSe]:CNR:DELTamarker:MODE Description Turns the CNR Noise Marking function to Min(AUTO) or ΔMarker(MANual).
Page 168: [:Sense]:Correction:cset:State
GSP-9300B Programming Manual Parameter <freq> <NRf> Hz <offset> <NRf> dB <n> <NR1>correction set number Return parameter <CSV data> pt#1 freq, pt#1 offset,….. pt#n freq, pt#n offset Example :CORR:CSET1:DATA 2e+6,30 [:SENSe]:CORRection:CSET<n>:STATe Query Description Turns the selected correction set on/off or queries its state.
Page 169: [:Sense]:Ctb:channel:space
REMOTE CONTROL Syntax [:SENSe]:CSO:CHANnel:SPACe <freq> Query Syntax [:SENSe]:CSO:CHANnel:SPACe? Parameter <freq> <NRf> Return parameter <NR3> Example :CSO:CHAN:SPAC 6.0e+6 [:SENSe]:CTB:CHANnel:SPACe Query Description Sets the channel space bandwidth for CTB measurements. Syntax [:SENSe]:CTB:CHANnel:SPACe <freq> Query Syntax [:SENSe]:CTB:CHANnel:SPACe? Parameter <freq> <NRf> Return parameter <NR3> Example :CTB:CHAN:SPAC 6.0e+6 [:SENSe]:DEMod:EARPhone:TYPE...
Page 170: [:Sense]:Demod:earphone:gain
Sets the low pass filter to bypass. Return parameter LEVel<n> n=1~5 The filters 1 to 5 are shown in the table below. The GSP-9300B will automatically detect the signal frequency. AM/FM Signal Frequency (Hz) Selectable bandwidth of LPF (Hz) <n>=1 <n>=2...
Page 171: [:Sense]:Demod:ifbw
REMOTE CONTROL ≥391 ≥195 ≥78 ≥39 ≥20 ≥8 Example :DEM:FILT:LPAS Bypass Sets the low pass filter to bypass. [:SENSe]:DEMod:IFBW Query Description Sets or queries the IF bandwidth for the AM/FM/ASK/FSK Analysis function. Syntax [:SENSe]:DEMod:IFBW <freq> Query Syntax [:SENSe]:DEMod:IFBW? Parameter <freq> <NRf>...
Page 172: [:Sense]:Detector[:Function]:Auto
GSP-9300B Programming Manual [:SENSe]:DETector[:FUNCtion]:AUTO Query Description Turns the trace detection mode to auto (on) or manual (off) or queries its state. Syntax [:SENSe]:DETector[:FUNCtion]:AUTO {OFF|ON|0|1} Query Syntax [:SENSe]:DETector[:FUNCtion]:AUTO? Parameter Turn the detection mode to manual (off). Turn the detection mode to auto (on).
Page 173: [:Sense]:Frequency:center
REMOTE CONTROL Syntax [:SENSe]:EMIFilter:BANDwidth|BWIDth[:RESolution] <freq> Parameter <freq> <NRf> (Only 200Hz, 9kHz, 120kHz and 1MHz are valid settings) Example :EMIF:BAND 2.0e+2 [:SENSe]:FREQuency:CENTer Query Description Sets or queries the center frequency. Syntax [:SENSe]:FREQuency:CENTer <freq> Query Syntax [:SENSe]:FREQuency:CENTer? Parameter <freq> <NRf> Return parameter <NR3> Example :FREQ:CENT 1.0e+9 [:SENSe]:FREQuency:CENTer:STEP...
Page 174: [:Sense]:Frequency:offset
GSP-9300B Programming Manual Parameter Turn CF Step to manual (off). Turn CF Step to auto (on). Turn CF Step to manual (off). Turn CF Step to auto (on). Return parameter 0 CF Step is set to manual. CF Step is set to automatic.
Page 175: [:Sense]:Frequency:span:previous
REMOTE CONTROL [:SENSe]:FREQuency:SPAN:PREVious Description Set the span to the previous span setting. Syntax [:SENSe]:FREQuency:SPAN:PREVious Example :FREQ:SPAN:PREV [:SENSe]:FREQuency:STARt Query Description Sets or queries the start frequency. Syntax [:SENSe]:FREQuency:STARt <freq> Query Syntax [:SENSe]:FREQuency:STARt? Parameter <freq> <NRf> Return parameter <NR3> Example :FREQ:STAR 0 [:SENSe]:FREQuency:STOP Query Description...
Page 176: [:Sense]:Harmonic:number
GSP-9300B Programming Manual Parameter <freq> <NRf> Return parameter <NR3> Example :SENS:HARM:FUND:FREQ 1.0e+6 [:SENSe]:HARMonic:NUMBer Query Description Sets or queries the harmonic number. Syntax :SENSe:HARMonic:NUMBer <NR1> Query Syntax :SENSe:HARMonic:NUMBer? Parameter <NR1> Harmonic number Return parameter <NR1> Returns the harmonic number Example :SENS:HARM:NUMB 3 [:SENSe]:LIMit<n>:DELete...
Page 177: [:Sense]:Jitter:offset:stop
REMOTE CONTROL [:SENSe]:JITTer:OFFSet:STOP Query Description Sets or queries the stop offset for phase jitter measurements. Syntax [:SENSe]:JITTer:OFFSet:STOP <freq> Query Syntax [:SENSe]:JITTer:OFFSet:STOP? Parameter <freq> <NRf> Return parameter <NR3> Example :JITT:OFFS:STOP 1.5e+7 [:SENSe]:NDB:BANDwidth|BWIDth Query Description Sets or queries the NdB amplitude for NdB bandwidth measurements.
Page 178: [:Sense]:Ocbw:percent
GSP-9300B Programming Manual [:SENSe]:OCBW:PERCent Query Description Sets or queries the OCBW percentage (OCBW %) parameter. Syntax [:SENSe]:OCBW:PERCent <integer> Query Syntax [:SENSe]:OCBW:PERCent? Parameter/ <integer> <NR1>0~100 Return parameter Example :OCBW:PERC 90 [:SENSe]:OCBW:SPACe Query Description Sets or queries the OCBW channel space for OCBW measurements.
Page 179: [:Sense]:P1Db:gain:offset
REMOTE CONTROL [:SENSe]:P1DB:GAIN:OFFSet Query Description Sets or queries the gain offset in dB. Syntax :SENSe:P1DB:GAIN:OFFSet <rel_ampl> Query Syntax :SENSe:P1DB:GAIN:OFFSet? Parameter <rel_ampl> <NRf> Return parameter <NR3> Returns the gain offset value in dB. Example :P1DB:GAIN:OFFS 10.00e+00 [:SENSe]:PMETer:FREQuency Query Description Sets or queries the power meter measurement frequency.
Page 180: [:Sense]:Pmeter:hold:state
GSP-9300B Programming Manual [:SENSe]:PMETer:HOLD:STATe Query Description Turns the power meter Max/Min Hold function on/off or queries its state. Syntax [:SENSe]:PMETer:HOLD:STATe {OFF|ON|0|1} Query Syntax [:SENSe]:PMETer:HOLD:STATe? Parameter Turn the Max/Min Hold function off. Turn the Max/Min Hold function on. Turn the Max/Min Hold function off.
Page 181: [:Sense]:Pmeter:recording:time
REMOTE CONTROL Parameter/ LOWNoise Sets the power meter mode to low noise. Return parameter FASTer Set the power meter mode to fast. Example :PMET:PSEN:MODE [:SENSe]:PMETer:RECording:TIME Query Description Sets or queries the power meter recording time. Syntax [:SENSe]:PMETer:RECording:TIME <hour>,<minute>,<second> Query Syntax [:SENSe]:PMETer:RECording:TIME? Parameter/ <hour>...
Page 182: [:Sense]:Semask:bandwidth|Bwidth: Integration
GSP-9300B Programming Manual Parameter/ AUTO Sets the preamplifier to auto mode. Return parameter BYPASS Sets the preamplifier to bypass mode. Example :POW:GAIN AUTO [:SENSe]:SEMask:BANDwidth|BWIDth: INTegration Query Description Sets or queries the channel integration bandwidth for SEM measurements (user defined only).
Page 183: [:Sense]:Semask:carrier:auto
REMOTE CONTROL Syntax [:SENSe]:SEMask:BANDwidth|BWIDth[:RESolution]: AUTO {OFF|ON|0|1} Query Syntax [:SENSe]:SEMask:BANDwidth|BWIDth[:RESolution]: AUTO? Parameter Turn RBW to manual (off). Turn RBW to auto (on). Turn RBW to manual (off). Turn RBW to auto (on). Return parameter 0 RBW is set to manual. RBW is set to automatic. Example :SEM:BAND:AUTO OFF [:SENSe]:SEMask:CARRier:AUTO...
Page 184: [:Sense]:Semask:carrier:power
GSP-9300B Programming Manual Query Syntax [:SENSe]:SEMask:CARRier:CPSD? Parameter/ <NR3> PSD ref unit = dBm/Hz Return parameter Example :SEM:CARR:CPSD 20 [:SENSe]:SEMask:CARRier:POWer Query Description Sets or queries the value of the TotalPwrRef amplitude for SEM measurements. Syntax [:SENSe]:SEMask:CARRier: POWer <ampl> Query Syntax [:SENSe]:SEMask:CARRier: POWer? Parameter <ampl>...
Page 185: [:Sense]:Semask:help:state
REMOTE CONTROL Parameter/ <n>=1 ERP-DSSS/ERP-PBCC/ERP-CCK Return parameter <n>=2 ERP-OFDM/DSSS-OFDM Example :SEM:GWL:MOD GRO1 [:SENSe]:SEMask:HELP:STATe Query Description Turns the on-screen help window on/off or queries its state. Syntax [:SENSe]:SEMask:HELP:STATe {OFF|ON|0|1} Query Syntax [:SENSe]:SEMask:HELP:STATe? Parameter Turns the help window off. Turns the help window on. Turns the help window off.
Page 186: [:Sense]:Semask:offset:Addition: Bandwidth|Bwidth[:Resolution]
GSP-9300B Programming Manual [:SENSe]:SEMask:OFFSet<n>:ADDition: BANDwidth|BWIDth[:RESolution]? Query Description Returns the RBW of the selected offset for the additional requirements of the selected 3GPP SEM test. Query syntax [:SENSe]:SEMask:OFFSet<n>:ADDition: BANDwidth|BWIDth[:RESolution]? 3GPP-FDD BS For operation in bands II, IV, V, X, XII, XIII, XIV and...
Page 187 REMOTE CONTROL Unit: MHz Additional Bands: 2.5 ≤A<3.5 -15dBm 30kHz II, IV, X 3.5≤B< Δfmax -13dBm 1MHz Unit: MHz Additional Bands: V 2.5 ≤A<3.5 -15dBm 30kHz 3.5≤B< Δfmax -13dBm 100kHz Unit: MHz Additional Bands: 2.5 ≤A<3.5 -13dBm 30kHz XII, XIII, XIV 3.5≤B<...
Page 188: [:Sense]:Semask:offset:Addition: Frequency:start
GSP-9300B Programming Manual [:SENSe]:SEMask:OFFSet<n>:ADDition: FREQuency:STARt? Query Description Returns the start frequency (refered to the center) of the selected offset for the additional requirements of the selected 3GPP SEM test. Query syntax [:SENSe]:SEMask:OFFSet<n>:ADDition: FREQuency:STARt? Parameter/ <n> Offset 1 to 5 Return parameter <NR3>...
Page 189: [:Sense]:Semask:offset:Addition: Start:absolute
REMOTE CONTROL [:SENSe]:SEMask:OFFSet<n>:ADDition: STARt:ABSolute? Query Returns the “start” amplitude (dBm) of the Description Absolute Mask for the selected offset for the additional requirements of the selected 3GPP SEM test. Query syntax [:SENSe]:SEMask:OFFSet<n>:ADDition:STARt: ABSolute? Parameter/ <n> Offset 1 to 5 Return parameter <NR3>...
Page 190: [:Sense]:Semask:offset:Bandwidth|Bwidth[:Resolution]:Auto
GSP-9300B Programming Manual Syntax [:SENSe]:SEMask:OFFSet<n>:BANDwidth|BWIDth [:RESolution] <freq> Query Syntax [:SENSe]:SEMask:OFFSet<n>:BANDwidth|BWIDth [:RESolution]? Parameter/ <freq> <NR3> Hz Return parameter <n> <NR1>offset 1~5 Example :SEM:OFFS1:BAND 3.0e+3 [:SENSe]:SEMask:OFFSet<n>:BANDwidth|B WIDth[:RESolution]:AUTO Query Description Turns the resolution bandwidth for the selected channel to manual or automatic mode or queries its state.
Page 191: [:Sense]:Semask:offset:Frequency: Stop
REMOTE CONTROL Parameter/ <freq> <NR3> Hz Return parameter <n> <NR1>offset 1~5 Example :SEM:OFFS1:FREQ:STAR 2.5e+3 [:SENSe]:SEMask:OFFSet<n>:FREQuency: STOP Query Description Sets or queries the stop frequency of the selected offset. Syntax [:SENSe]:SEMask:OFFSet<n>:FREQuency:STOP <freq> Query Syntax [:SENSe]:SEMask:OFFSet<n>:FREQuency:STOP? Parameter/ <freq> <NR3> Hz Return parameter <n>...
Page 192: [:Sense]:Semask:offset:State
GSP-9300B Programming Manual Query Syntax [:SENSe]:SEMask:OFFSet<n>:STARt:RELative? Parameter/ <ampl> <NR3> dBc Return parameter <n> <NR1> offset 1~5 Example :SEM:OFFS1:STAR:REL 2.5e+1 [:SENSe]:SEMask:OFFSet<n>:STATe Query Description Turns the selected offset on/off or queries its state. Syntax [:SENSe]:SEMask:OFFSet<n>:STATe {OFF|ON|0|1} Query Syntax [:SENSe]:SEMask:OFFSet<n>:STATe? Parameter Turns the selected offset off.
Page 193: [:Sense]:Semask:offset:Stop: Absolute:couple
REMOTE CONTROL [:SENSe]:SEMask:OFFSet<n>:STOP: ABSolute:COUPle Query Description Couples the Absolute Stop amplitude to the Absolute Start amplitude for the selected offset. Syntax [:SENSe]:SEMask:OFFSet<n>:STOP:ABSolute:COUPle {OFF|ON|0|1} Query Syntax [:SENSe]:SEMask:OFFSet<n>:STOP:ABSolute: COUPle? Parameter Turns coupling off. Turns coupling on. Turns coupling off. Turns coupling on. Return parameter 0 Coupling is off.
Page 194: [:Sense]:Semask:offset:Stop: Relative:couple
GSP-9300B Programming Manual [:SENSe]:SEMask:OFFSet<n>:STOP: RELative:COUPle Query Description Couples the Relative Stop amplitude to the Relative Start amplitude for the selected offset. Syntax [:SENSe]:SEMask:OFFSet<n>:STOP:RELative:COUPle {OFF|ON|0|1} Query Syntax [:SENSe]:SEMask:OFFSet<n>:STOP:RELative: COUPle? Parameter Turns coupling off. Turns coupling on. Turns coupling off. Turns coupling on.
Page 195: [:Sense]:Semask:type
REMOTE CONTROL Description Selects or queries the type of spectrum emission mask. Syntax [:SENSe]:SEMask:SELect {MANual|W3GPP|BWLan|GWLan|NWLan|WIMax} Query Syntax [:SENSe]:SEMask:SELect? Parameter/ MANual User-defined SEM Return parameter W3GPP 3GPP SEM BWLan 802.11b SEM GWLan 802.11g SEM NWLan 802.11n SEM WIMax 802.16 SEM Example :SEM:SEL MAN [:SENSe]:SEMask:TYPE Query...
Page 196: [:Sense]:Semask:w3Gpp:fdd:addition: Limit
GSP-9300B Programming Manual [:SENSe]:SEMask:W3GPP:FDD:ADDition: LIMit Query Description Selects or queries the operating band used for the 3GPP FDD additional requirements. See the user manual for a list of the 3GPP operation bands. Syntax [:SENSe]:SEMask:W3GPP:FDD:ADDition:LIMit {NONE | BAND<n>} Query Syntax [:SENSe]:SEMask:W3GPP:FDD:ADDition:LIMit?
Page 197: [:Sense]:Semask:w3Gpp:fdd:transmit:mode
REMOTE CONTROL Syntax [:SENSe]:SEMask:W3GPP:FDD:MOPower {LEVel<n>} Query Syntax [:SENSe]:SEMask:W3GPP:FDD:MOPower? Parameter/ NONE Return parameter LEVEL<n> n=1 for P>=43 n=2 for 39<=P<43 n=3 for 31<=P<39 n=4 for P<31 Example :SEM:W3GPP:FDD:MOP LEV1 [:SENSe]:SEMask:W3GPP:FDD:TRANsmit: MODE Query Description Selects or queries the transmit mode of the FDD 3GPP test: Base station, or User Equipment.
Page 198: [:Sense]:Semask:w3Gpp:tdd:mopower
GSP-9300B Programming Manual [:SENSe]:SEMask:W3GPP:TDD:MOPower Query Description Selects or queries Max Out Power for TDD 3GPP tests. See the user manual for a list of the power levels. Syntax [:SENSe]:SEMask:W3GPP:TDD:MOPower {LEVel<n>} Query Syntax [:SENSe]:SEMask:W3GPP:TDD:MOPower? For 3GPP TDD BS 3.84 and Parameter/ LEVEL<n>...
Page 199: [:Sense]:Semask:wimax:channel: Bandwidth|Bwidth
REMOTE CONTROL [:SENSe]:SEMask:WIMax:CHANnel: BANDwidth|BWIDth Query Description Selects or queries the 802.16 channel bandwidth (10M or 20M channelization). Syntax [:SENSe]:SEMask:WIMax:CHANnel:BANDwidth| BWIDth {1e+7|2e+7} Query Syntax [:SENSe]:SEMask:WIMax:CHANnel:BANDwidth| BWIDth? Parameter/ 1e+7 <freq> Return parameter 2e+7 <freq> Example :SEM:WIM:CHAN:BAND 1e+7 [:SENSe]:SEQuence<n>:DELete Description Deletes the chosen sequence. Syntax [:SENSe]:SEQuence<n>:DELete Parameter...
Page 200: [:Sense]:Sweep:egate:length
GSP-9300B Programming Manual [:SENSe]:SWEep:EGATe:LENGth Query Description Sets or queries the gate length time. Syntax [:SENSe]:SWEep:EGATe:LENGth <time> Query Syntax [:SENSe]:SWEep:EGATe:LENGth? Parameter/ <time> Gate length time in seconds Return parameter Example :SWE:EGAT:LENG 10 ms [:SENSe]:SWEep:EGATe:STATe Query Description Turns the gated sweep mode on/off or queries its state.
Page 201: [:Sense]:Sweep:time
REMOTE CONTROL Example :SENS:SWE:MODE FAST [:SENSe]:SWEep:TIME Query Description Sets the sweep time. Syntax [:SENSe]:SWEep:TIME <time> Query Syntax [:SENSe]:SWEep:TIME? Parameter/ <time> Sweep time in seconds Return parameter Example :SWE:TIME 60 ms [:SENSe]:SWEep:TIME:AUTO Query Description Turns the Sweep time setting to auto (on) or manual (off).
Page 202: [:Sense]:Toi:limit
GSP-9300B Programming Manual Parameter/ UPPer Upper base. Return parameter LOWer Lower base. Example :TOI:REF UPP [:SENSe]:TOI:LIMit Query Description Sets the TOI pass/fail limit amplitude. Syntax [:SENSe]:TOI:LIMit <ampl> Query Syntax [:SENSe]:TOI:LIMit? Parameter <ampl> <NRf>Power or voltage Return parameter <NR3> Example :TOI:LIM 30...
Page 203 REMOTE CONTROL SOURce Commands :SOURce:P1DB:TYPE ..........201 :SOURce:POWer[:LEVel][:IMMediate] [:AMPLitude] ............... 201 :SOURce:POWer[:LEVel][:IMMediate] [:AMPLitude]:OFFSet ..........202 :SOURce:POWer[:LEVel][:IMMediate] [:AMPLitude]:STEP ............ 202 :SOURce:POWer[:LEVel][:IMMediate] [:AMPLitude]:STEP:AUTO ........203 :SOURce:POWer:MODE ......... 203 :SOURce:POWer:SWEep .......... 203 :SOURce:P1DB:TYPE Query Description Sets how the P1dB measurement is normalized. Syntax :SOURce:P1DB:TYPE {RF|TG} Query Syntax :SOURce:P1DB:TYPE?
Page 204 GSP-9300B Programming Manual Parameter <ampl> <NRf>Power or voltage Return parameter <NR3> Example :SOUR:POW 30 dbm :SOURce:POWer[:LEVel][:IMMediate] [:AMPLitude]:OFFSet Query Description Sets or queries the tracking generator offset level. Syntax :SOURce:POWer[:LEVel][:IMMediate][:AMPLitude] :OFFSet <rel_ampl> Query Syntax :SOURce:POWer[:LEVel][:IMMediate][:AMPLitude] :OFFSet? Parameter <rel_ampl> <NRf> Return parameter <NR3>...
Page 205 REMOTE CONTROL :SOURce:POWer[:LEVel][:IMMediate] [:AMPLitude]:STEP:AUTO Query Description Turns the tracking generator step level setting to auto (on) or manual (off). Syntax :SOURce:POWer[:LEVel][:IMMediate][:AMPLitude]: STEP:AUTO {OFF|ON|0|1} Query Syntax :SOURce:POWer[:LEVel][:IMMediate][:AMPLitude]: STEP:AUTO? Parameter Turn TG step level to manual (off). Turn TG step level to auto (on). Turn TG step level to manual (off).
Page 206 GSP-9300B Programming Manual Parameter <rel_ampl> <NRf> (-5 to +5 dB) Return parameter <NR3> Example :SOUR:POW:SWE 5 db...
Page 207: System:alarm:state
REMOTE CONTROL SYSTem Commands :SYSTem:ALARm:STATe ......... 205 :SYSTem:CLOCk<n>:DATE ........206 :SYSTem:CLOCk<n>:MODE ........ 206 :SYSTem:CLOCk<n>:STATe ......... 207 :SYSTem:CLOCk<n>:TIME ........207 :SYSTem:COMMunicate:GPIB[:SELF] :ADDRess..............207 :SYSTem:COMMunicate:LANReset ....... 208 :SYSTem:COMMunicate:SERial[:RECeive] :BAUD ................208 :SYSTem:COMMunicate:USB:MODE ....208 :SYSTem:DATE ............208 :SYSTem:ERRor:CLEar ..........209 :SYSTem:ERRor[:NEXT]?........209 :SYSTem:KLOCk ............
Page 208: System:clock:Date
GSP-9300B Programming Manual Return parameter 0 The alarm is off. The alarm is on. Example :SYST:ALAR:STAT 1 :SYSTem:CLOCk<n>:DATE Query Description Sets the day for the selected wake-up clock. Syntax :SYSTem:CLOCk<n>:DATE [MONday|TUESday|WEDnesday|THURsday|FRIday| SATurday|SUNday] Query Syntax :SYSTem:CLOCk<n>:DATE? Parameter/ <n> Wake-up clock number 1 to 7...
Page 209: System:clock:State
REMOTE CONTROL :SYSTem:CLOCk<n>:STATe Query Description Turns the selected wake-up clock on/off. Syntax :SYSTem:CLOCk<n>:STATe {OFF|ON|0|1} Query Syntax :SYSTem:CLOCk<n>:STATe? Parameter <n> Wake-up clock number 1 to 7 Turn the wake-up clock off. Turn the wake-up clock on. Turn the wake-up clock off. Turn the wake-up clock off.
Page 210: System:communicate:lanreset
GSP-9300B Programming Manual Parameter <integer> 0 to 30 Example :SYST:COMM:GPIB:ADDR 10 :SYSTem:COMMunicate:LANReset Description Reset the LAN configuration and reboot. Syntax :SYSTem:COMMunicate:LANReset Example :SYST:COMM:LANR :SYSTem:COMMunicate:SERial[:RECeive] :BAUD Description Sets the RS232 Baud rate. Syntax :SYSTem: COMMunicate:SERial[:RECeive]:BAUD <integer> Parameter <integer> 300|600|1200|2400|4800|9600|19200| 38400|57600|115200 Example...
Page 211: System:error:clear
REMOTE CONTROL Parameter/ <year> <NR1> Return parameter <month> <NR1> <day> <NR1> Example :SYST:DATE 2011,03,27 :SYSTem:ERRor:CLEar Description Clears the error messages from the error queue. Syntax :SYSTem:ERRor:CLEar :SYSTem:ERRor[:NEXT]? Query Description Returns the next message from the error queue. Reading the error from the error queue will clear that error from the queue.
Page 212: System:preset
PRESet Loads the preset (default) settings when the unit is powered up. Example :SYST:POW:TYPE? >LAST :SYSTem:PRESet Description Returns the GSP-9300B to preset settings. Syntax :SYST:PRES :SYSTem:PRESet:TYPE Query Description Sets the preset type between user-defined and factory default. Syntax...
Page 213: System:shutdown
REMOTE CONTROL :SYSTem:SHUTdown Description Shut down the GSP-9300B. Syntax :SYST:SHUT :SYSTem:TIME Query Description Sets the system time. Syntax :SYSTem:TIME <hour>,<minute>,<second> Query Syntax :SYSTem:TIME? Parameter/ <hour> <NR1> Return parameter <minute> <NR1> <second> <NR1> Example :SYST:TIME 19,26,30 :SYSTem:UPDate Description Updates the system with new firmware from files located on an external USB drive.
Page 214: System:version:software
GSP-9300B Programming Manual “V.X.X.X.X” Return parameter <string> Example :SYST:VERS:HARD? >”V.3.0.0.0” :SYSTem:VERSion:SOFTware? Query Description Returns the system software version. Query Syntax :SYSTem:VERSion:SOFTware? “V3.00” Return parameter <string> Example :SYST:VERS:SOFT? > “V3.00”...
Page 215 REMOTE CONTROL STATus Commands :STATus:OPERation:CONDition? ......214 :STATus:OPERation:ENABle ......... 214 :STATus:OPERation[:EVENt]?....... 214 :STATus:OPERation:NTRansition ......215 :STATus:OPERation:PTRansition ......215 :STATus:QUEStionable:CONDition? ....216 :STATus:QUEStionable:ENABle ......216 :STATus:QUEStionable[:EVENt]? ......217 :STATus:QUEStionable:NTRansition ....217 :STATus:QUEStionable:PTRansition ..... 218 :STATus:QUEStionable:FREQuency: CONDition? ..............218 :STATus:QUEStionable:FREQuency:ENABle ..219 :STATus:QUEStionable:FREQuency[:EVENt]? ..
Page 216: Status:operation:condition
GSP-9300B Programming Manual :STATus:OPERation:CONDition? Query Description Returns the bit weight of the Operation Status Condition register. Query Syntax :STATus:OPERation:CONDition? Return parameter Bit Bit Weight Description Not used Sweeping Measuring Wait for Trigger 6~15 Not used Example :STAT:OPER:COND? >8 :STATus:OPERation:ENABle Query...
Page 217: Status:operation:ntransition
REMOTE CONTROL Return parameter Bit Bit Weight Description Not used Sweeping Measuring Wait for Trigger 6~15 Not used Example :STAT:OPER? >8 :STATus:OPERation:NTRansition Query Description Sets or queries the bit weight of the NTR filter for the Operation Status register. Syntax :STATus:OPERation:NTRansition <integer>...
Page 218: Status:questionable:condition
GSP-9300B Programming Manual Return parameter Bit Bit Weight Description Not used Sweeping Measuring Wait for Trigger 6~15 Not used Example :STAT:OPER:PTR 32 :STATus:QUEStionable:CONDition? Query Description Returns the bit weight of the Questionable Status Condition register. Query Syntax :STATus:QUEStionable:CONDition? Return parameter Bit...
Page 219: Status:questionable[:Event]
REMOTE CONTROL Return parameter Bit Bit Weight Description Frequency Uncal Limit Fail 1024 ACPLimit 2048 SEM Limit 4096 TOI Limit 8192 Pmet Limit Fail Example :STAT:QUES:ENAB 4096 :STATus:QUEStionable[:EVENt]? Query Description Returns the bit weight of the Questionable Status Event register. Reading this register will clear the event register.
Page 220: Status:questionable:ptransition
GSP-9300B Programming Manual Return parameter Bit Bit Weight Description Frequency Uncal Limit Fail 1024 ACPLimit 2048 SEM Limit 4096 TOI Limit 8192 Pmet Limit Fail Example :STAT:QUES:NTR 32 :STATus:QUEStionable:PTRansition Query Description Sets or queries the bit weight of the PTR filter for the Questionable Status register.
Page 221: Status:questionable:frequency:enable
REMOTE CONTROL Return parameter Bit Bit Weight Description Invalid Span/BW Example :STAT:QUES:FREQ:COND? >32 :STATus:QUEStionable:FREQuency:ENABle Query Description Sets or queries the Questionable Status Frequency Event Enable register. Syntax :STATus:QUEStionable:FREQuency:ENABle <integer> Query Syntax :STATus:QUEStionable:FREQuency:ENABle? Return parameter Bit Bit Weight Description Invalid Span/BW Example :STAT:QUES:FREQ:ENAB 32 :STATus:QUEStionable:FREQuency...
Page 222: Status:questionable:frequency: Ptransition
GSP-9300B Programming Manual Syntax :STATus:QUEStionable:FREQuency:NTRansition <integer> Query Syntax :STATus:QUEStionable:FREQuency:NTRansition? Return parameter Bit Bit Weight Description Invalid Span/BW Example :STAT:QUES:FREQ:NTR 32 :STATus:QUEStionable:FREQuency: PTRansition Query Description Sets or queries the bit weight of the PTR filter for the Questionable Status Frequency register.
Page 223: Status:questionable:acplimit:enable
REMOTE CONTROL Return parameter Bit Bit Weight Description Main channel high fail Main channel low fail Adj1 high fail Adj1 low fail Adj2 high fail Adj2 low fail Adj3 high fail Adj3 low fail Example :STAT:QUES:ACPL:COND? >1 :STATus:QUEStionable:ACPLimit:ENABle Query Description Sets or queries the Questionable Status ACP Limit Event Enable register.
Page 224: Status:questionable:acplimit: Ntransition
GSP-9300B Programming Manual Return parameter Bit Bit Weight Description Main channel high fail Main channel low fail Adj1 high fail Adj1 low fail Adj2 high fail Adj2 low fail Adj3 high fail Adj3 low fail Example :STAT:QUES:ACPL? >3 :STATus:QUEStionable:ACPLimit: NTRansition...
Page 225: Status:questionable:semlimit :Condition
REMOTE CONTROL Syntax :STATus:QUEStionable:ACPLimit:PTRansition <integer> Query Syntax :STATus:QUEStionable:ACPLimit:PTRansition? Return parameter Bit Bit Weight Description Main channel high fail Main channel low fail Adj1 high fail Adj1 low fail Adj2 high fail Adj2 low fail Adj3 high fail Adj3 low fail Example :STAT:QUES:ACPL:PTR 3 :STATus:QUEStionable:SEMLimit...
Page 226: Status:questionable:semlimit:enable
GSP-9300B Programming Manual :STATus:QUEStionable:SEMLimit:ENABle? Query Description Sets or queries the Questionable Status SEM Limit Enable register. Syntax :STATus:QUEStionable:SEMLimit:ENABle <integer> Query Syntax :STATus:QUEStionable:SEMLimit:ENABle? Return parameter Bit Bit Weight Description Offset 1, Upper fail Offset 1, Lower fail Offset 2, Upper fail...
Page 227: Status:questionable:semlimit :Ntransition
REMOTE CONTROL Return parameter Bit Bit Weight Description Offset 1, Upper fail Offset 1, Lower fail Offset 2, Upper fail Offset 2, Lower fail Offset 3, Upper fail Offset 3, Lower fail Offset 4, Upper fail Offset 4, Lower fail Offset 5, Upper fail Offset 5, Lower fail Example...
Page 228: Status:questionable:semlimit:ptransition
GSP-9300B Programming Manual :STATus:QUEStionable:SEMLimit: PTRansition Query Description Sets or queries the bit weight of the PTR filter for the Questionable Status SEM Limit register. Syntax :STATus:QUEStionable:SEMLimit:PTRansition <integer> Query Syntax :STATus:QUEStionable:SEMLimit:PTRansition? Return parameter Bit Bit Weight Description Offset 1, Upper fail...
Page 229: Status:questionable:toilimit:enable
REMOTE CONTROL :STATus:QUEStionable:TOILimit:ENABle Query Description Sets or queries the Questionable Status TOI Limit Event Enable register. Syntax :STATus:QUEStionable:TOILimit:ENABle <integer> Query Syntax :STATus:QUEStionable:TOILimit:ENABle? Return parameter Bit Bit Weight Description lower fail upper fail Example :STAT:QUES:TOIL:ENAB 1 :STATus:QUEStionable:TOILimit[:EVENt]? Query Description Returns the bit weight of the Questionable Status TOI Limit Event register.
Page 230: Status:questionable:toilimit:ptransition
GSP-9300B Programming Manual Return parameter Bit Bit Weight Description lower fail upper fail Example :STAT:QUES:TOIL:NTR 1 :STATus:QUEStionable:TOILimit: PTRansition Query Description Sets or queries the bit weight of the PTR filter for the Questionable Status TOI Limit register. Syntax :STATus:QUEStionable:TOILimit:PTRansition <integer>...
Page 231 REMOTE CONTROL Parameter <n> <NR1> 1~4 Return Parameter <csv data> Trace data in CSV format: point#1, point#2…..point#n Example :TRAC? TRAC1 >-5.234e+01,-4.593e+01,-5.533e+01,-4.604e+01,- >5.353e+01,-4.557e+01,-5.280e+0 >1,-4.785e+01,-5.459e+01,-4.578e+01,……………… :PIXel? TRACe<n> Query Description Returns the trace pixel data (real pixel value x100) for the selected trace in binary coded decimal format, represented by 2 characters per pixel (Highbyte_Lowbyte).
Page 232 GSP-9300B Programming Manual Query Syntax :PIXel? TRACe<n> Parameter <n> <NR1> trace 1~4 Pixel data. Returned as ASCII code in Return Parameter <pixel data> binary coded decimal format: #41202 pixel1#HbyteLbyte pixel2#HbyteLbyte pixel3#HbyteLbyte..and so on until the EOF character Example :PIXEL? TRACE1 >...
Page 233: Trigger[:Sequence]:Delay
REMOTE CONTROL TRIGger Commands :TRIGger[:SEQuence]:DELay ........231 :TRIGger[:SEQuence]:DEMod:DELay....231 :TRIGger[:SEQuence]:DEMod:VIDeo:LEVel ..232 :TRIGger[:SEQuence]:DEMod:MODE ....232 :TRIGger[:SEQuence]:DEMod:VIDeo:SLOPe ..232 :TRIGger[:SEQuence]:DEMod:SOURce ....233 :TRIGger[:SEQuence]:DEMod:TIME:STARt ..233 :TRIGger[:SEQuence]:DEMod:TIME:STOP ..233 :TRIGger[:SEQuence]:EXTernal:SLOPe ....234 :TRIGger[:SEQuence]:MODE ......... 234 :TRIGger[:SEQuence]:PMETer:SOURce ....234 :TRIGger[:SEQuence]:SOURce ....... 235 :TRIGger[:SEQuence]:VIDeo:FREQuency ... 235 :TRIGger[:SEQuence]:VIDeo:LEVel .....
Page 234: Trigger[:Sequence]:Demod:video:level
GSP-9300B Programming Manual Parameter/ <time> Delay time in seconds Return parameter Example :TRIG:DEM:DEL 1.0 ms :TRIGger[:SEQuence]:DEMod:VIDeo:LEVel Query Description Sets the video trigger level for AM/FM demodulation. Syntax :TRIGger[:SEQuence]:DEMod:VIDeo:LEVel <NRf> Query Syntax :TRIGger[:SEQuence]:DEMod:VIDeo:LEVel? Parameter <NRf> AM unit =% FM unit = Hz Return parameter <NR3>...
Page 235: Trigger[:Sequence]:Demod:source
REMOTE CONTROL Query Syntax :TRIGger[:SEQuence]:DEMod:VIDeo:SLOPe? Parameter/ POSitive Positive slope Return parameter NEGative Negative slope Example :TRIG:DEM:VID:SLOP POS :TRIGger[:SEQuence]:DEMod:SOURce Description Sets the triggering source for AM/FM demodulation Syntax :TRIGger[:SEQuence]:DEMod:SOURce {IMMediate|VIDeo} Parameter IMMediate Free run trigger VIDeo Trigger on the video signal level Example :TRIG:DEM:SOUR IMM :TRIGger[:SEQuence]:DEMod:TIME:STARt...
Page 236: Trigger[:Sequence]:External:slope
GSP-9300B Programming Manual Parameter/ <NRf> Time value in seconds Return parameter Example :TRIG:DEM:TIME:STOP 4.000e-2 :TRIGger[:SEQuence]:EXTernal:SLOPe Query Description Sets the external trigger slope Syntax :TRIGger[:SEQuence]:EXTernal:SLOPe {POSitive|NEGative} Query Syntax :TRIGger[:SEQuence]:EXTernal:SLOPe? Parameter/ POSitive Positive slope Return parameter NEGative Negative slope Example :TRIG:EXT:SLOP POS...
Page 237: Trigger[:Sequence]:Source
REMOTE CONTROL Parameter/ IMMediate Free run trigger Return parameter EXTernal External trigger Example :TRIG:PMET:SOUR IMM :TRIGger[:SEQuence]:SOURce Query Description Sets the triggering source to immediate, external or video. Syntax :TRIGger[:SEQuence]:SOURce {IMMediate|EXTernal|VIDeo} Query Syntax :TRIGger[:SEQuence]:SOURce? Parameter/ IMMediate Free run trigger Return parameter EXTernal External trigger VIDeo...
Page 238: Trigger[:Sequence]:Video:slope
GSP-9300B Programming Manual Parameter <ampl> <NRf> power or voltage. Return parameter <NR3> Example :TRIG:VID:LEV 10 :TRIGger[:SEQuence]:VIDeo:SLOPe Query Description Sets the video trigger slope Syntax :TRIGger[:SEQuence]:VIDeo:SLOPe {POSitive|NEGative} Query Syntax :TRIGger[:SEQuence]:VIDeo:SLOPe? Parameter/ POSitive Positive slope Return parameter NEGative Negative slope Example :TRIG:VID:SLOP POS...
Page 239 REMOTE CONTROL UNIT Commands :UNIT:PMETer:POWer ..........237 :UNIT:POWer ............. 237 :UNIT:PMETer:POWer Query Description Sets the amplitude unit used for the Power Meter mode. Syntax :UNIT:PMETer:POWer {DBM|MW} Query Syntax :UNIT:PMETer:POWer? Parameter/ Decibels Return parameter Milliwatts Example :UNIT:PMET:POW DBM :UNIT:POWer Query Description Sets the amplitude unit used for the Spectrum mode.
Page 240 GSP-9300B Programming Manual PPENDIX ASCII to Binary Coded Decimal Table Background The :PIXel query uses binary coded decimal notation when returning the value of each pixel that is displayed. See page 229 for details. Decimal Binary ASCII Decimal Binary ASCII...
Page 241: Appendix
APPENDIX 00010111 01010111 00011000 01011000 00011001 01011001 00011010 01011010 00011011 01011011 00011100 01011100 00011101 01011101 00011110 01011110 00011111 01011111 00100000 Space 01100000 00100001 01100001 00100010 " 01100010 00100011 01100011 00100100 01100100 00100101 01100101 00100110 & 01100110 00100111 01100111 00101000 01101000 00101001 01101001 00101010...
Page 242 GSP-9300B Programming Manual 00111101 01111101 00111110 > 01111110 00111111 01111111...

GW Instek GSP-9300B Programming Manual

Table of Contents

Etting Started

Emote Control

Table of Contents

Display Commands

Mmemory Commands

Sense Commands

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GW Instek GSP-9300B

Summary of Contents for GW Instek GSP-9300B
