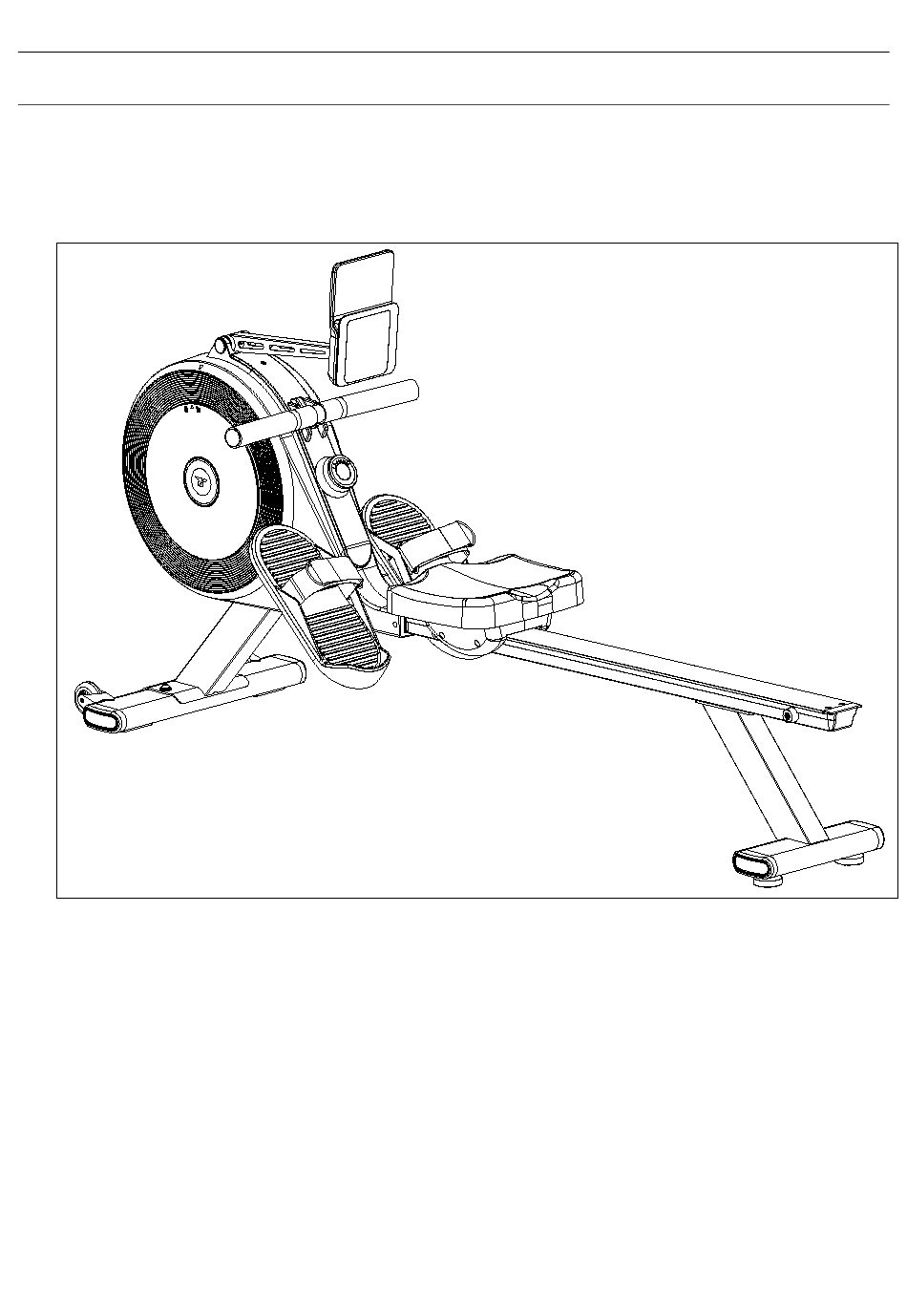

  • Page 1 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions.

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions.

  • Page 3: Exploded Diagram

    EXPLODED DIAGRAM...

  • Page 5: Parts List

    Parts List Description Description Computer Seat plate Bolt M4*25 Bearing 608ZZ Computer holder Roller Φ36*14 Nylon nut M8*H7.5*S13 Seat shaft Φ10*118 Washer d8*Φ20*2 Seat Bolt M8*35*S5 Nut M10*1*H8*S15 Handlebar Nut M10*1*H5*S17 Round end cap Φ28*15 Bearing 6000-2RS Foam grip Flywheel shaft φ10*130 Pedal strap Screw ST4.2*13*Φ7 Pedal...
  • Page 6 Description Description Sensor Tension knob Screw ST4.2*8*Φ8 Allen Wrench S4 Belt Allen Wrench S5 Trunk wire Spanner S13-14-15 Hardware...

  • Page 7: Assembly Step

    Assembly Step #B S5 1PCS 2PCS M8*20*S5 #22 d8 2PCS Step 1: #5 d8*Φ20*2 2PCS Attach front stabilizer(21) to main frame(74) using bolts(13), spring washers(22), and washers(5). Tighten and secure with allen wrench(B). #26 M6*15*S4 4PCS Step 2: #A S4 1PCS Attach rear stabilizer(33) to sliding rail(27) using bolts (26).
  • Page 8 Step 3: #23 M6*20*S5 2PCS #24 Φ27*Φ23*16*Φ6 2PCS A. Attach sliding rail(27) to 2PCS M5*10*Φ9 main frame(74) using bolts #29 d6 4PCS (30) and washers(29). Tighten 4PCS M6*15*S5 and secure with allen wrench #B S5 1PCS (B). B. Secure alum plate(28) into sliding rail(27) using screws(25) with wrench(C).
  • Page 9 #4 M8*H7.5*S13 1PCS #5 d8*Φ20*2 1PCS #6 M8*35*S5 1PCS Step 5: A. Secure computer holder(3) with computer post(60) with bolt(6), nylon nut(4) and washer(5) by allen wrench (B) and wrench(C). B. Connect computer wire(1a) with trunk wire(88) well, then put wire back into the computer holder(3).
  • Page 10 ADJUSTMENTS GUIDE 1.PEDAL ADJUSTMENT : The pedal strap(10) is adjustable and can be personalized to fit the user’s foot size. 2.COMPUTER ANGLE ADJUSTMENT The rotation angle of iPad holder(1) and computer post(60) can be adjusted to obtain the best view of the computer LCD screen.

  • Page 11: Battery Replace

    CONSOLE INSTRUCTION MANUAL BUTTONS 1. MODE Press this button to changeover display or choose the window needs to be set. – To set value of time, distance and calories when not in scan mode. RESET – Press to reset time, distance and calories. –...
