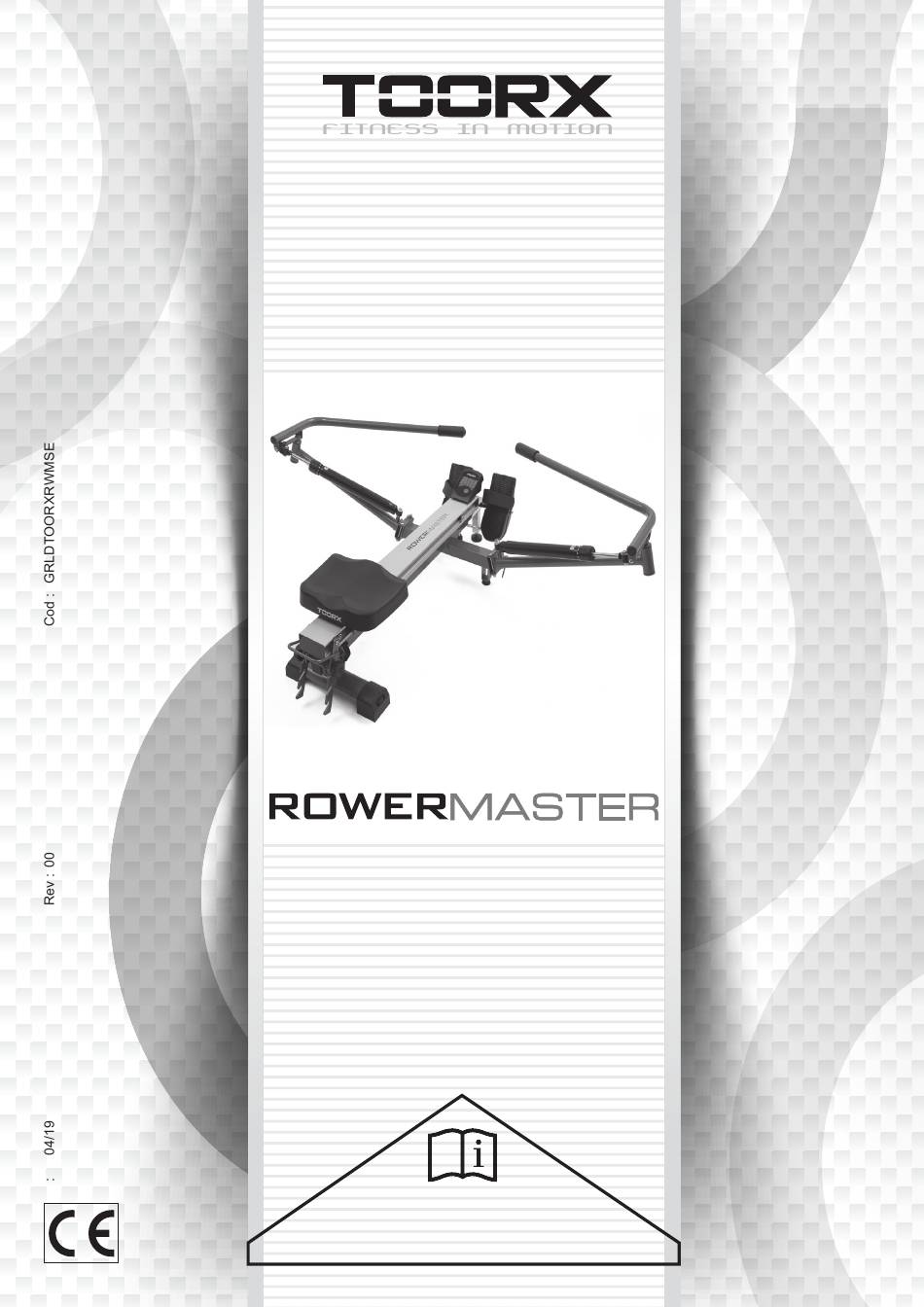

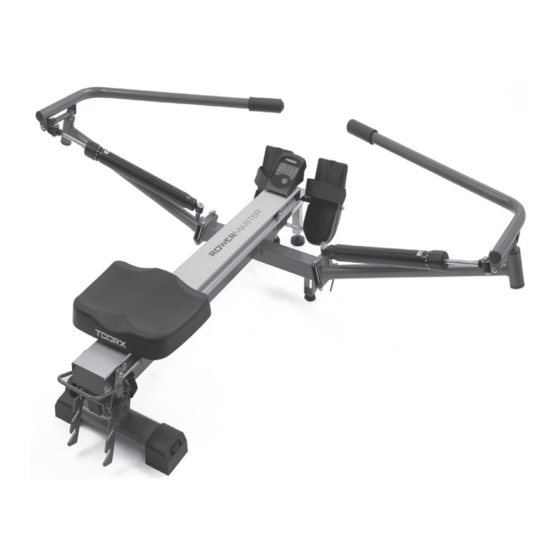

- Page 1 INSTRUCTION...
-
Page 2: Table Of Contents
Part Lists Below is the drawings of part list for the complete machine. When you open the carton, you will find the below Parts in the carton. Part List: DES. Specification DES. Specification Nos. Base assembly Left foot pedal set Pedal adjustment Right foot pedal set assembly set... - Page 3 Assembly Instruction Step 1: Install the adjustable foot pad (16) on the base assembly group (A1) Step 2: Loosen the elastic pull pin (15) on the base assembly group (A1) first, then pull down, and insert the foot adjustment assembly group (A2) into the (A1), then tighten the elastic pull pin (15).
- Page 4 1.Use the Allen wrench (70), multi-function wrench (43), the hexagon socket head screw (67) and the flat washer (68) locknut (65) to fix the left rocker connection assembly(A4) right rocker connection assembly(A5) on the base assembly (A1) and locked. 2. Tighten plum blossom knob 28 A multi-function wrench...
- Page 5 Step 6: Allen wrench (42), multi-function wrench (43), hexagonal pan head screw (49) and flat pad (58) locknut (57); the head screw (51),Spring pad(64) and the flat washer (60) flat washer (62) mount the cylinder (14) on the left rocker connection assembly (A4) and the right rocker arm assembly (A5) and lock.
- Page 6 Use the versatile wrench (43) to attach the left foot pedal set (A9) and the right foot pedal set (A10) to the pedal adjustment assembly (A2) with head screw (46). installation is complete Step 8:...
-
Page 7: Pedal Adjustment
Machine adjustment: pedal adjustment assembly set (A2) can be adjusted front and rear from 1 to 10 files according to their own needs. 2, The rail tube set (A3) can be adjusted up and down from 1 to 3 files according to its own height requirements... - Page 8 pedal adjustment assembly set (A2) is folded: firstly loosen the pull pin (15) on the base assembly group (A1) and then pull it down, at the same time, push the Pedal adjustment assembly set (A2) along the arrow's. When the pull pin can be inserted into pedal adjustment...
-
Page 9: A3 Rail Tube Set
3. Left and right rocker arm connection assembly group (A4, A5), left and right rocker arm assembly group (A6, A7) are folded: Use multi-function wrench hexagon thin screw plum blossom knob 27 31A7 , 3007 5 A756A3 2 756A 1 7 23 rail tube ;... - Page 10 Exploded Parts Diagra...
-
Page 11: Left Rocker
Parts List: DES. Specification Nos. NO DES. Specification Nos. 1 Base assembly webbing Pedal adjustment Seat pulley assembly Left rocker Limit sleeve connection assembly Right rocker Limit pad connection assembly Left rocker arm Computer assembly Right rocker arm 9 N SKF assembly Left rocker shaft Magnet... -
Page 12: Allen Wrench 5
2OLS 5L S P ORKSKON IKU Hexagon thin screw 4A1 P Allen wrench... - Page 13 INSTRUCTION KEY FUNCTION This key lets you to select and lock on to a particular function you want. ● SCANàTIMEàDISTANCEàTOTAL COUNTàCALORIEàCOUNT/MINàCOUNT àSCAN Pressing and hold with 3 seconds to reset the value to zero(without TOTAL COUNT). ● AUTO ON/OFF The system dormant state automatically when the sensor has no signal ●...
