Summary of Contents for TOORX RWX3000

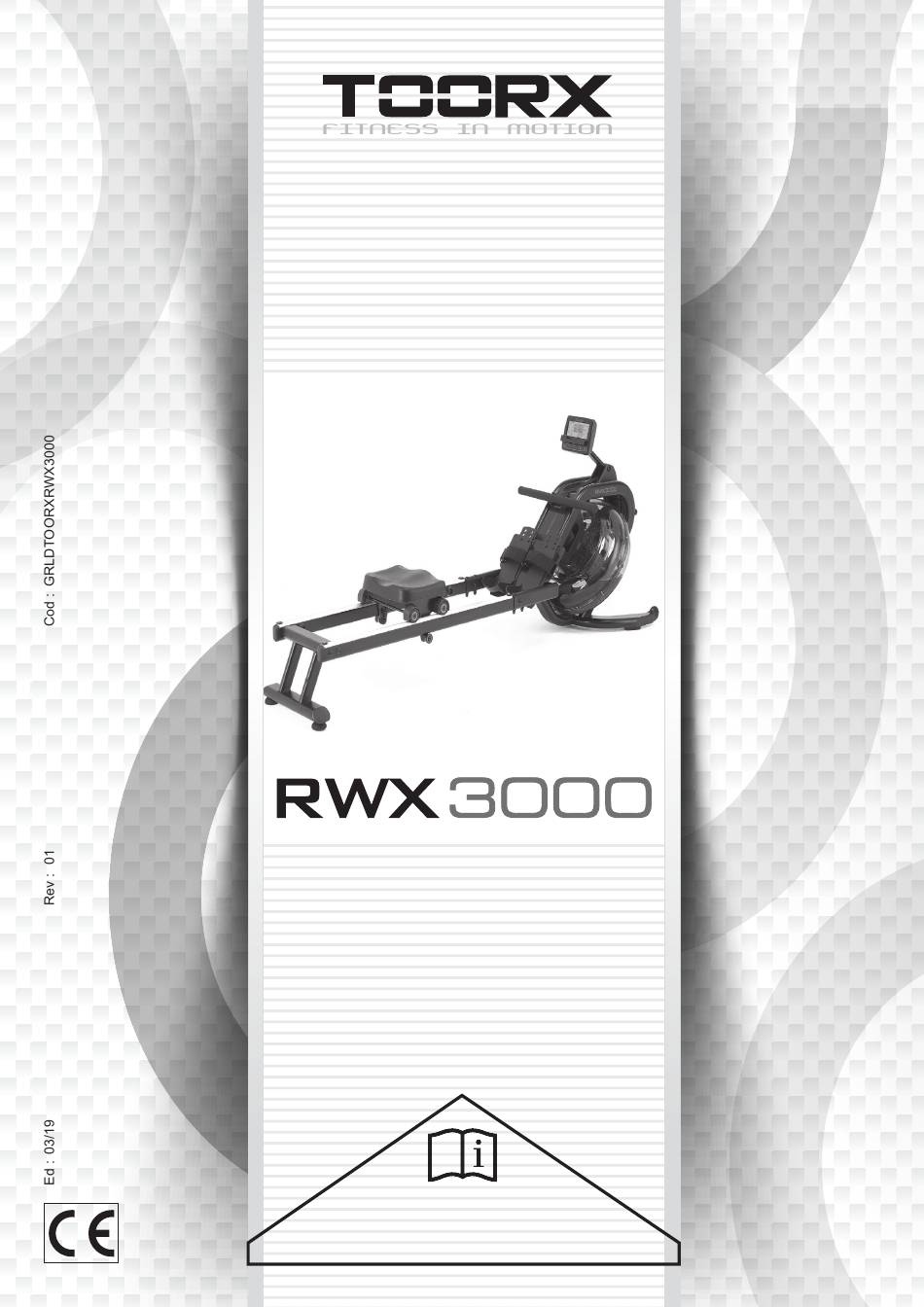

  • Page 1 INSTRUCTION...

  • Page 2: Exploded Drawing

    EXPLODED DRAWING...

  • Page 3: Parts List

    PARTS LIST Description Spec. Description Spec. Main Frame Fill Plug Rubber，Black Rear Stabilizer Skid Pad Rubber，Black Slide Rail R/L Funnel Handlebar Pumping Siphon Spring Fixed Plate Computer Seat Carriage SPHC,T=4.0 Ø10*5 Magnet Sensor Stand L SPHC,T=2.0 Square Sensor Wire Sensor Stand R SPHC,T=2.0 Bolt M10*55...
  • Page 4 Belt Wheel Spacer for Bearing 6000ZZ OD16*ID10.2*16 O Shape Ring One-way Bearing HF2016 Rubber，Black Bushing One-way Allen Wrench Bearing ￠35*￠26*18 Spanner Bearing 61904ZZ 13#-17# Bearing 61905ZZ Storage Pad PVC，Black Volute Spring Connection Wire Rubber， Rubber Sealing Ring Spring Washer Yellow OD12*ID8.5*T2.0 Impeller Shaft Seal Rubber，Black...

  • Page 5: Hardware Package

    Pumping Siphon HARDWARE PACKAGE # 63 M8*45 4pcs #65 M6*15 6pcs #68 M8*15 4pcs #74 OD20*ID8.5*1.5 4pcs # 77 M8*27 2pcs S5 1pc #94 S13-17 1pc # 99 M8*57 4pcs...
  • Page 6 ASSEMBLY INSTRUCTIONS NOTE: We recommend having 2 people to assemble the product. # 63 M8*45 4pcs #74 OD20*ID8.5*1.5 4pcs #93 S5 STEP 1: Turn over the Slide Rail (#3L/R) as above illustration, put the rail on the Roller (#39) then rotate as arrow direction，make sure the aluminum plate touch the roller.
  • Page 7 # 99 M8*57 4pcs # 77 M8*27 2pcs # 65 M6*15 6pcs #93 S5 #94 S13-17 STEP 2: Attach the Slide Rail (#3L/R) to the Main Frame (#1), Tighten with 4 Screws (#99) and 2 Screws (#77) and 6 Screws (#65)
  • Page 8 68 68 #68 M8*15 4pcs #93 S5 STEP3: Connect the Connection wire (#96) to the Sensor wire (#56). Plug the Decorate cover (#26) into the hole of Main Frame (#1). Attach the computer assembly to Main Frame, Tighten with 4 Screws (#68).
  • Page 9 STEP4: • Apply a small amount of included lubricate oil to a paper towel or clean cloth. Spread a thin layer of the oil evenly along the rail where the rollers move .Then, wipe off any excess oil. • Apply oil every 1 month or as need...

  • Page 10: How To Fill And Empty The Tank

    HOW TO FILL AND EMPTY THE TANK 1. Remove the Fill Plug (#50) from the Upper Tank (#24). 2. To fill tank with water, refer to Fig. A. Insert the Funnel (#52) into the tank, then use a cup or the Pumping siphon (#53) and a bucket to fill the tank.

  • Page 11: Adjustment Guide

    ADJUSTMENT GUIDE PEDAL ADJUSTMENT The pedal strap is adjustable and can be personalized to fit the user’s foot size. To adjust the pedal strap, remove the Velcro end of the strap from the mesh side by pulling it upward then to the left. Once removed, you may increase the opening of the pedal strap by pulling the mesh end up and to the right.

  • Page 12: Adjusting The Balance

    v ADJUSTING THE BALANCE Adjust the Adjustable Knob (#19) of the machine if the machine is unbalanced during use.

  • Page 13: Computer Instructions

    COMPUTER INSTRUCTIONS Power on The full LCD display will be shown 2 seconds after the installation of batteries. It will enter the workout intensity of selection mode from L1 to L6 by pressing to select ( the default is L6) then press Enter to confirm and enter the standby mode.
  • Page 14 2、Select the PROGRAM(QUICK START、STANDARDE、 TARGET SINGLE、TARGET INTERVAL、CUSTOM、RACE) Remark: Press to display the function value in the large middle display window in turn. Increment default Setting Range Display Range Decrement TIME 0:00 0:00~99:00 0:00~99:59 ±1 DISTANCE 0~99900 0~99999 ±100 STROKES 0~99990 0~99999 ±10 CALORIES...
  • Page 15 STANDARD: Press to choose STANDARD then press ENTER to confirm and enter five training mode selection of: 2000m 、5000m 、10000m、30:00、500m/1:00. After that press START/STOP to start the training. The preset function value will counts down，other function value will count up. Press RESET back to standby mode when the preset function value counts down to zero.
  • Page 16 RACE: Press to choose RACE then press ENTER to confirm then press select L1~L15. Press ENTER to confirm and enter DISTANCE setting, DISTANCE will blink then press UP or DOWN to adjust. Press ENTER to STOP mode then press START to train. The dot-matrix will show U and PC graphic to race.
  • Page 18 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
