Summary of Contents for Digitus DS-12874

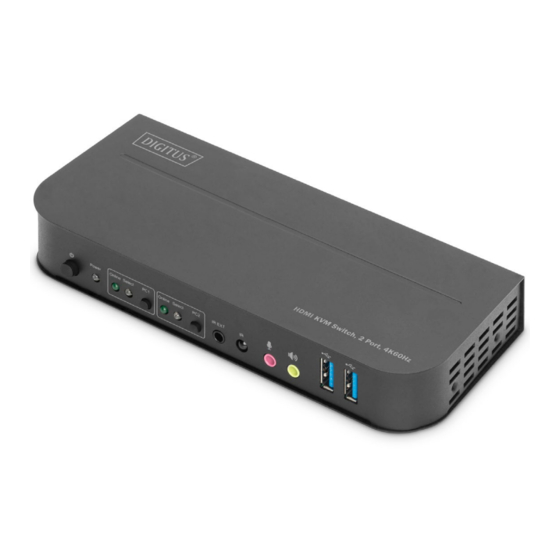

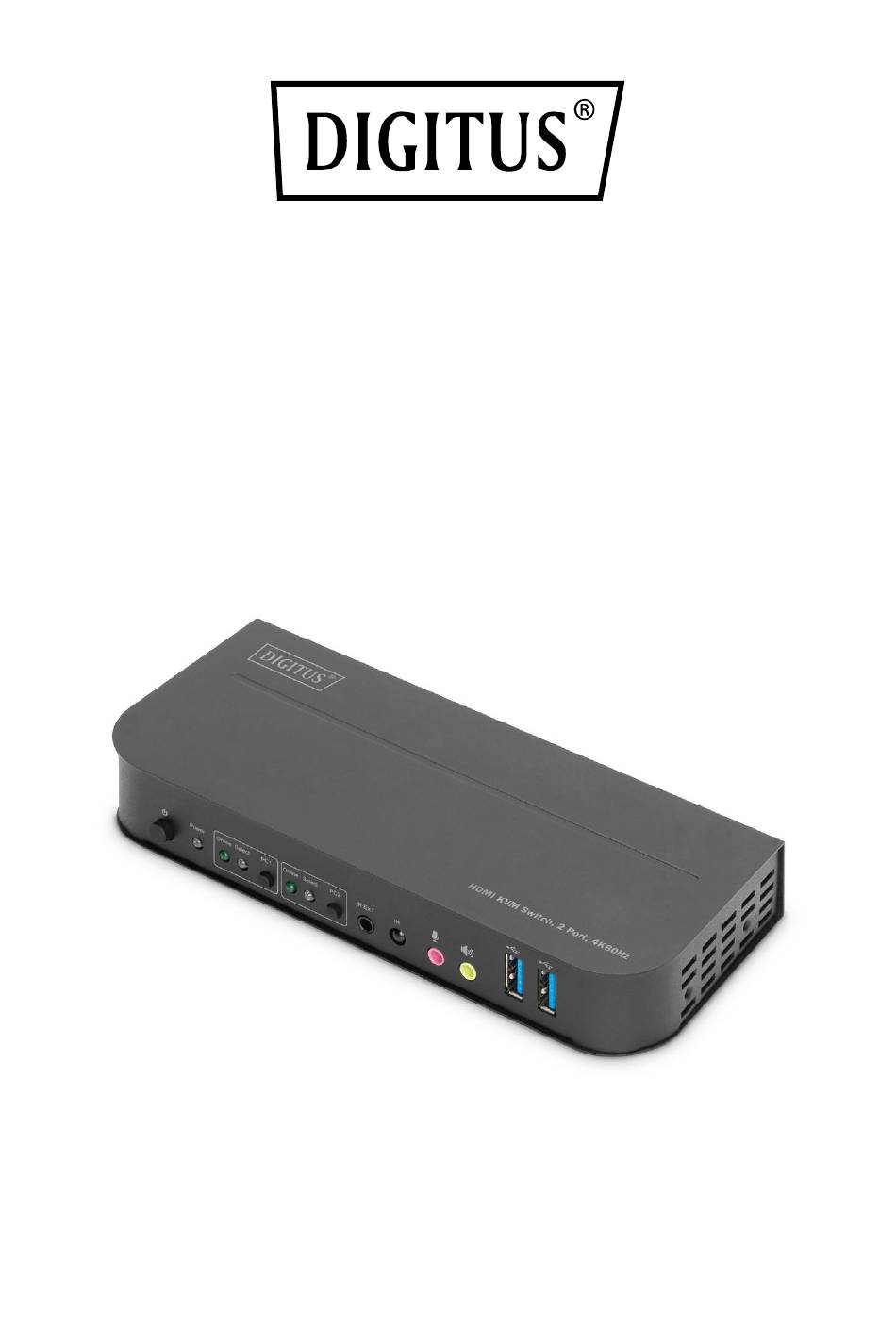

- Page 1 KVM Switch, 2x1 HDMI, HDMI Out, USB, 4Kx2K@60Hz Quick Installation Guide 12874...
-
Page 2: Table Of Contents
CONNECTION AND OPERATION ..........7 CONNECTION DIAGRAM ............10 1. INTRODUCTION The DIGITUS® 2-Port KVM Switch is a high-performance HDMI-KVM switcher. It routes high-definition video (in multiple resolutions up to 4kx2k@60Hz) and audio from any one of the several sources to display units. -
Page 3: Features
2. FEATURES • Use a monitor, a mouse and a keyboard to operate two computers. • USB ports for mouse and keyboard • Audio connections for microphone/speaker • Integrated USB hub with 2x USB 3.0 connections for additional peripheral equipment •... -
Page 4: Specifications
4. SPECIFICATIONS Connectors USB 2.0-A x2(Back) HDMI Female x1(Back) 3.5mm Stereo Jack Console Connectors (Green, 1 Front, 1 Back) x2 3.5mm Stereo Jack (Pink, 1 Front, 1 Back) x2 USB 3.0-B x2(Back) HDMI Female x2(Back) KVM Connectors ... -
Page 5: Panel Description
Power Consumption (Max) ESD Protection ±8kV (air-gap discharge) &± 4kV (contact Human Body Model discharge) 5. PANEL DESCRIPTION Front Panel Power Button: Press to turn on/off the unit. Power Indicator: The LED will light up once the DC/5V is provided and the unit is turned on. Input Selection: When PC1/PC2 is selected, the corresponding “Select”... - Page 6 : 3.5mm MIC input port. : 3.5mm stereo output port. : USB 3.0 ports, mainly used for connecting to printers, scanners, U-disk, etc. Back Panel Output ports: Connect to a mouse or a keyboard. Connect to a keyboard or a mouse. Connect to an amplifier.
-
Page 7: Connection And Operation
6. CONNECTION AND OPERATION Operation Connect PCs to USB-B ports of the unit with USB cables; Respectively connect MIC and stereo ports of the PCs to those (above the “HDMI In”) of the unit with 3.5mm audio cables; Connect PCs to “HDMI In” ports of the unit with HDMI cables. Connect keyboard and mouse to the USB-A ports on the back panel of the unit;... - Page 8 Place the mouse on the far-right side of the display and continue to slide to the right for 2 seconds, the unit automatically switches to the next port. Switching order is : PC1 →PC2→PC1→…; USB-B detection switching function: • When the unit detects that a PC is connected to the USB-B port of the unit, the unit immediately switches to this PC and the corresponding “Online”...
- Page 9 Note • Hot keys are not case-sensitive. • Buzzer sounds when switching between PC1 and PC2. “++” means to press 2 times in rapid succession. For example: “Scroll Lock ++ Scroll Lock + 1” means to press the Scroll Lock button twice in rapid succession and then press number “1”...
-
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Front Panel IR Extender Amplifier ①. ③. USB Devices ②. ④. Back Panel Mouse ①. ⑤. Keyboard PC 1 ②. ⑥. HDMI Display PC 2 ③. ⑦. Amplifier Power Supply ④. ⑧. - Page 11 Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned manufacturer address. www.assmann.com Assmann Electronic GmbH Auf dem Schüffel 3 58513 Lüdenscheid Germany...
