CA542F & CA544F
Trim
Installation Instructions

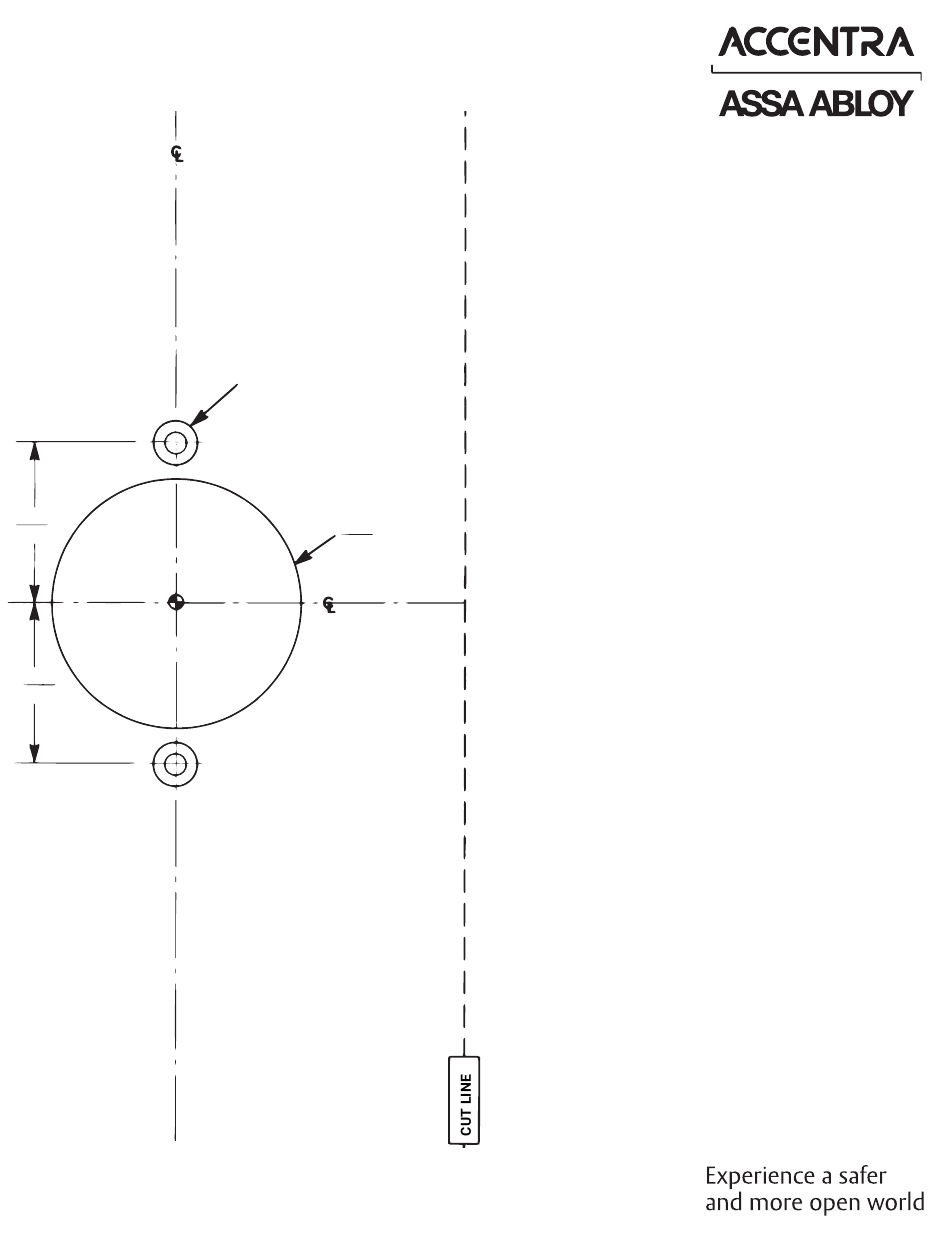

VERTICAL
REFERENCE
1-3/8
(34.9)
1-3/8
(34.9)
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
Copyright © 2013, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
DOOR
OUTSIDE FACE
3/8 (9.50) Dia. x 1 (25) Deep
7/32 (5.50) Dia. Thru
-2HOLES-
2-1/8
(54)
HORIZONTAL
REFERENCE
3
80-8470-0542-000 04/24
