Assa Abloy ACCENTRA CA542F Installation Instructions

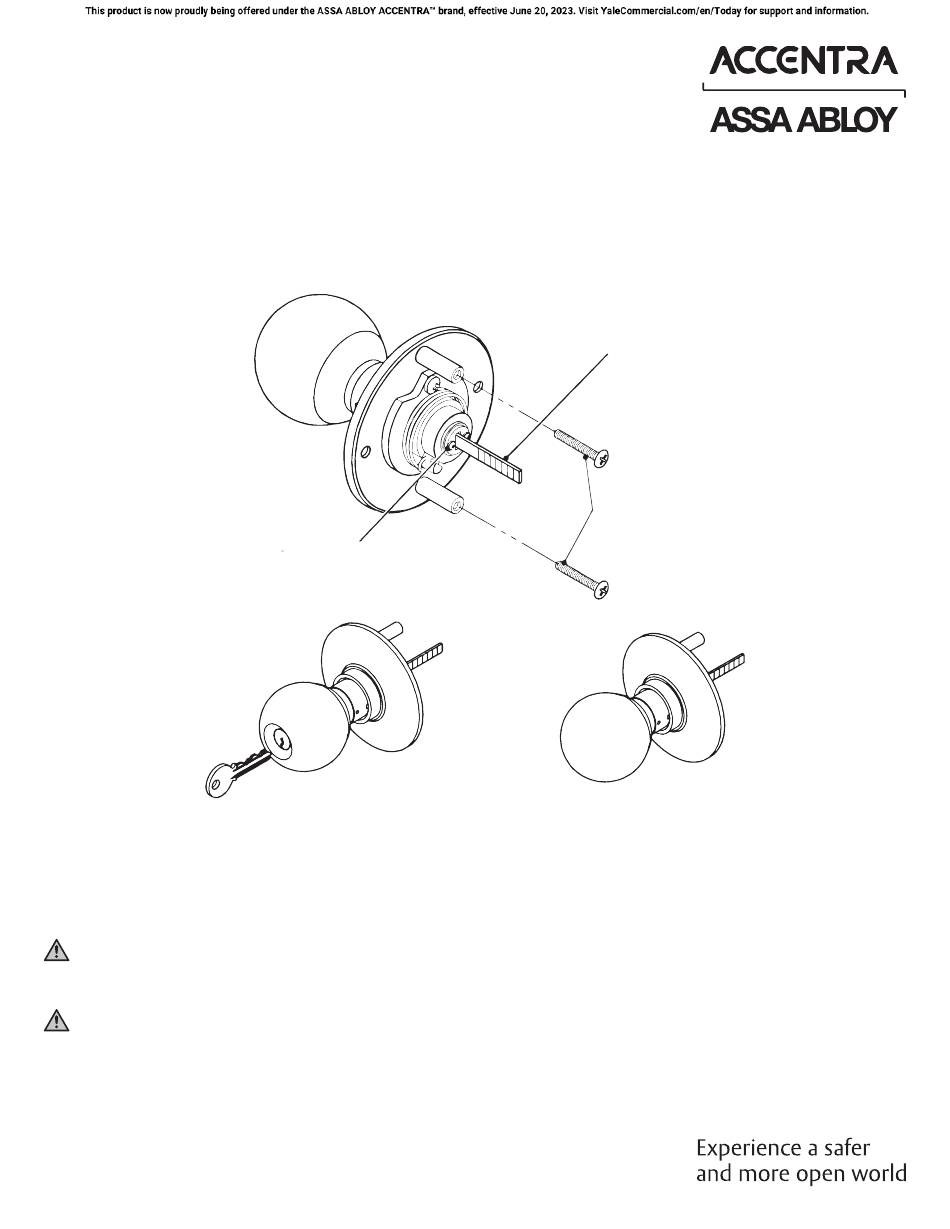

CA542F & CA544F
Trim
Installation Instructions
For use with all ASSA ABLOY ACCENTRA™
7100, 2100 and 1800 Series Exit Devices
(Wood and Metal Doors)
F08: Key locks/unlocks knob. Key
removable with door locked and unlocked.
To Lock Trim: Turn key clockwise 1/2 turn.
To Unlock Trim: Turn Key counterclockwise
1/4 turn. Return to key removal position.and
Lockwashers
WARNING
This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other
reproductive harm. For more information go to www.P65warnings.ca.gov.
WARNING
Attention Installer: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the
opening, and ASSA ABLOY makes no representations or warranties concerning what such impact may be in any specific
situation. When retrofitting any portion of an existing fire-rated opening, or specifying and installing a new fire-rated opening,
please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all
applicable codes and ratings.
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
Copyright © 2013, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
(2)ea 3-48 x 1/4" Locking
Screws
CA542F
Tailpiece
Standard: 1-3/4" Door, No
Shims
Optional: All other
applications
Note: Thicker doors also
require longer screws.
(2)10-24 x 1-1/2" PTHMS
CA544F
Passage function: Knob always active.
F02: (Not for fire exit) Pull door to
pass, when device is dogged (field cut
tailpiece off).
80-8470-0542-000 04/24
