Installation Instruction
1. Check box contents. (See other side for box components and
keying instructions).

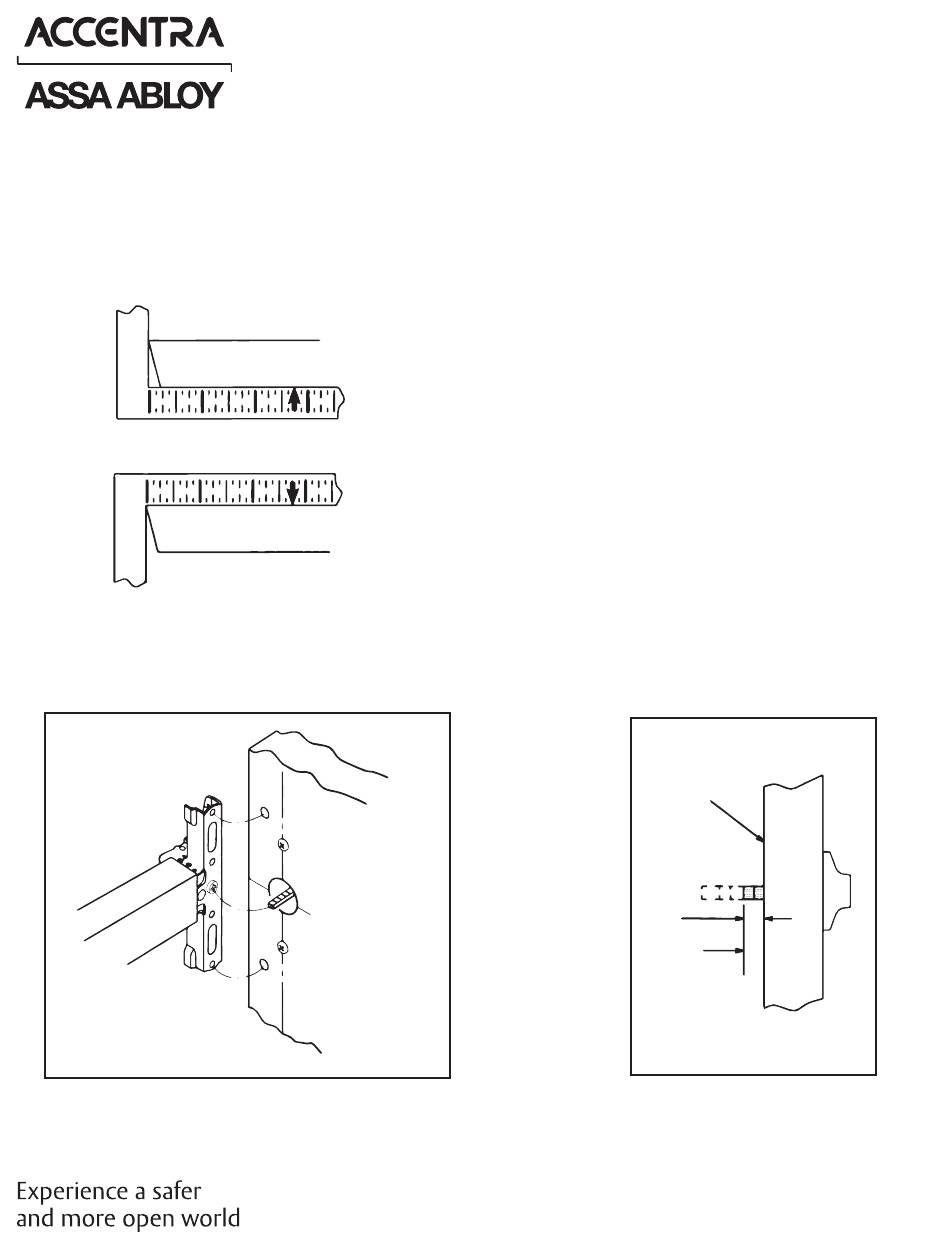

2. Carry "Vertical Reference Centerline" to outside door face. Follow
steps A and B, below.
A. MEASURE INSIDE LINE
LOCATION.
B. CARRY DIMENSION OVER TO
OUTSIDE FACE.
3. Carry "Horizontal Reference Centerline" from inside to outside
door face.
Figure 1.
(2) Screws bolt trim
to door (holes "B").
Exit device will
mount to door using
holes "A".
80-8470-0542-000 04/24
A
B
Trim tailpiece (T)
gets into horizontal
(or vertical) cam
B
slot. (Cut per Fig.2)
A
LHR Door Shown
Copyright © 2013, 2024, ASSA ABLOY ACCENTRA™ Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole
or in part without the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
4. Align trim template and tape to door, outside face. CAUTION:
Office coppiers and facsimile machines may change the size of
a drawing and make the template inaccurate to use as a door
marker. If this is not the original tmplate packed with the trim,
use only the dimensions written on the template to locate the
holes on the door (do not use the template as a door marker).
5. Spot holes and prepare door for trim.
6. Mount trim to door. Fasten finger tight with 2 #10-24 x 1-1/2
PTH machine screws supplied (See Figure 1).
7. With trim in place, cut trim tailpiece as shown in Figure 2.
8. Seat device so that trim tailpiece penetrates cam slot, as
shown in Figure 1. Continue as shown in device instructions.
Trim for RHR or Lhr door,
Figure 2.
as packed.
Device
Mounting
Surface
STOCK DOORS: (See Note)
Installation shows
preparation for exit
device trim. Stock
door with ANSI/BHMA
A156.115 preparation, for
cylindrical lock with 2-3/4
(70) backset, may be
used as substitute, when
Trim is used with rim or
SVR device.
NOTES: Measure from device seat
(door face-shown-or shim surface).
1-855-557-5078 Ext. 2 • www.accentra-assaabloy.com
2
CA542F & CA544F
Installation Instructions
5/16
Hold
(8)
Cut Line
Trim
