Summary of Contents for Zip 95601

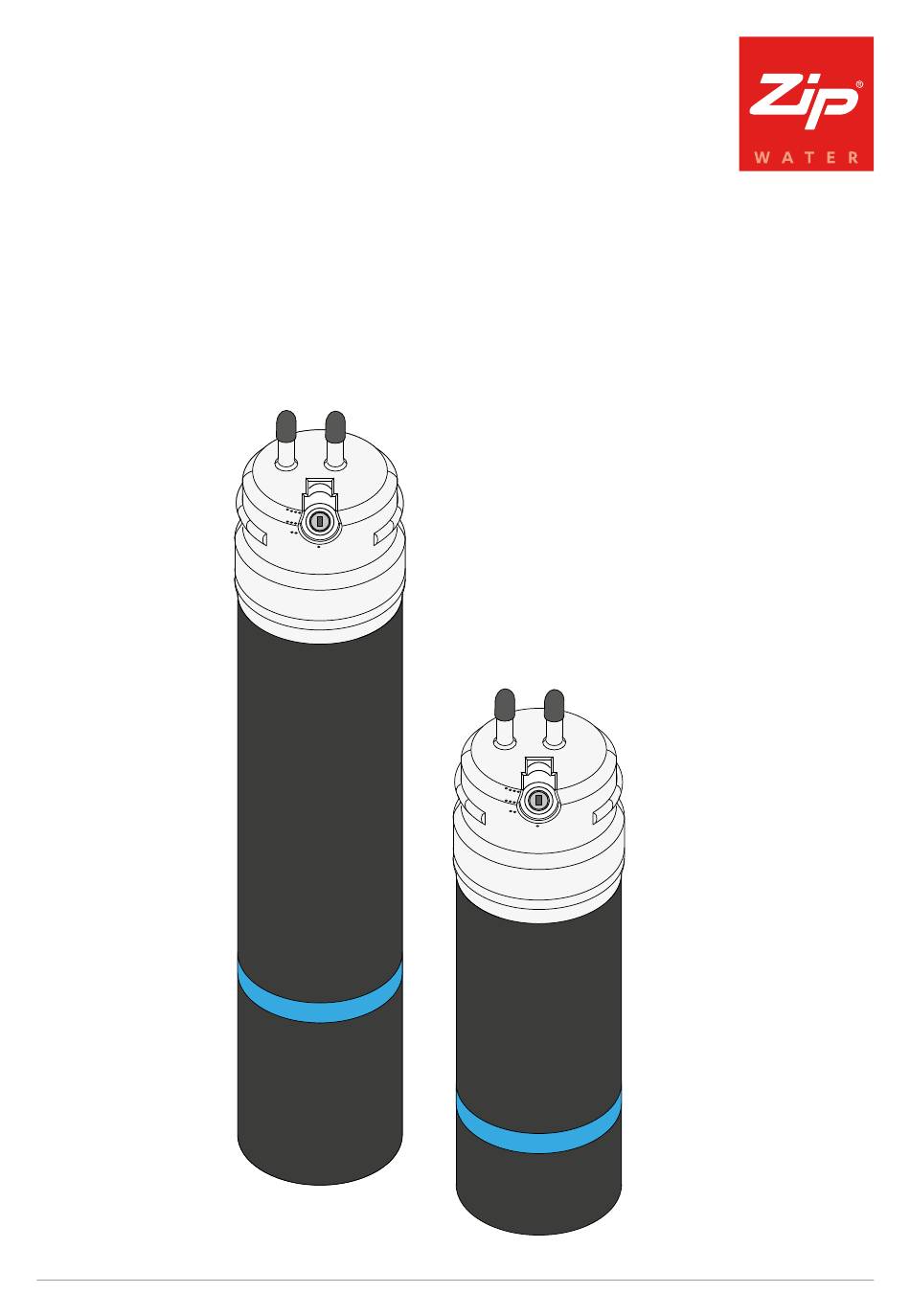

- Page 1 Installation manual and User guide Limescale filters 95601 for Home & 95602 for Work light usage Quick Start Installation Guide T210079 Scale filter manual - small v1.00 Aug 2023...
-
Page 2: Table Of Contents
SECTION 1: Using these instructions Before you start This document is an Installation instruction manual and User Guide for the Zip limescale filter range. For further details on installing and operating your complete system, download & read the relevant appliance installation and user instructions, which can be found online specify.zipwater.co.uk... -
Page 3: Section 2: Important Safety Instructions
SECTION 2: IMPORTANT SAFETY INSTRUCTIONS • In the UK the system must be installed in accordance with water supply byelaws. • As the installer, it is your responsibility to supply and install all valves as required by local regulations and relevant standards. •... -
Page 4: Section 3: Filter Information

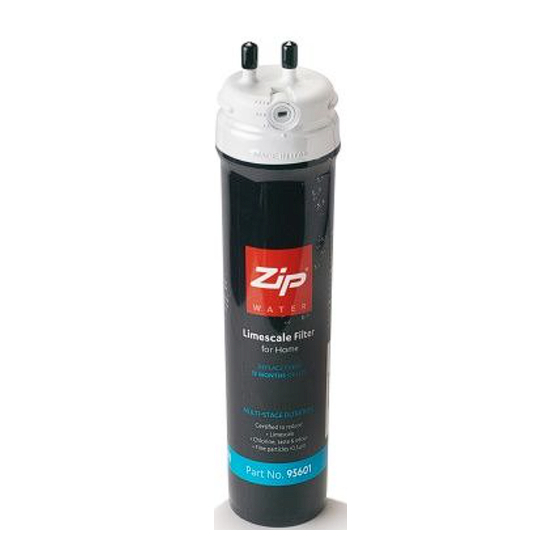

Functionality and compatibility The Zip disposable limescale filters are used for the removal of water hardness and include a 0.5μm water filtration stage using carbon block technology including silver ions. The filter refines the water quality by: •... -
Page 5: Section 4: Installation
• Site the filter cartridge as close as the appliance as possible. • Install vertically. For extra security, attach to a wall or cupboard side with the optional security clip. • Call Zip on 0345 6 005 005 for clips. Clipped in place... - Page 6 SECTION 4: Installation • Check the connections & remove • Fit the connectors. the connector caps. 2x 3/8” - 3/8” Push fit MAINS FILTERED WATER IN WATER OUT • Fit the braided hoses to the filter and the appliance. Read the instructions supplied with the appliance for appliance connections.
-
Page 7: Section 5: Filter Flush
SECTION 5: Filter flush Flush the filter cartridge Set the filter bypass valve to position 4 Read the instructions supplied with the appliance to flush the filter. • Make sure the appliance is correctly installed. • Check the water connections. •... - Page 8 • Place the filtered water outlet out braided hose braided hose into a bucket. • Flush and dispense a further : • 95601 10 litres of water through the filter. • 95602 20 litres of water through the filter. •...
-
Page 9: Section 6: Bypass Valve
SECTION 6: Bypass valve Set the filter bypass valve for use • The bypass valve allows a percentage of the water flowing through the filter cartridge to bypass the filter blocks, this allows a balance between water quality and filter cartridge life. •... -
Page 10: Section 7: Troubleshooting
SECTION 7: Troubleshooting Non functional warnings Cause & action Check the inlet hose to the filter. No water flow to the appliance Call us on 0345 6 005 005 to book a service visit Check water pressure. Check if Isolation valve partially closed. Low water flow to the appliance Check if Inlet fittings are blocked. -
Page 11: Section 8: Maintenance And Use
SECTION 8: Maintenance and use Failure to maintain the filter and replace it at recommended intervals could result in a hazard that may cause harm to people and damage to property. Regular inspection and cleaning • Depending on the quality of the mains water and the criticality of use, periodic inspections are recommended in accordance with any requirements of the inspection body and the applicable local regulations. - Page 12 Zip Water UK Trafalgar House, Rash’s Green, Dereham, Norfolk, NR19 1JG 0345 6 005 005 sales@zipwater.co.uk specify.zipwater.co.uk Quick Start Installation Guide T210079 Scale filter manual - small v1.00 Aug 2023...
