TECHNICAL SPECIFICATIONS

ENVIRONMENTAL CONDITIONS
-
• Conditions Indoor and outdoor use
-
• Altitude Up to 6,566 ft. (2000M)
• Operating
-
Temperature
-
• Humidity 95% to +60°C
(non-condensing)
• Pollution Degree
• Measurement Category IV
Classification Rating (CAT IV) –
Product is intended for use with test
and measuring circuits connected to
the circuits/wiring outside of a building
installation, including transmission lines.
• Overvoltage Category IV
• Enclosure Material
• Printed Circuit Boards
BATTERY REPLACEMENT
INSTRUCTIONS
To replace the battery, open and remove
the compartment on the rear of the
meter housing. Remove and dispose
of the old battery, replacing it with a
fresh, new 9-volt lithium or alkaline
battery. Note battery polarity on
the battery compartment. This
compartment cannot be reinserted
if the battery polarity is reversed.
MANUFACTURING LOCATION
HD Electric Company • Waukegan, IL. 60085, USA
6
-20°F to +140°F
(-29°C to +60°C)
-
PD4
-
-
PVC UL 94-V0,
fiberglass
-
FR-4 UL94V-0

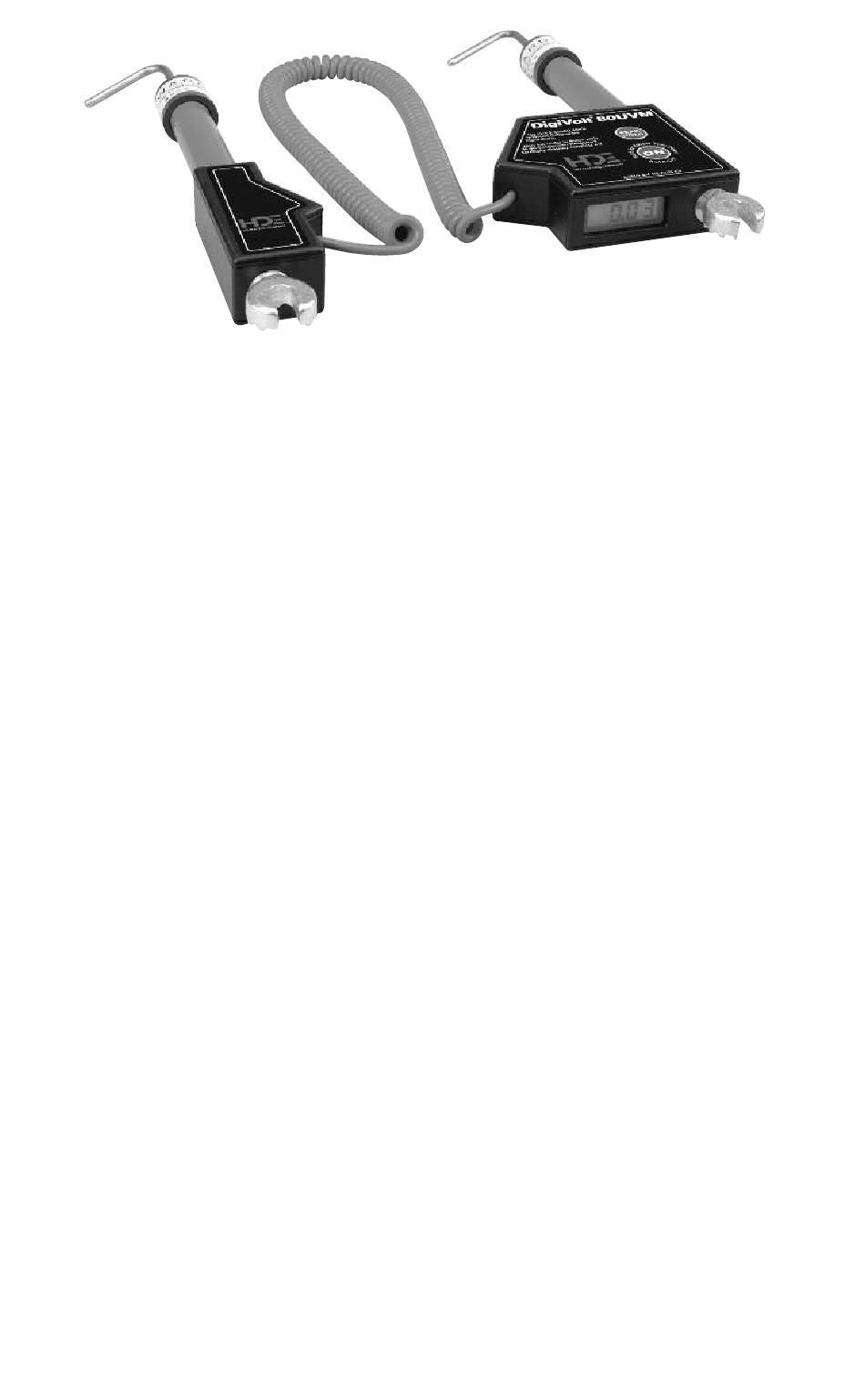

DIMENSIONS:
• Length (w/o probes)
• Display Housing
• Diameter of Fiberglass
• Connecting Cord Length
12'(3.6m) fully extended,
3.5'(1.7m) retracted
-
• Weight (w/o probes): 2.25 lbs. (1.02kg)
• LCD Numeral Height
-
• Battery Life 17 hours continuous use
-
• Battery 9V alkaline 1604A, IEC 6LR61 or
9V lithium, ANSI-1604LC.
-
• Digital Meter
3.5 digits with decimal point
• Voltage Range
with add-on resistors, DC, AC 25-1000Hz
• Auto-Ranging
• Accuracy
- Within 1% of reading +/- 3 counts
- With R-80 add-on resistors installed -
within 2% of reading +/- 3 counts
(line-to-ground & line-to-line measurements)
• Meter Resolution
0.005 - 1.999 range with 1 Volt resolution
2.00 - 19.00 range with 10 Volt resolution
19.0 - 40.0 range with 100 Volt resolution
-
15"(38cm)
-
5"W x 4.25"L x 1.38"H
(13cm x 11cm x 3.5cm)
-
1"(2.54cm)
-
-
0.4", indicates
3.5 digits
Reads in kilovolts,
-
5V-40kV, up to 80kV
-
No range selector switch
