Proof Tester® Voltmeter Tester - Textron HD Electric DVM-80UVM Operating And Instruction Manual

PROBES AND ACCESSORIES
PROOF TESTER®
VOLTMETER TESTER

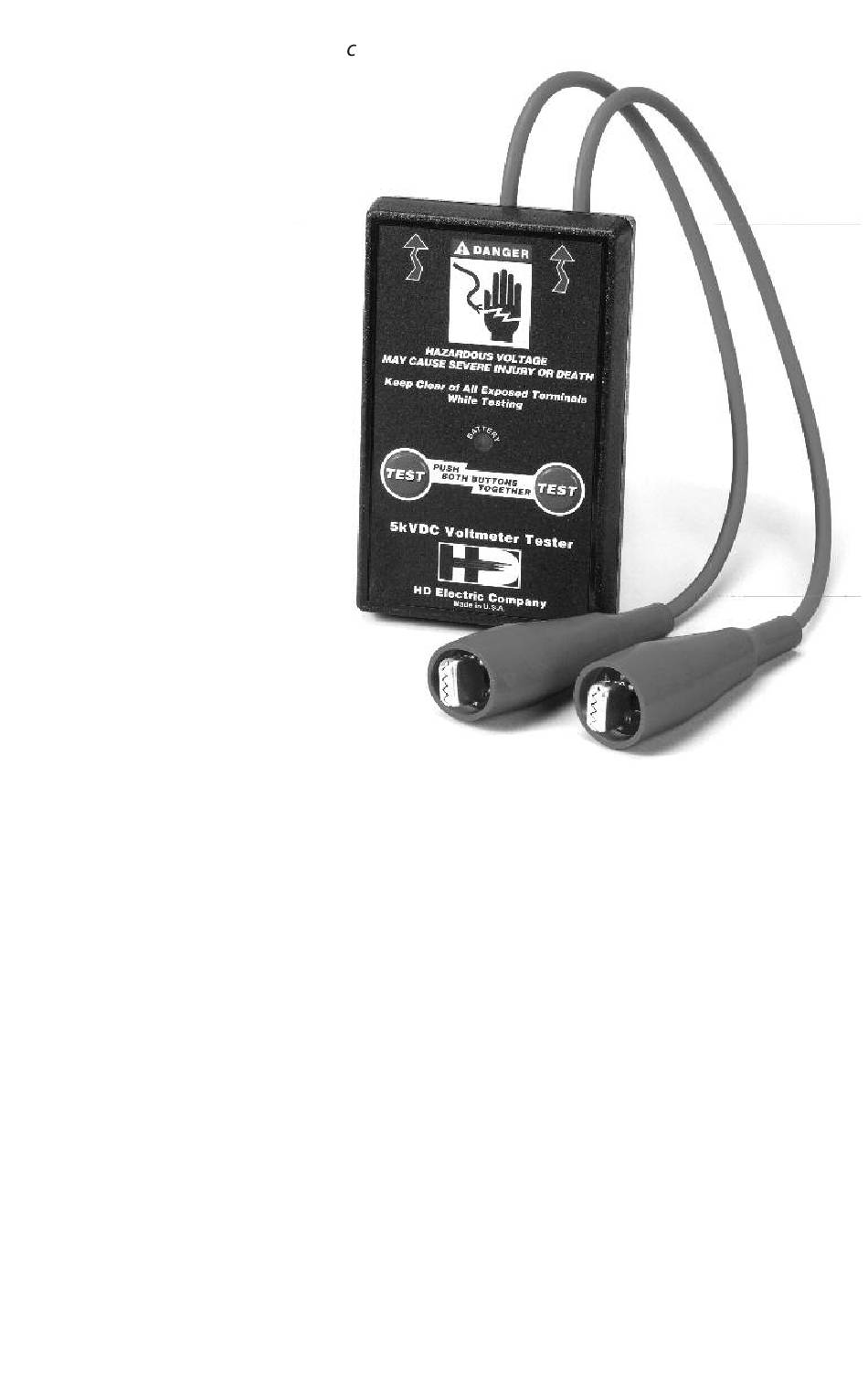

The PT-5000B Proof Tester
Voltmeter Tester will produce
5kVDC at the test leads to
confirm proper operation of
voltmeters and phasers. This
tester should be used only with
voltmeters/phasers that measure
DC voltage. It will not confirm
operation of voltmeters/
phasers that measure AC
voltage only. The PT-5000B
operates from one 9V lithium
or alkaline battery and
produces approximately
5kVDC at the connecting
leads. To use:
1) Connect both tester leads
to the voltmeter/
phaser probes.
2) Press and hold both
TEST buttons.
3) Confirm a good battery
by checking the red light
on the Tester. If the red light
does not come on, replace
the battery with a 9V lithium or alkaline only.
4) Verify the voltmeter/phaser reads approximately 5kV.
5) Release the TEST buttons and disconnect the Tester from the voltmeter/phaser.
WARNING: Do not use the voltmeter/phaser if proper operation is not confirmed.
WARNING: Do not use this tester except as directed. Do not use to test equipment
other than voltmeters/phasers. Do not apply to energized circuits or equipment. Refer
all servicing to the factory. Failure to follow these instructions may lead to electric
shock, severe injury or death.
ontinued
PT-5000B Proof Tester
Voltmeter Tester
