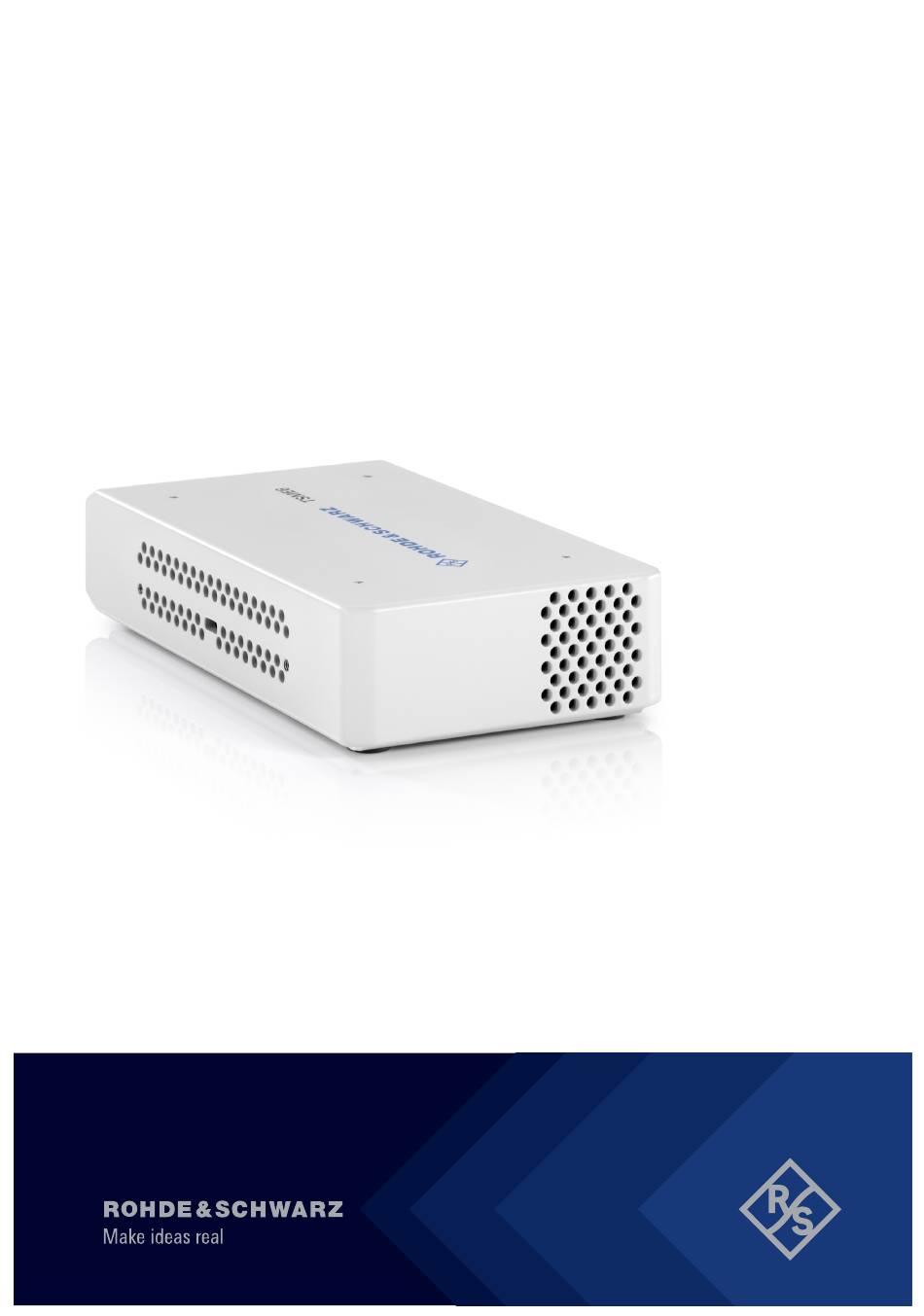

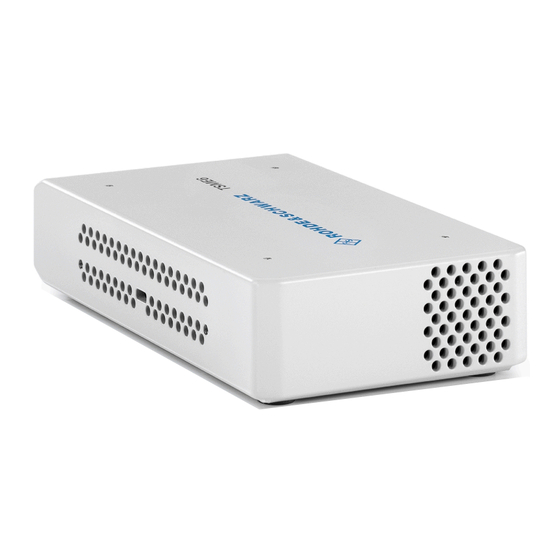

  • Page 1 ® R&S TSME6 Ultracompact Drive Test Scanner User Manual (a00Q2) 4900003302 Version 08...
  • Page 2 ® This manual applies to the following R&S TSME6 models and options: ● ® R&S TSME6 (4900.0004.02) ● ® Block I/Q data R&S TSME6-K10 (4900.2459.02) ● ® P25 scanning R&S TSME6-K19 (4900.2720.02) ● ® WCDMA scanning R&S TSME6-K21 (4900.2188.02) ● ®...
  • Page 3: Table Of Contents

    ® Contents R&S TSME6 Contents 1 Safety and regulatory information............7 Safety instructions......................7 Labels on the product....................9 Warning messages in the documentation..............9 Korea certification class B................... 9 2 Welcome....................10 Documentation overview....................10 2.1.1 Getting started manual....................10 2.1.2 User manuals and help....................10 2.1.3 Videos...........................
  • Page 4 ® Contents R&S TSME6 3.1.6 Connecting multiple R&S TSME6s to one host PC............24 3.1.6.1 Using two R&S TSME6s in parallel................25 3.1.6.2 LTE MIMO setup with two R&S TSME6s..............26 3.1.6.3 LTE MIMO setup with four R&S TSME6s..............28 3.1.7 Connecting R&S TSME6 with R&S TSMA6/6B-BP............31 3.1.8 Switching on or off R&S TSME6...................
  • Page 5 ® Contents R&S TSME6 6.2.3 Interacting with R&S ViCom..................62 7 Troubleshooting................... 64 Guide to solve instrument connection problems............ 64 Solving other miscellaneous problems..............67 Contacting customer support..................71 8 Transporting..................72 9 Maintenance, storage and disposal........... 73 Cleaning........................73 Storage.........................73 Disposal........................
  • Page 6 ® Contents R&S TSME6 User Manual 4900.0033.02 ─ 08...
  • Page 7: Safety And Regulatory Information

    ® Safety and regulatory information R&S TSME6 Safety instructions 1 Safety and regulatory information The product documentation helps you use the product safely and efficiently. Follow the instructions provided here and in the following chapters. Intended use The R&S TSME6 is intended for efficient drive and walk tests with a maximum degree of freedom and upgradeability.
  • Page 8 ® Safety and regulatory information R&S TSME6 Safety instructions Connecting the product Before connecting the interfaces and measuring inputs of the product to other products or electrical circuits, make sure that the other products or electrical circuits provide special protection against electric shock. This protection principle is referred to as SELV (safety extra-low voltage) and is based on a low voltage level and increased insulation.
  • Page 9: Labels On The Product

    ® Safety and regulatory information R&S TSME6 Korea certification class B DC - direct current Connect to a DC power supply of the specified voltage range. 1.2 Labels on the product Labels on the casing inform about: ● Personal safety, see "Meaning of safety labels"...
  • Page 10: Welcome

    ® Welcome R&S TSME6 Documentation overview 2 Welcome 2.1 Documentation overview This section provides an overview of the R&S TSME6 user documentation. Unless specified otherwise, you find the documents at: www.rohde-schwarz.com/manual/tsmx 2.1.1 Getting started manual Introduces the R&S TSME6 and describes how to set up and start working with the product.
  • Page 11: Open Source Acknowledgment (Osa)

    ® Welcome R&S TSME6 Key features 2.1.6 Open source acknowledgment (OSA) The R&S TSME Device Manager is part of the R&S TSME Tools and uses several val- uable open source software packages. An open source acknowledgment document provides verbatim license texts of the used open source software. After the installation of the R&S TSME Tools, the OSA is available in the directory C:\Program Files\Rohde-Schwarz\TSME Tools\doc.
  • Page 12: Getting Started

    ® Getting started R&S TSME6 Preparing for use 3 Getting started 3.1 Preparing for use Here, you can find basic information about setting up the product for the first time. 3.1.1 Unpacking and checking 1. Unpack the product carefully. 2. Retain the original packing material. Use it when transporting or shipping the prod- uct later.
  • Page 13: Mounting The Product In A Rack

    ® Getting started R&S TSME6 Preparing for use b) Place the R&S TSME6 on top. 3.1.2.2 Mounting the product in a rack To mount the product in a rack 1. Use an adapter kit to prepare the product for rack mounting. a) Order the rack adapter kit designed for the product.
  • Page 14: Considerations For Test Setup

    ® Getting started R&S TSME6 Preparing for use Figure 3-2: Rackmounting of 2 R&S TSME6s (reverse orientation of R&S TSME6s) Figure 3-3: Rackmounting of 4 R&S TSME6s Figure 3-4: Rackmounting of 4 R&S TSME6s (reverse orientation of R&S TSME6s) 3.1.3 Considerations for test setup Electromagnetic interference (EMI) can affect the measurement results.
  • Page 15: Connecting To Power

    ® Getting started R&S TSME6 Preparing for use To suppress electromagnetic radiation during operation: ● Use high-quality shielded cables, for example, double-shielded RF and LAN cables. ● Always terminate open cable ends. ● Ensure that connected external devices comply with EMC regulations. Signal input and output levels Information on signal levels is provided in the specifications document.
  • Page 16: Connecting To An Ac Power Supply

    ® Getting started R&S TSME6 Preparing for use Figure 3-5: Supplied power cable with cigarette lighter adapter +12 V DC = red/orange cabling = black/brown cabling 3.1.4.3 Connecting to an AC power supply If you operate the product with an external power supply, you can use it indoors only in pollution degree 2 environments where nonconductive contamination can occur.
  • Page 17: Setting Up The Lan Connection To The Host Pc

    ® Getting started R&S TSME6 Preparing for use EMI suppression Electromagnetic interference (EMI) may affect the measurement results. To suppress generated electromagnetic interference (EMI): ● Use only double-shielded cables for RF and GPS connection when not using the standard accessory. ●...
  • Page 18 ® Getting started R&S TSME6 Preparing for use Recommendations/Limitations of modes ● "Full auto-IP" mode – Only 1 PC and 1 or more R&S TSME6 devices per LAN interface, either con- nected directly or via a L2 switch. (Do not use this mode when more than 1 PC is physically connected to the same subnetwork, e.g.
  • Page 19 ® Getting started R&S TSME6 Preparing for use Configuring the LAN interface on the host PC Each R&S TSME6 has the default IP address 192.168.0.2. It is recommended that you define the fixed IP address 192.168.0.1 to the host PC or configure the host PC to obtain an IP address automatically ("Auto-IP").
  • Page 20 ® Getting started R&S TSME6 Preparing for use b) Use "Static IP" mode. ● Select "Use the following IP address" (fixed IP, no dynamic range) ● IP address: 192.168.0.1 (recommended) ● Subnet mask: 255.255.255.0 ● No Default Gateway 9. Enable the use of 9-kB-jumbo frames: a) Return to the "Local Area Connection Properties"...
  • Page 21 ® Getting started R&S TSME6 Preparing for use d) Select the "Jumbo Frames" property and the "Value":"9014 Bytes". Note: Sometimes, this setting causes problems in Windows, but it is an impor- tant prerequisite for correct operation of the R&S TSME6. "Does the host provide a Gbit LAN connector and support 9k jumbo frames?"...
  • Page 22: Connecting External Devices

    ® Getting started R&S TSME6 Preparing for use Dedicated LAN adapter and IP address for host PC It is important for the host PC to have its own dedicated LAN adapter for the connec- tion to one or more R&S TSME6s (or a switch), rather than being integrated in a regu- lar office network.
  • Page 23: Connecting A Kensington Lock

    ® Getting started R&S TSME6 Preparing for use ● Connect the R&S TSME30DC / R&S TSME44DC / R&S TSMS53DC according to the measurement setup description in R&S TSME30DC / R&S TSME44DC / R&S TSMS53DC Ultracompact Downconverters manual. Depending on the intended use, the respective valid regulations regarding lightning protection of the antennas and regarding vehicle installation must be observed during installation.
  • Page 24: Connecting Multiple R&S Tsme6S To One Host Pc

    ® Getting started R&S TSME6 Preparing for use Figure 3-7: Orientation of the R&S TSME6 2. Power on the R&S TSME6 device. 3. Activate "Dead Reckoning" in the used software (see ROMES, R&S NESTOR or R&S ViCom documentation). 4. Wait until the used software reports a "3D fix" (time vary depending on the config- ured GNSS).
  • Page 25: Using Two R&S Tsme6S In Parallel

    ® Getting started R&S TSME6 Preparing for use throughput to avoid network overload. The result is a reduced performance of the R&S TSME6. In a MIMO scenario or when using multiple R&S TSME6 devices for load balancing applications, a network link can be shared by several R&S TSME6 devices. In a multi- technology setup, we recommend using several network ports on your PC.
  • Page 26: Lte Mimo Setup With Two R&S Tsme6S

    ® Getting started R&S TSME6 Preparing for use 3.1.6.2 LTE MIMO setup with two R&S TSME6s Basic LTE MIMO measurements are possible with a single R&S TSME6, which can analyze two different transmission paths of a signal from two different transmit anten- nas.
  • Page 27 ® Getting started R&S TSME6 Preparing for use Figure 3-9: Power cable connected to DC IN connectors of 2 R&S TSME6 devices 1 = Power cable (connecting 2 R&S TSME6 devices) For configurations with two R&S TSME6 devices, use the power supply R&S TSME-Z1 (order number 1514.6913.02).
  • Page 28: Lte Mimo Setup With Four R&S Tsme6S

    ® Getting started R&S TSME6 Preparing for use Figure 3-10: LAN cable connected to LAN connectors of 2 R&S TSME6 devices 1 = LAN cable 3.1.6.3 LTE MIMO setup with four R&S TSME6s If four R&S TSME6s are connected to one host PC, multiple signals can be received by four receive antennas and processed in one application.
  • Page 29 ® Getting started R&S TSME6 Preparing for use Figure 3-11: SYNC-cable connected to Aux. connectors of 4 R&S TSME6 devices 2. Connect the power cable R&S TSME6-ZYC4, order number 4900.1846.02) to the DC IN connectors of all R&S TSME6 devices in this setup. Figure 3-12: Power cable connected to DC IN connectors of 4 R&S TSME6 devices 1 = Power cable (connecting 4 R&S TSME6 devices) User Manual 4900.0033.02 ─...
  • Page 30 ® Getting started R&S TSME6 Preparing for use For configurations with four R&S TSME6 devices, use the following power supply (R&S TSMA6-Z1, order number 1523.8450.02). Figure 3-13: AC Power Supply (four R&S TSME6s) 3. Connect a LAN cable to the LAN connectors of all R&S TSME6 devices in this setup.
  • Page 31: Connecting R&S Tsme6 With R&S Tsma6/6B-Bp

    ® Getting started R&S TSME6 Preparing for use 3.1.7 Connecting R&S TSME6 with R&S TSMA6/6B-BP To power R&S TSMEx devices (scanner, downconverter), the following accessory cables are necessary. ● R&S TSMA6-BPPT (single R&S TSMETSMEx power cable, order no. 4900.1730.02) ● R&S TSMA6-BP2T (dual R&S TSMETSMEx power cable, order no.
  • Page 32 ® Getting started R&S TSME6 Preparing for use If the R&S TSME6 is detected by the software for the first time, the software down- loads the calibration files from the R&S TSME6 to the host PC. This procedure takes a few minutes. 3.
  • Page 33 ® Getting started R&S TSME6 Preparing for use 4. The application checks the installed firmware versions on the R&S TSME6 and which version was used to boot the R&S TSME6. You can store up to four firmware versions on the R&S TSME6. The following procedure depends on the detected versions.
  • Page 34: Instrument Tour

    ® Getting started R&S TSME6 Instrument tour ● If the firmware version required by the application is not yet available on the R&S TSME6, the application uploads the required firmware version to the R&S TSME6 (this step takes about one minute). The application reboots the R&S TSME6 using the required firmware version, then establishes a connec- tion to the R&S TSME6.
  • Page 35: Rear Panel View

    ® Getting started R&S TSME6 Instrument tour Figure 3-16: R&S TSME6 - front panel 3.2.2 Rear panel view This figure shows the rear panel view of the R&S TSME6. The individual elements are described in more detail in the subsequent sections. Figure 3-17: R&S TSME6 - rear panel "Power ON/OFF"...
  • Page 36 ® Getting started R&S TSME6 Instrument tour "DC IN connector" on page 37 "RF IN connector (50 Ω)" on page 37 "Pwr./State LEDs" on page 37 Power ON/OFF The On/Off key switches the device on and off if power is supplied via the DC IN con- nector.
  • Page 37 ® Getting started R&S TSME6 Instrument tour Table 3-4: LAN LED 1 states and their meaning LED state Description Green, blinking LAN sending or receiving, or identifying connected device Table 3-5: LAN LED 2 states and their meaning LED state Description No connection Yellow...
  • Page 38 ® Getting started R&S TSME6 Instrument tour STATE LED POWER LED Meaning Red, blinking 2 Hz Green Temperature warning (controller board temperature = 75° C ... 80° C) Red (continuous) Green Temperature error (controller board temperature above 80° C) *The fans are temperature-controlled and below a temperature of 60° C on the control- ler board, the fans are in status OFF.
  • Page 39: Option Concept

    ® Option concept R&S TSME6 Technology options 4 Option concept The R&S TSME6 scanner consists of the R&S TSME6 hardware and a set of (speci- fied) technology and band options when it comes from the factory. 4.1 Technology options Technology options allow the R&S TSME6 to scan the input based on a specific tech- nology, for example, LTE.
  • Page 40: Band Options

    ® Option concept R&S TSME6 Licensing Options Order number Description R&S TSME6-K51 4900.2488.02 R&S TSME6 scanner option: 5G NR add-on scanning R&S TSME6-K80 4900.2442.02 pR&S TSME6 scanner option: BTS PE Enabler 4.2 Band options The R&S TSME6 hardware simultaneously measures in all wireless communications bands from 350 MHz to 6 GHz.
  • Page 41: Option Sharing Concept

    ® Option concept R&S TSME6 Option sharing concept ● Unregistered licenses (variant .03) Unregistered licenses are permanent licenses without serial number fixation. Also, the options K2x, K3x, K40, K5x and KAB are available with timed licenses. ● Timed licenses Timed licenses are unregistered licenses limited to a defined time period. –...
  • Page 42: Vibration-Proofed Stacking

    ® Vibration-proofed stacking R&S TSME6 Cascading R&S TSMA6/6B and R&S TSME6 5 Vibration-proofed stacking 5.1 Cascading R&S TSMA6/6B and R&S TSME6 To connect R&S TSMA6/6B and R&S TSME6 1. Screw the connecting elements (order no. 4900.0804.00) on the top of the R&S TSMA6/6B.
  • Page 43: Connecting R&S Tsma6/6B-Bp With R&S Tsme6 And R&S Tsmexxdc/Tsms53Dc

    ® Vibration-proofed stacking R&S TSME6 Connecting R&S TSMA6/6B-BP with R&S TSME6 and R&S TSMExxDC/TSMS53DC Figure 5-2: Aligning R&S TSMA6/6B and R&S TSME6 1 = R&S TSMA6/6B 2 = Connecting screws 3 = R&S TSME6 4 = Holes on the bottom pane of R&S TSME6 5.2 Connecting R&S TSMA6/6B-BP with R&S TSME6 and R&S TSMExxDC/TSMS53DC The following steps are valid for R&S TSME6 and downconverter...
  • Page 44 ® Vibration-proofed stacking R&S TSME6 Connecting R&S TSMA6/6B-BP with R&S TSME6 and R&S TSMExxDC/TSMS53DC 1 = Collar screws for connecting R&S TSME6 2 = Aux 1 / Aux 2 (auxiliary power out for connecting R&S TSME6/TSMExxDC/TSMS53DC via power cable R&S TSME-ZYC) 2.
  • Page 45 ® Vibration-proofed stacking R&S TSME6 Connecting R&S TSMA6/6B-BP with R&S TSME6 and R&S TSMExxDC/TSMS53DC Figure 5-4: Connected R&S TSME6/TSMExxDC/TSMS53DC and R&S TSMA6/6B-BP 1 = R&S TSMA6/6B-BP 2 = R&S TSME6/TSMExxDC/TSMS53DC 4. Connect the power cable R&S TSMA6-BPPT resp. R&S TSMA6-BP2T from AUX1 resp.
  • Page 46: Configuring The R&S Tsme6

    ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager 6 Configuring the R&S TSME6 Measurements are performed on the R&S TSME6 via the ROMES, R&S NESTOR or R&S ViCom interface. Depending on the installed software options, the network is either scanned for individual standards, or globally over all frequency bands.
  • Page 47: Obtaining Device Information - "Device Info

    ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager ● Obtaining device information - "Device Info"............47 ● Changing IP addresses - "Network Configuration"..........50 ● Installing and managing software license keys - "Options"........51 ● Configuring measurement bands - "Band Configuration"........
  • Page 48 ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager Figure 6-1: Tab "Device Info" This tab includes the following information: If an R&S TSME30DC/TSME44DC or R&S TSMS53DC downconverter is correctly connected, a second table with the relevant data for the downconverter is displayed. User Manual 4900.0033.02 ─...
  • Page 49 ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager Table 6-1: R&S TSME6 device information Label Description Device The device can be a receiver R&S TSME6 or a downconverter, e.g. R&S TSME30DC/TSME44DC or R&S TSMS53DC. For the R&S TSME30DC/TSME44DC and R&S TSMS53DC, only a reduced set of data is displayed. "Device Type"...
  • Page 50: Changing Ip Addresses - "Network Configuration

    ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager Device Analysis Output Furthermore, any warnings, errors or information concerning the device status are dis- played in the "Device Analysis Output" table. This table is available on all tabs, at the bottom of the R&S TSME Device Manager window.
  • Page 51: Installing And Managing Software License Keys - "Options

    ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager you have connection problems or after consulting the R&S support, in all other cases use the default configuration. Figure 6-2: Tab "Network Configuration" Applying changes to the LAN configuration Changes to the IP address configuration in the R&S TSME Device Manager are only applied when you select the "Accept Network Changes"...
  • Page 52 ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager Figure 6-3: Tab "Options" For each option, the following information is displayed: Information for options that are no longer valid because their expiry date has passed are listed as "Inactive Options". To replace temporary by permanent software license keys, contact your Rohde &...
  • Page 53: Configuring Measurement Bands - "Band Configuration

    ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager Label Description "Activation Type" Activation can be permanent or temporary "Valid From" Start of validity for temporary license "Valid To" End of validity for temporary license "Time to Expiration" Time left until license expires "Option Index"...
  • Page 54 ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager Example: An R&S TSME6 is configured with band option TSME-K2B (2 bands measured simul- taneously). During the last measurement, the R&S TSME6 was used for measure- ments in 900 MHz and 1800 MHz bands. For the next measurement, the R&S TSME6 can still only be used in 900 MHz and 1800 MHz bands, unless you change the band configuration using the "R&S TSME Device Manager".
  • Page 55: Obtaining Firmware And Correction Data Updates - "Updates

    ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager Band configuration changes Changes to the band configuration cannot be made randomly. Within any 48-hour period, you can change the band configuration only up to 5 times (where one "configu- ration change"...
  • Page 56: Aligning R&S Tsme6 Manually - "Self Alignment

    ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager Figure 6-5: Tab "Updates" To perform an update 1. In the "R&S TSME Device Manager", select the serial number of the R&S TSME6 which you want to update. 2.
  • Page 57: Configuring Downconverter R&S Tsmexxdc/Tsms53Dc - "Downconverter Configura- Tion

    ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager Figure 6-6: Tab "Self Alignment" Start Self Alignment To start the self-alignment manually, select the "Start Self Alignment" button in the "Self Alignment" tab of the "R&S TSME Device Manager". 6.1.7 Configuring downconverter R&S TSMExxDC/TSMS53DC - "Down- converter Configuration"...
  • Page 58 ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager Figure 6-7: Tab "Downconverter Configuration" IF Output Receiver Configuration Specify the configuration of the IF output connectors of the R&S TSMExxDC/ TSMS53DC. RF Input Antenna Configuration ● Specify the configuration of the RF input antenna connectors of the R&S TSME30DC.
  • Page 59: Configuring Antenna Properties - "Antenna Configuration

    ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager ForR&S ViCom and ROMES, the API allows only the configuration of frequencies of activated antenna ports. Accept Configuration To confirm the current configuration settings, select the "Accept Configuration" button. 6.1.8 Configuring antenna properties - "Antenna Configuration"...
  • Page 60 ® Configuring the R&S TSME6 R&S TSME6 Using the R&S TSME device manager "0°" North "90°" East "180°" South "270°" West If the antenna mounting is motion direction, the direction is clockwise defined as fol- lows. "0°" in driving direction (heading) "90°"...
  • Page 61: Interacting With Romes, R&S Nestor, And R&S Vicom

    ® Configuring the R&S TSME6 R&S TSME6 Interacting with ROMES, R&S NESTOR, and R&S ViCom 6.2 Interacting with ROMES, R&S NESTOR, and R&S ViCom Measurements are performed on the R&S TSME6 via theROMES, R&S NESTOR, or R&S ViCom interface. Depending on the installed technology options, the network is either scanned for individual standards, or globally over all frequency bands.
  • Page 62: Interacting With R&S Nestor

    ® Configuring the R&S TSME6 R&S TSME6 Interacting with ROMES, R&S NESTOR, and R&S ViCom 6.2.2 Interacting with R&S NESTOR Prerequisites For measurements with the R&S NESTOR application, the following prerequisites apply: For details on R&S NESTOR, see the user manual. ●...
  • Page 63 ® Configuring the R&S TSME6 R&S TSME6 Interacting with ROMES, R&S NESTOR, and R&S ViCom Figure 6-8: R&S ViCom architecture Install the R&S ViCom package on the host PC. It includes documentation and sample applications. Scanner options To interact with the R&S TSME6 via the R&S ViCom interface, the corresponding scan- ner options must be installed on the device.
  • Page 64: Troubleshooting

    ® Troubleshooting R&S TSME6 Guide to solve instrument connection problems 7 Troubleshooting If errors occur during operation or connection of the R&S TSME6, the following infor- mation helps you solve the issue. Most errors occurring during measurements with the R&S TSME6 are indicated in the host PC software (e.g.
  • Page 65 ® Troubleshooting R&S TSME6 Guide to solve instrument connection problems ● Jumbo Frames (9 kB) supported (see "Does the host provide a Gbit LAN connector and support 9k jumbo frames?" on page 65)? ● Max. 5 R&S TSME6 devices connected to one adapter? ●...
  • Page 66 ® Troubleshooting R&S TSME6 Guide to solve instrument connection problems For more information on the required settings, see step Some drivers use the minimum MTU value set between IPv4 and IPv6, even if only IPv4 is used. It is possible when some third-party tools are installed on the PC (e.g. proxy, firewall).
  • Page 67: Solving Other Miscellaneous Problems

    ® Troubleshooting R&S TSME6 Solving other miscellaneous problems 7.2 Solving other miscellaneous problems In case measurement problems occur with the R&S TSME6, check the "Device Analy- sis Output" table in the "R&S TSME Device Manager" for any errors that have been detected as a first measure (see Chapter 6.1.1, "Obtaining device information - "Device Info"",...
  • Page 68: Tsme6

    ® Troubleshooting R&S TSME6 Solving other miscellaneous problems Delete the TSME6_ID_4900.0004K02-XXXXXX.cal file in the application directory (e.g. C:\Program Files (x86)\Rohde-Schwarz\ROMES4.78 or C:\RuS\ ViCom_19.3\bin) where XXXXXX is the serial number of the R&S TSME6. Problem: R&S TSME6 does not provide measurement data Solution: Delete the TSME6_ID_4900.0004K02-XXXXXX.cal file in the application directory (e.g.
  • Page 69: Problem: Sporadic Issues During Ethernet Negotiation Between Pc And R&S Tsme6 With Some Usb-Lan Adapters Using A Realtek Rtl8153 Network Chip

    ® Troubleshooting R&S TSME6 Solving other miscellaneous problems Disabling this setting resolves the issue. Problem: Sporadic issues during Ethernet negotiation between PC and R&S TSME6 with some USB-LAN adapters using a Realtek RTL8153 network chip If PC and R&S TSME6 are both powered on and physically connected with a LAN cable, and the LAN LED 2 of the device (see Table 3-5) does not reach its yellow state...
  • Page 70: Problem: Unable To Connect To R&S Tsme6 When Using A Pcie Network Card Using A Network Chip From Realtek

    ® Troubleshooting R&S TSME6 Solving other miscellaneous problems Usually, forcing a new Ethernet negotiation is enough to solve the issue (e.g. by unplugging and plugging again the Ethernet cable). A workaround for this issue is implemented in R&S TSME6s firmware since version 05.08.10.00. This workaround also requires an up-to-date software release (R&S ViCom 21.0 or newer, ROMES or newer).
  • Page 71: Contacting Customer Support

    ® Troubleshooting R&S TSME6 Contacting customer support 7.3 Contacting customer support Technical support – where and when you need it For quick, expert help with any Rohde & Schwarz product, contact our customer sup- port center. A team of highly qualified engineers provides support and works with you to find a solution to your query on any aspect of the operation, programming or applica- tions of Rohde &...
  • Page 72: Transporting

    ® Transporting R&S TSME6 8 Transporting Packing Use the original packaging material. It consists of antistatic wrap for electrostatic pro- tection and packing material designed for the product. If you do not have the original packaging, use similar materials that provide the same level of protection.
  • Page 73: Maintenance, Storage And Disposal

    ® Maintenance, storage and disposal R&S TSME6 Disposal 9 Maintenance, storage and disposal The product does not require regular maintenance. It only requires occasional clean- ing. It is however advisable to check the nominal data from time to time. 9.1 Cleaning Do not use any liquids for cleaning.
  • Page 74: Annex

    ® Available cellular bands R&S TSME6 Annex A Available cellular bands The following cellular bands are available for selection for R&S TSME6s with a limited band option (see Chapter 4, "Option concept", on page 39). Table A-1: Available cellular bands for the R&S TSME6 TSME band Span Start [MHz]...
  • Page 75 ® Available cellular bands R&S TSME6 TSME band Span Start [MHz] Stop [MHz] span 2 1930 1995 "2100" span 1 1920 2010 span 2 2110 2200 "S-Band" span 1 2000 2020 span 2 2180 2200 "2600" span 1 2496 2690 "3500"...
  • Page 76 ® Available cellular bands R&S TSME6 Band name Included standardized bands UL low UL high DL low DL high Duplex LTE band 31 452.5 457.5 462.5 467.5 "CDMA 400" CDMA2000/EV-DO band class 11 (400 MHz European PAMR Band) CDMA2000/EV-DO band class 5 (450 MHz band) "480"...
  • Page 77 ® Available cellular bands R&S TSME6 Band name Included standardized bands UL low UL high DL low DL high Duplex LTE band 26 LTE band 18 CDMA2000/EV-DO band class 0 (800 MHz band) CDMA2000/EV-DO band class 10 (Secondary 800 MHz band) CDMA2000/EV-DO band class 12 (800 MHz PAMR band) 3GPP WCDMA VI...
  • Page 78 ® Available cellular bands R&S TSME6 Band name Included standardized bands UL low UL high DL low DL high Duplex LTE band 24 1626.5 1660.5 1525 1559 "AWS" 3GPP WCDMA IV 1710 1755 2110 2155 3GPP WCDMA X 1710 1770 2110 2170 LTE band 4...
  • Page 79 ® Available cellular bands R&S TSME6 Band name Included standardized bands UL low UL high DL low DL high Duplex WiMAX 6.B 1920 1980 2110 2170 LTE band 65 1920 2010 2110 2200 "S-Band" LTE band 23 2000 2020 2180 2200 CDMA2000/EV-DO band class 21 (S- 2000...
  • Page 80 ® Available cellular bands R&S TSME6 Band name Included standardized bands UL low UL high DL low DL high Duplex LTE band 34 TDD 2010 2025 2010 2025 "TDD 1800" WiMAX 8.G 1800 1830 1800 1830 "TDD 1930" LTE band 36 TDD 1930 1990 1930...
  • Page 81: Index

    ® Index R&S TSME6 Index Application cards ............... 11 Open source acknowledgment (OSA) ....... 11 Application notes ............... 11 Options Band ................40 Band options ..............40 Available ..............40 Power supply Brochures ................10 Removing ..............31 Casing Rear panel Labels ................

This manual is also suitable for:

4900.0004.02

Table of Contents
