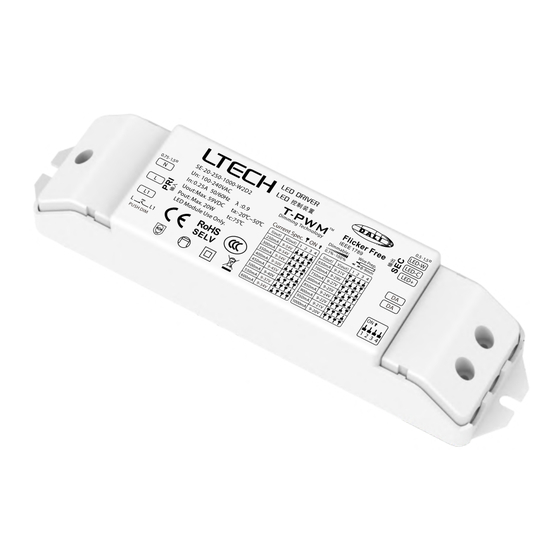

Ltech SE-20-250-1000-W2D2 Quick Start Manual

Intelligent Tunable White LED Driver
Dimming interface: DALI-2 DT6/DT8.
T-PWM™dimming technology allows continuous and flicker-free images
under high-speed photography.
With soft-on and fade-in dimming function, enhancing your visual comfort.
Dimming from 0~100%, down to 0.1%.
Adopt constant power design that can adjust different color temperature while
brightness remains the same.
Comply with the EU's ErP Directive, standby power consumption < 0.5W.
DALI bus standard IEC62386-101, 102, 209.
Innovative thermal management technology intelligently protects the life of
the LED driver.
Overheat, over voltage , overload, short circuit protection and automatic recovery.
Ⅰ/Ⅱ/Ⅲ
Suitable for Class indoor light fixtures.
,
Up to 50 000-hour life time.
5 years warranty (Rubycon capacitor).
Main characteristics
Dimming interface: DALI-2 DT6/DT8
Input voltage:
100-240Vac (120-300Vdc)
Frequency:
50/60Hz
Input current:
115Vac≤0.25A, 230Vac≤0.13A
Output current:
250-1000mA
Output power:
Max. 20W
Power factor:
PF>0.95/115Vac , PF>0.90/230Vac, at full load
THD
230Vac@THD≤9%, at full load
Efficiency: 83%
<0.5W
Standby power loss:
Inrush current(typ.):
Cold start 10A at 230Vac (twidth=40μs measured at 50% Ipeak)
Anti surge:
L-N: 2kV
Leakage current:
<0.24mA/230Vac
LED Current Selection
DIP switch for 16 optional currents' quick selection( s e e the table below ).
*
Please choose the current value when the driver is power off.
Output current
SE-20-250-1000-W2D2
Output current
Protection
Over temp. protection: Intelligently adjusting or turning off the output current
if the PCB temperature ≥110°C, auto recovers.
Shut down the output when current load≥102%, auto recovers.
Over load protection:
Short circuit protection: Shut down automatically if short circuit occurs, auto recovers.
Over voltage protection:
Output current declined when over non-load voltage,
auto recovers.
Others
Dimension: 167×41×32mm(L×W×H)
Packing:
168×43×35mm(L×W×H)
160g±10g
Weight(G.W.):
DIP switch
250mA 300mA
Output voltage 9-54V 9-54V
Output power 2.25-13.5W 2.7-16.2W
DIP switch
650mA 700mA
Output voltage
9-31V 9-29V
Output power
5.85-20.15W 6.3-20.3W
SE-20-250-1000-W2D2
DIM/CT
Simming technology
Flicker-free
IEEE 1789
0.1%-100%
The certification icon represents undergoing certification applications only, and final certification qualification subject to actual product.
Short circuit
Overload
protection protection
Output voltage:
Max output voltage:
Strobe level:
:
Dimming range
LF current ripple(<120Hz)
Current accuracy:
Ripple & Noise:
PWM dimming frequency
Working temperature:
Working humidity:
Storage temp., humidity:
Temp. coefficient:
Vibration:
400mA
350mA 450mA
9-50V
9-54V 9-45V
3.15-18.9W 3.6-20W 4.05-20.25W
750mA 800mA 850mA
9-25V
9-27V 9-24V
7.2-20W
6.75-20.25W 7.65-20.4W
Safety & EMC
Withstand voltage:
Isolation resistance:
Safety standards:
EMC emission:
EMC immunity:
Strobe test standard:
— 01 —
Push DIM/CCT
Overheat
protection
9-54Vdc
59Vdc
No video flicker / High frequency exemption
assessment level.
0~100%, 0.1% dimming depth.
:
<1%
±5%
≤2V
:
≤3600Hz
ta: -20 ~ 50°C tc: 75°C
20 ~ 95%RH, non-condensing
-40 ~ 80°C, 10~95%RH
±0.03%/°C(0-50°C)
10~500Hz, 2G 12min./1cycle, period for 72min.
each along X, Y, Z axes.
500mA 550mA
9-40V 9-37V
4.5-20W 4.95-20.35W
900mA 950mA
9-22V 9-21V
8.1-19.8W 8.55-19.95W
I/P-O/P: 3750Vac
I/P-O/P: 100MΩ/500VDC/25°C/70%RH
IEC/EN61347-1, IEC/EN61347-2-13
EN55015, EN61000-3-2 Class C, IEC61000-3-3
EN61000-4-2,3,4,5,6,8,11, EN61547
IEEE 1789
DALI
V
Over voltage
protection
ON
1 2 3 4
600mA
9-34V
ON
5.4-20.4W
1000mA
OFF
9-20V
9-20W
