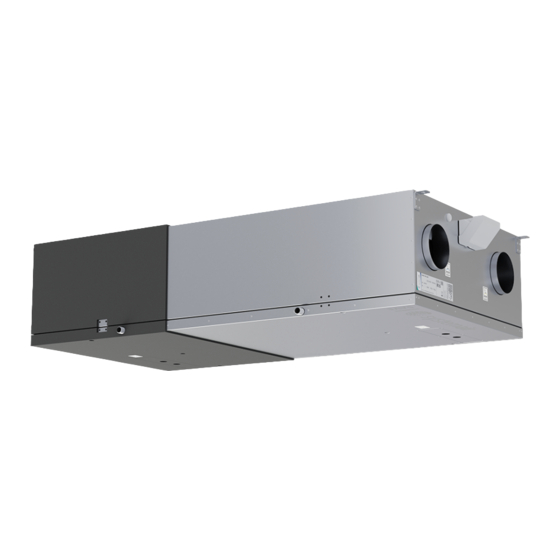

- Page 1 SAVE VSC 200/300 User Manual Document in original language | 252219 · v1.0...
- Page 2 © Copyright Systemair UAB All rights reserved E&OE Systemair UAB reserves the rights to change their products without notice. This also applies to products already ordered, as long as it does not affect the previously agreed specifications. 252219 | v1.0...
-
Page 3: Table Of Contents
Contents Overview ............1 4.6.4 Checking and cleaning the duct system ........13 General Description ........1 Troubleshooting..........13 Warranty ..........1 Type label..........1 Electrical data ..........14 Warnings............1 Disposal and recycling ........14 Operation ............2 SAVE LIGHT control panel ......2 3.1.1 Indicators .........2 3.1.2 To select airflow level ....2 3.1.3... -
Page 5: Overview
For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. Type label Before calling your service representative, make a note of the specification and production number from the type label, which can be found next to the external connections and inside of the unit. -
Page 6: Operation
| Operation Warning • This product is not intended to be used by children or people with reduced physical or mental ability or lack of experience and knowledge, if no instruction concerning the use has been given by the person responsible for their safety or that this person is supervising the operation. -
Page 7: To Cancel Sleep Mode
Operation | Refresh Auto — flashing High Normal (Minimum) (Maximum) slowly Automatic The fan can be Fan speed – 25% Fan speed – 45% Fan speed – 70% Sets speed of airflow control. set to Off by both supply and activating extract air fans Available only... -
Page 8: Common Symbols
| Operation SAVE CONNECT solution (mobile application and Internet access module) has a similar menu structure and functionality as SAVE TOUCH control panel, so this section can also be used as a guide for the mobile application. 3.2.1 Common symbols The following selection symbols are common and are present in most menu pages: On and Off slider to activate or Back button to return to a previous... -
Page 9: Quick Information Screen
Operation | Touch HELP button to know more about the alarm. To clear the alarm, touch ACKNOWLEDGE button. Note: The underlying cause of the alarm must be resolved first otherwise the alarm will appear again. If the problem continues contact your installation company or place of purchase. 3.2.4 Quick Information screen Quick information screen can be shown instead of a sleep... - Page 10 | Operation Duration have to be set for temporary user modes. SAVE VSC 200/300 will return to its previous working mode after the set time expires. Note: AUTO mode is available for selection only if the optional Demand Control, Week Schedule and/or external fan control functions are activated.
-
Page 11: To Change The Temperature
Operation | Icon Text Description Sets speed of both supply and extract air fans to Maximum levels to replace Refresh indoor air with a fresh air in a short period of time. Set duration in minutes. Sets speed of supply air fan to High level and extract air fan to Low level to increase air pressure within the apartment for better smoke extraction through Fireplace the chimney. -
Page 12: To Set A Week Schedule
| Operation 3.2.8 To set a week schedule While in home screen, touch menu icon and select Week Schedule. The menu is locked by default. Enter a password (default password is 1111). Touch icon at the bottom left corner of the screen to add a new schedule or press EDIT button to modify already added schedule. -
Page 13: Maintenance
1. It is recommended to do this every 5 years and is normally carried out by authorized companies specialized in this area. • Use original spare parts from Systemair only. • Scan the code on the type label to find a spare part list. -
Page 14: To Change Filters
| Maintenance Note: Do not forget to tighten screws back after the maintenance! To change filters The filters cannot be cleaned and must be changed as necessary. This is normally done 1–2 times per year depending on the air pollution at the installation site. It is very important to change filters regularly for performance and energy efficiency of the unit. -
Page 15: To Reset The Filter Change Time
Maintenance | 4.3.1 To reset the filter change time Once filter is changed, it is necessary to reset filter time. Go to Filter menu (see 3.2.2 Home screen overview, page 4, pos. E) or if filter alarm is present, click on alarm status line (see 3.2.2 Home screen overview, page 4, pos. 5) and select filter alarm. -
Page 16: To Clean Fans
| Maintenance Even if the required maintenance is carried out, dust will build up in the exchanger block. It is therefore of vital im- portance for the upkeep of a high efficiency that the ex- changer block is removed from the unit and cleaned periodically as described below. -
Page 17: System
Troubleshooting | and louvres and wash in hot soapy water as required (diffusers/louvres must not be exchanged). Cleaning of diffusers/ louvres can be done as necessary. 4.6.2 Checking the outdoor air intake Leaves and pollution could plug up the air intake grille and reduce the capacity. Check the air intake grille, and clean as necessary. -
Page 18: Electrical Data
| Electrical data 4. Check if ECO mode is activated on the control panel (it is a power saving function and prevents the heater from activating). 5. Check if user modes Holiday, Away or Crowded are activated on the control panel or via a hardwired switch. 6. - Page 19 252219 | v1.0...
- Page 20 Systemair UAB Linų st. 101 LT–20174 Ukmergė, LITHUANIA Phone +370 340 60165 Fax +370 340 60166 www.systemair.com...
