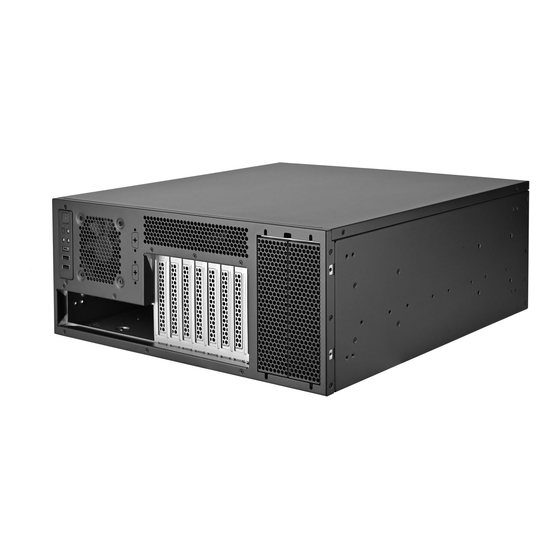

SilverStone RM46-502I User Manual

RM46-502I
User manual
www.silverstonetek.com
Accessories Content
2.5" SSD screws
Motherboard Motherboard
(M3-5)
standoff screws
2.5" SSD trays
2.5" SSD screws
3.5" HDD Screws PSU mounting
(M3-4)
(#6-32) screws
Drive cage
PSU mounting Handlebars Handlebar bracket
bracket
Handlebar screws Conductive foam Cable ties
Velcro straps User manual
Expansion card retainer usage instructions
Removal of multi-functional retainer
Unfasten and remove the top 4 screws securing the
retainer
Position 1
Retainer clips facing forward
Retainer clips facing rearwards
Graphics card height limitation
Expansion card retainer and graphics card compatibility
Graphics card height limitation with retainer clips: 124mm
Graphics card height limitation without retainer clips: 147mm
Graphics card height limitation with expansion card retainer removed: 158mm
Adjusting the position of the retainer
Unfasten and remove the 8 screws securing the
retainer from both sides of the chassis
Position 1 Position 2 Position 3
Position 4 Position 5 Position 6
Position 2
Retainer clips facing forward
Retainer clips usage instructions
Adjusting the retainer clip position
Unfasten the captive thumbscrews, and reposition
the clips based on the graphics cards placement
1
2
Position 3
Retainer clips facing forward
Retainer clips facing rearwards
Adjusting the retainer clip angle
Unfasten the captive thumbscrew(s), and adjust the angle
of the clip to best secure the graphics card in place
Retainer clips facing rearwards
1
