SilverStone RMS05-22 Quick Installation Manual

Quick Installation Guide of RMS05-22

Introduction

ction

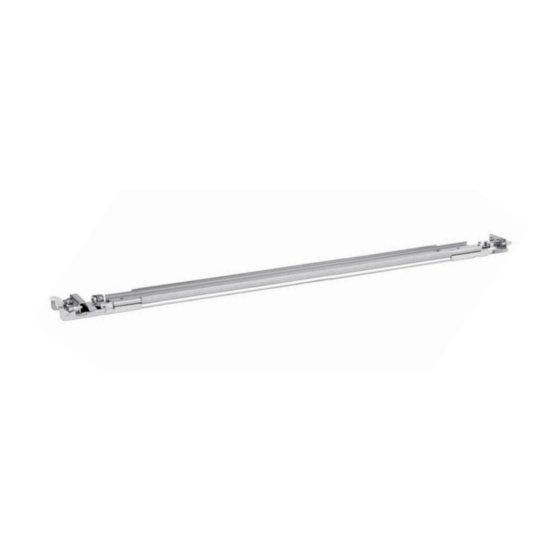

The RMS05-22 is designed to support mounting of SilverStone's RM series

designed to support mounting of SilverSto

chassis into server rack cabinets. Produced with precision mounting holes

ck cabinets. Produced with precisio

and high-strength steel, this product provides secure and convenient link

is product provides secure and

between chassis and server rack cabinets. In addition to tool-less designs,

ack cabinets. In addition

there are also provisions for screw mounts for extra security.

w mounts for extra s

Tool-less design

Maximum loading up to 77.16 pounds (35kg)

Supports 3U and 4U form factor

Supports 440mm wide chassis

Model No.

SST-RMS05-22

Material

Steel

Support max. weight

35kg

Net Weight

2.8kg

Dimension

611mm (W) x 38mm (H) x 12.5mm (D)

1) Release and detach the inner member from the slide.

2) Attach inner member to the chassis.

Table of Contents

Do you have a question about the RMS05-22 and is the answer not in the manual?

Page 1 1) Release and detach the inner member from the slide. Quick Installation Guide of RMS05-22 Introduction ction The RMS05-22 is designed to support mounting of SilverStone’s RM series designed to support mounting of SilverSto chassis into server rack cabinets. Produced with precision mounting holes ck cabinets. Produced with precisio...
Page 2 Replacement product will be warranted for remainder of the warranty period or thirty days, whichever is longer. All products should be sent back to the place of purchase if it is within 30 days of purchase, after 30 days, customers need to initiate RMA procedure with SilverStone Technology in USA by first downloading the “USA RMA form for end-users”...
