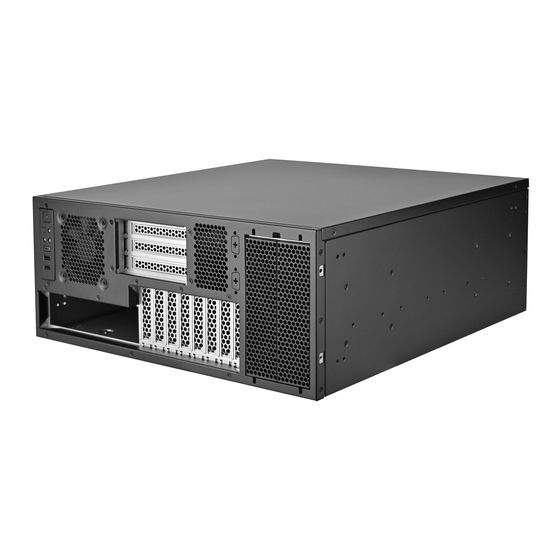

SilverStone RM47-502I User Manual

RM47-502I
User manual
www.silverstonetek.com
Accessories Content
Motherboard Motherboard 2.5" SSD Screws
standoff screws (M3-5)
2.5" SSD Screws 3.5" HDD Screws PSU mounting
(M3-4) (#6-32) screws
PSU mounting Handlebars Handlebar bracket
bracket
Handlebar screws Conductive foam Cable ties
Velcro straps User manual

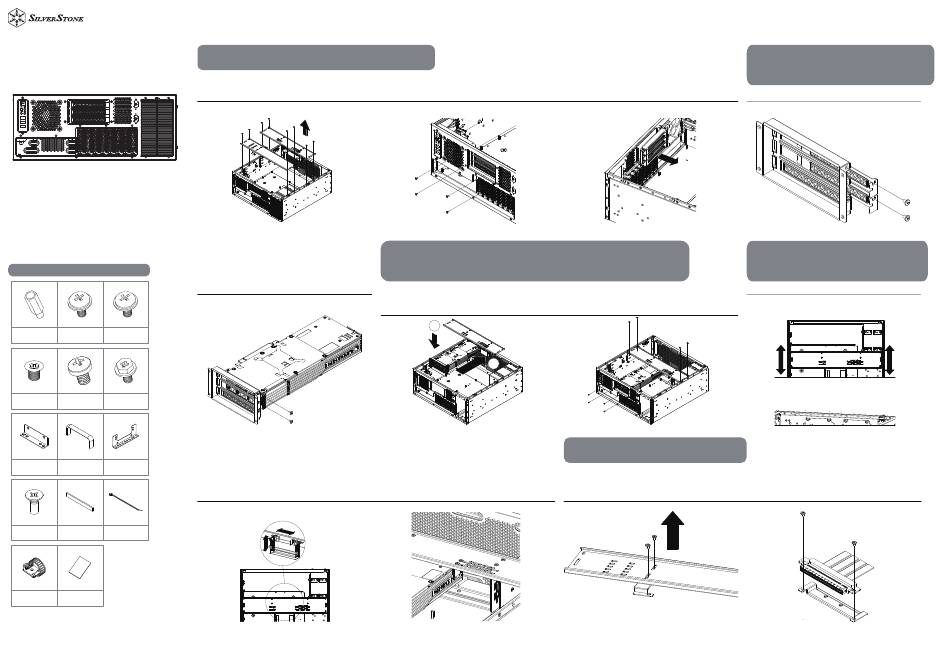

Full-height expansion card installation
Remove both expansion card holder and the riser
cable holder
Install the graphics card onto the horizontal
expansion card module
Left and right adjustment
Unfasten and remove the 4 screws securing the
horizontal expansion card module
Secure the graphics card, expansion card module,
and expansion card holder back into the chassis
First, place the graphics card into the expansion card
holder, then install the graphics card, expansion card
module and expansion card holder into the chassis
2
1
Place the rubber dampening padding under the
graphics card and double check the padding does
not interfere with the graphics card cooling fans
Remove the horizontal expansion card module
Secure the expansion card module with screws at the
front chassis, and secure the expansion card holder
with screws on both sides of the chassis
Fixating the riser card holder
Remove the riser cable holder first before installing
the riser cable
Full-height graphics card in
horizontal orientation installation
Remove the PCI slots
Different adjustment positions
for the expansions card holder
Adjusting the expansion card holder
Front and back adjustment
The adjustable positions are as follows
Position 1 Position 2 Position 3
Position 4 Position 5 Position 6
Attach the riser cable to the riser cable bracket and
secure with screws (Optional SST-RC05 PCIe Gen 5
riser cable can be purchased)
1
