SilverStone RMS08 Series Manual

RMS08 series

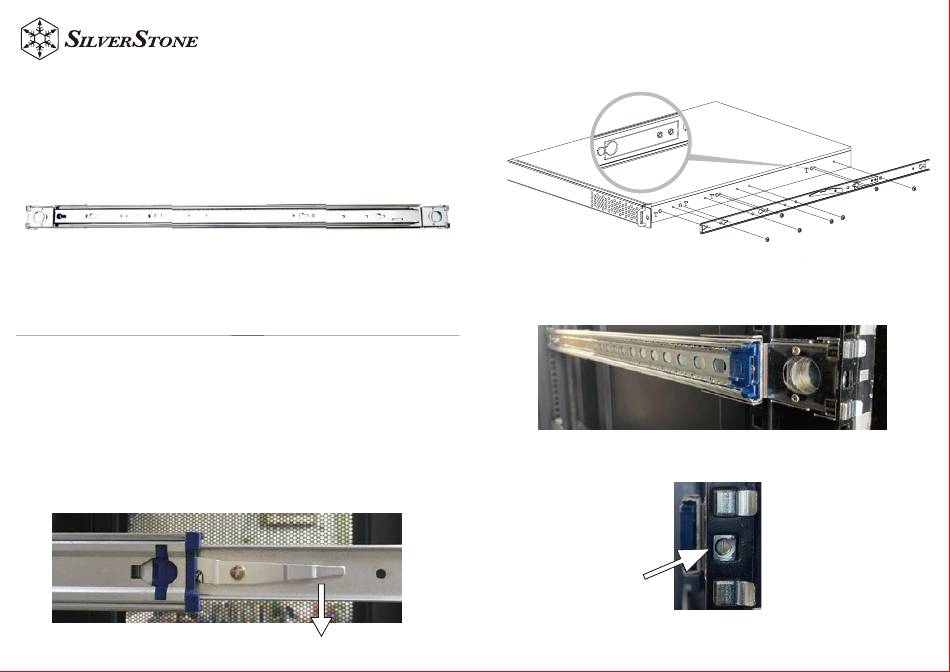

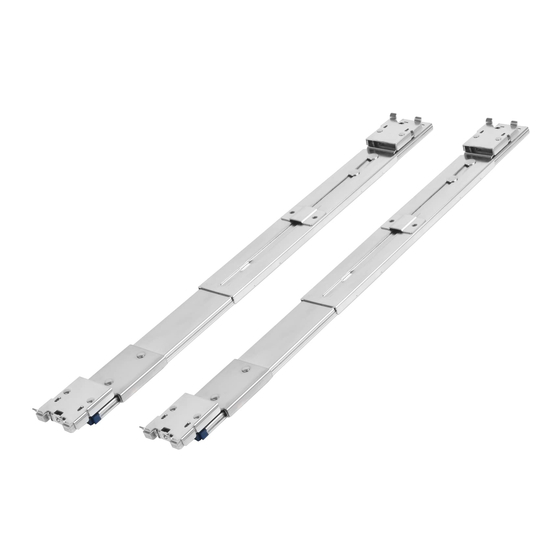

The Tool-less server slide is designed and built for 1U and 2U chassis. The bracket can be
mounted on EIA rackmount - bracket with 5/8" pitch, suitable for square holes
www.silverstonetek.com
Installation:
Step 1 – Install the slide members to each side of the cabinet:
The inner member of the server slide needs to be taken out and assembled with chassis. The middle
member / outer member is installed on the rackmount to be ready for Step 5.
Step 2 – Remove the inner member:
Pull the inner member out to the locking point. Then press the trigger down as shown on the
Figure-1, and fully pull out the inner member to facilitate the installation of chassis.
Step 3 – Mount the inner member to the chassis:
Assemble the inner members to the chassis with M4 screws from the screw kit.
Step 4 - Install the middle member / outer member on the rack mount:
Insert the middle member / outer member of the servers slide into the upper and lower square holes
of the EIA rack mount from inside the cabinet.
◎ Optional Step (but suggested):
After the installation is finished, you may fix with a screw (M5x15) into the center on the cabinet hole.
(Figure-1)
The rackmount ear pieces which are assembled to the chassis are suggested having a bottom hole
in order to avoid restricting the function of the blue knob on the server slide.
