RM400

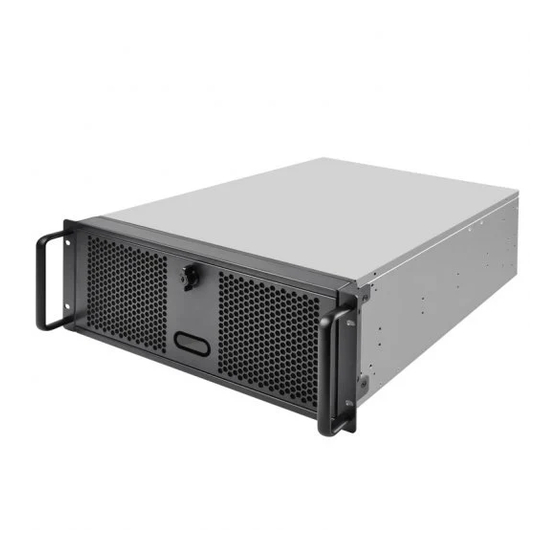

4U rackmount server chassis
with triple 5.25" drive bays
1
TOP COVER
2
BOTTOM CHASSIS
OPTIONAL POWER SUPPLY
3
4
8CM FANS
12CM FAN
5
3BAYS-5.25" DRIVE CAGE
6
7
4BAYS-3.5" DRIVE CAGE
SLIM ODD DRIVE CAGE
8
FRONT PANEL IO AND INDICATORS
9
RACK HANDLES
10
Slim ODD cage assembly
Remove the slim ODD
blank cover
Loose 2-screws and remove the blank cover
Slim ODD assembly
1. Fix the slim ODD bracket with slim ODD with 2 pcs
screws
2. Insert and secure the slim ODD assembly into the
drive bay with 1-screw
Front panel IO and indicators
1
POWER ON SWITCH
2
SYSTEM RESET SWITCH
3
USB 3.1 Gen1 x 2 ports
POWER ON LED (BLUE)
4
WWW.SILVERSTONETEK.COM
4bays-3.5" HDD cage and
cooling fan assembly
1. Loose 2 screw and lift off the drive cage
2. Once hard drive assembled, secure the drive
cage back with the same 2-screws
Optional cooling fan assembly
Fix 80 x 25mm fan with 4-screws
Removing the top cover
HDD ACTIVITY (GREEN)
1. Release 2-screws of the top cover on each side
5
2. Push the top cover backward about 1" and lift it off the chassis
LAN1 LED (GREEN)
6
LAN2 LED (GREEN)
7
Cooling fan
Optional 8cm fans
Place the 80 x 25mm fan to the rear
plate of chassis
3.5" HDD assembly
Optional 12cm fan
1. Place the HDD in the drive bay
1. Loose the thumb screw and pull the
2. Secure HDD with screws (4 pcs - 6#32 x 6mm)
fan / filter bracket
2. Fix the 120 x 25mm cooling fan
with 4pcs screws
