Diode Dynamics STAGE Series Manual

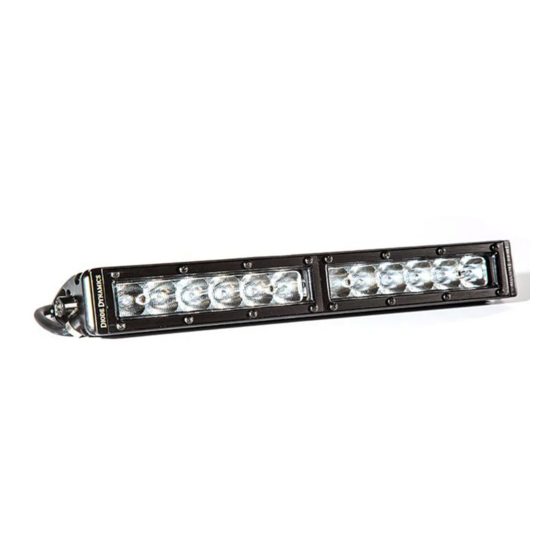

Kit Includes: 12" LED Light Bar, Mounting Hardware, Deutsch DT Connector
Features
Advanced TIR (total internal reflection) optics
High intensity 6000K Lumileds LEDs
Slim design, for easy mounting
Durable aluminum extrusion
Pressure equalizing vent to eliminate condensation
Wiring
Connect the red wire to positive supply, and black wire to negative or common ground.
Please note: This auxiliary lamp draws high current, and requires adequately-sized wiring for safe
operation. If you are not using a Diode Dynamics wire harness, use wire sized 16 AWG or larger.
Please be mindful of current ratings and wire size, especially if splitting power signals to multiple light
bars, or using switches. If you have any questions, please feel free to contact us for assistance.
Mounting
If you wish, you may use the included hardware to mount your light bar. A number of fasteners
are included, and can be used as you see fit. The most common mounting style is shown below.
Stage Series Light Bars are also compatible with most standard mounting brackets on the market.
Reference the dimensions on opposite side to determine the best mounting solution for your
application.
A
B
C
PAGE 1
E
F
G
D H
(314) 205-3033
SS
12" Light Bar
12
Specifications
Input Voltage: 9-24VDC
Input Power: 58.8 watts
Current Draw: 4.2 amps @ 14V
Operating Temperature: -40° to 185°F
Weight: 2.2 lbs
E
B
F
B
C
A
G
H
WWW.DIODEDYNAMICS.COM
8
year
w arranty
D
