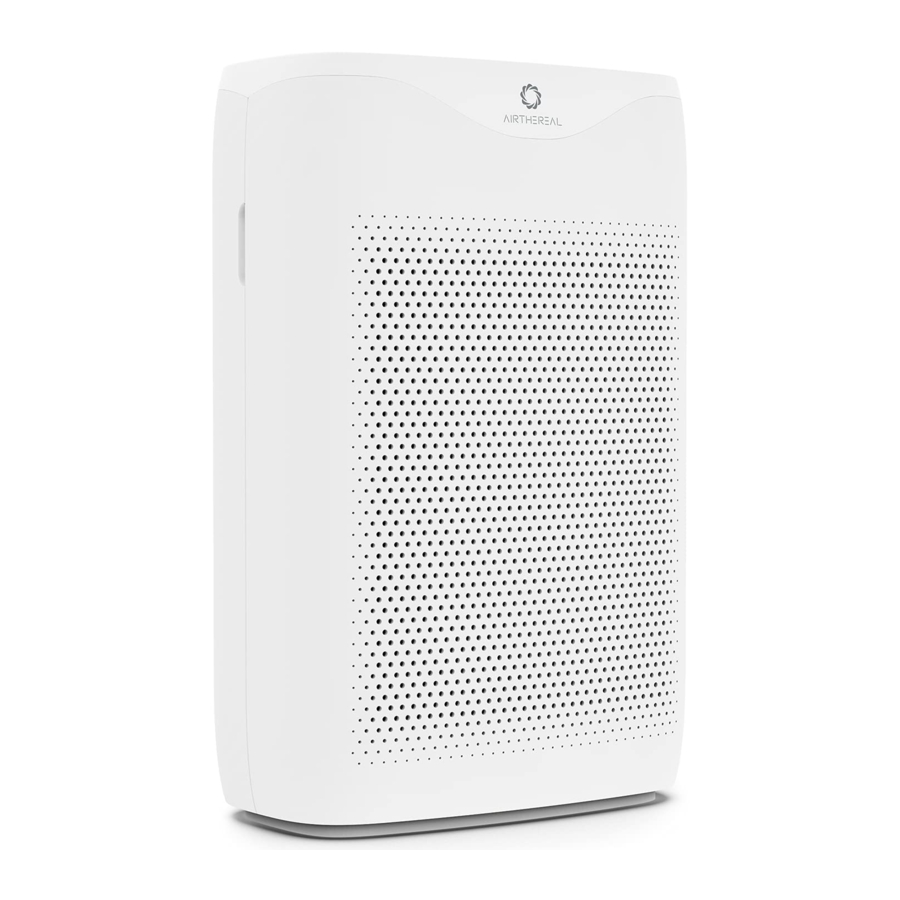

Airthereal Pure Morning APH230C - HEPA AIR PURIFIER Manual

COMPONENTS

INSTALLATION INSTRUCTIONS

1. Open the front shell of the air purifier and unwrap the plastic package of the HEPA filter.

2. Reinstall the HEPA filter. Make sure the pull-tab is facing outward. Then reinstall the front shell.

   NOTE: If the front shell is not reinstalled properly, the air purifier will not power on.
3. Place the air purifier on a flat and firm position.
   Place the air purifier at least 15 inches away from TVs, radios, and other electronic products. Electromagnetic interference from certain electronics may cause product malfunction. Flimsy or slanted surfaces may increase noise and vibrations.


OPERATION

1. Insert the power cord into an electrical outlet.


   Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.
   Please make sure the operating voltage is the same as the parametric label.
   For American and Canadian users, our product will be equipped with a polarized plug that will fit into the 120V power outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact qualified personnel to install the proper outlet.
2. Control Panel Introduction

   On/Off Button

• Press this button to turn the air purifier on or off.
  Note:
  Filter Reset Function
• The On/Off Button will flash continuously when it is time to replace the filter.
• Replace the filter, and then press and hold the On/Off Button for 5 seconds to reset it. The light will stop glowing and the system will start to record the filter usage.
  Fan Speed Setting
• Press to cycle between 3 fan speeds: low, medium, and high.
  Sleep Mode Button
• Press the Sleep Mode Button to select Sleep Mode.
• In Sleep Mode, the fan will run at the quietest level.
  On/Off Timer Button
• Delay Start Timer:
  Set the delay start while the machine is powered on but not running. The timer can be set for 1, 2, 4, or 8 hours. Once the timer reaches zero, the air purifier will start running.
• Delay Off Timer:
  Set the delay off while the machine is powered on and running. The timer can be set for 1, 2, 4, or 8 hours. Once the timer reaches zero, the air purifier will enter standby mode.
  Note:
• To cancel a timer, press the timer button until the timer button light turns off.
• The timer will restart every time you select a new timer length.
  Child Lock
• Press and hold the Child Lock button for 5 seconds until the light glows. At this time, other buttons are unable to be used.
• Press and hold the child lock button for 5 seconds again to unlock.
  Memory Function
• When your APH230C restarts, it will remember and resume your last used setting.

MAINTENANCE

Know the 7-in-1 HEPA Filter
When the On/Off Button keeps flashing, it is a reminder to check and change the air filter.
We Recommend replacing the air filter every 6-8 months for optimal Use, or according to your air filter status.
If you notice any of the below symptoms it may be time to replace the air filter.

• Increased noise
• Decreased airflow
• Clogged filters
• Presence of odors from the unit

Purchase a new Airthereal Air Filter Replacement:
www.airthereal.com
Search on Amazon: APH230C filter / B081Z3PRPL
Only use Airthereal Pure Morning APH230C replacement filters for this unit.

Replace the Air Filter
Power off and unplug before operating.
Remove the front shell.

Take out the old filter by pulling the tab. Unwrap a new one.

Install a new filter in the unit. Make sure the pull-tab on the filter is facing outward and put the front shell on.

Power the unit on. Press and hold the On/Off Button for 5 seconds to reset the replacement reminder.

Cleaning
Unplug the power cord before cleaning.

• Plastic housing should be cleaned with a soft cloth moistened with mild soap. Thoroughly remove soap film with a dry cloth.
• Open the front panel and clean the interior and air outlet with a vacuum cleaner.
• For better maintenance, it's recommended to clean the unit every 2 months.

TROUBLESHOOTING

SPECIFICATIONS

SAFETY INSTRUCTIONS

Please read and comply with all of the instructions and warnings in this manual before use. Failure to comply with the instructions and warnings provided herein may result in inaccurate results and/or damage to the product itself.

General Safety
Only use this air purifier as described in this manual.

• Ensure the plug fits properly into an AC power outlet.
  This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• When not being used, turn the air purifier off and disconnect it from its power source by unplugging from the electrical outlet.
• DO NOT operate the unit if its cord or plug is damaged. It may result in damage to the unit or injury. It must be replaced by the manufacturer or other qualified person so as to avoid all risks.
• NOT recommend using an extension cord. If necessary, the extension cord should be same size as the original one.
• Thoroughly dry your hands before operation.
• DO NOT immerse air purifier in water or liquids. It may result in damage to the appliance, electric shock, or fire.
• DO NOT use the air purifier outdoors. This appliance is designed for indoor use only.
• DO NOT use the air purifier in an enclosed space where flammable, combustible, or explosive gases are present.
• DO NOT use in an area where toxic vapors, flammable dust or oxygen tanks are present.
• DO NOT insert fingers or objects into the air outlet.
• Child supervision is required while the air purifier is on. Do not allow children to play on or near the air purifier.

  To Reduce The Risk Of Fire Or Electric Shock, Do Not Use This Fan With Any Solid State Speed Control Device

Use & Care

• Always make sure to place the air purifier on a flat, level surface before operation.
• Always allow 15 inches (38 cm) of clearance on all sides of the purifier.
• DO NOT ROUTE CORD UNDER FURNITURE OR APPLIANCES. Do not run the power cord under carpeting. Do not cover cord with throw rugs, runners or similar coverings. Place the power cord away from high traffic areas.
• DO NOT sit on or place anything on top of the purifier.
• DO NOT place the air purifier near sources of heat, such as stoves, ovens, radiators or computers.
• DO NOT use this appliance with indoor smoke-type insect repellents or in places with oily residues, burning incense or chemical fumes.
• DO NOT open the back shell while the air purifier is on. It will automatically turn off the unit.
• Always unplug the appliance from the power supply before servicing.
• DO NOT clean the appliance with water or any other liquid to avoid electric shock or injury.
• DO NOT attempt to repair this device in any way or use any replacement components or parts to modify the air purifier. Contact Customer Support immediately if your appliance is no longer working.
• Only use Airthereal Pure Morning APH230C replacement filters for this unit.
• If you experience any problems while operating the air purifier, refer to the Troubleshooting section in the manual. If the problem is NOT solved, contact Customer Support.
• If the unit is damaged or NOT functioning properly, discontinue use and contact Customer Support.

Always here to help you www.airthereal.com
