Airthereal PA50-GO - OZONE GENERATOR Manual

INTRODUCTION

Congratulations on your purchase and welcome to Airthereal! To fully benefit from the support that Airthereal offers and get a I-year warranty extension, please register at www.airthereal.com/register.

MECHANISM

Ozone Powerful sterilizer and deodorant
Ozone generators create 03 using mechanisms such as an ultraviolet light or a corona discharge (a type of electrical discharge). Ozone (03) contains three atoms of oxygen.
The third oxygen atom makes ozone extremely reactive, which readily attaches itself to other molecules When odors, bacteria or viruses meet ozone, oxidation reactions occur and both parties are destroyed. Ozone essentially reverts back to oxygen. Thafs why it's environment friendly.

Applicable Space

The cover area of PA50-GO is 150 sq. ft (14m²) Max. It could be used in hotels, kitchens, toilets, pet rooms, storerooms, bedrooms, cars and boats, etc.

PARTS LIST

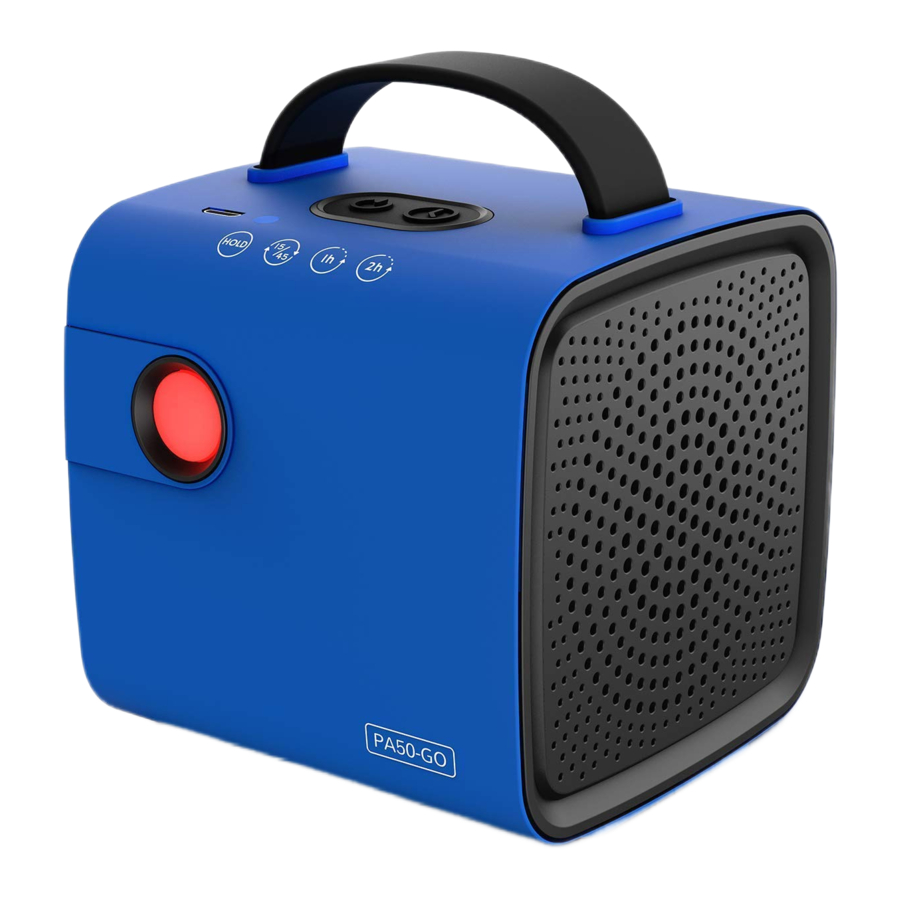

Parts Overview

Do not operate the unit unless it is completely assembled.

There are no user serviceable parts inside the unit.

SPECIFICATIONS

Power Supply	USB 5V 2.1A max.
Rated Power	4W
Battery Capacity	3600mAh 3.7V
Recharge Time	Approx. 4 hrs. (5V 2.1A)
Ozone Output	50mg/h
Applicable Area	150 sq. ft (14m²) Max./Reference height: 10ft (3M)
Noise Level	≤ 30dB
Operating TEMP	32°F - 130°F (0°C - 55°C)
Operating Humidity	≤ 95% RH
Unit Dimension (LxWxH)	3.7 x 3.7 x 4 inch (95 x 95 x 100mm)
Unit Weight	0.9Ibs (0.4kg)

HOW TO USE

Press and hold the power button for 3 seconds to turn on the power. The power indicator light will be illuminated in red while the power is turned on.
According to your needs, select the corresponding ozone function mode.
- HOLD: Runs continuously up to 4 hours.
- 15/45: Runs for 15 minutes, standby for 45 minutes, repeat. Lasts up to 4 hours, or up to 4 complete cycles.
- 1h: Runs for 1 hour then powers off.
- 2h: Runs for 2 hours then powers off.
When the product is fully charged it can run for 4 hours. When the power indicator is flashing red, it means that the battery is low and needs to be charged.
This product is pre-charged with 70% -80% battery when it leaves the factory. If it cannot be turned on normally, please contact support@airthereal.com.
Use the original Micro-USB cable to charge the product. When the input current is 2.1A, charging can be completed in approx. 4hours. If the input current is lower than 2.1A or using other Micro-USB cables may extend the charging time.
While charging, the power indicator light will continuously flash white. Charging is complete when the power indicator stops blinking and displays a continuous white light.
To protect the battery and extend the service life of the ozone machine do not use the ozone machine during charging.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE.

Use in unoccupied spaces only!
People, pets, and animals should not stay in the room for more than 1 minute during the ozone treatment.
It's okay to start the unit and then leave the room a few seconds later.
There might be an ozone smell remaining in the room after treatment. Some people describe it as a faint smell of chlorine, like you'd notice at the swimming pool or hot tub
Open doors and windows to ventilate the space for at least 1 hour after treatment ends before occupying the space

Always here to help you www.airthereal.com
