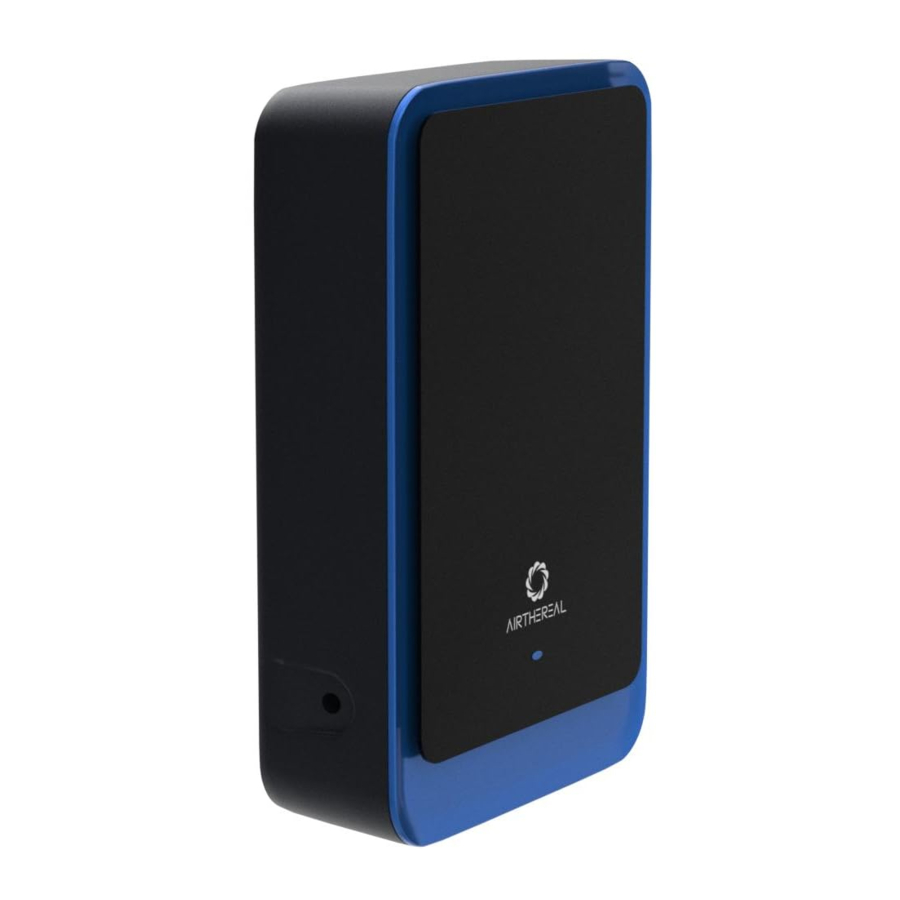

Airthereal AH1000 - OZONE AIR PURIFIER Manual

STRUCTURE

Package Content
1 x Ozone Water and Air Purifier
2 x Silicon Tubes with Air Stones
1 x User Manual

STRUCTURE

Do not operate the unit unless it is completely assembled.

There are no userserviceable parts inside the unit.

OPERATION

Press the Power button to turn on the unit. The power indicator will light up after turning it on.
Use buttons to choose the ozone operating time (5/10/15/20/30/40/50/60 minutes)......
After the timer countdown is complete, the display screen will show as 00. The ozone will stop generating but the air pump will be delayed for 30 seconds to flush out any remaining ozone inside the tubes.
Press the Negative ion button to activate/deactivate the negative ion function. The display screen will show ON/OFF. (Note: The negative ion function has no timer function. It must be turned on/off manually.)

TREATMENT REFERENCE AND TIME SETTING

Use For	Time	Outcome
Washing hands and body (Purify a container of water. Use the purified ozone water to clean.)	20-30 mins	Purified ozone water can help kill harmful bacteria, assist with preventing infections, and help to deodorize.
Facial cleansing and protection (Use the purified ozone water to wash your face.)	15-20 mins	Ozone water can help remove bacteria from pores, increase respiration, and help remove makeup without harsh chemicals.
Brushing teeth (Use the purified ozone water to rinse while brushing your teeth.)	10-15 mins	Help to kill bacteria in the mouth, reduce halitosis and other mouth odors, as well as help with tooth pain reduction and mouth sore reduction.

Use For	Time	Outcome
Purifying wash cloth (Put the wash cloth in a container full of water and purify the container and its contents.)	10-15 mins	Ozone water kills bacteria and deodorizes wash cloths.
Fruits and vegetables cleaning (Put them into a container full of water, place the tube into the container, and purify the contents.)	10-15 mins	Kill viruses and decompose any traces of chemical fertilizer. This can help to prevent illnesses and keep fresh.
Cleaning baby products and toys (Put the products into a container or sink full of water. Purify the container and its contents.)	20-30 mins	Ozone water can help to kill bacteria and sterilize products like bottles, dishware, and toys.
Indoor air purification	40-60 mins	Odor removal and destroying viruses, bacteria and VOCs.

Please note that the solubility of ozone will be dependent upon the temperature of your water. The recommended temperature is at 70-80°F (21-27°C).

SPECIFICATIONS

Model	AH1000
Power Supply	AC 110V / 60Hz. (for USA and Canada) AC 220V / 50Hz. (for European Union)
Rated Power	20 W
Ozone Output	1000 mg/H
Anion density	15 x 10^6 pcs/cm³.
Noise Level	< 49 dB
Operating Humidity	<95% RH
Operating Temp	15°F ~ 130°F (-10°C ~ 55°C)
Dimension	10.2 x 6.3 x 2.8 inch (26 x 16 x 7 cm)
Weight	2.2 lbs (1 kg)

Exposure to ozone can cause respiratory issues for people and animals.

When you are using this appliance to purify the water or air, make sure that there are no people or pets in the room for the duration of this ozone generation process.
If necessary, people should not stay in the room for more than 1 minute during ozone treatment.
There might be an ozone smell remaining in the room after treatment.
Open doors and windows to ventilate for at least 30 minutes after the treatment and before people return to the space.

To fully benefit from the support that Airthereal offers, register your product at www.airthereal.com/register
READ ALL INSTRUCTIONS BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE.

MECHANISM
Ozone - Powerful sterilizer and deodorant
Ozone generators create ozone (O3) using mechanisms such as an ultraviolet light or a corona discharge (a type of electrical discharge). Ozone contains three atoms of oxygen. The third oxygen atom makes ozone extremely reactive, which readily attaches itself to other molecules. When odors, bacteria, or virus molecules meet ozone, an oxidation reaction occurs and both parties are destroyed. Ozone then essentially reverts back to oxygen that is safe to breathe. That's why ozone is considered environmentally friendly.
Applicable Space
Water Treatment
The volume of a single-time liquid disinfection and purification should not exceed 40L (10 gallons) per treatment cycle.
Indoor Air Decontamination
The maximum application area of AH1000 is 600 sq.ft (55 m²).
