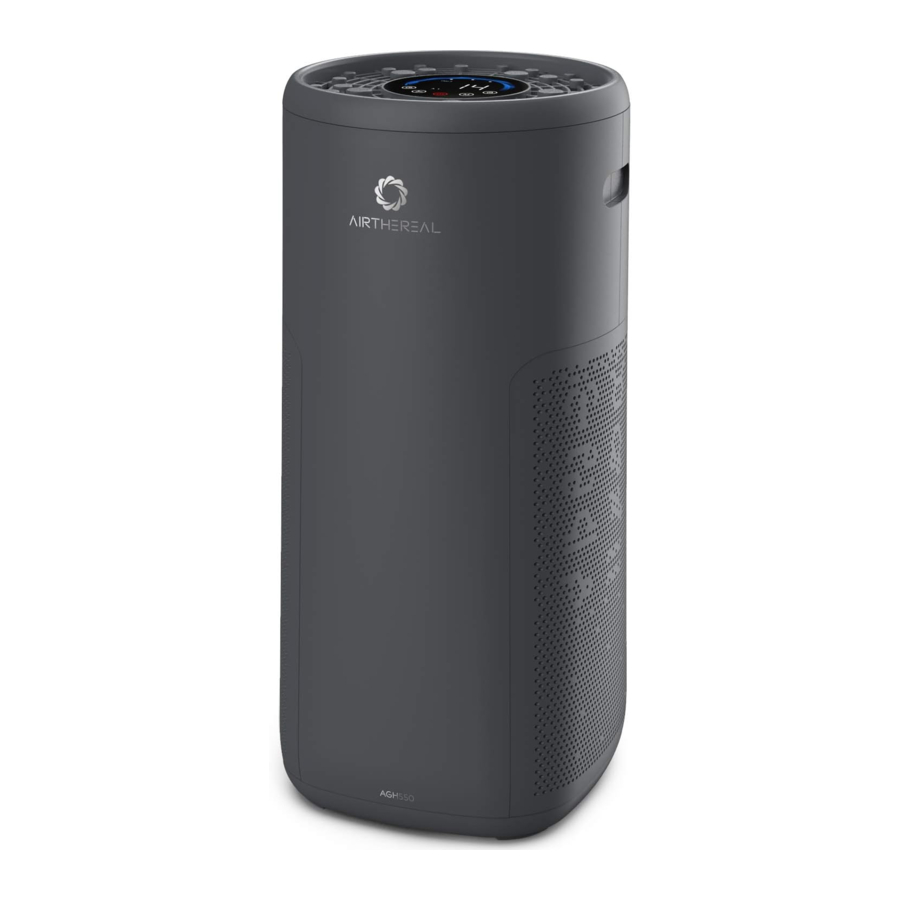

Airthereal Glory Days AGH550 - HEPA Air Purifier Manual

COMPONENTS

SPECIFICATIONS

Series	Glory Days
Model	AGH550
Fan Speed	5-Level
Dust Sensor	Laser PM2.5 Particles Sensor
Filter Structure	Pre-Filter, True HEPA Filter, Activated Carbon Filter (attached with Nano Mineral, Cold Catalyst, Photo Catalyst and Molecular Sieve)
Filter Lifetime	> 6 months
Noise Level	22 - 46dB
Standby Power	2W
Rated Power	40W
Power Supply	AC 120V, 60Hz (18AWG, 70 inches cord)
Operating TEMP	15°F ~ 130°F (-10°C ~ 55°C)

[CARB Certified]
OZONE DENSITY about HEPA AIR PURIFIER
This product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period.
The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on an averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m³.

INSTALLATION INSTRUCTIONS

Rotate the bottom cover of the air purifier and unwrap the plastic package of the HEPA filter.
Reinstall the HEPA filter. Make sure the pull-tab is facing outward. Close the bottom cover by rotating it clockwise.
Place the air purifier on the floor horizontally.
NOTE:
Tip-Over Shut-Off
AGH550 is fitted with a safety cut-out switch to switch the unit off if it is knocked over
If the purifier is knocked over, it will instantly shut off.
To reset, simply place the purifier in an upright position and turn ON it again.
Place at least 15 inches away from TVs, radios, and other electronic products. Electromagnetic interference from certain electronics may cause product malfunction.
Only use the unit on the firm and flat surfaces. Flimsy or slanted surfaces may result in abnormal noise and vibrations.

CONTROLS

OPERATION

Getting started

Insert the power cord into an electrical outlet.

Follow these instructions to reduce the risk of serious injury or death and to reduce the risk of damaging the unit.

Please make sure the operating voltage is the same as the parametric label.
For American and Canadian users, our product will be equipped with a POLARIZED AC PLUG that will fit into the power outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact qualified personnel to install the proper outlet.
After inserting the plug into the outlet, the LED air quality indicator will light up and change colors (cycle through Blue-Green-Orange-Red). Once air quality has been detected, all the lights will turn off. The unit will enter standby mode. The power button keeps twinkling.

Power On
- Press the button to process power.
- The blue breath light of the air quality indicator will twinkle for 15 seconds. Meanwhile, it starts to detect the PM2.5 value and display on the LED display.
- It goes into Auto Mode when power on.

Modes

Auto Mode

It goes into Auto Mode when power on or when you press the Mode button and choose the Auto Mode.
In Auto Mode, the Auto Mode will glow and the unit will automatically operate depending on the current air quality index. The LED display shows between A1, A2, A3, A4 or A5.
It will increase the fan speed automatically to improve air quality in the room until it returns to healthy levels.

Manual Mode

Press the fan speed button to turn the unit into manual mode. Press to start air circulation. 5 fan speeds are available. Each press will cycle between 1→2→3→4→5→1...
When Manual Mode is selected, Auto Mode is automatically disabled.

NOTE: The air quality indicator changes according to the corresponding PM2.5 value.

Sleep Mode

Press the Mode button to select Sleep Mode.
In Sleep Mode, the fan speed will automatically be reduced to the lowest speed.

Child-proof Lock

Press and hold the child lock button for three seconds, and then the child lock will glow.
At this time, other buttons are invalid.
Press and hold the child lock button for 3 seconds again to unlock it.

0-24 Hour Timer

Press the Timer button to select the right time length.
When the power is on, pressing the timer button will cycle through 1 hr → 2 hrs → 3 hrs →... → 24 hrs → 0 hr etc. If the timer is set at 0 hr or restart the unit, the timer setting will be reset.
There will be 3 seconds'delay after setting.

Air Quality Indicator

PM2.5 Indicator
PM2.5 indicator shows real-time PM2.5 value. After power on, it takes about 15 seconds to activate the PM 2.5 Indicator. Then the air quality indicator will be illuminated the corresponding color and the real-time PM2.5 value will be displayed.

PM2.5 ( µg/m³)	AQI (EPA of USA)	Air quality indicator color
0.0-12.0	0-50	Green (good)
12.1-35	51-100	Orange (moderate)
35+	101+	Red (unhealthy)

Instant PM2.5 value is one of the core references for indoor air quality index (AQI).
Regarding the AQI, working modes, and lights indicators, Airthereal AGH550 Air Purifiers comply with EPA regulations.

For additional information, please reference the United States Environmental Protection Agency (EPA): https://cfpub.epa.gov/airnow/index.cfm?action=aqi_brochure.index#particle

MAINTENANCE

Know the 7-in-1 HEPA Filter

When the replacement icon lights up (Filter icon keeps glowing), it is a reminder to check and change the air filter.

It is recommended to replace the air filter every 6-8 months for optimal use. Or according to your air filter status.
Time to replace the air filter when below signals appear:

Increased noise
Decreased airflow
Clogged filters
Presence of odors from the unit

Purchase a new Airthereal Air Filter Replacement:
www.airthereal.com
Search on Amazon: AGH550 filter
Only use Airthereal Glory Days AGH550 replacement filters for this unit.

Replace the Air Filter

Power off and unplug before operating.

Remove the bottom cover.

Take out the old filter by pulling the tab.

Unwrap a new one.

Install a new filter in the unit. Make sure the pull-tab on the filter is facing outward and put the front shell on.

Process power. Press and hold the timer button & the fan button simultaneously for 3 seconds to reset the replacement reminder.

Unplug the power cord before cleaning.
Plastic housing should be cleaned with a soft cloth moistened with mild soap. Thoroughly remove soap film with a dry cloth.
Open the front panel and clean the interior and air outlet with a vacuum cleaner.
For better maintenance, clean the unit every 2 months.

TROUBLESHOOTING

Problem	Cause	Solution
No power or response	The unit is not plugged into an electrical outlet.	Connect the plug to a powered electrical outlet.
	The outlet is not working properly.	Try plugging the air purifier into a different outlet.
	The power cord is damaged.	Immediately discontinue use and contact Customer Support.
	The air purifier is defective or malfunctioning.	Immediately discontinue use and contact Customer Support.
Unpleasant Smell	The filter may be too dirty if it's used for a long time.	Replace the filter.
Unpleasant Smell	Using the air purifier in moist conditions or water entered in the filter.	Replace the filter.
The air quality indicator always gets in red	Dirty filters and room air is bad.	Replace the filter.
The numbers have been fluctuating from 3 to 12	This PM2.5 sensor is very sensitive.	It means the air quality is good when the value is under 12. It needs to pay attention when it goes higher than 35.
Any faulty display of the LED numbers	Auto Mode has just been turned on.	Allow the air purifier to run for 15S. The display of the LED numbers will stabilize once air quality has been detected.
Any faulty display of the LED numbers	The unit is defective or malfunctioning.	Immediately discontinue use and contact Customer Support.
Unusual noise while operating	Dirty filters.	Replace the air filters as instructed in the Replace the Air Filter section
	Filters installed improperly.	Place the filter properly. Please refer to the Replace the Air Filter section.
	The foreign object inside the unit.	Immediately discontinue use and contact Customer Support. DO NOT attempt to open the air purifier yourself.
	Flimsy or slanted surfaces resulting in an abnormal noise and vibrations.	Place air purifier on hard, flat surfaces.
Significantly reduced airflow	Not enough space around the unit.	Ensure that there are at least 15 inches (38 cm) between the unit and other objects.
Poor air purification quality	Surrounding area exceeds the applicable area.	Choose a room with a maximum area of 70 m² to use AGH550.
	The air inlet or outlet is blocked.	Remove objects that block the air inlet or outlet.
	The filter is not properly placed in housing.	Properly place filter as noted in the Replace the Air Filter section.

IMPORTANT SAFETY INSTRUCTIONS

Please read and comply with all of the instructions and warnings in the manual before using. Failure to comply with the instructions and warnings provided herein may result in inaccurate results and/or damage to the product itself.

General Safety

Only use this air purifier as described in this manual.

Ensure the plug fits properly into an AC power outlet.
When not being used, turn the air purifier off and disconnect it from its power source by unplugging from the electrical outlet.
DO NOT operate the unit if its cord or plug is damaged. It may result in damage to the unit or injury. It must be replaced by the manufacturer or a technician to avoid risks.
NOT recommended to use an extension cord. If necessary, the extension cord should be the same size as the original one.
Thoroughly dry your hands before operation.
DO NOT immerse the air purifier in water or liquids. It may result in damage to the appliance, electric shock, or fire.
DO NOT use the air purifier outdoors. This appliance is designed for indoor use only.
DO NOT use the air purifier in an enclosed space where flammable, combustible, or explosive gases are present.
DO NOT use in an area where toxic vapors, flammable dust or oxygen tanks are present.
DO NOT insert fingers or objects into the air outlet.
Child supervision is required while the air purifier is on. Do not allow children to play on or near the air purifier.

Use & Care

Always make sure to place the air purifier on a flat, level surface before operation.
Always allow 15 inches (38 cm) of clearance on all sides of the purifier.
DO NOT ROUTE CORD UNDER FURNITURE OR APPLIANCES. Do not run the power cord under carpeting. Do not cover cord with throw rugs, runners or similar coverings. Place the power cord away from high traffic areas.
DO NOT sit on or place anything on top of the purifier.
DO NOT place the air purifier near sources of heat, such as stoves, ovens, radiators or computers.
DO NOT use this appliance with indoor smoke-type insect repellents or in places with oily residues, burning incense or chemical fumes.
DO NOT open the back shell while the air purifier is on. It will automatically turn off the unit.
Always unplug the appliance from the power supply before servicing.
DO NOT clean the appliance with water or any other liquid to avoid electric shock or injury.
DO NOT attempt to repair this device in any way or use any replacement components or parts to modify the air purifier. Contact Customer Support immediately if your appliance is no longer working.
Only use Airthereal Glory Days AGH550 replacement filters for this unit.
If you experience any problems while operating the air purifier, refer to the Troubleshooting section in the manual. If the problem is NOT solved, contact Customer Support.
If the unit is damaged or NOT functioning properly, discontinue use and contact Customer Support.

WARRANTY

How to request warranty services?
To obtain the benefit of this warranty, please leave a message online (https://airthereal.com/pages/warranty), or send an email to support@airthereal.com. Our customer service will address your issue promptly
