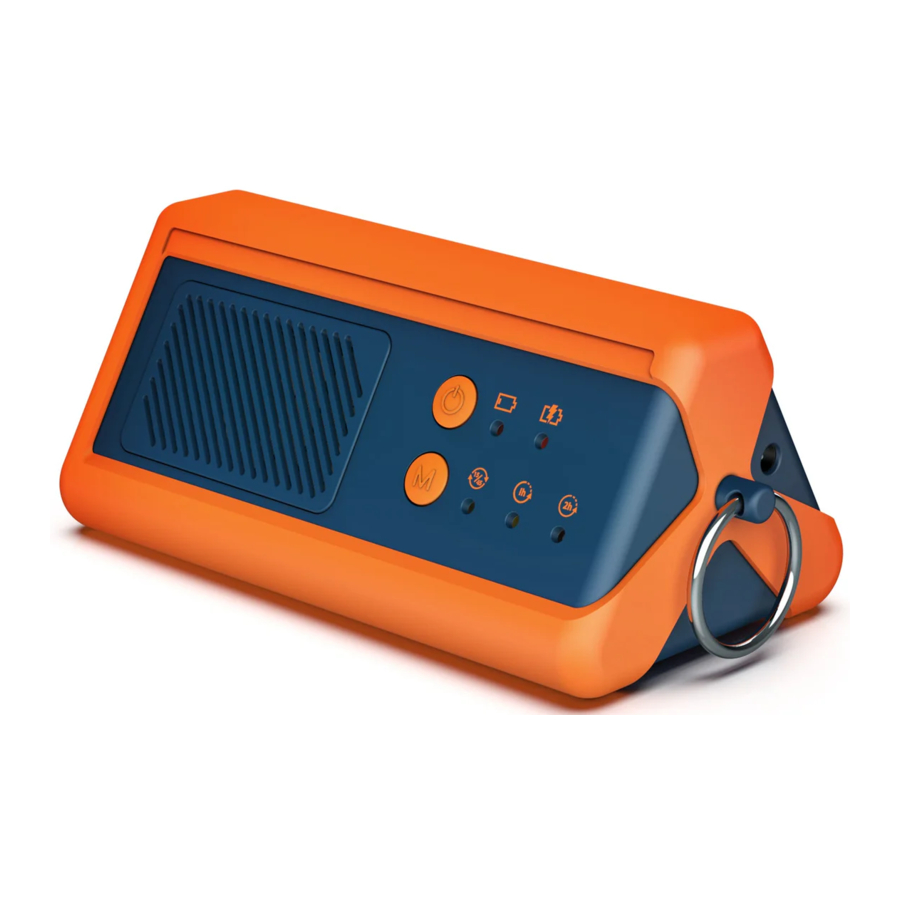

Airthereal PA1K-GO - OZONE GENERATOR Manual

To fully benefit from the support that Airthereal offers and get a 1-year warranty extension, please register at www.airthereal.com/register.

IMPORTANT SAFEGUARDS

READ ALL INSTRUCTIONS BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE.

1. Use in unoccupied spaces only!
2. People, pets, and animals should not stay in the room for more than 1 minute during the ozone treatment.
   It's okay to start the unit and then leave the room a few seconds later.
3. There might be an ozone smell remaining in the room after treatment. Some people describe it as a faint smell of chlorine, like you'd notice at the swimming pool or hot tub.
4. Open doors and windows to ventilate the space for at least 1 hour after treatment ends before occupying the space.

MECHANISM

Ozone - Powerful sterilizer and deodorant
Ozone generators create O₃ using mechanisms such as an ultraviolet light or a corona discharge (a type of electrical discharge). Ozone (O₃) contains three atoms of oxygen. The third oxygen atom makes ozone extremely reactive, which readily attaches itself to other molecules. When odors, bacteria or viruses meet ozone, oxidation reactions occur and both parties are destroyed. Ozone essentially reverts back to oxygen. That's why it's environment friendly.

APPLICABLE SPACE

The maximum coverage area of the PA1K-GO is 500 sq.ft (46.5 m²). It could be used in hotels, kitchens, toilets, pet rooms, storerooms, bedrooms, cars and boats, or anywhere you need to remove odors or viruses and bacteria.

PARTS LIST

Do not operate the unit unless it is completely assembled.

There are no user-serviceable parts inside the unit.

SPECIFICATIONS

HOW TO USE

1. Press and hold the power button for 3 seconds to turn on the power. The power indicator light will be illuminated in red while the power is turned on.
2. Once you turn on the ozone machine, it will enter the HOLD mode which runs continuously for about 4 hours, until the battery dies. Select one of the following ozone function modes according to your needs:
   • 15/45: Runs for 15 minutes, standby for 45 minutes, repeat. Lasts up to 4 hours, or up to 4 complete cycles.
   • 1h: Runs for 1 hour then powers off.
   • 2h: Runs for 2 hours then powers off.

BATTERY AND CHARGING

• Please fully charge the machine before first use, which usually takes 2 to 3 hours. If your unit cannot be powered on after 3 hours charged, please contact support@airthereal.com.
• The PA1K-GO can run up to 4 hours on a fully-charged battery. When the power indicator is flashing red, it means that the battery is low and needs to be charged soon.
• When using the original DC12V adapter to charge the PA1K-GO, charging can be completed in approx. 2~3 hours.
• While charging, Battery light will continuously flash white. Charging is complete when Battery stops blinking and displays a continuous white light.
• The ozone machine can be used during charging.

Always here to help you
www.airthereal.com

Keep Out Of Reach Of Children
Produced for: West Ryder Technology LLC
251 Little Falls Drive, Wilmington, DE 19808-1674, USA
EPA EST NO: 94720-CHN-1
support@airthereal.com
