Thank you for choosing an Elite Screens fixed frame projection screen! Please read through this user guide before
utilizing the screen. Correct usage and maintenance will ensure a long product life.
Care & Use Instructions
Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of the points
below to prevent that from occurring:
1. Do not touch the projection surface with your hands
2. Do not write or draw on the projection surface
3. Do not use fingers or sharp objects to point on the projection surface; this will damage the screen material.
4. Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents or alcohol.
5. Use clean water when dampening the cleaning cloth and do not rub against the material to clean it.
a: Frame parts x 6 pcs
(Springs pre-installed)
e: Tension rods x 6 pcs
i: Center support bar x 1 pc
m: Center joints x 2 pcs
Note: Please make sure all parts are included in your package before proceeding to assemble the fixed frame screen.
Rev.V03142024DT (DZUG0301)
Sable Frame B series
Fixed Frame Projection Screen
User's Guide – EN Type

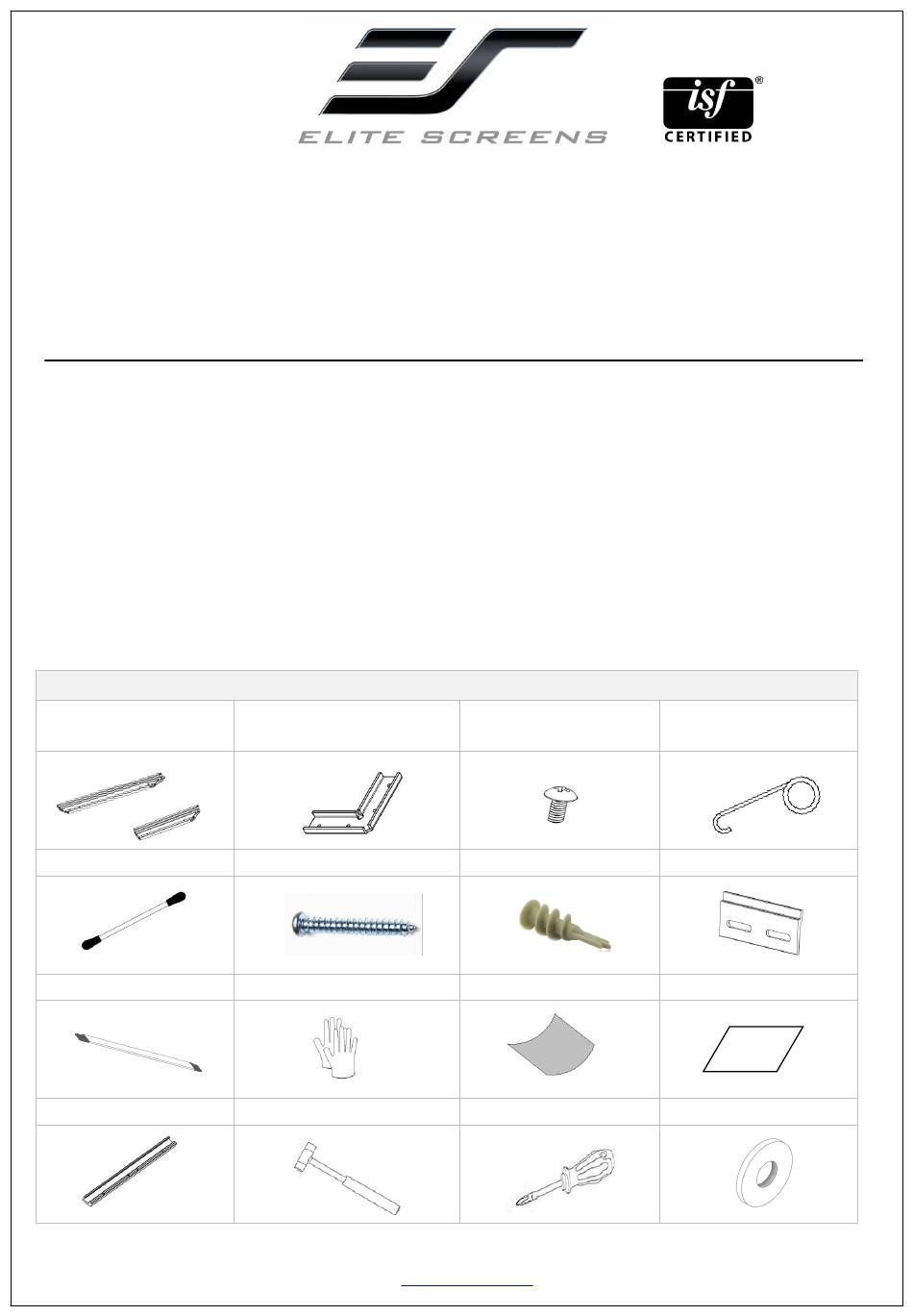

Hardware and Parts List
b:
Elbow Joints x 4 pcs
f: M4*32 wood screws x 8 pcs
j: Gloves x 2 pcs
n: Rubber hammer x 1 pc
www.elitescreens.com
c: M5*6 screws x 24 pcs
g: Ø13*40 Anchors x 8 pcs
k: Protection sheet x 1 pc
o: Screwdriver x 1 pc
d: Springs hook x 2 pcs
h: Wall brackets x 4 pcs
l: Screen Material x 1pc
p: Ø12*Ø4*1 Washers x 8
1
Advertisement
Related Manuals for Elite Screens Sable Frame B Series
Summary of Contents for Elite Screens Sable Frame B Series
- Page 1 Fixed Frame Projection Screen User’s Guide – EN Type Thank you for choosing an Elite Screens fixed frame projection screen! Please read through this user guide before utilizing the screen. Correct usage and maintenance will ensure a long product life.
-
Page 2: Frame Assembly
Frame Assembly 1. Please wear gloves (j) before installation. 2. Insert the center joint (m) connector into to one of the 1/2 horizontal frames and fasten it with two M5*6 screws (c). Repeat steps for assembling the second horizontal frame. Center joints (m) Oblique opening Flat opening... - Page 3 5. Join all four frame parts together following the steps shown below. (Fig.1.3) Note: When assembled, please push simultaneously the two ends of the long frames. M5*6 Screws (c) (Fig.1.3) Attaching the screen material to the frame 1. Unroll the screen material and lay it down on a clean protection sheet (k) (Screen material facing down). Then Please place the frame gently on the screen material.
-
Page 4: Center Support Bar
5. Next, attach a spring in each center point locations (1), then out of the center location (2), and finalize the installation with the remaining springs. Center Support Bar Center support Push 1. Insert the Center Support Bar (i) into the bar (i) upper top groove on the back of the frame with the bottom end near the approximate center... - Page 5 4. Position the fixed frame screen onto the top wall brackets as shown as below info and pull down at the center of the bottom frame to secure the installation. Top wall bracket (h) M4*32 screw (f) Bracket hole distance = 1.57”...
- Page 6 For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com Rev.V03142024DT (DZUG0301) www.elitescreens.com...
