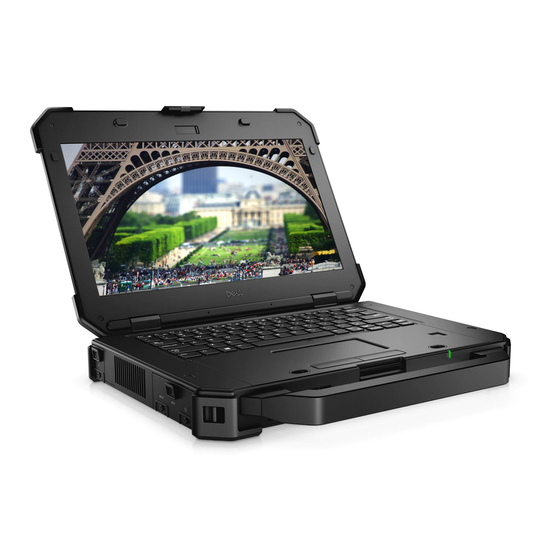

Dell Latitude 7424 Rugged Extreme
Service Manual
Regulatory Model: P86G
Regulatory Type: P86G001
August 2021
Rev. A02

Advertisement

Table of Contents
loading

Related Manuals for Dell Latitude 7424 Rugged Extreme

Summary of Contents for Dell Latitude 7424 Rugged Extreme

  • Page 1 Dell Latitude 7424 Rugged Extreme Service Manual Regulatory Model: P86G Regulatory Type: P86G001 August 2021 Rev. A02...
  • Page 2 A WARNING indicates a potential for property damage, personal injury, or death. © 2019-2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

  • Page 3: Table Of Contents

    Contents Chapter 1: Working on your computer....................7 Safety instructions................................7 Before working inside your computer..........................8 Safety precautions................................8 Electrostatic discharge—ESD protection........................8 ESD field service kit ................................9 Transporting sensitive components..........................10 After working inside your computer..........................10 Chapter 2: Technology and components..................11 Using your computer................................11 Open the LCD Lid.................................
  • Page 4 USB features..................................40 USB Powershare................................42 USB Type-C..................................43 Ethernet....................................43 HDMI 2.0..................................... 45 Chapter 3: Removing and installing components................47 Safety instructions................................47 Before working inside your computer........................48 Safety Precautions..............................48 After working inside your computer........................55 Recommended tools.................................55 Stylus ....................................55 Removing the stylus..............................55 Installing the stylus..............................
  • Page 5 Installing the WWAN card............................76 WLAN card..................................77 Removing the WLAN card............................77 Installing the WLAN card............................77 Global Positioning System (GPS)..........................78 Removing the GPS module............................78 Installing the GPS module............................79 Memory modules................................80 Removing the Memory...............................80 Installing the Memory..............................81 Coin-cell battery................................
  • Page 6 Updating the BIOS using the USB drive in Windows..................154 Updating the BIOS from the F12 One-Time boot menu................... 154 Self-Heal.................................... 155 Course Introduction..............................155 Self-Heal Instruction..............................155 Supported Latitude Models.............................155 Chapter 5: Getting help......................157 Contacting Dell................................. 157 Contents...

  • Page 7: Chapter 1: Working On Your Computer

    You should only perform troubleshooting and repairs as authorized or directed by the Dell technical assistance team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. See the safety instructions that is shipped with the product or at www.dell.com/regulatory_compliance.

  • Page 8: Before Working Inside Your Computer

    Standby power Dell products with standby power must be unplugged before you open the case. Systems that incorporate standby power are essentially powered while turned off. The internal power enables the system to be remotely turned on (wake on LAN) and suspended into a sleep mode and has other advanced power management features.

  • Page 9: Esd Field Service Kit

    ESD protection is an increasing concern. Due to the increased density of semiconductors used in recent Dell products, the sensitivity to static damage is now higher than in previous Dell products. For this reason, some previously approved methods of handling parts are no longer applicable.

  • Page 10: Transporting Sensitive Components

    It is recommended that all field service technicians use the traditional wired ESD grounding wrist strap and protective anti-static mat at all times when servicing Dell products. In addition, it is critical that technicians keep sensitive parts separate from all insulator parts while performing service and that they use anti-static bags for transporting sensitive components.

  • Page 11: Chapter 2: Technology And Components

    Technology and components This chapter details the technology and components available in the system. Topics: • Using your computer • AC-DC Adapters • Battery • Processors • Memory features • Graphics options • Corning Gorilla Glass • Pen Usage • Optical Disk Drive •...

  • Page 12: Stealth Mode

    Disabling stealth mode in the system setup (BIOS) 1. Power off the computer. 2. Power on the computer and at the Dell logo, tap the F2 key repeatedly to bring up the System Setup menu. 3. Expand and open the System Configuration menu.
  • Page 13 Customizing the backlit keyboard in System Setup (BIOS) 1. Turn off the computer. 2. Turn on the computer and when the Dell logo appears, press the F2 key repeatedly to bring up the System Setup menu. 3. Under System Configuration menu, select RGB Keyboard Backlight.

  • Page 14: Enabling And Disabling The Wireless (Wifi) Feature

    Figure 1. Fn key callouts 1. Fn lock key 2. Affected Fn keys 3. Fn key NOTE: Fn lock affects only the above keys (F1 to F12). Secondary functions will not require the Fn key to be pressed while enabled. Enabling the Function (Fn) lock 1.
  • Page 15 Table 1. Keyboard shortcuts Function Hot keys Description Fn+ESC Fn Lock Allows the user to toggle between locked and unlocked Fn keys. Fn+F1 Audio Volume Mute Temporarily mutes/unmutes the audio. The audio level before muting is returned after unmuting. Fn+F2 Audio Volume Down/Decrease Decreases the audio volume until minimum/off is reached.

  • Page 16: Ac-Dc Adapters

    1. Restart / Power on your computer. 2. At the first text on the screen or when the Dell logo appears, tap <F2> until the message Entering Setup appears. 3. Under General > Battery Information, you will see AC Adapter listed.
  • Page 17 Technology and components...
  • Page 18 130W Technology and components...

  • Page 19: Led And Cable

    LED and Cable Technology and components...

  • Page 20: Battery

    ● 3-cell 51 Whr (Long-Life Cycle, includes 3 year limited warranty) The battery is located on the bottom of the system and is hot swap capable. This design is unlike any other Dell predecessors laptops, where system needs to be powered off when the battery is removed, without the need to remove the bottom cover.

  • Page 21: Skylake Processor

    ● Intel Core i3, 7130U KabyLake processor ● Intel Core i5, 8350U KabyLake or 6300U SkyLake processors ● Intel Core i7, 8650U KabyLake processor series NOTE: The clock speed and performance varies depending on the workload and other variables. Skylake processor Intel Skylake is the successor to the Intel Broadwell processor.
  • Page 22 Table 3. Performance features (continued) Feature Feature description SKL-Y SKL-U SKL-H Intel Smart Sound Technology Intel Turbo Boost Technology 2.0 Last Level Cache (LLC) Up to 4M Up to 4M Up to 4M Voltage Optimizer Display 3 Independent Display Support HDMI 2.0 Display 3840x2160 3840x2160...

  • Page 23: Kaby Lake - 7Th And 8Th Generation Intel Core Processors

    General comparison with Broadwell processor Figure 3. Comparison with Broadwell processor Kaby Lake — 7th and 8th Generation Intel Core processors The 7th and 8th Gen Intel Core processor (Kaby Lake) family is the successor of Sky Lake R. It's main features include: ●...
  • Page 24 DDR4 needs 20 percent less or just 1.2 volts, compared to DDR3 which requires 1.5 volts of electrical power to operate. DDR4 also supports a new, deep power-down mode that allows the host device to go into standby without needing to refresh its memory.

  • Page 25: Graphics Options

    Graphics options Graphics Specifications Table 5. Graphics specifications Controller Type Graphics Capacity External display Maximum Dependency memory type support resolution Intel HD 620 Intel Core i3 - Integrated Shared system HDMI 2.0 4096×2304 @60 Graphics 7130U memory Intel UHD 620 Intel Core i5 - Integrated Shared system...
  • Page 26 Table 6. Intel HD graphics 620 specification (continued) Integrated Graphics Controller Intel HD Graphics 620 Maximum Vertical Refresh Rate Up to 85 Hz depending on resolution Operating Systems Graphics Video API Support Support for DirectX 12, OpenCL 2.0, OpenGL 4.3/4.4, OpenGL ES Supported Resolutions and Max Refresh Rates (Hz) (Note: System ports: Max Digital: (HDMI) 2560x1600,...
  • Page 27 Intel HD Graphics 520 Table 8. Intel HD Graphics 520 Graphics specification Integrated Graphics Controller Intel UHD Graphics 620 (8th Generation Intel Core) Bus Type Internal PCIe Memory Interface N/A (unified memory architecture) Graphics Level Estimated Maximum Power Consumption (TDP) 15 W (included in the CPU power) Display Support On System:...
  • Page 28 1050 MHz (depending on the CPU model). Due to its lack of dedicated graphics memory or eDRAM cache, the HD 520 has to access the main memory (2x 64-bit DDR3L-1600/DDR4-2133). Performance The exact performance of the HD Graphics 520 depends on various factors like L3 cache size, memory configuration (DDR3/ DDR4) and maximum clock rate of the specific model.
  • Page 29 Intel HD/UHD Graphics 620 The Intel HD/UHD Graphics 620 (GT2) is an integrated graphics unit, which can be found in various ULV (Ultra Low Voltage) processors of the Skylake generation. This GT2 version of the Skylake GPU offers 24 Execution Units (EUs) clocked at up to 1050 MHz (depending on the CPU model).

  • Page 30: Amd Radeon 540 Graphics

    Table 10. Key specifications (continued) Specification Intel HD/UHD Graphics 620 DirectX DirectX 12 (FL 12_1) Max. Displays Supported Up to 3 DP 1.2/eDP 1.3 max. resolution 3840 x 2160 @ 60 Hz HDMI max. resolution 3840 x 2160 @ 30 Hz AMD Radeon 540 Graphics Table 11.

  • Page 31: Corning Gorilla Glass

    Table 12. Radeon RX 540 graphics specifications (continued) Graphics Controller AMD Radeon RX 540 Graphics Maximum Vertical Refresh Rate Up to 395 Hz at 1920 x 1080 Up to 118 Hz at 3840 x 2160 Operating Systems Graphics/ Video API Support DirectX 12, OpenGL 4.5 Supported Resolutions and Max Refresh Rates (Hz) ●...
  • Page 32 Properties Table 14. Properties Density 2.39 g/cm Youngs Modulus 69.3 GPa Poissons Ratio 0.22 Shear Modulus 28.5 GPa Vickers Hardness (200 g load) ● Un-strengthened 534 kgf/mm ● Strengthened 596 kgf/mm 649 kgf/mm Fracture Toughness 0.66 MPa m Coefficient of Expansion (0 ˚C - 300 ˚C) 75.8 x 10 /°C Chemical Strengthening...

  • Page 33: Pen Usage

    Electrical Table 17. Electrical Frequency (MHz) Dielectric Constant Loss Tangent 7.59 0.022 7.48 0.022 7.44 0.021 7.42 0.022 7.38 0.021 7.37 0.022 7.30 0.023 1499 7.26 0.023 1977 7.23 0.023 2466 7.20 0.024 2986 7.19 0.025 Terminated coaxial line similar to that outlined in NIST Technical Notes 1520 and 1355-R Putting Corning Gorilla Glass 3 to the test.

  • Page 34: Pen Flicks

    Tablet PC Input Panel When an application does not directly support pen input, you can use the Tablet PC Input Panel to enter text into your application. If you tap in an editable area, the Tablet PC Input Panel icon appears. Tapping the icon makes the Input Panel slide out from the edge of the display.

  • Page 35: Optical Disk Drive

    DVDRW Drive There is a new drive offering from Dell for these systems that allows users to read and write DVDs and CDs. The drive is a tray-loading drive that fits into the media bay. It uses a SATA interface.

  • Page 36: Blue Ray

    ○ 25 GB (single layer) / 50 GB (double layer) NOTE: All Dell Blu-Ray drives support dual layer (50 GB) discs. However, the new combo drives (DVDRW/BD-ROM) simply read dual layer discs but do not write to them. ○ Future potential to store 200 GB (Multilayer) ￭...

  • Page 37: Media Card Readers

    Table 20. System Requirements Requirement Device/Specification Desktops Notebooks Processor Intel Core 2 Duo T7100 (1.8 GHz) or Intel® Core™2 Duo Processor E6800 better (2.93 GHz) or Intel Core 2 Duo Processor E6700 (2.66 GHz) or Kentsfield Graphics card Intel Core 2 Duo T7100 (1.8 GHz) or Intel Core 2 Duo T7100 (1.8 GHz) or better better...

  • Page 38: Uefi Bios

    BIOS while a higher level language code will be used to program the UEFI. Dell UEFI BIOS implementation will supersede the existing two different sets of BIOS in the portables and desktop products into one single UEFI BIOS moving forward.

  • Page 39: Systems Management - From On-Premises To The Cloud

    Out-of-Band Systems Management- Intel vPro and Intel Standard Manageability Intel vPro and Intel Standard Manageability must be configured in the Dell factory at the time of purchase, as they are NOT field ungradable. They offer out-of-band management and DASH compliance.

  • Page 40: Trusted Platform Module

    A unique and new Dell Remote Provisioning feature for Intel vPro quickly activates vPro capabilities on a PC, reducing vPro set-up time from months to less than an hour. The Dell Remote Provisioning feature for Intel vPro is available as a part of the...
  • Page 41 Table 22. USB evolution (continued) Type Data Transfer Rate Category Introduction Year USB 3.0/USB 3.1 Gen 5 Gbps SuperSpeed 2010 USB 3.1 Gen 2 10 Gbps SuperSpeed 2013 USB 3.0/USB 3.1 Gen 1 (SuperSpeed USB) For years, the USB 2.0 has been firmly entrenched as the de facto interface standard in the PC world with about 6 billion devices sold, and yet the need for more speed grows by ever faster computing hardware and ever greater bandwidth demands.

  • Page 42: Usb Powershare

    With today's ever increasing demands placed on data transfers with high-definition video content, terabyte storage devices, high megapixel count digital cameras etc., USB 2.0 may not be fast enough. Furthermore, no USB 2.0 connection could ever come close to the 480Mbps theoretical maximum throughput, making data transfer at around 320 Mbps (40 MB/s) — the actual real-world maximum.

  • Page 43: Usb Type-C

    allowed to charge until the battery reaches 25% of full capacity (e.g. 75% of the portable's battery charge is used up). USB Type-C USB Type-C is a new, tiny physical connector. The connector itself can support various exciting new USB standards like USB 3.1 and USB power delivery (USB PD).
  • Page 44 Product Features General ● 10 BASE-T IEEE 802.3 specification conformance ● 100 BASE-TX IEEE 802.3 specification conformance ● 1000 BASE-T IEEE 802.3 specification conformance ● Energy Efficient Ethernet (EEE) ● IEEE 802.3az support [Low Power Idle (LPI) mode] ● IEEE 802.3u autonegotiation conformance ●...

  • Page 45: Hdmi 2.0

    Package/Design ● 48-pin package, 6x6mm with a 0.4 mm lead pitch and an Exposed Pad for ground ● Three configurable LED outputs ● Integrated MDI interface termination resistors to reduce BOM costs ● Reduced BOM cost by sharing SPI flash with PCH HDMI 2.0 This topic explains the HDMI 2.0 and its features along with the advantages.
  • Page 46 Advantages of HDMI ● Quality HDMI transfers uncompressed digital audio and video for the highest, crispest image quality. ● Low -cost HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a simple, cost-effective manner ●...

  • Page 47: Chapter 3: Removing And Installing Components

    Removing and installing components This section provides detailed information on how to remove or install the components from your computer. Topics: • Safety instructions • Recommended tools • Stylus • SIM card • Memory card • Handle • Latch Doors •...

  • Page 48: Before Working Inside Your Computer

    Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.
  • Page 49 ESD protection is an increasing concern. Due to the increased density of semiconductors used in recent Dell products, the sensitivity to static damage is now higher than in earlier Dell products. For this reason some previously approved methods of handling parts are no longer applicable.
  • Page 50 The more difficult type of damage to recognize and troubleshoot is the intermittent (also called latent or “walking wounded”) failure. The following image shows an example of intermittent damage to a memory DIMM trace. Although the damage is done, the symptoms may not become an issue or cause permanent failure symptoms for some time after the damage occurs. Figure 8.
  • Page 51 Figure 10. ESD Field Service Kit The anti-static mat is dissipative and should be used to safely place parts on during service procedures. When using an anti-static mat, your wrist strap should be snug and the bonding wire should be connected to the mat and to bare-metal on the system being worked on.
  • Page 52 Table 23. Wrist Straps Wrist Strap and Bonding Wire Wireless ESD Strap (Unacceptable) ESD Wrist Strap Tester The wires inside of an ESD strap are prone to damage over time. When using an unmonitored kit, it is best practice to regularly test the strap prior to each service call, and at a minimum, test once per week.
  • Page 53 Table 24. Placement of Insulator Elements Unacceptable — DIMM lying on an insulator part (plastic Acceptable — DIMM separated from the insulator part heat sink shroud) Consider the Working Environment Before deploying the ESD Field Service kit, assess the situation at the customer location. For example, deploying the kit for a server environment is different than for a desktop or portable environment.
  • Page 54 Figure 13. ESD Packaging Transporting Sensitive Components When transporting ESD-sensitive components such as replacement parts or parts to be returned to Dell, it is critical to place these parts in anti-static bags for safe transport. ESD Protection Summary It is strongly suggested that all field service engineers use the traditional wired ESD grounding wrist strap and protective anti-static mat at all times when servicing Dell products.

  • Page 55: After Working Inside Your Computer

    CAUTION: To avoid damage to the computer, use only the battery designed for this particular Dell computer. Do not use batteries designed for other Dell computers. 1. Connect any external devices, such as a port replicator or media base, and replace any cards, such as an ExpressCard.

  • Page 56: Installing The Stylus

    Installing the stylus Insert the stylus in the slot. SIM card Removing the SIM card 1. Remove the single 'M2*3' screw [1] and separate the SIM cover lock from the SIM card slot [2]. 2. Withdraw and remove the SIM card out from the slot [3] on the system board. Removing and installing components...

  • Page 57: Installing The Sim Card

    3. Close the right I/O door and slide the latch in lock position. 4. Follow the procedure in After working inside your computer. Installing the SIM card 1. Follow the procedure in Before working inside your computer. 2. Slide the latch [1] to unlock position and open the right I/O door [2]. Removing and installing components...

  • Page 58: Memory Card

    3. Insert the SIM card into the slot [1] on the system board and place the SIM cover lock on the SIM card slot [2]. 4. Install and tighten the single 'M2*3' screw [3], securing the SIM cover lock to the chassis. Memory card Installing the memory card 1.

  • Page 59: Removing The Memory Card

    Removing the memory card 1. Remove the memory card from the slot on the system board. 2. Close the right I/O door.. Handle Removing the Handle 1. Follow the procedure in Before working inside your computer. Removing and installing components...

  • Page 60: Installing The Handle

    CAUTION: The following epoxy screw locations require additional focus. These screws are difficult to remove and can be damaged during the removal process. To prevent damage to the screws and surrounding plastics, use the correct screwdriver for each screw type . Remove the four M3*6 screws [1] that secures the handle and the metal brackets to the computer.

  • Page 61: Latch Doors

    Latch Doors Removing the latch doors 1. Follow the procedure in Before working inside your computer. 2. Open the door. 3. Remove the screws [1] securing door hinges to the computer and lift the I/O door [2] away from the computer. Installing the latch doors 1.

  • Page 62: Battery

    3. Lock the door. 4. Follow the procedure in After working inside your computer. NOTE: Depending on its location each door may have one, two, or three screws. Battery Removing the Battery NOTE: This laptop can accommodate two hot-swap capable batteries(primary and optional), both the batteries follows the same installation and removal procedure.

  • Page 63: Secondary Ssd Carrier

    3. Follow the procedure in After working inside your computer. NOTE: This laptop can accommodate two hot-swap capable batteries(primary and optional), both the batteries follows the same installation and removal procedure. Secondary SSD carrier Removing the Secondary SSD carrier 1. Follow the procedure in Before working inside your computer.

  • Page 64: Installing The Secondary Ssd Carrier

    4. Pull the SSD carrier out of the system using the blue tab [2]. Installing the Secondary SSD carrier 1. Slide the secondary SSD carrier [1] in to the slot on the computer. 2. Push the carrier in the slot until blue tab clicks and close the right I/O door [2]. 3.

  • Page 65: Primary Ssd Carrier

    4. Follow the procedure in After working inside your computer. Primary SSD carrier Removing the Primary SSD carrier 1. Follow the procedure in Before working inside your computer. CAUTION: Attempt to retrieve the primary SSD carrier from an operational computer can cause operating system crash and potential data loss.

  • Page 66: Installing The Primary Ssd Carrier

    Installing the Primary SSD carrier 1. Insert the primary SSD carrier [1] in to the computer. 2. Push the carrier into the slot until the blue tab clicks and close the right I/O door [2]. 3. Install the: Batteries 4. Follow the procedure in After working inside your computer.

  • Page 67: Ssd

    Removing the SSD from carrier 1. Follow the procedure in Before working inside your computer. 2. Remove the: a. Batteries. SSD(Primary or Secondary). 3. Remove the two 'M2*5' screws [1] and flip over the SSD carrier [2]. 4. Remove the single 'M2*5' screw [3] and separate the cover from the SSD carrier [4]. 5.

  • Page 68: Hdd Carrier

    5. Install the: SSD(Primary or Secondary). Batteries 6. Follow the procedure in After working inside your computer. HDD carrier Removing the Hard Drive carrier 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries. 3. Press the blue latch [1] and slid the HDD carrier out of the slot on the system [2] NOTE: Depending on the configuration ordered the system may have a Hard Drive or a Solid State Drive in the carrier.

  • Page 69: Installing The Hard Drive Carrier

    Installing the Hard Drive carrier 1. Slide the SSD in the carrier [1] and secure it using the single screw [2]. 2. Secure the cover on the carrier [3] and tighten the six screws [4]. 3. Slide the HDD carrier in the slot [1] and close the IO door [2] Removing and installing components...

  • Page 70: Bottom Chassis Cover

    Bottom Chassis Cover Removing the Bottom Chassis Cover 1. Follow the procedure in Before working inside your computer. 2. Remove the: a. Batteries. 3. Remove the 21 'M2.5*5' screws on the bottom chassis cover [1] and remove the bottom chassis cover [2] from the computer.

  • Page 71: Keyboard

    3. Install the: Batteries 4. Follow the procedure in After working inside your computer. Keyboard Removing the Keyboard 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries. 3. Remove the six 'M2.5*5' screws on the keyboard [1] and pry at the bottom edge of the keyboard [2]. Removing and installing components...
  • Page 72 4. Slide the keyboard slightly [1] towards touch pad and flip it over inclined over the LCD panel [2]. 5. Remove the four 'M2*3' screws [1] on the keyboard cover and remove it from the computer [2]. Removing and installing components...

  • Page 73: Installing The Keyboard

    6. Peel-off the tape on the keyboard and back-light FPC [1] and disconnect it from the system board [2]. NOTE: Tweezers might be required to access the keyboard and back-light FPC connectors on the system board. 7. Separate the keyboard from the system [3]. Installing the Keyboard 1.
  • Page 74 3. Install the keyboard cover [1] and tighten the four 'M2*3' screws [2] to secure it to the chassis. 4. Flip the keyboard [3] over on the chassis [3]. 5. Slide the keyboard towards LCD [1] to align it to screw holes [2]. Removing and installing components...

  • Page 75: Wwan Card

    6. Install the six 'M2.5*5' screws on the keyboard to secure it to the computer. 7. Follow the procedure in After working inside your computer. WWAN card Removing the WWAN card 1. Follow the procedure in Before working inside your computer.

  • Page 76: Installing The Wwan Card

    4. Disconnect the antennae cables [3] and remove the WWAN card [4] out of the M.2 slot on the system board. Installing the WWAN card 1. Install the WWAN card in the M.2 slot [1] on the system board and connect the antennae cables [2]. 2.

  • Page 77: Wlan Card

    Bottom chassis cover Batteries 4. Follow the procedure in After working inside your computer. WLAN card Removing the WLAN card 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries Bottom chassis cover 3. Remove the single 'M2*3' screw [1] and remove the metal bracket [2] on the WLAN card. 4.

  • Page 78: Global Positioning System (Gps)

    3. Install the: Batteries Bottom chassis cover 4. Follow the procedure in After working inside your computer. Global Positioning System (GPS) Removing the GPS module 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries Bottom chassis cover 3.

  • Page 79: Installing The Gps Module

    Installing the GPS module 1. Align and place the GPS module on the system board and tighten the three 'M2.5*5' screws on GPS module [2]. 2. Connect the antenna cable [3], GPS FPC(system board side first) [4] and secure it using a piece of tape [5]. Removing and installing components...

  • Page 80: Memory Modules

    3. Install the: Bottom Chassis Cover Batteries 4. Follow the procedure in After working inside your computer. Memory modules Removing the Memory 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries Bottom chassis cover 3. Pull the clips securing the memory module [1] until the socket disengages and remove the memory module from the memory socket [2] on the system board.

  • Page 81: Installing The Memory

    Installing the Memory 1. Align and insert the memory module along the keyed notch [1] at an acute angle and press the memory module [2] until securing clips engages. 2. Install the: Removing and installing components...

  • Page 82: Coin-Cell Battery

    Batteries Bottom Chassis Cover 3. Follow the procedure in After working inside your computer. Coin-cell battery Removing the Coin cell 1. Follow the procedure in Before working inside your computer. 2. Remove the: Bottom chassis cover Batteries NOTE: Removing or Disconnecting the coin cell may reset systemboard / BIOS / system time to defaults or engage bit locker or other similar security protocol devices.

  • Page 83: Pcie Heatsink Fan Assembly

    2. Install the: Bottom chassis cover Batteries 3. Follow the procedure in After working inside your computer. PCIe Heatsink Fan Assembly Removing the PCIe Heatsink fan assembly 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries Bottom chassis cover 3.

  • Page 84: Installing The Pcie Heatsink Fan Assembly

    6. Remove the four M2*3 screws [1] to separate the heatsink from the fan [2]. Installing the PCIe heatsink fan assembly 1. Replace the fan to th heatsink assembly [1] and secure it using four M2*3 screws [2] . Removing and installing components...
  • Page 85 2. Connect the fan cable to the system board [1] and install the PCIe heatsink fan assembly in the chassis [2]. 3. Install the rubber gourmet [3] and four 'M2.5*5' screws on the fan case. 4. Install the four 'M2*3' screws on the SSD cage and single 'M2*3' screw on the dock pedestal [4]. 5.

  • Page 86: Primary Ssd Rail

    Batteries 6. Follow the procedure in After working inside your computer. Primary SSD Rail Removing the Primary SSD rail 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries Primary SSD Bottom chassis cover PCIe heatsink assembly 3.

  • Page 87: Docking Port Assembly

    3. Install the: PCIe heatsink fan assembly Bottom chassis cover Primary SSD Batteries 4. Follow the procedure in After working inside your computer. Docking Port Assembly Removing the Docking port assembly 1. Follow the procedure in Before working inside your computer.
  • Page 88 4. Disconnect the antennae cables from RF passthrough connectors and unroute the antennae cables from the routing channels on the dock assembly. 5. Remove the four 'M2.5*5' screws [1] and separate the docking board assembly from the chassis [2]. Removing and installing components...

  • Page 89: Installing The Docking Port Assembly

    Installing the Docking Port Assembly 1. Install the docking port assembly [1] and install the four 'M2.5*5' screws [2] securing it to the system board. 2. Connect the dock FPC [1] and secure it using a piece of tape [2]. Removing and installing components...

  • Page 90: Heatsink Assembly

    3. Secure the antennae cables along the routing channels and connect the antennae cables on RF passthrough connectors . 4. Install the: PCIe Heatsink assembly Batteries Bottom chassis cover 5. Follow the procedure in After working inside your computer. Heatsink Assembly Removing the Heatsink assembly 1.
  • Page 91 WWAN card PCIe Heatsink fan assembly Docking port assembly NOTE: Depending on the order configuration details the system may have either of the heatsink assembly. DSC Heatsink assembly Unroute the antennae cables from the tabs on the heatsink pipe. 4. Remove the five 'M2.5*5' screws [1] and two 'M1.6*5' [2] screw from the thermal module. 5.

  • Page 92: Installing The Heatsink Assembly

    NOTE: Discreet and UMA bases have different types of heatsink assembly. Installing the Heatsink assembly 1. Install the heatsink assembly [1] in the computer and tighten the two 'M1.6*5' [2] screw near the CPU. 2. Install the five 'M2.5*5' screws [3] on the thermal module securing the thermal module to the system board. 3.

  • Page 93: Rear Input-Output Board

    4. Install the: Docking port assembly PCIe Heatsink assembly WWAN card WLAN card Bottom chassis cover Batteries 5. Follow the procedure in After working inside your computer. Rear Input-Output Board Removing the Rear I-O board 1. Follow the procedure in Before working inside your computer.
  • Page 94 4. Peel off the inductive tape on the I/O board FPC connector [1] and disconnect it [2]. 5. Lift the I/O board away from the system. Removing and installing components...

  • Page 95: Installing The Rear I-O Board

    Installing the Rear I-O board 1. Install the rear I/O board on the system board and slide the serial port through the face plate . NOTE: Screws can be tightened over the rear I/O daughterboard only after installing the Docking port assembly. 2.
  • Page 96 3. Open the rear door [1] and tighten the two epoxy cap screws on serial port in the rear I/O space [2]. 4. Install the: Docking port assembly PCIe heatsink fan assembly WWAN card WLAN card Bottom chassis cover Batteries 5.

  • Page 97: Hinge Covers

    Hinge Covers Removing the Hinge Covers 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries Bottom chassis cover Heatsink 3. Remove the two 'M2.5*5' on either sides [1] and lift to remove the brackets [2] from the computer. 4.

  • Page 98: Installing The Hinge Covers

    Installing the Hinge Covers 1. Press the latch [1] and open the LCD lid [2]. 2. Keep LCD lid open at an obtuse angle and insert the hinge covers from front until it clicks in its place. Removing and installing components...
  • Page 99 3. Place the brackets[1] and secure it using two 'M2.5*5' on either sides [2]. 4. Install the: Heatsink Bottom chassis cover Batteries 5. Follow the procedure in After working inside your computer. Removing and installing components...

  • Page 100: Display Assembly

    Display assembly Removing the Display assembly 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries Bottom chassis cover PCIe heatsink assembly Docking port assembly WLAN card WWAN card GPS module Heatsink assembly Hinge covers 3. Remove the two 'M2*3' screws [1] on the EDP bracket, and turn it up side down [2]. 4.

  • Page 101: Installing The Display Assembly

    CAUTION: The following epoxy screw locations will require additional focus. These screws are difficult to remove and there may be damage during the removal process. To prevent damage to the screws and surrounding plastics, please use the correct screwdriver for each screw type. Loosen the four epoxy screws on hinges [1] and four screws behind the hinges to separate the LCD assembly from the computer [2].
  • Page 102 3. Connect the EDP cable to the system board [1] place the EDP bracket [2] on the connector. 4. Install the two 'M2*3' screws [3] securing the EDP connector to the system board and rethread the antennae cables [4]. 5. Install the: Hinge covers Heatsink GPS card...

  • Page 103: Lcd Bezel And Back Cover Assembly

    LCD Bezel and Back Cover Assembly Removing the LCD with bezel and the display back cover assembly 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries Bottom chassis cover WLAN card WWAN card PCIe heatsink assembly Docking port assembly Heatsink Hinge covers...

  • Page 104: Installing The Lcd With Bezel And The Display Back Cover Assembly

    5. Peel off the tape on the LCD connections [1] and open the connector [2] to disconnect the EDP cable [3] from the LCD. 6. Peel off the tape on touch connector [4] and disconnect the EDP cable from the connector [5]. Installing the LCD with bezel and the display back cover assembly 1.
  • Page 105 4. Align and place the bezel on the back cover [1] and secure it using the four M2.5 epoxy screws [2]. CAUTION: Four M2.5 screws on the bottom near the hinges are epoxy coated screws. Exercise caution when installing the screws, to avoid a possible stripped screw head. Install the 12 'M2.5' screws to secure the back cover to the LCD with bezel assembly.

  • Page 106: Microphone

    6. Install the: Display assembly. Hinge covers Heatsink PCIe heatsink assembly Docking port assembly WWAN card WLAN card Bottom chassis cover Batteries 7. Follow the procedure in After working inside your computer. Microphone Removing the Microphone 1. Follow the procedure in Before working inside your computer.

  • Page 107: Installing The Microphone

    4. Peel off the rubber cover [1] and insulation tape [2] and disconnect the EDP cable connectors [3]. Installing the Microphone 1. Connect the EDP cable to the microphone daughterboard [1] and secure it using a piece of tape [2]. 2.
  • Page 108 3. Turn over the microphone daughterboard on the back cover [1] and tighten the two 'M2*3' screws [2]. 4. Install the: LCD with bezel assembly. Display assembly. Hinge covers Heatsink PCIe heatsink assembly Docking port assembly WWAN card WLAN card Bottom chassis cover Batteries 5.

  • Page 109: Camera

    Camera Removing the Camera 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries Bottom chassis cover Memory WLAN card WWAN card PCIe heatsink assembly Docking port assembly Heatsink Hinge covers Display assembly. LCD Bezel and back cover assembly. 3.

  • Page 110: Battery Bay

    4. Install the: LCD with bezel assembly Display assembly. Hinge covers Heatsink PCIe heatsink assembly Docking port assembly WWAN card WLAN card Bottom chassis cover Batteries 5. Follow the procedure in After working inside your computer. Battery Bay Removing the Battery bay 1.

  • Page 111: Installing The Battery Bay

    4. Remove the fifteen 'M2.5*5' [1] screws securing the battery bay to chassis and lift to separate the battery bay [2] from the computer. Installing the Battery bay 1. Install the battery bay [1] on the computer and tighten the fifteen 'M2.5*5' screws [2] securing it to the chassis. Removing and installing components...
  • Page 112 2. Connect the battery cables to the system board. 3. Install the: PCIe Heatsink assembly Batteries Bottom chassis cover 4. Follow the procedure in After working inside your computer. Removing and installing components...

  • Page 113: Left I/O Board

    Left I/O board Removing the Left I/O daughterboard 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries Bottom chassis cover PCIe Heatsink fan assembly Battery bay 3. Peel off the inductive tape [1] on the left I/O daughterboard FPC connection, disconnect it from the system board [2]. 4.

  • Page 114: Installing The Left I/O Board

    Installing the Left I/O Board 1. Install the left I/O daughterboard [1] and secure it using the two 'M2*3' screws [2] to the computer. 2. Route the FPC cable through the wall bridge [1] and connect it to the system board [2]. 3.

  • Page 115: Smart Card

    4. Install the: Battery bay PCIe Heatsink fan assembly Bottom chassis cover Batteries 5. Follow the procedure in After working inside your computer. Smart Card Removing the Smart Card Reader 1. Follow the procedure in Before working inside your computer. 2.
  • Page 116 5. Remove the two 'M2*3' screws [1] securing the USH board to the bottom base and turn it up side down [2]. 6. Remove the tape [1] and disconnect the Smartcard Reader FPC connector [2] from the USH board. Removing and installing components...

  • Page 117: Installing The Smart Card Reader

    7. Loosen the four 'M2*3' screws [1] and remove the smart card [2] reader from the computer. Installing the Smart Card Reader 1. Insert the smart card reader through the I/O face plate [1] and install the four 'M2*3' screws to secure it to the bottom chassis [2].
  • Page 118 2. Connect the Smart Card FPC on the underside of the USH board [1] and secure it using a piece of tape [2]. 3. Install the two 'M2*3' screws [1] and turn over the USH board to secure it to the chassis [2]. Removing and installing components...
  • Page 119 4. Connect the smart card FPC connector [1] and securing it with a piece of tape [2]. 5. Connect the finger print reader FPC [3] and secure it using a piece of tap [4] to the USH board. 6. Install the: Battery bay PCIe Heatsink assembly Bottom chassis cover...

  • Page 120: Expresscard Reader

    ExpressCard Reader Removing the ExpressCard Reader 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries Bottom chassis cover PCIe heatsink assembly Battery bay Left I/O daughterboard Smart card 3. Peel off the tape on the express card FPC connectors [1] and an extra tape on the connector [2] on the system board. 4.

  • Page 121: Installing The Expresscard Reader

    Installing the ExpressCard Reader 1. Align and place the Express Card reader [1] on the computer and secure the face plate with two screws. 2. Install the four 'M2*5' screws securing the Express Card reader to the computer [2]. 3. Pass the express card FPC cable through the wall bridge [1] and insert the FPC cable [2] to the system board. 4.

  • Page 122: Speaker

    5. Install the: WWAN card WLAN card PCIe heatsink assembly Batteries Bottom chassis cover 6. Follow the procedure in After working inside your computer. Speaker Removing the Speaker 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries Bottom chassis cover PCIe heatsink assembly...

  • Page 123: Installing The Speaker

    Installing the Speaker 1. Align and place the speakers [1] on the computer and install the two 'M2.5*7' screws to secure the speaker to the base [2]. 2. Install the: Battery Bay Handle Left I/O daughterboard PCIe Heatsink assembly Docking port assembly Bottom Chassis Cover Batteries 3.

  • Page 124: System Board

    System board Removing the System board 1. Follow the procedure in Before working inside your computer. 2. Remove the: Batteries Bottom chassis cover Keyboard PCIe heatsink assembly Docking port assembly Primary SSD Secondary SSD Heat Sink Memory WLAN card WWAN card GPS module Primary SSD rail Battery bay...
  • Page 125 6. Open the rear I/O door [1] and remove the two epoxy caps screws in the rear I/O space [2]. 7. Remove the single 'M2*3' screw [1] to unroute the DC-in cable [2] from the screw post. 8. Disconnect the DC-in connector [3] from the system board. Removing and installing components...
  • Page 126 9. Remove the two 'M2*3' screws [1] on EDP bracket and remove the EDP bracket [2] to disconnect the EDP cable [3]. 10. Peel off the tape [1] and disconnect the rear I/O board FPC connector [2] from the system board. 11.
  • Page 127 13. Peel off the tape [1] to disconnect the left I/O board FPC connector [2] and pass it through the wall bridge [3]. 14. Peel off the tape on the express card FPC connectors [4] and an extra tape on the connector [5] on the system board. 15.
  • Page 128 18. Remove the two 'M2.5*5' screws and two 'M1.6*3.0' screws [1] from the USB Type-C bracket. 19. Remove the USB Type-C bracket [2] from the system board. 20. Remove the nine 'M2.5*5' screws [1], three 'M2*3' screws [2] and remove the system board [3] from the computer. Removing and installing components...

  • Page 129: Installing The System Board

    Installing the System board 1. Install the system board inserting the serial port on the system board through chassis [1] and install the nine 'M2.5*5' screws [2] and three 'M2*3' screws [3] on the system board. NOTE: When installing the System Board, technicians must ensure that both the battery cables (1st & 2nd Battery) and FPC cables (Left I/O FPC and Express Card reader FPC) are not pinched under the System Board.
  • Page 130 3. Connect the power button cable [1] to the system board and secure it using a piece of tape [2]. 4. Connect the USH board and touch pad cable [3] to the system board and secure it using a piece of tape [4]. 5.
  • Page 131 8. Connect the rear I/O FPC cable [1] to the system board and secure it using a piece of tape [2]. 9. Connect the battery indicator LED cable [3] to the system board and secure it using a piece of tape [4]. 10.
  • Page 132 13. Align and tuck the DC-In cable along the screw post [1] clearing the screw hole on the motherboard. 14. Connect the DC-In cable [2] and install the single 'M2*3' screw [3] on the system board. 15. Open both rear doors [1] and install the two epoxy cap screws in the rear I/O space [2]. Removing and installing components...
  • Page 133 16. Open both rear doors [1] and install the two epoxy cap screws on serial port [2] of the system board. 17. Connect the touch pad connectors to the system board [1] and secure it using a tape [2]. 18. Connect the SSD-ODD assembly [3] and secure it using a piece of tape [4]. Removing and installing components...

  • Page 134: Optical Drive

    19. Install the: Rear I/O board Battery bay Primary SSD rail GPS module WWAN card WLAN card Memory Heatsink Secondary SSD Primary SSD Docking port assembly PCIe heatsink assembly Keyboard Bottom chassis cover Batteries 20. Follow the procedure in After working inside your computer.
  • Page 135 WLAN card WWAN card GPS module Primary SSD rail Battery bay Rear I/O board System board 3. Remove the two retainers securing the wall bridge to the chassis. 4. Remove six 'M2.5*5' screws from the wall bridge section[1] and remove it from the computer [2]. 5.

  • Page 136: Installing The Optical Drive

    7. Remove the two 'M2*3' screws [1] and withdraw the optical drive out of the computer [2]. Installing the Optical drive 1. Insert the optical drive in the computer [1] and install the two 'M2*3' screws [2] securing the optical drive to the chassis. Removing and installing components...
  • Page 137 2. Connect the optical drive to the ODD/SSD FPC assembly [1] and install the two 'M2*2' screws [2]. 3. Close the right I/O door [3] and slide the latch in locking position [4]. 4. Align and place wall bridge[1] and install the six 'M2.5*5' screws on the wall bridge section to secure it to the chassis [2]. Removing and installing components...
  • Page 138 5. Install retainers securing the wall bridge to the chassis. 6. Install the: System board Rear I/O board Battery bay Primary SSD rail GPS module WWAN card WLAN card Memory Heatsink Secondary SSD Primary SSD Removing and installing components...

  • Page 139: Bottom Base Assembly

    Docking port assembly PCIe heatsink assembly Keyboard Bottom chassis cover Batteries 7. Follow the procedure in After working inside your computer. Bottom Base Assembly 1. Follow the procedure in Before working inside your computer. 2. To replace the bottom base assembly, remove the following components from old base: Handle Latched Doors Batteries...
  • Page 140 NOTE: See the order details to determine the exact specifics of subcomponents defined in the Bottom Chassis Assembly. 4. Install the following components to the new base: Optical drive System board Express Card Smart card Left I/O board Battery Bay Primary SSD rail Display assembly Rear I/O board...

  • Page 141: Chapter 4: Diagnostics

    Diagnostics This chapter details the built in troubleshooting features to diagnose the Dell systems. It also lists the invoking instructions along with related information for each diagnostics method. Topics: • ePSA Diagnostics • LCD Built-in Self Test (BIST) • Battery Status Lights •...
  • Page 142 ePSA Advanced Screen The advanced screen allows more directed testing and contains more detailed information about the overall health of the system. The user can get to this screen by simply swiping a finger to the left on touchscreen systems or clicking the next page button on the lower right hand side of the basic screen.
  • Page 143 2. Select the device from the left pane and click Run Tests or use Advanced Option to include or exclude any test. ePSA Error Messages When the Dell ePSA Diagnostic detects an error while running, it will pause the test and the following window is displayed: Diagnostics...

  • Page 144: Validation Tools

    ● By responding No, the diagnostic will stop testing the remaining untested device. ● By responding Retry, the diagnostic will ignore the error and rerun the last test. Capture the error code with Validation code or Scan QR code and Contact Dell. NOTE: As part of the new feature, user can now mute the beeping sound code when there is an error by clicking on the bottom right side of the error window.
  • Page 145 2. Navigate to https://www.dell.com/support/diagnose/Pre-boot-Analysis. 3. Enter error code, validation code, and service tag. Part serial number is optional. NOTE: For error code, use only the last 3 or 4 digits of the code. (user can enter 0142 or 142 instead of 2000–0142.) 4.
  • Page 146 Valid Error Code Example After entering the correct information, the online tools will direct the user to the above screen which contains information on : ● Confirmation of the error code and result outcome ● Suggested Part Replacement Diagnostics...
  • Page 147 ● If customer is still covered under Dell Warranty ● Case reference number if there is an open case under the service tag Invalid Error Code Example QR APP Validation Tool Besides using the online tool, customers can also validate the error code by scanning the QR code with a QR APP on a smartphone.
  • Page 148 3. The QR code scanner application will scan the code and automatically generate a link. Click the link to proceed. Diagnostics...
  • Page 149 The link generated will take the customer to the Dell Support website which contains information on: ● Confirmation of the error code and result outcome ● Suggested Part Replacement ● If customer is still covered under Dell Warranty ● Case reference number if there is an open case under the service tag...

  • Page 150: Lcd Built-In Self Test (Bist)

    LCD Built-in Self Test (BIST) Dell laptops have a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with the LCD (screen) of the Dell laptop or with the video card (GPU) and PC settings.

  • Page 151: Battery Status Lights

    Battery Status Lights If the computer is connected to an electrical outlet, the battery light operates as follows: Alternately An unauthenticated or unsupported non-Dell AC adapter is attached to your laptop. blinking amber light and green light Alternately Temporary battery failure with AC adapter present.

  • Page 152: Wifi Power Cycle

    Table 25. LED pattern (continued) Blinking pattern Problem Description Suggested Resolution Green White BIOS recovery 2 Recovery image found but invalid Power Rail Failure EC ran into power sequencing failure SBIOS Flash Corruption Flash corruption detected by SBIOS ME Error Timeout waiting on ME to reply to HECI message WiFi power cycle...

  • Page 153: Bios Recovery Using Hard Drive

    BIOS recovery using hard drive NOTE: Ensure that you have the previous version and the latest version of the BIOS from the Dell support site available to use. NOTE: Ensure that you have the file type extensions visible in the operating system (OS).

  • Page 154: Updating The Bios

    One-Time boot menu on the computer. Most of the Dell computers built after 2012 have this capability, and you can confirm by booting your computer to the F12 One-Time Boot Menu to see if BIOS FLASH UPDATE is listed as a boot option for your computer. If the option is listed, then the BIOS supports this BIOS update option.

  • Page 155: Self-Heal

    ● USB drive formatted to the FAT32 file system (key does not have to be bootable) ● BIOS executable file that you downloaded from the Dell Support website and copied to the root of the USB drive ● AC power adapter that is connected to the computer ●...
  • Page 156 ● Latitude Self-Heal can be avoided when complete system tear-down is required to access the coin-cell battery. ● For the Latitude E7 Series (XX70), BIOS Recovery 2.0 should be performed as the primary step. ● In order to reduce troubleshooting time associated with Self-Heal, there is no mandatory requirement to reassemble the system.

  • Page 157: Chapter 5: Getting Help

    Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues: 1. Go to Dell.com/support.

This manual is also suitable for:

P86g

Table of Contents
