Dynabrade Dynabug II Safety, Operation And Maintenance Manual page 8

Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Self-Generated Vacuum
1 2 3
Vacuum-Ready
8
FIND THE MOST CURRENT OFFERING OF SUPPORT DOCUMENTS AND ACCESSORIES @ WWW.DYNABRADE.COM
98222 Motor Tune-Up Kit
•
Includes assorted parts to
help maintain and repair motor.
59469 Drop-In Motor
Note: Not for use with model
•
Allows quick and easy replacement.
No motor adjustments needed.
96232 (#2) Arbor Press
•
This arbor press is ideal for the disassembly
and assembly of air motors.
96346 2" Bearing Separator
•
Use the separator to remove gears
and bearings.
95266 – 3mm Hex Wrench
96343 Retaining Ring Pliers
•
Internal/external retaining ring pliers.
Tip diameter - 0.038" (0.96mm)
Reference Contact Information
1. American National Standards Institute – ANSI
25 West 43 rd Street
Fourth Floor
New York, NY 10036
Tel: 1 (212) 642-4900
Fax: 1 (212) 398-0023
Visit Our Web Site: www.dynabrade.com
DYNABRADE, INC., 8989 Sheridan Drive • Clarence, NY 14031-1490 • Phone: (716) 631-0100 • Fax: 716-631-2073 • International Fax: 716-631-2524
DYNABRADE EUROPE S.àr.l.,
© DYNABRADE, INC., 2010
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

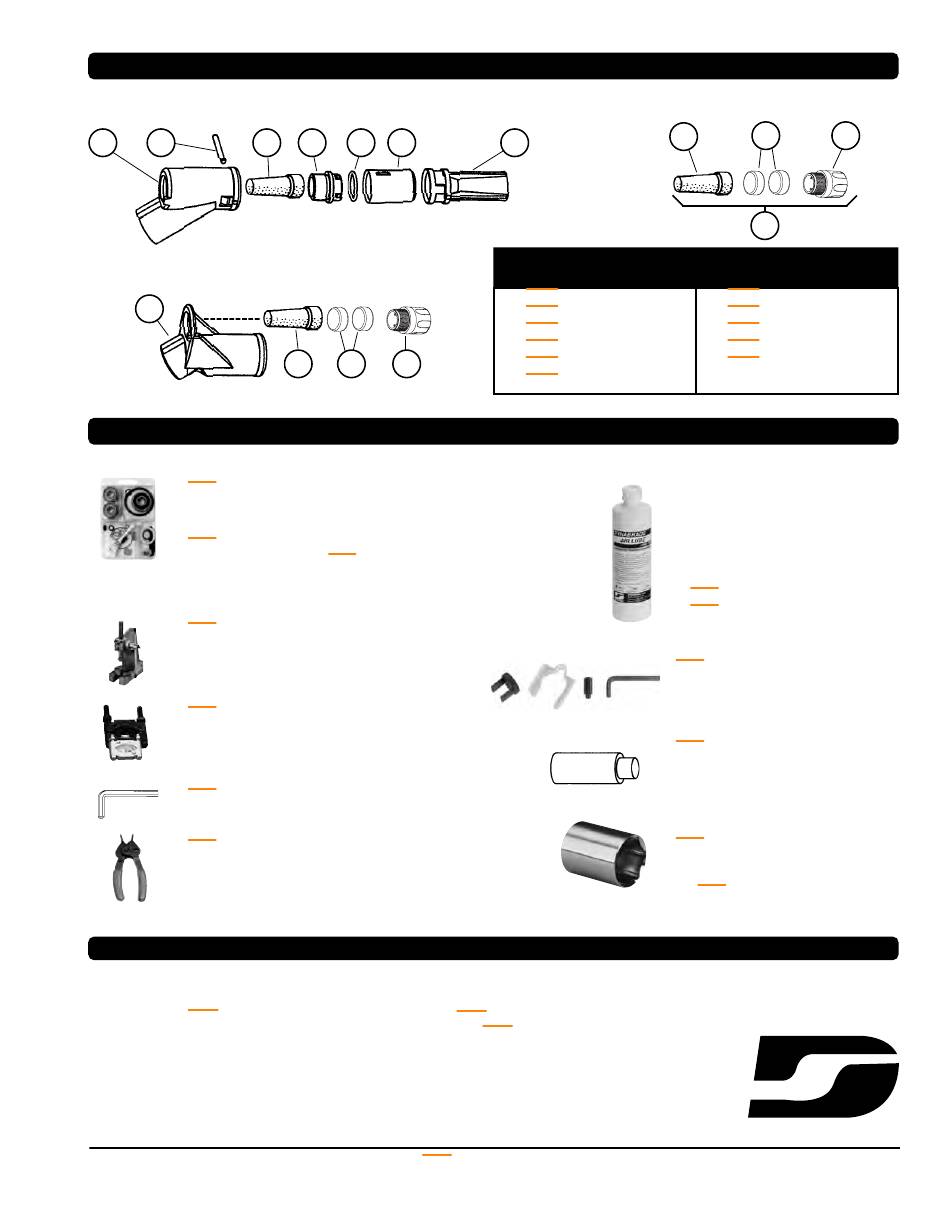

Machine Exhaust Assemblies
4 5 6
3 9 10
Optional Accessories
58507
2. Government Printing Office – GPO
Superintendent of Documents
Attn. New Orders
P.O. Box 371954
Pittsburgh, PA 15250-7954
Tel: 1 (202) 512-1803
Zone Artisanale • L-5485 Wormeldange—Haut, Luxembourg • Telephone: 352 76 84 94 1 • Fax: 352 76 84 95 1
PRINTED IN USA
7
Index Key
No. Part # Description
1 57083 Vacuum Adapter
2 96197 Dowel Pin
3 57065 Cone Muffler
4 57066 Muffler Body
5 95526 O-Ring
6 57068 Vac Nozzle
Dynabrade Air Lube
57874
57091
96066
3. European Committee for Standardization
Rue de Stassart 36
B - 1050 Brussels, Belgium
Email: Customer.Service@Dynabrade.com
Non-Vacuum
9 10
3
11
7 57067 Vac Tube
8 57093 Vacuum Adapter
9 56027 Muffler Insert (2)
10 69359 Muffler Cap
11 69274 Muffler Assembly
•
Formulated for pneumatic equipment.
•
Absorbs up to 10% of its weight in water.
•
Prevents rust and formation of sludge.
•
Keeps pneumatic tools operating longer
with greater power and less down time.
95842: 1pt. (473 ml)
95843: 1gal. (3.8 L)
Repair Kit:
• Contains special tools for
disassembly/assembly of machine.
Bearing Press Tool
•
This tool is used to push against the I.D.
of the bearing.
SOCKET (3/4")
•
This tool is a thin wall socket specifically
designed for installing and removing
56028 Muffler Caps.
