Models:
58400 - 5" Pad, 3/16" Orbit, Non-Vac
58401 - 5" Pad, 3/16" Orbit, Vac-Ready
58405 - 6" Pad, 3/16" Orbit, Non-Vac
58406 - 6" Pad, 3/16" Orbit, Vac-Ready
58409 - 6" Pad, 3/16" Orbit, Central Vac

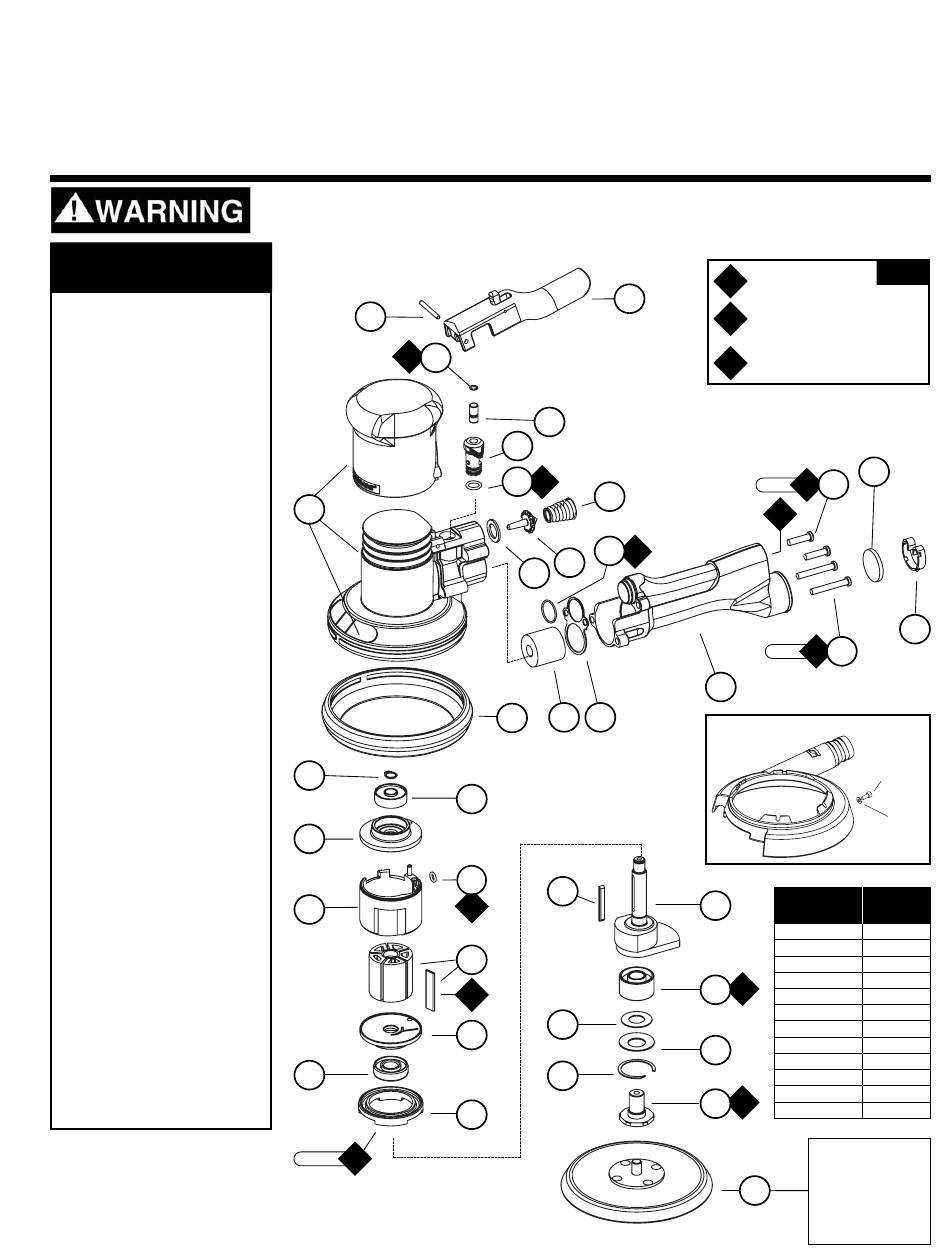

Index Key
No. Part # Description
1 Sanding Pad: See Chart
2 57069 Balancer Shaft
3 95630 Snap Ring
4 95628 Bearing Shield
5 56053 Bearing Seal
6 56052 Bearing
7 Motor Shaft Balancer
57364 5", 3/16" Orbit
56687 5", 3/8" Orbit
57365 6", 3/16" Orbit
56688 6", 3/8" Orbit
8 54673 Key
9 56046 Lock Ring
10 02695 Bearing
11 54630 Front Bearing Plate
12 54705 Rotor/Blade Set (5/pkg.)
13 56595 Cylinder Assembly
(Includes: 95865 Pin)
14 01020 O-Ring
15 54629 Rear Bearing Plate
16 01206 Bearing
17 95626 Retaining Ring
18 Shroud
57369 Lip Seal Shroud
57737 6" Vacuum Shroud
19 Housing Assembly: See Chart
(Includes: 56581 Housing Grip
and labels)
20 95627 Pin
21 56582 Safety Throttle Lever
22 98459 O-Ring
23 56579 Valve Stem
24 56578 Speed Regulator
25 01025 O-Ring (3)
26 56598 Seal
27 51944 Tip Valve
28 51943 Spring
*
29 56586
Vacuum Plug
30 56469 Exhaust Gasket
31 96459 O-Ring
32 56468 Handle Housing Assy.
(Includes 51938 Screen)
33 96469 Screw (2)
34 96454 Screw (2)
*
35 56597
Muffler
*
36 56596
Muffler Clip
*
Specific Components For Models:
5", 6" Non-Vacuum
6" Central Vacuum
58415 - 5" Pad, 3/8" Orbit, Non-Vac
58416 - 5" Pad, 3/8" Orbit, Vac-Ready
58418 - 6" Pad, 3/8" Orbit, Non-Vac
58419 - 6" Pad, 3/8" Orbit, Vac-Ready
58420 - 6" Pad, 3/8" Orbit, Central Vac
Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools
(ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade
Warning/Safety Operating Instructions for more complete safety information.
20
O
22
1
19
17
15
13
10
T
34 N•m

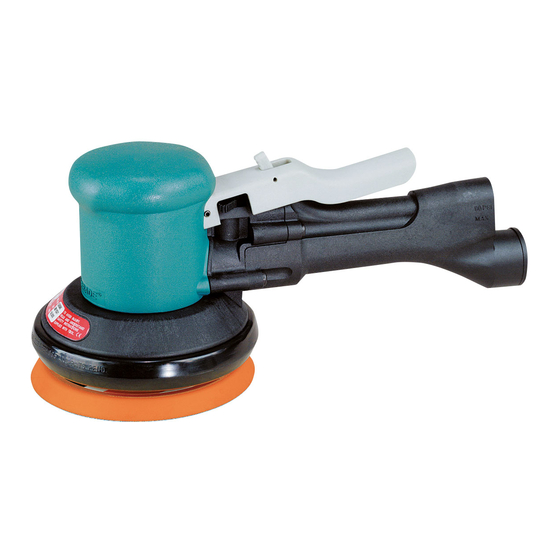

Random Orbital Sander
12,000 RPM Air Motor and Machine Parts
21
23
24
O
25
1
28
O
31
1
27
26
29
30
18
16
14
8
O
1
12
O
1
5
11
3
9
Parts Page Reorder No. PD04•03
Effective January, 2004
5" & 6" 2-Hand
Oil: O
= Air Lube
O
1
A
Adhesive: A
= Loctite #271
2
T
Torque: N•m x 8.85 = In. - lbs.
T
33
3 N•m
O
1
T
3 N•m
34
32
57737 VACUUM SHROUD
HOUSING
7
ASSEMBLY #
64431
64432
64435
64436
A
6
2
64437
64440
64446
64447
4
64448
64449
64450
A
2
2
64451
SANDING PADS
56104 - 5" Vac
56105 - 6" Vac
1
56106 - 5" Non-Vac
56107 - 6" Non-Vac
'
s
KEY
35
36
96425
Screw (4)
95886
Washer (4)
MODEL
NUMBER
58400
58401
58404
58405
58406
58409
58415
58416
58417
58418
58419
58420
Advertisement
Table of Contents
Related Manuals for Dynabrade 58401
Summary of Contents for Dynabrade 58401
- Page 1 Always operate, inspect and maintain this tool in accordance with the Safety Code for portable air tools ’ (ANSI B186.1) and any other applicable safety codes and regulations. Please refer to Dynabrade Warning/Safety Operating Instructions for more complete safety information.
- Page 2 2. Some silencers on air tools may clog with use. Clean and replace as required. 3. All Dynabrade rotary vane air motors should be lubricated. Dynabrade recommends one drop of air lube per minute for each 20 SCFM (example: if the tool specifications state 40 SCFM, set the drip rate of your filter-lubricator at 2 drops per minute).
- Page 3 7. Install the 54673 Key and 54705 Rotor/Blade Set (5) onto the motor shaft balancer. 8. Apply the 95842 Dynabrade Air Lube (10W/NR or equivalent) to the blades. 9. Install the 56595 Cylinder over the rotor so that the short line-up pin fits into the front bearing plate.
- Page 4 Important: Motor should now be tested for proper operation at 90 PSIG. If motor does not operate properly or operates at a higher RPM than marked on the tool, the tool should be serviced to correct the cause before use. Before operating, place 2-3 drops of Dynabrade Air Lube (P/N 95842) directly into air inlet with throttle lever depressed. Operate tool for 30 seconds to determine if tool is operating properly and to allow lubricating oils to properly penetrate motor.
