Important: To keep tools safe a preventative maintenance program is recommended whenever portable power tools are used.
• Use only genuine Dynabrade replacement parts to insure quality. To order replacement parts, specify Model#, Serial# and RPM of your air tool.
• It is strongly recommended that all Dynabrade rotary vane air tools be used with a Filter-Regulator-Lubricator to minimize the possibility of misuse due
to unclean air, wet air or insufficient lubrication. Dynabrade recommends the following:
air pressure regulation and two stage filtration of water contaminates. Operates 40 SCFM/1,133 LPM @ 100 PSIG with 3/8" NPT female ports.
• Dynabrade recommends one drop of air lube per minute for each 20 SCFM (example: if the tool specification states 40 SCFM, set the drip rate on the
filter-lubricator to 2 drops per minute). Dynabrade Air Lube (P/N 95842: 1 pt 473 ml) is recommended.
Routine Preventative Maintenance: Check free speed of
• Mineral spirits are recommended when cleaning the tool and parts. Do not clean tool or parts with any solvents or oils containing acids, esters,
ketones, chlorinated hydrocarbons or nitro carbons.
• DO NOT clean or maintain tools with chemicals that have a low flash point (example: WD-40
• Air tool stampings must be kept legible at all times, if not, reorder and replace. User is responsible for maintaining specification information i.e.:
Model #, S/N, and RPM.
• Blow air supply hose out prior to initial use.
• Visually inspect air hoses and fittings for frays, visible damage and signs of deterioration. Replace damaged or worn components.
• Refer to Dynabrade's Warning/Safety Operating Instructions Tag (Reorder No. 95903) for safety information.
After maintenance is performed on tool, add a few drops of Dynabrade Air Lube (P/N 95842) to the air line and start the tool a few times to lubricate air motor.
Check for excessive tool vibration.
Handling and Storage:
• Protect tool inlet from debris (See Notice Below).
• DO NOT carry tool by air hose.
• Protect abrasive accessories from exposure to water, solvents, high humidity, freezing temperature and extreme temperature changes.
• Store accessories in protective racks or compartments to prevent damage.
All Dynabrade motors use the highest quality parts and materials available and are machined to exacting tolerances. The failure of quality pneumatic motors
can most often be traced to an unclean air supply or the lack of lubrication. Air pressure easily forces dirt or water contained in the air supply into motor
bearings causing early failure. It often scores the cylinder walls and the rotor blades resulting in limited efficiency and power. Our warranty obligation is
contingent upon proper use of our tools and cannot apply to equipment which has been subjected to misuse such as unclean air, wet air or a lack of
lubrication during the use of this tool.
All Dynabrade portable pneumatic power tools are rigorously inspected and performance tested in our factory before shipping to our customers. If a Dynabrade
tool develops a performance problem and an inherent defect is found during normal use and service, Dynabrade will warrant this tool against defects in
workmanship and materials for the lifetime of the tool. Upon examination and review at our factory, Dynabrade shall confirm that the tool qualifies for warranty
status, and will repair or replace the tool at no charge to the customer. Normally wearable parts and products are NOT covered under this warranty. Uncovered
items include bearings, contact wheels, rotor blades, regulators, valve stems, levers, shrouds, guards, O-rings, seals, gaskets and other wearable parts.
Dynabrade's warranty policy is contingent upon proper use of our tools in accordance with factory recommendations, instructions and safety practices. It shall not
apply to equipment that has been subjected to misuse, negligence, accident or tampering in any way so as to affect its normal performance. To activate lifetime
warranty, customer must register each tool at www.dynabrade.com. Dynabrade will not honor lifetime warranty on unregistered tools. A one-year warranty will be
honored on all unregistered portable pneumatic power tools. Lifetime warranty applies only to portable pneumatic tools manufactured by Dynabrade, Inc. in the
USA. Lifetime warranty applies only to the original tool owner; warranty is non-transferable.
Model Motor Motor
Number hp (W) RPM
58500/58509 .15 (112) 10,000
58501 .15 (112) 10,000
58502 .15 (112) 10,000
58503 .15 (112) 10,000
58504 .15 (112) 10,000
58505 .15 (112) 10,000
58506 .15 (112) 10,000
58507 .15 (112) 10,000

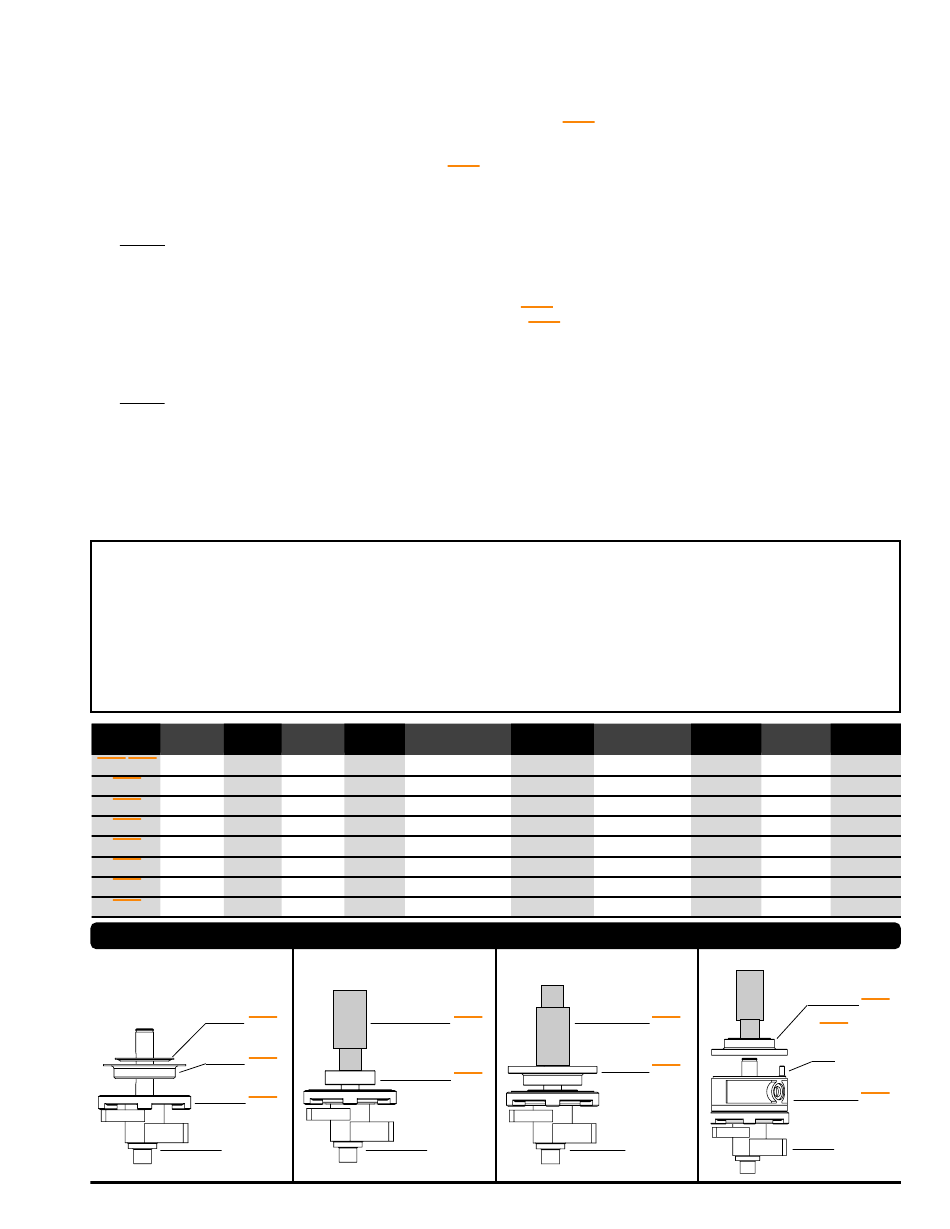

Drawing 1
59083
Felt Washer
59057
Front Bearing Seal
56046
Lock Ring
Motor Shaft
Balancer
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

Maintenance Instructions

using a tachometer.
II
Dynabug ®
Notice

Lifetime Warranty

Air Inlet Sound Air Flow Rate
Thread Level SCFM (LPM)
1/4" NPT 81 dB(A) 13 (368)
1/4" NPT 78 dB(A) 13 (368)
1/4" NPT 83 dB(A) 13 (368)
1/4" NPT 81 dB(A) 13 (368)
1/4" NPT 78 dB(A) 13 (368)
1/4" NPT 83 dB(A) 13 (368)
1/4" NPT 83 dB(A) 13 (368)
1/4" NPT 82 dB(A) 13 (368)
Diagrams
Drawing 2
57091
Bearing Press Tool
58368
Front Bearing
Motor Shaft
Balancer
10681 Air Filter-Regulator-Lubricator (FRL) – Provides accurate
® ).
Air Pressure Hose I.D.
PSIG (Bars) Inch (mm)
90 (6.2) 1/4" (6)
90 (6.2) 1/4" (6)
90 (6.2) 1/4" (6)
90 (6.2) 1/4" (6)
90 (6.2) 1/4" (6)
90 (6.2) 1/4" (6)
90 (6.2) 1/4" (6)
90 (6.2) 1/4" (6)
Drawing 3
57091
Bearing Press Tool
57893
Front Bearing
Plate
Motor Shaft
Balancer
3
Weight Length Height
Pound (kg) Inch (mm) Inch (mm)
1.8 (.8) 5-3/4 (147) 3.5 (91)
1.9 (.85) 8-1/4 (212) 3.5 (91)
1.8 (.8) 7 (180) 3.5 (91)
1.8 (.8) 6-1/4 (157) 3.5 (91)
1.9 (.85) 8-3/4 (222) 3.5 (91)
1.8 (.8) 7-1/2 (190) 3.5 (91)
1.8 (.8) 8-3/4 (222) 3.5 (91)
2.1 (.95) 7-1/16 (179) 3.75 (91)
Drawing 4
57891
Rear Bearing Plate
(w/ 58368 Bearing)
Line-Up Pin
59051
Cylinder Assembly
(w/Rotor & Vanes)
Motor Shaft
Balancer
