Dynabrade Dynabug II Safety, Operation And Maintenance Manual page 4

Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade
Models:
58500, 58501, 58502
58503, 58504, 58505
58506, 58507, 58509
Index Key
No. Part # Description
1 Screw (4)
96539 Models: 58500-06, 09
96080 Model: 58507 Only
2 96538 Lock Washer (8)
3 Pads: See Chart
4 95344 Screw
5 95935 Washer
6 54552 Bearing
7 57895 Pad Base (Standard)
57875 Pad Base (w/Clips)
8 57896 Felt Seal
9 94590 Pin (2)
10 57899 Spring (2)
11 57834 Rubber Grip (2)
12 57898 Clip (2)
13 Shaft Balancer
57892 Models: 58500-06, 09
57894 Model: 58507
14 56047 Key
15 56046 Lock Ring
16 59057 Front Bearing Seal
17 59083 Felt Washer
18 58368 Bearing (2)
19 57893 Front Bearing Plate
20 57113 Blade (5)/Rotor Set
21 59051 Cylinder
(Incl. 01024 O-Ring)
22 01024 O-Ring
23 57891 Rear Bearing Plate
24 98463 Retaining Ring
25 57890 Isolator Post (4)
26 Housing: See Chart
27 96539 Screw (4)
28 57888 Throttle Lever
29 94590 Pin
30 98459 O-Ring
31 58363 Valve Stem
32 59075 Speed Regulator
33 01025 O-Ring (2)
34 95697 Retaining Ring
35 01464 Seal
36 58365 Tip Valve
37 01468 Spring
38 01494 Inlet Bushing
39 57897 Vacuum Tube
40 96540 Vacuum Port Cover
41 57041 Comfort Platform
KEY
Oil: O = Air Lube
O
1
Adhesive: A = Loctite #271
A
2
A = Loctite #567
8
A = Loctite #243
10
T Torque: N•m x 8.85 = In. - lbs.
Buy parts on line at https://Dynashop.co.uk/ for all things Dynabrade

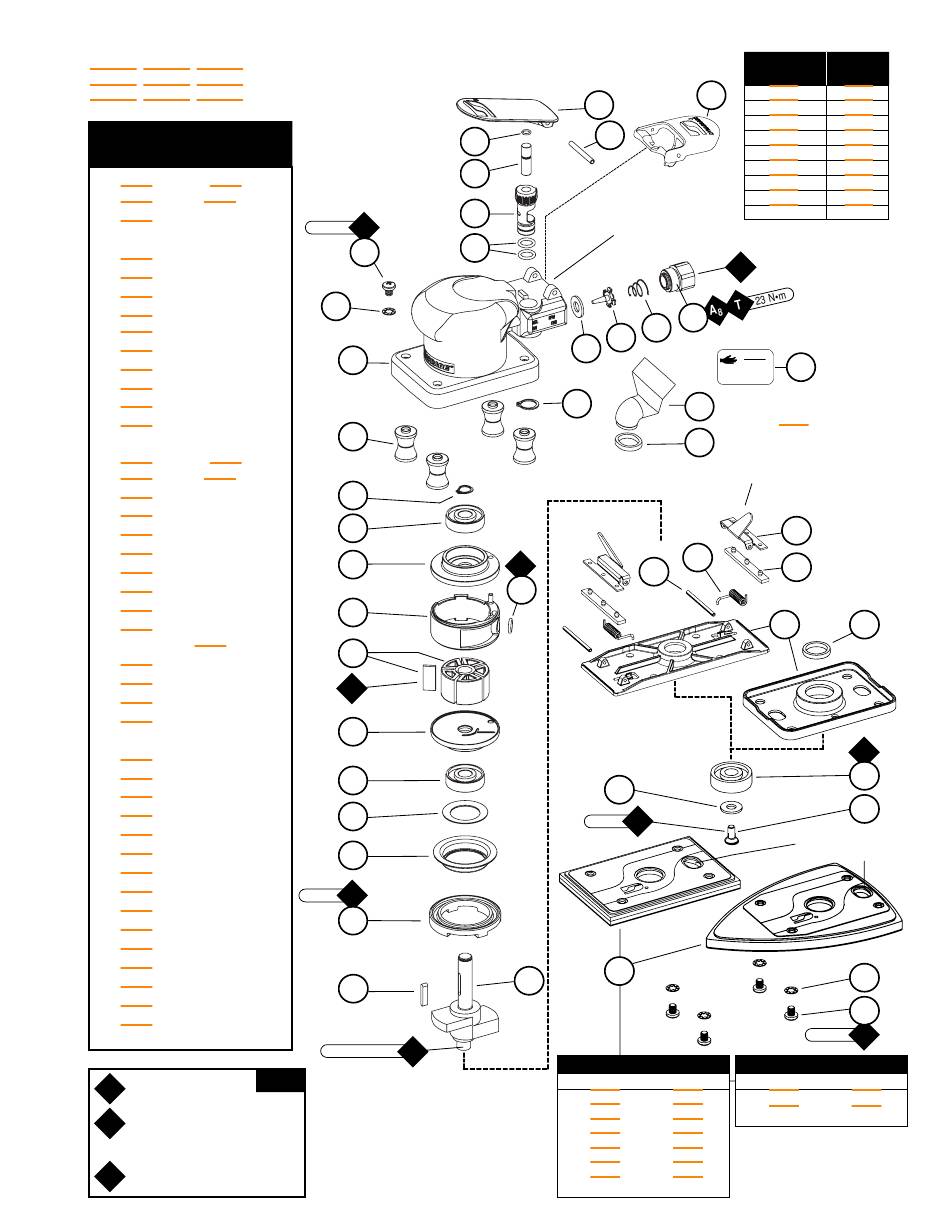

Dynabug ® II Complete Assembly
30
31
32
T
2.5 N•m
33
27
2
26
25
24
18
23
21
20
O
1
19
18
17
16
T
17 N•m
15
14
A
Internal Threads
10
4
28
29
Page 8 displays exhaust and
vacuum configurations.
38
37
36
35
34
39
10
O
1
9
22
5
T
5 N•m
3
13
HOOK & LOOP SANDING PADS
Model No. Pad No.
58500 ................ 56315
58501 ................ 56316
58502 ................ 56316
58503 ................ 56317
58504 ................ 56319
58505 ................ 56319
58506 ................ 56323
HOUSING MODEL
ASSEMBLY # NUMBER
58064 58500
41
58065 58501
58066 58502
58067 58503
58068 58504
58069 58505
58062 58506
58061 58507
58071 58509
O
1
WARNING WARNING
DO NOT REMOVE DO NOT REMOVE
40
Note: 57867 Complete
8
Clipped Pad Base Assembly
available, includes items:
#6, 7, 9, 10, 11 and 12.
12
11
7 8
A
2
6
4
Note: Orientation of
Vacuum Pad.
2
1
T
2.5 N•m
VINYL SANDING PAD
Model No. Pad No.
58507 ................ 56354
58509 ................ 56355
