Operating instructions
Pushbutton sensor 4 Komfort, 1-gang
Order no. 5001 ..
Pushbutton sensor 4 Komfort, 2-gang
Order no. 5002 ..
Pushbutton sensor 4 Komfort, 4-gang
Order no. 5004 ..
Product image non-binding

Advertisement

Table of Contents
loading

Summary of Contents for Gira One 5001 Series

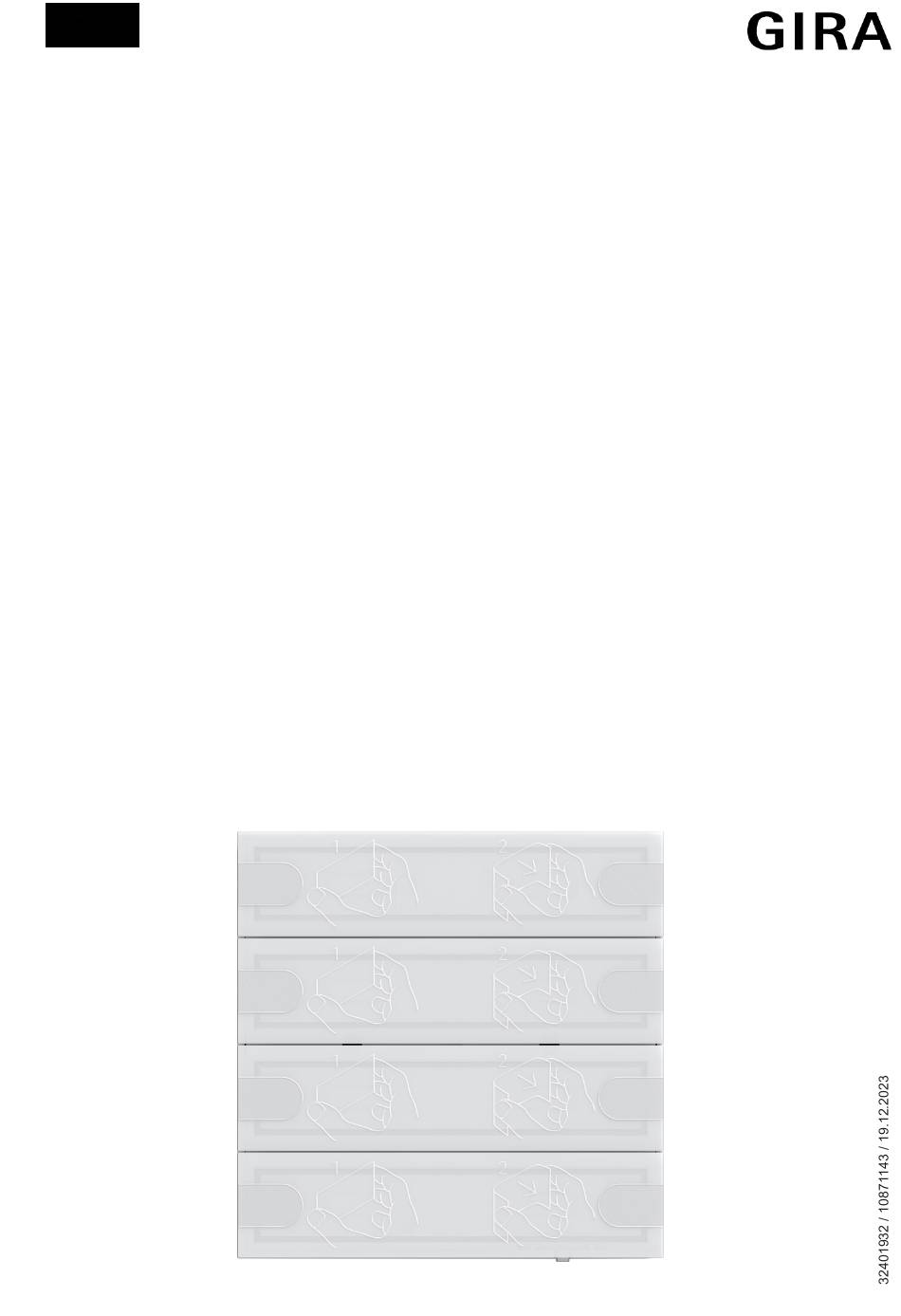

  • Page 1 Operating instructions Pushbutton sensor 4 Komfort, 1-gang Order no. 5001 .. Pushbutton sensor 4 Komfort, 2-gang Order no. 5002 .. Pushbutton sensor 4 Komfort, 4-gang Order no. 5004 .. Product image non-binding...
  • Page 2: Table Of Contents

    Pushbutton sensor 4 Komfort Table of contents Safety instructions ...................... 3 Device components ...................... 4 System information ...................... 6 Intended use ........................ 6 Product characteristics .....................  7 Operation ..........................  8 Information for electrically skilled persons ................  9 Mounting and electrical connection................  9 Commissioning ....................
  • Page 3: Safety Instructions

    Pushbutton sensor 4 Komfort Safety instructions Electrical devices may be mounted and connected only by electrically skilled persons. Serious injuries, fire or property damage are possible. Please read and follow the manual fully. Danger of electric shock. During installation and cable routing, comply with the regu- lations and standards which apply for SELV circuits.
  • Page 4: Device Components

    Pushbutton sensor 4 Komfort Device components Front view Figure 1: Device components 4-gang Operating rockers Status LED Additional button 1...8 Buttons assignment and status LED The additional button (c) is functional from hardware version I01 onwards and is only intended for the KNX system. Rear view Figure 2: Device components - rear side Connection for remote sensor...
  • Page 5 Pushbutton sensor 4 Komfort Device connection terminal 32401932 10871143 19.12.2023 5 / 20...
  • Page 6: System Information

    It can be operated via Gira One switches, by app from home or securely from a remote location. Electrically skilled persons can maintain the Gira One project re- motely free of charge.
  • Page 7: Product Characteristics

    Pushbutton sensor 4 Komfort Product characteristics – Push-button sensor 4 comfort for operation of the Gira One system – Integrated temperature sensor for measuring the room temperature – Integrated air humidity sensor for measuring the ambient air humidity – Input for external remote sensor for measuring the floor temperature –...
  • Page 8: Operation

    Pushbutton sensor 4 Komfort Operation ■ Switch: Short press on button. ■ Dim: Long press on button. The dimming process ends when the button is re- leased. ■ Move shading: Long press on button. ■ Stop or adjust shading: Short press on button. 32401932 10871143 19.12.2023...
  • Page 9: Information For Electrically Skilled Persons

    Pushbutton sensor 4 Komfort Information for electrically skilled persons Mounting and electrical connection DANGER! Electric shock when live parts are touched. Electric shocks can be fatal. Cover up live parts in the installation environment. Figure 3: Mount device Operating rockers Locking screws Supporting frame Programming button Push-button sensor...
  • Page 10 Pushbutton sensor 4 Komfort Use the enclosed box screws (k). ■ Pull off commissioning rockers from push-button sensor. The push-button sensor is delivered with commissioning rockers. The operat- ing rockers suitable for the push-button sensor must be ordered separately (see accessories). ■...
  • Page 11: Commissioning

    Pushbutton sensor 4 Komfort Commissioning The device is commissioned with the Gira Project Assistant (GPA), version 5.1 or higher. All status LEDs are switched off during programming. As soon as the program- ming is successfully completed, the status LEDs carry out their parameterised function.
  • Page 12: Safe-State Mode

    Pushbutton sensor 4 Komfort 7.2.1 Safe-state mode The safe-state mode stops the execution of the program. Only the system software of the device is still functional. Diagnosis functions and programming of the device are possible. Activating safe-state mode ■ Switch off the voltage. ■...
  • Page 13: Master Reset

    Pushbutton sensor 4 Komfort 7.2.2 Master reset The master reset restores the basic device settings (firmware remains in place). The device must then be recommissioned with the GPA. Performing a master reset Precondition: The safe-state mode is activated. ■ Press and hold down the programming button for > 5 seconds until the pro- gramming LED starts flashing quickly.
  • Page 14: Mounting The Rockers

    Pushbutton sensor 4 Komfort Mounting the rockers ■ Attach the rocker centrally. ■ Press on the rocker with both thumbs (see figure 4). The rocker snaps into place. Device is ready for operation. Figure 4: Press lightly in the middle of the rocker 32401932 10871143 19.12.2023...
  • Page 15: Removing Commissioning Rockers

    Pushbutton sensor 4 Komfort Removing commissioning rockers ■ Pull the commissioning rocker on both sides to release it from the push-button sensor (see figure 5). Figure 5: Removing the commissioning rocker 32401932 10871143 19.12.2023 15 / 20...
  • Page 16: Removing Rockers

    Pushbutton sensor 4 Komfort Removing rockers ■ Pull the rocker on one side to release it from the push-button sensor (see figure 6). Figure 6: Removing the rocker 32401932 10871143 19.12.2023 16 / 20...
  • Page 17: Technical Data

    Pushbutton sensor 4 Komfort Technical data Rated voltage DC 21 ... 32 V SELV Current consumption, bus 8 ... 18 mA Connection type for bus Device connection terminal Connecting cable, bus EIB-Y (St)Y 2x2x0.8 Protection class Installation dimensions (see figure 7) Construction height 12.5 µm Installation depth...
  • Page 18: Parameter List

    Pushbutton sensor 4 Komfort Parameter list Parameters that can be set via the GPA: Status LED brightness Heavily dimmed Dimmed Normal Bright Very bright The brightness of the status LEDs can be defined here. In the case of the push-button sensor 2-gang or 4-gang, this setting applies to all LEDs.
  • Page 19: Accessories

    Please submit or send faulty devices postage paid together with a fault de- scription to your responsible salesperson (specialist trade / installation company / electrical specialist trade). They will forward the devices to the Gira Service Center. 32401932 10871143 19.12.2023...
  • Page 20 Pushbutton sensor 4 Komfort Gira Giersiepen GmbH & Co. KG Elektro-Installations- Systeme Industriegebiet Mermbach Dahlienstraße 42477 Radevormwald Postfach 12 20 42461 Radevormwald Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de 32401932 10871143 19.12.2023 20 / 20...
