KNX
Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m
Motion detector Comfort 1.10 m
Order No. : 2050..
Motion detector Standard 1.10 m
Order No. : 2040..
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
Caution. Damage to sensors may result due to high thermal radiation. Avoid direct
sunlight penetration in the sensor window.
These instructions are an integral part of the product, and must remain with the end
customer.
2 Device components
32597022
10864544

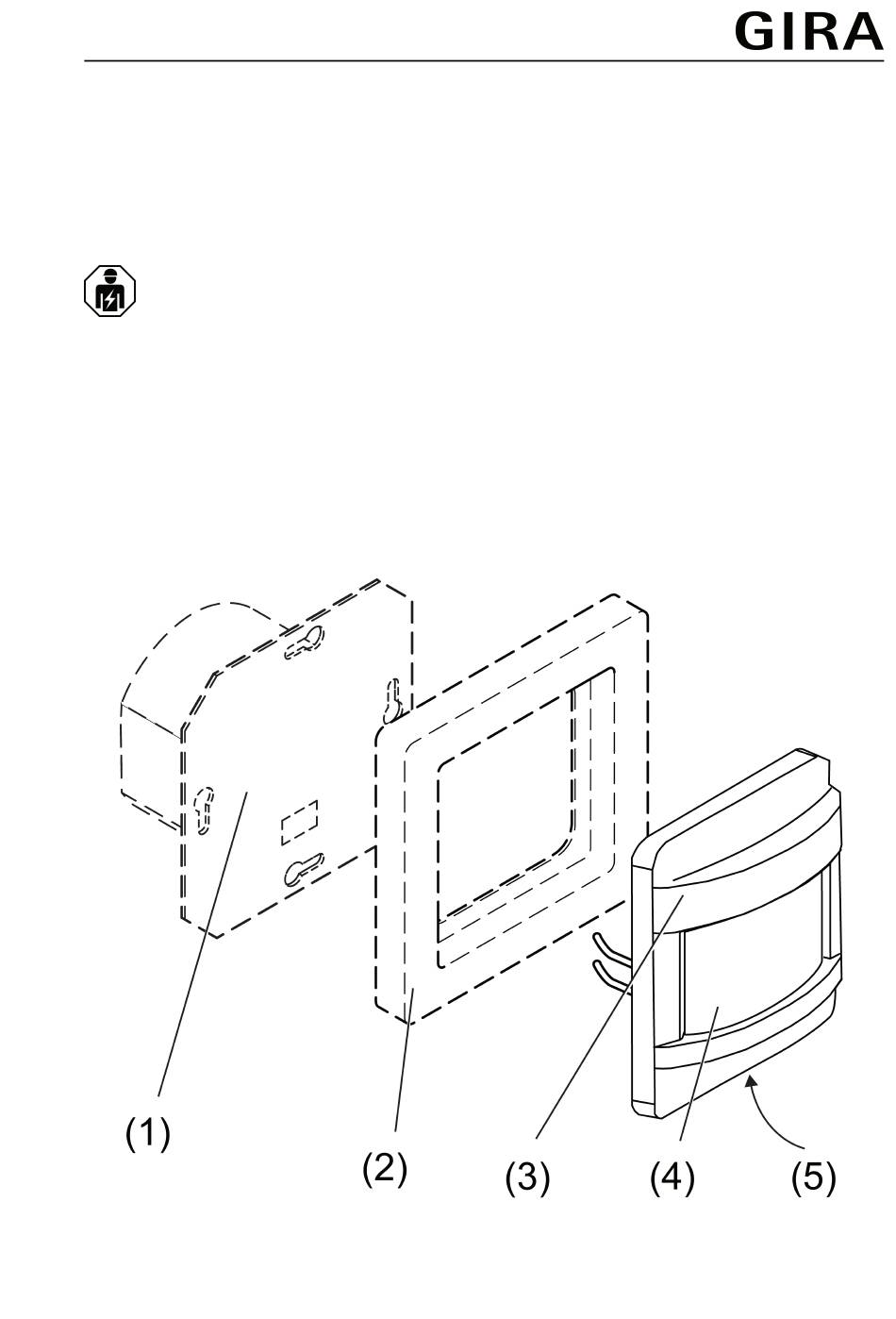

Figure 1: Device components
27.02.2018
1/15
Advertisement
Table of Contents
Related Manuals for Gira 2050 Series
Summary of Contents for Gira 2050 Series
- Page 1 Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m Motion detector Comfort 1.10 m Order No. : 2050.. Motion detector Standard 1.10 m Order No. : 2040.. Operating instructions 1 Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons.
- Page 2 Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m Figure 2: Adjuster Sens. (rear side) (1) Bus coupler 3 (2) Frame (3) Motion detector (4) Sensor window (5) Slide button (6) Adjuster Sens. 3 Function System information This device is a product of the KNX system and complies with the KNX directives. Detailed technical knowledge obtained in KNX training courses is a prerequisite to proper understanding.
- Page 3 Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m Function blocks switchable, e.g. for day/night operation Brightness sensor function with 3 limiting values Alarm when unplugging from the bus coupler Temperature measurement Motion detection function The detection of movements is done through the "passive infrared" principle ("PIR"). The device generally reacts to heat radiation changes within its detection area.
- Page 4 Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m Figure 4: Detection of heat sources – detection field geometry and distance (photometric distance law) Figure 5: Size, insulation and contrast of heat sources Interference sources for motion detection In addition to the mentioned effects, other objects within the detection area could also trigger the motion detector, e.g.: Heat sources such as heating units, outlets from ventilation openings or air conditioners, copiers, printers, coffee machines, etc.
-
Page 5: Operation
Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m Figure 6: Heat sources in buildings Some of the mentioned effects can be compensated for using intelligent filter switches by calibrating the received signals with typical motion patterns. Selecting the device and installation location should be made so that the detection field is suited for the intended purpose. - Page 6 Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m Figure 7: Slide button ON / AUTO position: Switching on, e.g. light, or return to Automatic operating mode. OFF / AUTO position: Switching off, e.g. light, or return to Automatic operating mode. In the Automatic operating mode detected movements within the detection field trigger a switch- on signal.
-
Page 7: Ir Remote Control
Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m BU Blue. Movement detected (parameter-dependent). IR reception (only for "Comfort" version) RD Red. Programming mode is active. 5 IR remote control Only for "Comfort" version: Function buttons IR remote control Button Function ¿... -
Page 8: Information For Electrically Skilled Persons
Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m Switch on, e.g. light: Press the ¿ button. Switch off, e.g. light: Press the Á button. Set automatic mode: Press the À button. Manually changing settings with IR remote control If enabled, individual settings for function block 1 can be changed during operation using a remote control. -
Page 9: Fitting And Electrical Connection
Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m 6.1 Fitting and electrical connection Detection field and range Figure 9: Range with tangential direction of motion 32597022 10864544 27.02.2018 9/15... - Page 10 Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m Figure 10: Range with radial direction of motion The size of the detection area depends on the direction of motion and the adjusted sensitivity. As the distance to the detector increases, the detection density and sensitivity decrease. 4: High sensitivity 1: Low sensitivity i The specifications on the extent of the detection area are general guide values.
- Page 11 Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m Figure 11: Detection field and mounting height Selecting installation location Select a vibration-free installation location. Vibrations can lead to unwanted switching. To achieve optimum range, choose an installation location that is transversal to the direction of motion.
- Page 12 Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m Figure 13: Range with tangential direction of motion 32597022 10864544 27.02.2018 12/15...
- Page 13 Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m Figure 14: Range with radial direction of motion Figure 15: Mount the cover at 90° Fitting the device Prerequisite: Bus coupler (1) is mounted in an appliance box and connected. Install the motion detector (3) with frame (2) onto the bus coupler (1) in the correct orientation.
-
Page 14: Warranty
Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m Write the physical address on the device label. Load the application program into the device. i In case of active temperature measurement ("Comfort" version) compare the temperature measurement. Testing the detection area In the case of main units and extensions, check the detection areas of the devices individually. - Page 15 Motion detector Comfort 1.10 m, Motion detector Standard 1.10 m Gira Giersiepen GmbH & Co. KG Elektro-Installations- Systeme Industriegebiet Mermbach Dahlienstraße 42477 Radevormwald Postfach 12 20 42461 Radevormwald Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de...
