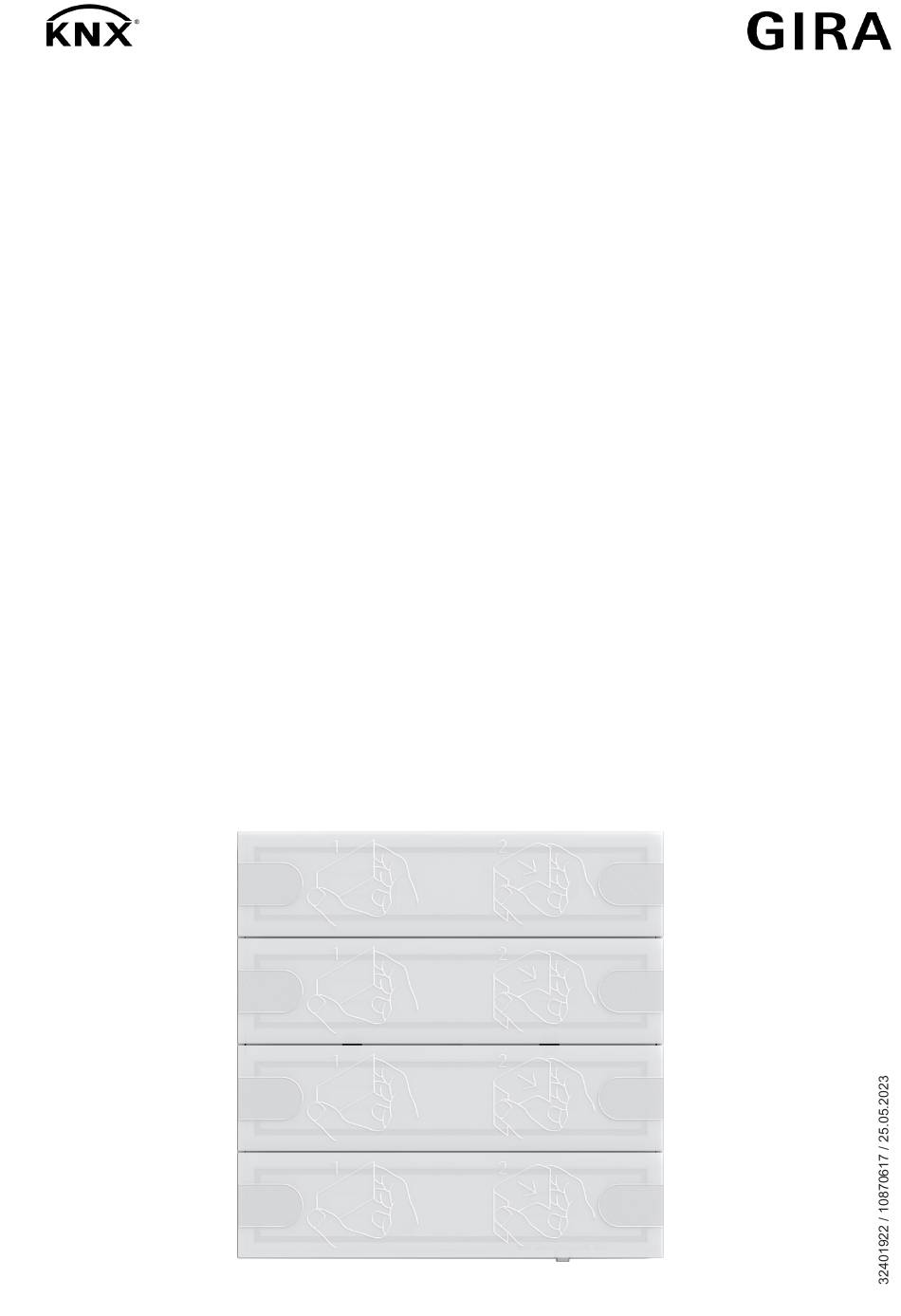

- Page 1 Operating instructions Pushbutton sensor 4 Komfort, 1-gang Order no. 5001 .. Pushbutton sensor 4 Komfort, 2-gang Order no. 5002 .. Pushbutton sensor 4 Komfort, 4-gang Order no. 5004 ..
-
Page 2: Table Of Contents
Pushbutton sensor 4 Komfort Table of contents Safety instructions ...................... 3 Device components ...................... 4 System information ...................... 5 Intended use ........................ 5 Product characteristics ..................... 6 Operation .......................... 7 Examples for operating various standard applications .......... 7 Information for electrically skilled persons ................ 8 Mounting and electrical connection................ -
Page 3: Safety Instructions
Pushbutton sensor 4 Komfort Safety instructions Electrical devices may be mounted and connected only by electrically skilled persons. Serious injuries, fire or property damage are possible. Please read and follow the manual fully. Danger of electric shock. During installation and cable routing, comply with the regu- lations and standards which apply for SELV circuits. -
Page 4: Device Components
Pushbutton sensor 4 Komfort Device components Front view Image 1: Device components 4-gang Operating rockers Status LED Additional button 1...8 Buttons assignment and status LED The additional button (c) is functional from hardware version I01 onwards. Rear view Image 2: Device components - rear side Connection for remote sensor Locking screws Opening for removing the KNX device connection terminal with screwdriver... -
Page 5: System Information
The device can be updated. Firmware can be easily updated with the Gira ETS Ser- vice App (additional software). The device is KNX Data Secure capable. KNX Data Secure offers protection against manipulation in building automation and can be configured in the ETS project. -
Page 6: Product Characteristics
Pushbutton sensor 4 Komfort Product characteristics – Push-button sensor functions switching, dimming, shading, value transmitter, scene extension, 2-channel operation and controller extension adjustable – Controller extension with operating mode selection, forced operating mode switch over, presence function and setpoint shift –... -
Page 7: Operation
Pushbutton sensor 4 Komfort Operation Depending on the programming, a rocker can have up to two functions assigned to it. Operation is carried out by a short or long press on the buttons and depends on the specific function configured. Examples for operating various standard applications ￭... -
Page 8: Information For Electrically Skilled Persons
Pushbutton sensor 4 Komfort Information for electrically skilled persons Mounting and electrical connection DANGER! Electric shock when live parts are touched. Electric shocks can be fatal. Cover up live parts in the installation environment. Image 3: Mount device Operating rockers Locking screws Supporting frame Programming button Push-button sensor... - Page 9 Pushbutton sensor 4 Komfort Note the TOP marking. Use the enclosed box screws (k). ￭ Pull off commissioning rockers from push-button sensor. The push-button sensor is delivered with commissioning rockers. The operat- ing rockers suitable for the push-button sensor must be ordered separately (see accessories).
-
Page 10: Commissioning
Pushbutton sensor 4 Komfort Commissioning Programming the physical address and application program Project design and commissioning with ETS from version 5.7.7 and above. The programming button (i) is located under the topmost operating rocker. Precondition: The device is connected and ready for operation. The topmost operating rocker is dismantled. -
Page 11: Safe-State Mode
Pushbutton sensor 4 Komfort 7.2.1 Safe-state mode The safe-state mode stops the execution of the loaded application program. If the device does not work properly - for instance as a result of errors in the project design or during commissioning - the execution of the loaded application program can be halted by activating the safe-state mode. -
Page 12: Master Reset
Pushbutton sensor 4 Komfort 7.2.2 Master reset The master reset restores the basic device settings (physical address 15.15.255, firmware remains in place). The device must then be recommissioned with the ETS. In secure operation: A master reset deactivates device security. The device can then be recommissioned with the device certificate. -
Page 13: Mounting The Rockers
Pushbutton sensor 4 Komfort Mounting the rockers ￭ Attach the rocker centrally. ￭ Press on the rocker with both thumbs (see figure 4). The rocker snaps into place. Device is ready for operation. Image 4: Press lightly in the middle of the rocker 32401922 10870617 25.05.2023... -
Page 14: Removing Commissioning Rockers
Pushbutton sensor 4 Komfort Removing commissioning rockers ￭ Pull the commissioning rocker on both sides to release it from the push-button sensor (see figure 5). Image 5: Removing the commissioning rocker 32401922 10870617 25.05.2023 14 / 18... -
Page 15: Removing Rockers
Pushbutton sensor 4 Komfort Removing rockers ￭ Pull the rocker on one side to release it from the push-button sensor (see figure 6). Image 6: Removing the rocker 32401922 10870617 25.05.2023 15 / 18... -
Page 16: Technical Data
Pushbutton sensor 4 Komfort Technical data KNX medium TP256 Commissioning mode S mode Rated voltage DC 21 ... 32 V SELV Current consumption KNX 8 ... 18 mA Connection mode KNX Standard device connection terminal Connecting cable KNX EIB-Y (St)Y 2x2x0.8 Protection class Installation dimensions (see figure 7) Construction height... -
Page 17: Accessories
Please submit or send faulty devices postage paid together with a fault de- scription to your responsible salesperson (specialist trade / installation company / electrical specialist trade). They will forward the devices to the Gira Service Center. 32401922 10870617 25.05.2023... - Page 18 Pushbutton sensor 4 Komfort Gira Giersiepen GmbH & Co. KG Elektro-Installations- Systeme Industriegebiet Mermbach Dahlienstraße 42477 Radevormwald Postfach 12 20 42461 Radevormwald Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de 32401922 10870617 25.05.2023 18 / 18...
