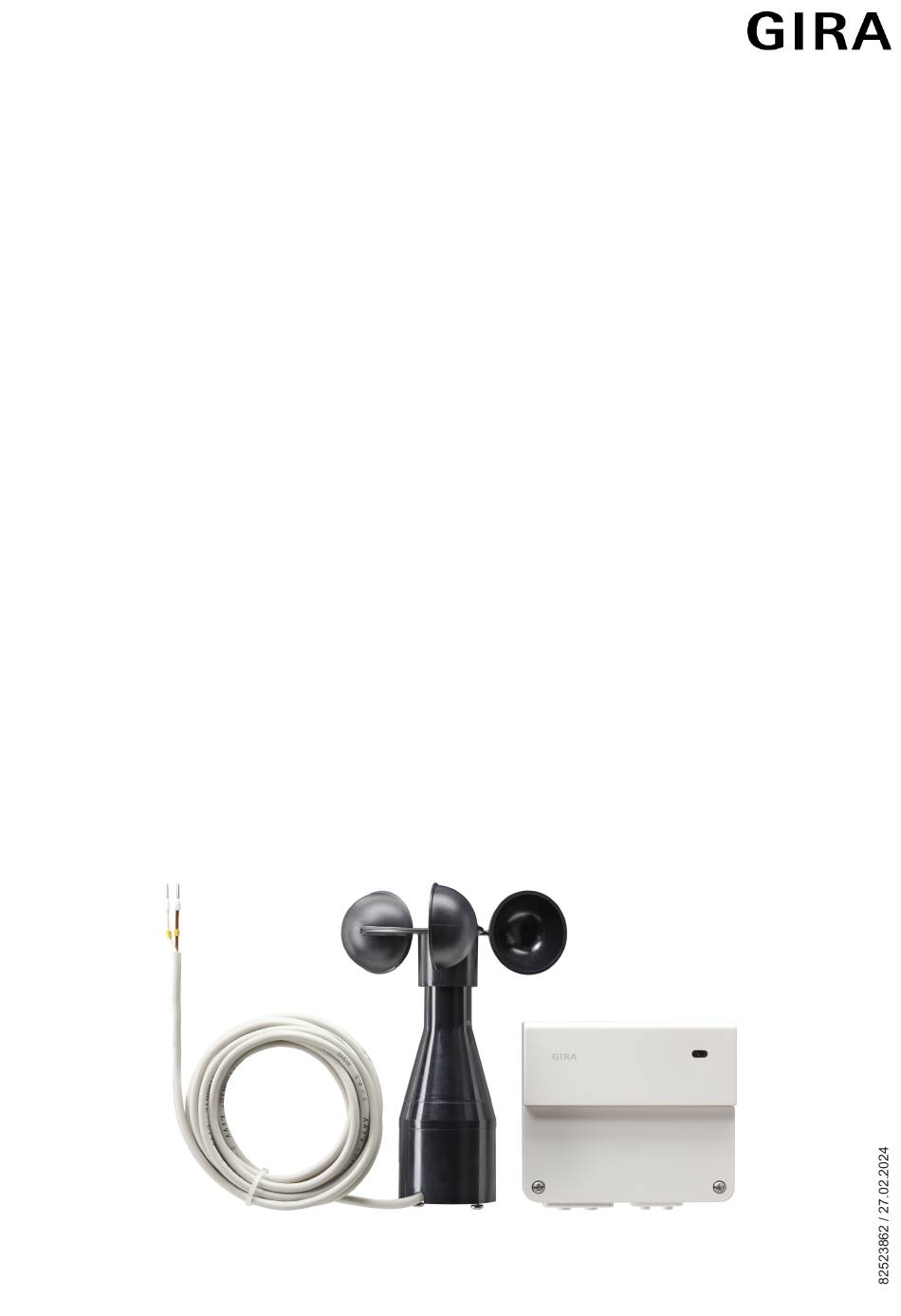

- Page 1 Operating instructions Wind sensor Standard Order no. 0913 00 Product image non-binding...
- Page 2 Wind sensor Standard Table of contents Safety instructions ...................... 3 Device components ...................... 3 Intended use ........................ 4 Product characteristics ..................... 4 Information for electrically skilled persons ................ 4 Mounting and electrical connection................ 4 Commissioning ...................... 6 Technical data ........................ 7 Warranty ...........................
- Page 3 Wind sensor Standard Safety instructions Electrical devices may be mounted and connected only by electrically skilled persons. Serious injuries, fire or property damage are possible. Please read and follow the manual fully. Danger of electric shock. Always disconnect before carrying out work on the device or load.
- Page 4 Wind sensor Standard Intended use – The evaluation unit and wind encoder are used to protect a blind/shutter against destruction due to excessively strong winds. The blind/shutter is moved to a safe end position and locked there until the wind drops below the set wind speed value.
- Page 5 Wind sensor Standard ￭ Remove the housing lid of the evaluation unit by slackening the two screws (3). ￭ For rear cable insertion, penetrate the rubber seal (6) and insert the cable (see figure 3). Figure 3: Evaluation unit connection compartment ￭...
- Page 6 Wind sensor Standard Commissioning DANGER! Electric shock when live parts are touched. Electric shocks can be fatal. During commissioning, cover the parts carrying voltage on the device and in their surrounding area. Setting the wind sensor switch in the evaluation unit ￭...
- Page 7 Please submit or send faulty devices postage paid together with a fault de- scription to your responsible salesperson (specialist trade / installation company / electrical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG...
- Page 8 Wind sensor Standard 42477 Radevormwald Postfach 12 20 42461 Radevormwald Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de 82523862 27.02.2024 8 / 8...
