IMPORTANT:
PleAse NOTe: wheN yOu OPeN The CARTON CARefully CheCk The uNIT
ANd MAke suRe TheRe Is NO dAMAge. If yOu hAve ANy PRObleMs wITh
AsseMblINg The uNIT, wITh hOw The vARIOus fuNCTIONs wORk OR wITh
dAMAge OR MIssINg PARTs PleAse CAll 1-800-459-4409 (9:00 AM -
5:00 PM esT) IMMedIATely fOR seRvICe.
NOTe: dO NOT ReTuRN uNIT TO The sTORe befORe CAllINg The TOll fRee NuMbeR.
dO NOT dIsPOse Of yOuR CARTONs uNTIl yOu ARe COMPleTely sATIsfIed wITh
yOuR New fIRePlACe heATeR.
NOTE: Light bulbs may become loose during shipping. If the flame effect is dim or does
not work, please check that light bulb or bulbs are finger tight in socket. See instructions
for replacing bulb or bulbs.
NOTE: The electric fireplace heater may emit a slight harmless odor when first turned
on. This is caused by activating the internal heater components for the first time and
should not occur again.
iNStrUctiON MANUAl
ATTeNTION:
1) Find a location for the electric fireplace heater that is protected from direct sunlight.
2) Do not plug the unit into the power outlet before reading all instructions.
iMPOrtANt SAFEtY iNStrUctiONS
wheN usINg eleCTRICAl APPlIANCes, bAsIC PReCAuTIONs shOuld AlwAys
be fOllOwed TO ReduCe The RIsk Of fIRe, eleCTRIC shOCk, ANd INJuRy
TO PeRsONs, INCludINg The fOllOwINg:
1) Read all instructions before using this electric fireplace heater.
2) This electric fireplace heater is hot when in use. To avoid burns, do not let
bare skin touch hot surfaces. The grill directly in front of the heater outlet
becomes hot during heater operation. keep combustible materials, such
as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet
(0.9 m) away from the front of the unit and keep them away from the sides
and rear.
3) extreme caution is necessary when any heater is used by, or near, children or
individuals with disabilities and whenever the fireplace is left operating
and unattended.
4) Always unplug the electric fireplace heater when not in use.
5) do not operate any electric fireplace heater with a damaged cord or plug or
after the heater malfunctions, has been dropped or damaged in any manner.
6) do not use outdoors.
7) This electric fireplace heater is not intended for use in bathrooms, laundry
areas and similar indoor locations. Never place heater where it may fall into a
bathtub or other water container.
8) do not run cord under carpeting. do not cover cord with throw rugs, runners,
or similar coverings. Arrange cord away from traffic area and where it will
not be tripped over.
9) To disconnect the electric fireplace heater, turn controls to off, then remove
plug from outlet.
10) Connect to properly grounded outlets only.
11) do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may cause an electric shock or fire, or damage the heater.
12) To prevent a possible fire, do not block air intakes or exhaust in any manner.

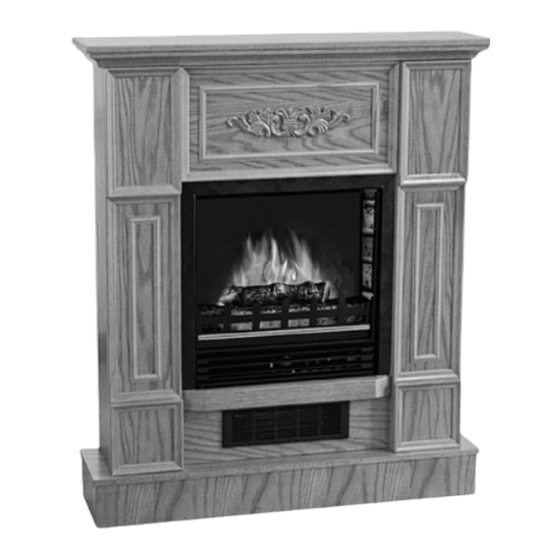

ElEctric FirEPlAcE
HEAtEr
Model: MM624-32AACO
do not use on soft surfaces, like a bed, where openings may become blocked.
13) A heater has hot and arcing or sparking parts inside. do not use it in areas
where gasoline, paint, or flammable liquids are used or stored.
14) use this electric fireplace heater only as described in this manual. Any other
use not recommended by the manufacturer may cause fire, electric shock, or
injury to persons.
15) Avoid the use of an extension cord because the extension cord may overheat
and cause a risk of fire. however, if you have to use an extension cord, the
cord shall be No. 14 Awg minimum size and rated not less than 1875 watts.
16) Caution: do not plug this product into a receptacle controlled by a wall switch
or dimmer.
17) when storing or transporting the unit and cord, keep in a dry place, free from
excessive vibration and store so as to avoid damage.
SAVE tHESE iNStrUctiONS
FOr FUtUrE USE.
CAuTION:
If yOu use ThIs heATeR IN CONJuNCTION wITh A TheRMAl CONTROl, A
PROgRAM CONTROlleR, A TIMeR OR ANy OTheR devICe ThAT swITChes The
heATeR ON AuTOMATICAlly, ReMeMbeR TO ObseRve All sAfeTy wARNINgs
AT All TIMes. The fIRePlACe heATeR hAs sAfeTy OveRheAT PROTeCTION. If
The OveRheAT PROTeCTION TRIPs, swITCh Off All swITCh buTTONs ANd wAIT
APPROxIMATely 5 -10 MINuTes. IT shOuld ReseT AuTOMATICAlly ONCe The
uNIT COOls dOwN.
wARNINg:
PROCeduRes ANd TeChNIques If NOT CARefully fOllOwed wIll ResulT
IN dAMAge TO The equIPMeNT ANd wIll exPOse The useR TO The RIsk Of
seRIOus INJuRy, IllNess OR deATh.
ThIs eleCTRIC fIRePlACe heATeR Is fOR use ON 120 vOlTs. The CORd hAs
A Plug As shOwN AT A IN IllusTRATION belOw. AN AdAPTeR As shOwN AT
C Is AvAIlAble fOR CONNeCTINg ThRee-blAde gROuNdINg-TyPe Plugs TO
TwO-slOT ReCePTACles. The gReeN gROuNdINg Plug exTeNdINg fROM The
AdAPTeR MusT be CONNeCTed TO A PeRMANeNT gROuNd suCh As A PROPeRly
gROuNded OuTleT bOx. The AdAPTeR shOuld NOT be used If A ThRee-slOT
gROuNded ReCePTACle Is AvAIlAble.
A 15 AMP CIRCuIT Is RequIRed TO OPeRATe ThIs heATeR. If The bReAkeR
TRIPs wheN The heATeR Is used TheN yOu MAy Need TO MOve The heATeR
TO ANOTheR lOCATION OR uNPlug OTheR APPlIANCes ThAT ARe ON The sAMe
CIRCuIT. If yOu RequIRe AN exTeNsION CORd use ONe ThAT Is RATed AT 1875
wATTs.
1
