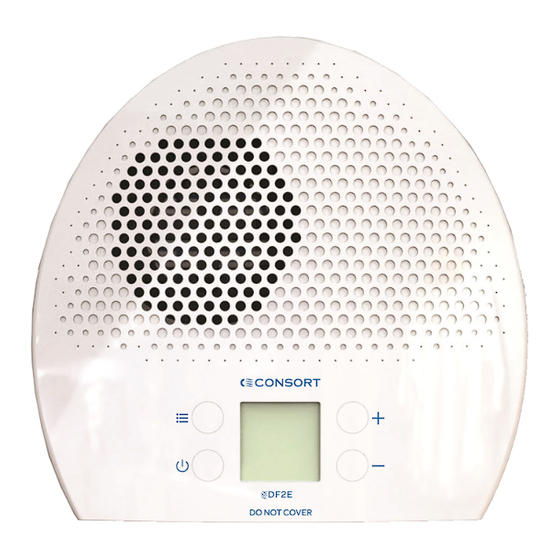

Installation & Control Guide for DF2E Heatflow
All electrical appliances produced by the Company are guaranteed for one year against faulty materials or
workmanship. This applies only if the appliance has been used for purposes in accordance with the instructions
provided and has not been connected to an unsuitable electricity supply, or subject to misuse, neglect, damage
or modified or repaired by any person not authorised by us. This guarantee is offered to you as an extra benefit and
does not affect your legal rights.
The correct electricity supply voltage is shown on the rating label attached to the appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time of printing. In the interests of
progress the Company reserve the right to vary specifications from time to time without notice.
C
H
USTOMER
ELPLINE
Should you need any advice on the use of your new Consort product please contact our Helpline:
Consort Equipment Products Limited
Thornton Industrial Estate, Milford Haven, Pembrokeshire, SA73 2RT
Tel: 01646 692172 Fax: 01646 695195 Email: technical@consortepl.com Web: www.consortepl.com
Operation hours: Mon to Thu 8.30am to 4.30pm | Fri 8.30am to 3.30pm
BS EN ISO 9001 Registered Company No FM12671
13984171 Iss 01
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF2E Heatflow and is the answer not in the manual?

Questions and answers

Related Manuals for Consort DF2E Heatflow

Summary of Contents for Consort DF2E Heatflow

  • Page 1 Company reserve the right to vary specifications from time to time without notice. USTOMER ELPLINE Should you need any advice on the use of your new Consort product please contact our Helpline: Consort Equipment Products Limited Thornton Industrial Estate, Milford Haven, Pembrokeshire, SA73 2RT Tel: 01646 692172 Fax: 01646 695195 Email: technical@consortepl.com Web: www.consortepl.com...

  • Page 2: Safety And Care

    Please read this guide carefully and retain for future use and maintenance purposes. DF2E Installation and User Guide Warnings ence or knowledge unless they have Do NOT install the heater di- been given instruction concerning · use of the appliance by a person re- rectly above a power outlet.

  • Page 3: Installation

    Please read this guide carefully and retain for future use and maintenance purposes. DF2E Installation and User Guide Installation The heater must be wall mounted at minimum height of 1m from the floor. For the best performance the heater should be mounted at 1.8m from the floor.

  • Page 4: Electrical Connections

    Please read this guide carefully and retain for future use and maintenance purposes. DF2E Installation and User Guide Basic Operation Electrical Connections The DF2E has 4 standard operating Electrical installation should be car- modes: ried out by a competent installer in BOOST, MANUAL, FROST PROTECT and accordance with the latest edition of AUTO.
  • Page 5 Please read this guide carefully and retain for future use and maintenance purposes. DF2E Installation and User Guide Basic Operation between 4°C and 15°C. To amend Boost Mode the set temperature when in FROST The boost feature increases the room PROTECT mode, use the + and - but- temperature for 15 minutes.

  • Page 6: Open Window Detection

    Please read this guide carefully and retain for future use and maintenance purposes. DF2E Installation and User Guide Heat Symbols Every time there is a demand for heat, the display will show the heat icon. The symbols shown below are used to represent full heat and half The system has been factory set to heat.

  • Page 7: Setup Menu

    Please read this guide carefully and retain for future use and maintenance purposes. DF2E Installation and User Guide Set up Menu 7 - Temperature Press and hold MENU and -together drop in open win- dow detection time for 5 seconds. The display will enter the setup menu.
  • Page 8 Please read this guide carefully and retain for future use and maintenance purposes. DF2E Installation and User Guide Setting the automatic program schedule An example of a programs on DF2E PROGRAM 1 PROGRAM 2 PROGRAM 5 PROGRAM 6 ºC PROGRAM PROGRAM 19ºC 22ºC...
  • Page 9 Please read this guide carefully and retain for future use and maintenance purposes. DF2E Installation and User Guide Step 7: Press the MENU Basic Operation button. The time 1. Press and hold MENU for 5 seconds should flash. Use the + to enter the program setting.
  • Page 10 Please read this guide carefully and retain for future use and maintenance purposes. DF2E Installation and User Guide Copy Day Function If you require the same set of pro- Step 3: Use the MENU button to select grams throughout the week, a 24 the day to copy the programs from.

  • Page 11: Declaration Of Conformity

    Declaration Of Conformity In accordance with UK Government Guidance. E HEREBY CERTIFY THAT THE APPLIANCES DETAILED HEREON HAVE BEEN INSPECTED AND TESTED AND CONFORM TO THE REQUIREMENTS OF THE FOLLOWING UK STATUTORY INSTRUMENTS WHERE APPLICABLE Electrical Equipment (Safety) Regulations 2016 SI. 2016 1101 Electromagnetic Compatibility Regulations 2016 SI.
