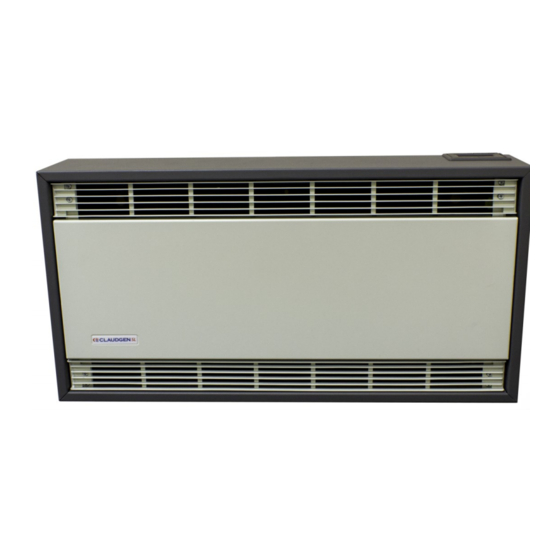

Installation & Control Guide for 3kW Low Level Fan Heater
with Electronic Controls and Open Window Detection
Model
HE6137E
All electrical appliances produced for the Company are guaranteed for one year
against faulty material or workmanship. This applies only if the appliance has been used
for purposes in accordance with the instructions provided and has not been connected
to an unsuitable electricity supply, or subject to misuse, neglect, damage or modified or
repaired by any person not authorised by us. This guarantee is offered to you as an extra
benefit and does not affect your legal rights.
The correct electricity supply voltage is shown on the rating label attached to the
appliance.
Reasonable care has been taken to ensure that this guide is accurate at the time of
printing.
In the interest of progress the Company reserve the right to vary specifications from time
to time without notice.
58000386Iss 02
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Consort Claudgen HE6137E
Summary of Contents for Consort Claudgen HE6137E
- Page 1 UALITY PACE EATERS Installation & Control Guide for 3kW Low Level Fan Heater with Electronic Controls and Open Window Detection Model HE6137E All electrical appliances produced for the Company are guaranteed for one year against faulty material or workmanship. This applies only if the appliance has been used for purposes in accordance with the instructions provided and has not been connected to an unsuitable electricity supply, or subject to misuse, neglect, damage or modified or repaired by any person not authorised by us.
-
Page 2: Safety And Care
Ensure that the appliance is functioning Overview correctly. If the TOC control operates again, the appliance should be checked Please read this guide carefully and retain by a competent electrician. for future use and maintenance. The heater carries a ‘Do Not Cover’ label to warn This appliance has been designed and the user that if the appliance is covered, there is a manufactured to the highest international... -
Page 3: Temp Mode
Time Prog SET TIME SET PROGRAMME PRESS AND HOLD PRESS AND HOLD FOR 5 SECONDS FOR 5 SECONDS MODE SELECTION EMPERATURE SET BOOST, MANUAL, Temp Mode WHEN DISPLAY SHOWS SETBACK AND ROOM TEMPERATURE, PROGRAM PRESS TO ADJUST 1. Basic Operation 5. - Page 4 8. Set 7-day programme An example of one day programme on HE6137E PROGRAM 1 PROGRAM 2 PROGRAM 5 PROGRAM 6 PROGRAM PROGRAM ºC 19ºC 22ºC 22ºC 16ºC 10ºC 4ºC 06:00 08:00 12:00 14:00 16:00 22:00 Logic diagram for setting programme on HE6137E Press and hold PROG for 5 seconds to enter the PROG TEMP...
- Page 5 9. Advance mode 10. Heat symbol on the display Press PROG from PROG mode to bring forward the next Every time there is a demand for heat, the display will programme. To clear advance mode, press PROG. show the heat icon. - reduced heat output when the room temperature is 13.
- Page 6 15. Mounting 58000386 Iss 02...
-
Page 7: Customer Helpline
USTOMER ELPLINE Should you need any advice on the use of your new Consort product please contact our Helpline: Consort Equipment Products Limited Thornton Industrial Estate, Milford Haven, Pembrokeshire, SA73 2RT Tel: 01646 692172 Fax: 01646 695195 Email: technical@consortepl.com Web: www.consortepl.com Operation hours: Mon to Thu 8.30am to 4.30pm | Fri 8.30am to 3.30pm...
