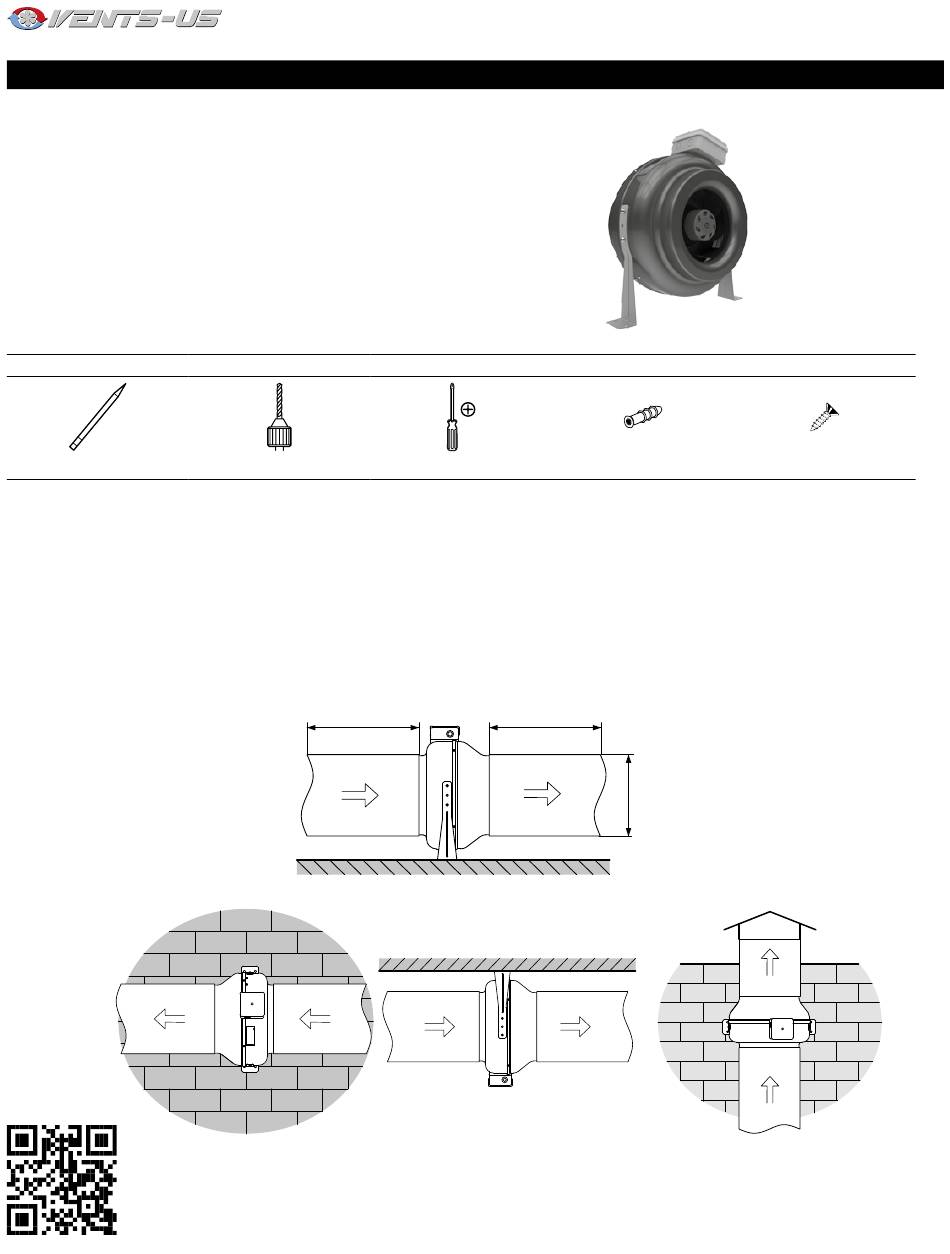

INSTALLATION GUIDE
CENTRIFUGAL INLINE FAN
VKM EC 100/125/150/200/250/305
Pencil
MOUNTING
The air motion in the system must be as shown with the pointer of the fan casing.
In case of the vertical installation the intake spigot must be protected with a ventilation hood.
To attain the best performance of the fan and to minimise turbulence-induced air pressure losses while mounting connect straight air duct sections to the fan spigots.
Minimum straight air duct length:
qual to 1 air duct diameter on intake side
equal to 3 air duct diameters on outlet side
Vents-US
400 Murray Road, Cincinnati, OH 45217, USA
Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597
E-mail: support@ventsus.com
www.vents-us.com
Drill (Ø 8 mm))
min 1D
Tools required
Screwdriver
Dowel NTW 8/45 (4 pcs.)
min 3D
Screws 5x45 mm (4 pcs.)
D
MIU_VKM_EC_EN-01
Advertisement
Related Manuals for Vents-us VKM EC 100
Summary of Contents for Vents-us VKM EC 100
- Page 1 INSTALLATION GUIDE CENTRIFUGAL INLINE FAN VKM EC 100/125/150/200/250/305 Tools required Pencil Drill (Ø 8 mm)) Screwdriver Dowel NTW 8/45 (4 pcs.) Screws 5x45 mm (4 pcs.) MOUNTING The air motion in the system must be as shown with the pointer of the fan casing.
- Page 2 Lean the fan against the installation place and mark the Drill the holes and insert the expansion anschors |fastening holes Fix the fan Connect air ducts Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 MIU_VKM_EC_EN-01 E-mail: support@ventsus.com...
- Page 3 Unscrew the 4 screws that fix the terminal box lid Route the cables through the cable glad and complete electric connection Install the terminal box cover again Vents-US 400 Murray Road, Cincinnati, OH 45217, USA Tel: 1-888-640-0925, 513-583-5786, Fax: 513-268-4597 MIU_VKM_EC_EN-01 E-mail: support@ventsus.com...
- Page 4 For smooth air flow control it is recommended to use the speed controller R-1/010. The speed controller is not included in the delivery set and is available as a specially ordered accessory. Vents-US 400 Murray Road, Cincinnati, OH 45217, USA...
