Linear HSLG-121 Installation Manual page 19

Advanced Controller Programming (Cont.)
Radio Transmitter Learn
The Controller's built-in MegaCode
up to 40 transmitters. Refer to the figure for the steps required to learn
transmitters.
✓ NOTE: This function will NOT be displayed if the transmitter
memory is full, or if the radio receiver is disabled.
Radio Transmitter Delete
Transmitters can be deleted from the Controller's memory either
individually, or all at the same time. Refer to the figure for the steps
required to delete transmitters.
✓ NOTE: This function will NOT be displayed if no transmitters are
stored in memory, or if the radio receiver is disabled.
MGT Obstacle Transmitter Learn
The Controller supports one or two Model MGT Obstacle Transmitters.
The transmitters can be programmed to function as Open Obstruction,
Close Obstruction, Reverse, or Stop. Refer to the figure for the steps
required to learn MGT transmitters.
✓ NOTE: This function will NOT be displayed if two MGT transmitters
are already stored in memory, or if the radio receiver is disabled.
MGT Obstacle Transmitter Delete
MGT transmitters can be deleted from the Controller's memory either
individually, or all at the same time. Refer to the figure for the steps
required to delete MGT transmitters.
✓ NOTE: This function will NOT be displayed if no MGT transmitters
are stored in memory, or if the radio receiver is disabled.
MGT Monitoring Function
ON monitor's battery and connection of MGT transmitter.
2 missed signals result in alarm beeping.
✓ NOTE: Not used for UL 325 6th edition monitored input.
HSLG Slide Gate Operator Installation Guide
radio receiver can store the IDs of
®

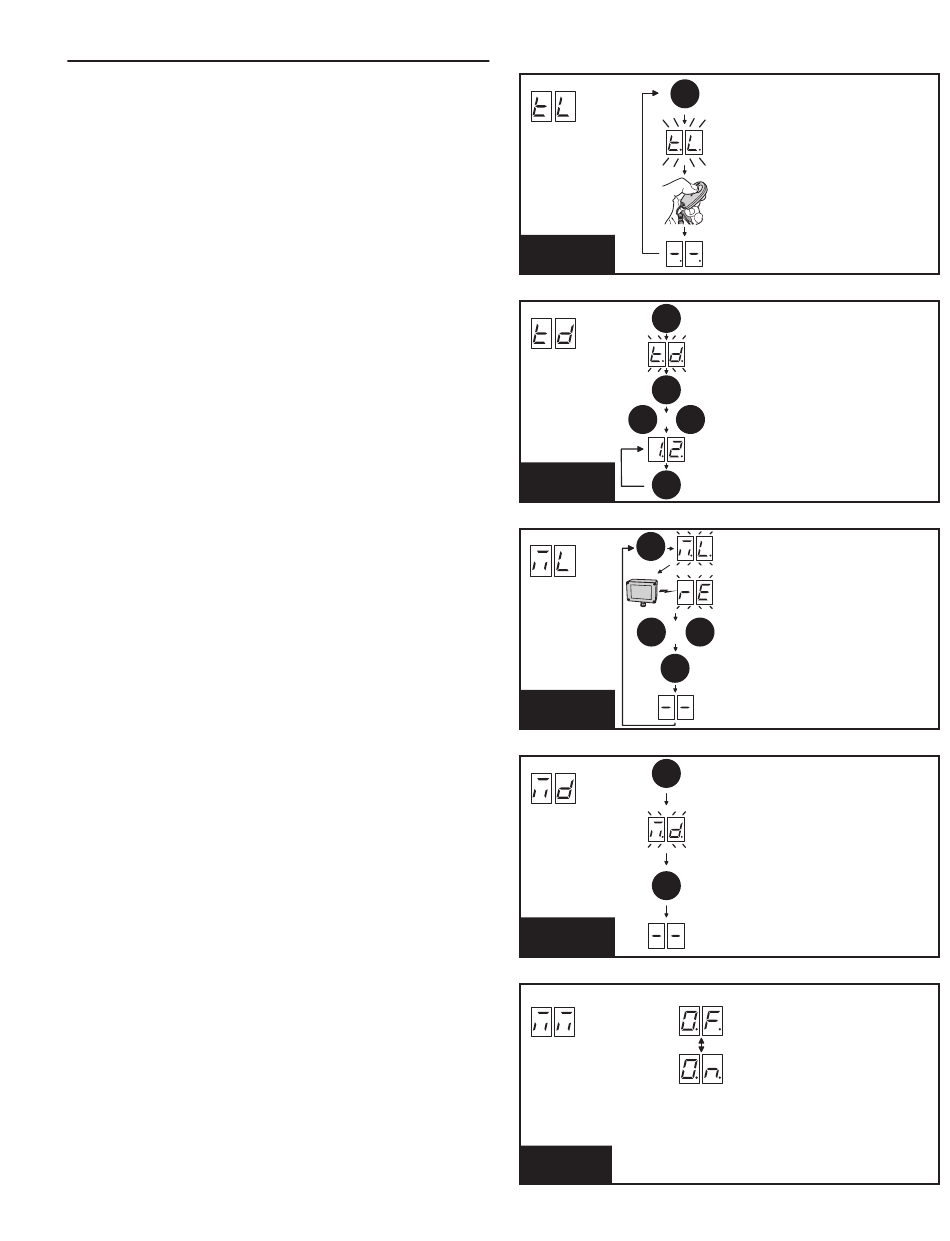

FUNCTION
"TL"
LEARN
TRANSMITTERS
FUNCTION
"TD"
UP
DELETE
TRANSMITTERS
FUNCTION
ENTER
"ML"
UP
LEARN MGT
TRANSMITTERS
FUNCTION
"MD"
ERASE MGT
TRANSMITTERS
FUNCTION
"MM"
MGT MONITORING
FUNCTION
- 17 -
PRESS ENTER (ONCE FOR EACH TRANSMITTER,
ENTER
UP TO 40 TRANSMITTERS TOTAL)
"TL" WILL BLINK FOR 30 SECONDS WHILE
THE CONTROLLER IS READY TO
LEARN A TRANSMITTER
ACTIVATE THE TRANSMITTER
DISPLAY WILL SHOW "- -" THEN THE
TRANSMITTER ID NUMBER - IF TRANSMITTER
IS ALREADY ENTERED, "dU" WILL BE DISPLAYED,
IF DECODE IS BAD "ERROR" WILL BE DISPLAYED
ENTER
PRESS ENTER
"TD" WILL BLINK FOR 30 SECONDS WHILE THE CONTROLLER
IS READY TO DELETE ONE OR MORE TRANSMITTERS,
(TO EXIT WITHOUT DELETING ANY, PRESS ENTER)
TO DELETE ALL TRANSMITTERS, PRESS ENTER FOR
ENTER
2 SECONDS, OR TO PICK TRANSMITTERS GO TO NEXT STEP
PRESS UP OR DOWN TO SCROLL THROUGH THE LIST
OR DOWN
OF TRANSMITTER ID NUMBERS
THE TRANSMITTER ID NUMBER IS DISPLAYED
(TO EXIT WITHOUT DELETING, PRESS ENTER)
(TO PICK A DIFFERENT TRANSMITTER ID, PRESS UP OR DOWN)
PRESS ENTER FOR 2 SECONDS TO DELETE THE
ENTER
TRANSMITTER DISPLAYED
PRESS ENTER, "ML" WILL BLINK FOR 30 SECONDS WHILE
THE CONTROLLER IS READY TO LEARN AN MGT
TRANSMITTER
ACTIVATE THE MGT TRANSMITTER, THE DISPLAY WILL
FLASH "rE" - IF THE TRANSMITTER IS ALREADY ENTERED,
"DU" WILL BE DISPLAYED, IF DECODE IS BAD "ERROR" WILL
BE DISPLAYED
PRESS UP OR DOWN TO SELECT THE MGT FUNCTION:
OR DOWN "rE" = REVERSE "St" = STOP
"OP" = OPEN OBSTRUCTION "CL" = CLOSE OBSTRUCTION
ENTER
PRESS ENTER TO ACCEPT THE SELECTION
DISPLAY WILL SHOW "--" FOR 5 SECONDS, THEN SHOW THE
TRANSMITTER'S ID NUMBER - REPEAT STEPS FOR
SECOND MGT TRANSMITTER IF USED
ENTER
PRESS ENTER
"MD" WILL BLINK FOR 30 SECONDS WHILE THE CONTROLLER
IS READY TO DELETE ALL MGT TRANSMITTERS
TO DELETE ALL MGT TRANSMITTERS, PRESS ENTER FOR
ENTER
2 SECONDS, (TO EXIT WITHOUT DELETING ANY, QUICKLY
PRESS ENTER)
THE DISPLAY WILL SHOW "DELETE ALL" AND THE
CONTROLLER RETURNS TO PROGRAMMING MODE
OPTIONS
