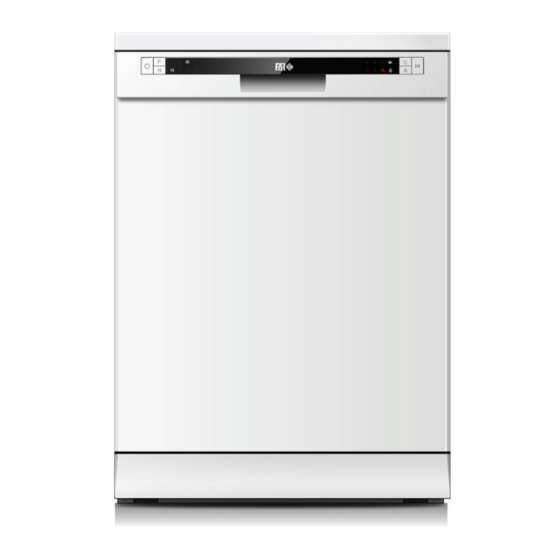

FAR LV13C49N20W Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LV13C49N20W
LV13C49N20S

Advertisement

Table of Contents
loading

Related Manuals for FAR LV13C49N20W

Summary of Contents for FAR LV13C49N20W

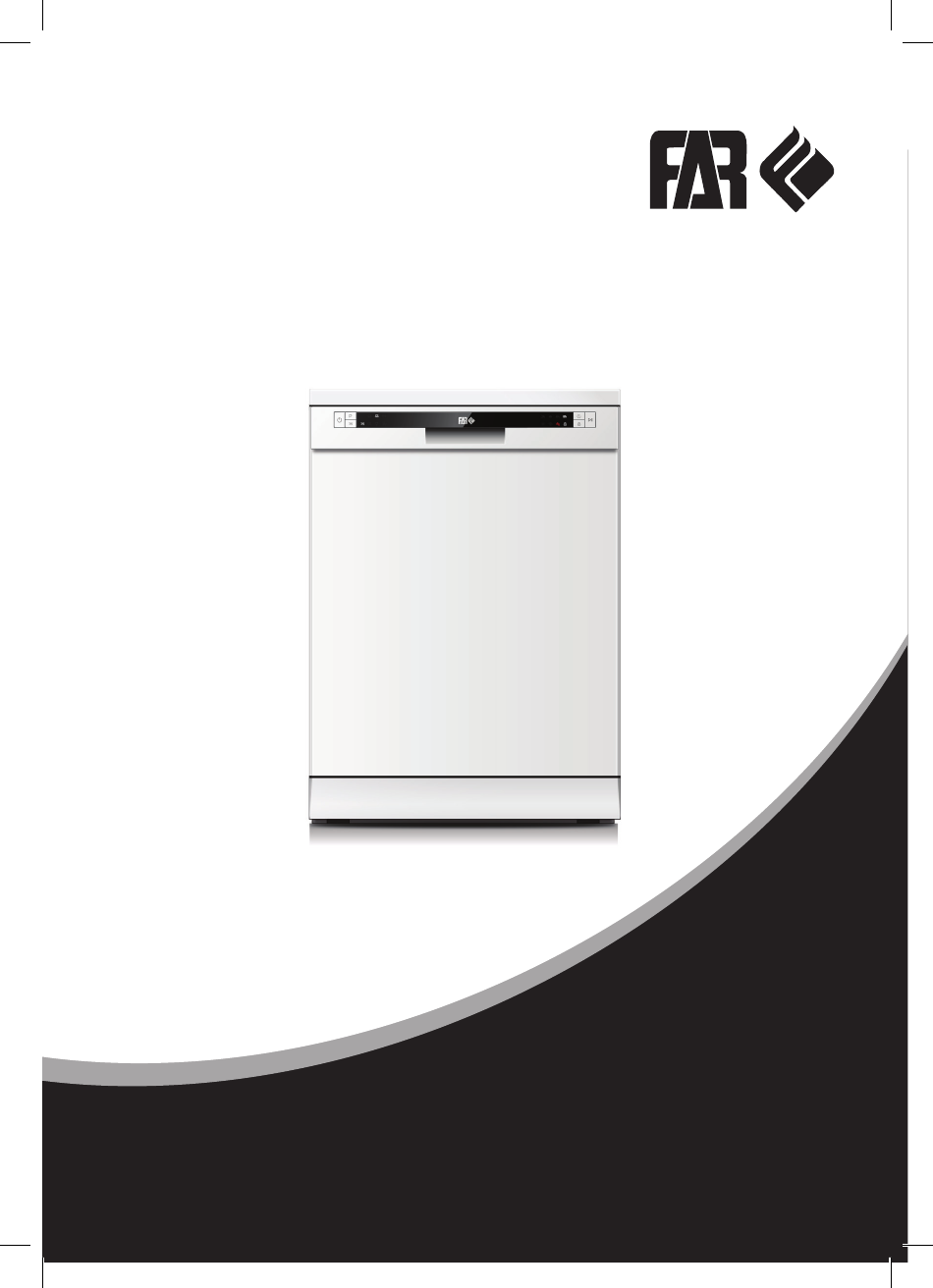

  • Page 1 LV13C49N20W LV13C49N20S...

  • Page 2: Table Of Contents

    INSTRUCTION MANUAL LV13C49N20W LV13C49N20S Thank you to have chosen the FAR quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

  • Page 3: Safety Information

    ENGLISH ENGLISH NOTE: working environments; • Reviewing the section on troubleshooting Tips – farm houses; will help you solve some common problems by yourself. – by clients in hotels, motels and other • If you cannot solve the problems by yourself, residential type environments;...
  • Page 4 ENGLISH ENGLISH outlet that is installed and earthed in • Packaging material could be dangerous for accordance with all local codes and ordinances. children! • Improper connection of the equipment- • This appliance is for indoor household use earthing conductor can result in the risk of an only.
  • Page 5 ENGLISH ENGLISH 2) Warning: Knives and other utensils with • During installation, the power supply must not sharp points must be loaded in the basket be excessively or dangerously bent or flattened. with their points facing down or placed in a •...

  • Page 6: Product Overview

    ENGLISH ENGLISH • For more detailed information about recycling PRODUCT OVERVIEW of this product, please contact your local city office and your household waste disposal ! IMPORTANT: service. To get the best performance from your • DISPOSAL: Do not dispose this product dishwasher, read all operating instructions before as unsorted municipal waste.

  • Page 7: Using Your Dishwasher

    ENGLISH ENGLISH salt, will damage the water softener. In case of USING YOUR DISHWASHER damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused. Inside Outside • Only fill with salt before running a cycle. This will prevent any grains of salt or salty water, 1.
  • Page 8 ENGLISH ENGLISH the salt container has been filled with salt. Basket Used Tips Adjusting the upper basket 6. Immediately after filling the salt into the salt container, a washing program should be Type 1: According to the model started (We suggest using a short program). The height of the upper basket can be easily Otherwise the filter system, pump or adjusted to accommodate taller dishes in either...
  • Page 9 ENGLISH ENGLISH Folding back the rack shelves The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items. upper position 3. Re-attach the upper 4. Push in the upper basket to upper or basket.

  • Page 10: Maintenance And Cleaning

    ENGLISH ENGLISH The filtering system in the base of the wash MAINTENANCE AND CLEANING cabinet retains coarse debris from the washing External Care cycle. The collected coarse debris may cause the The door and the door seal filters to clog. Check the condition of the filters Clean the door seals regularly with a soft damp regularly and clean them if necessary under cloth to remove food deposits.
  • Page 11 ENGLISH ENGLISH Spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: Larger food remnants Reassemble the filters can be cleaned by in the reverse order rinsing the filter under...

  • Page 12: Caring For The Dishwasher

    ENGLISH ENGLISH No solvents or abrasive cleaning CARING FOR THE DISHWASHER To clean the exterior and rubber parts of the Frost precaution dishwasher, do not use solvents or abrasive Please take frost protection measures on the cleaning products. Only use a cloth with warm dishwasher in winter.

  • Page 13: Installation Instruction

    ENGLISH ENGLISH Electrical requirements Seals Please look at the rating label to know the One of the factors that cause odours to form in the dishwasher is food that remains trapped in rating voltage and connect the dishwasher to the the seals.
  • Page 14 ENGLISH ENGLISH About the safety supply hose Water Supply And Drain The safety supply hose consists of the double Cold water connection Connect the cold water supply hose to a threaded walls. The hose’s system guarantees its 3/4(inch) connector and make sure that it is intervention by blocking the flow of water in fastened tightly in place.
  • Page 15 ENGLISH ENGLISH Water outlet Connection Of Drain Hoses Connect the water drain hose. The drain hose Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the must be correctly fitted to avoid water leaks. sink, making sure to avoid bending or crimping Ensure that the water drain hose is not kinked or it.
  • Page 16 ENGLISH ENGLISH adjustment of the screwing level of the feet. Underneath existing work top In any case, the appliance should not be inclined (When fitting beneath a work more than 2°. top) In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted.

  • Page 17: Troubleshooting Tips

    ENGLISH ENGLISH TROUBLESHOOTING TIPS Problem Possible Causes What To Do Water not Twisted or trapped Check the drain hose. Before Calling For Service pumped form drain hose. Reviewing the charts on the following pages Filter clogged. Check coarse the filter. dishwasher may save you from calling for service.
  • Page 18 ENGLISH ENGLISH Problem Possible Causes What To Do Problem Possible Causes What To Do Stained tub Detergent with Make sure that the detergent Rattling Items of crockery Interrupt the program and interior colourant may have has no colourant. noise in the are loose in the rearrange the items of crockery.
  • Page 19 ENGLISH ENGLISH Problem Possible Causes What To Do Problem Possible Causes What To Do Cloudiness on Combination of soft Use less detergent if you have Wrong program has With a short program, the glassware. water and too much soft water and select a shorter been selected.

  • Page 20: Loading The Baskets According To En50242

    ENGLISH ENGLISH NOTE: LOADING THE BASKETS ACCORDING TO EN50242: Please place the light flat wares on the shelf. The total weight is less than 1.5Kg. 1. Upper basket: 4. Cutlery basket: Item 1 Cups 4 4 4 1 1 1 4 4 4 1 1 1 1 1 1...

  • Page 21: Quick User Guide

    ENGLISH ENGLISH PART II : Special Version QUICK USER GUIDE Please read the corresponding content on the LV13C49N20W instruction manual for detailed operating LV13C49N20S method. 1. Install the dishwasher (Please check the section 5 "INSTALLATION INSTRUCTION” of PART I: Generic Version.) Inside ->...

  • Page 22: Using Your Dishwasher

    ENGLISH ENGLISH USING YOUR DISHWASHER 4 Delay Press the button to set the delay time, corresponding Control Panel indicator will be lit. 5 Child lock This option allows you to lock the buttons on the control panel, except the Power button, so children cannot accidently start the dishwasher by pressing the buttons on the...
  • Page 23 ENGLISH ENGLISH Display 8 Delay To show the delay time time (2h/4h/6h/ h). Intensive For heaviest soiled crockery, and Rinse Aid normally soiled pots, pans, dishes If the « « indicator is lit, it means etc. With dried-on food. the dishwasher is low on dishwasher Normal rinse aid and requires a refill.
  • Page 24 ENGLISH ENGLISH The softener should be adjusted according to the WATER HARDNESS Water Salt hardness of the water in your area. Your local softener level consumption German French British Mmol/l Water Authority can advise you on the hardness (gram/cycle) °dH °fH °Clarke of the water in your area.
  • Page 25 ENGLISH ENGLISH 1°dH=1.25 °Clarke=1.78 °fH=0.178mmol/l Are not suitable The manufactory setting: H3 • Cutlery with wooden, horn china or mother- Contact your local water board for information of-pearl handles on the hardness of your water supply. • Plastic items that are not heat resistant •...
  • Page 26 ENGLISH ENGLISH (Features and appearance of baskets and • Please do not overload your dishwasher. This is cutlery baskets may vary from your model.) important for good results and for reasonable Place objects in the dishwasher in following way: consumption of energy. •...
  • Page 27 ENGLISH ENGLISH Loading the lower basket Function Of The Rinse Aid And Detergent We suggest that you place large items and the The rinse aid is released during the final rinse most difficult to clean items are to be placed into to prevent water from forming droplets on your the lower basket: such as pots, pans, lids, serving dishes, which can leave spots and streaks.
  • Page 28 ENGLISH ENGLISH As the rinse aid diminishes, the size of the black Filling The Rinse Aid Reservoir dot on the rinse aid level indicator changes, as illustrated below. Full 3/4 full 1/2 full 1/4 full Empty Function of detergent 1. Remove the rinse aid 2.

  • Page 29: Using Your Dishwasher

    ENGLISH ENGLISH Filling The Detergent Dispenser USING YOUR DISHWASHER Push latch to open Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also shows various information about the programs.
  • Page 30 ENGLISH ENGLISH 2. Pour in the detergent. Pre-wash 5/25 g 3. Insert the plug into the socket. The power Wash (45 °C) (*EN (1 or 2 supply refer to last page "Product fiche". Rinse (60 °C) 50242) pieces) Make sure that the water supply is turned on Drying to full pressure.

  • Page 31: Error Codes

    ENGLISH ENGLISH 4. Press the Start/Pause button, after 10 ERROR CODES seconds, the dishwasher will start. If there is a malfunction, the dishwasher will 3 sec display error codes to identify these: Codes Meanings Possible Causes Forget To Add A Dish? The Rapid Longer inlet Faucets is not...

  • Page 32: Technical Information

    ENGLISH Product fiche TECHNICAL INFORMATION Sheet of household dishwasher according to EU Directive 1016/2010 & 1059/2010: Manufacturer Type / Description LV13C49N20W LV13C4 N20S Standard place settings Energy efficiency class (1) Annual energy 262 kWh consumption (2) Energy consumption of the 0.9 kWh...
  • Page 33 ENGLISH Power consumption 1760-2100W Rated voltage / frequency 220-240V/50Hz Water pressure (flow 0.04-1.0MPa=0.4- pressure) 10 bar NOTE: 1. A + + + (highest efficiency) to D (lowest efficiency) 2. Energy consumption based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes.
  • Page 34 CONFORAMA France SA 80 Boulevard du Mandinet Lognes 77432 Marne la Vallée Cedex 2 FRANCE...
