Summary of Contents for FAR LV10C49M21W

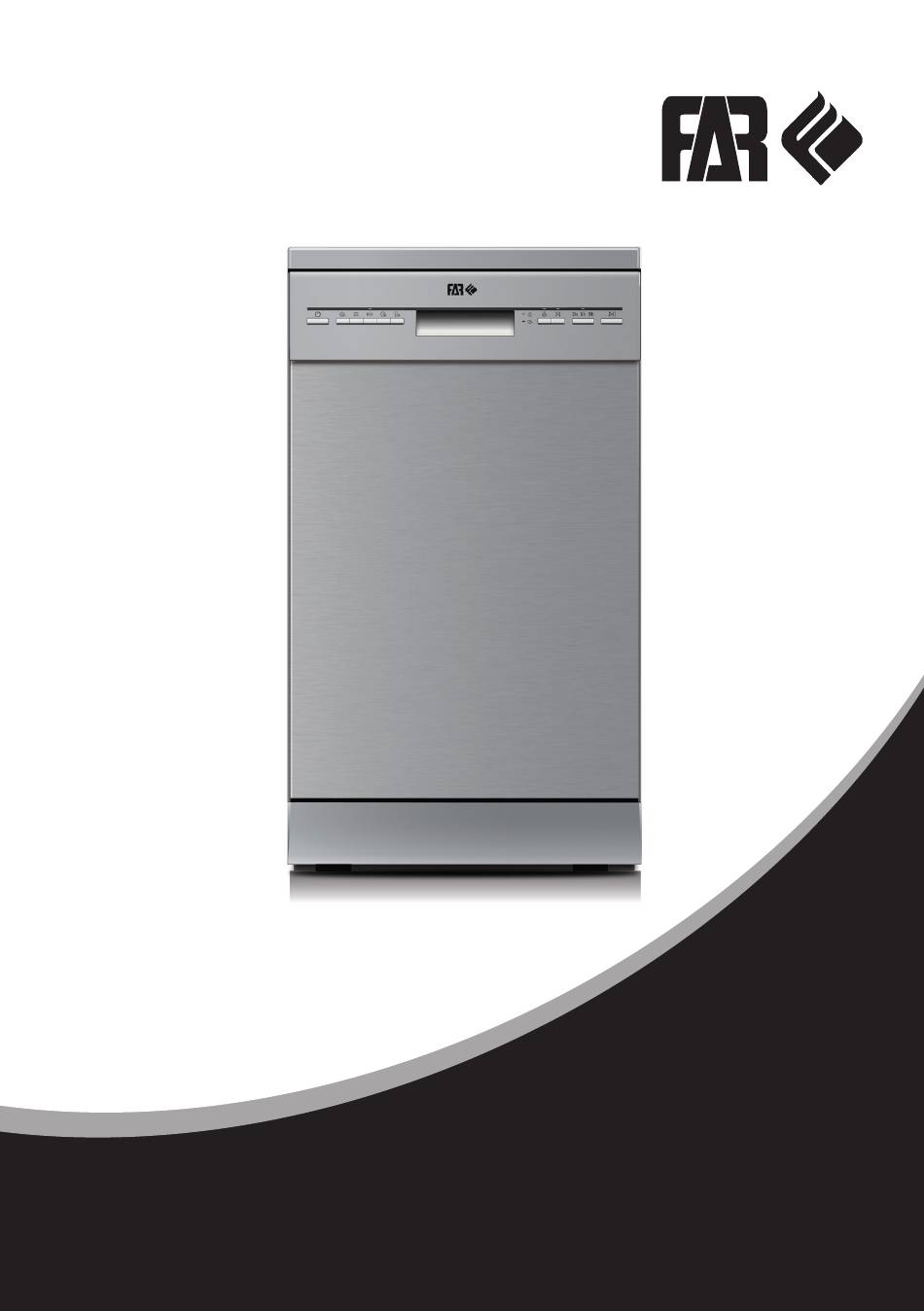

  • Page 1 LV10C49M21W...

  • Page 2: Table Of Contents

    INSTRUCTION MANUAL LV10C49M21W Thank you to have chosen the FAR quality. This product has been created by our professional team and according to the European regulation. For a better use of your new device, we recommend you to read carefully this user manual and keep it for record.

  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION WARNING! When using your dishwasher, follow the precautions listed below: • Installation and repair can only be carried out by a qualified technician • This appliance is intended to be used in household and similar applications such as: –...
  • Page 4 ENGLISH • Children shall not playwith the appliance. Cleaning and user maintenance shall not be done by children without supervision. • Packaging material could be dangerous for children! • This appliance is for indoor household use only. • To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
  • Page 5 ENGLISH • The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice. Earthing Instructions • This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current.
  • Page 6 ENGLISH • Do not modify the plug provided with the appliance; If it does not fit the outlet. • Have a proper outlet installed by a qualified electrician. • Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
  • Page 7 ENGLISH • Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. • For unmarked plastic items not so marked, check the manufacturer’s recommendations. • Use only detergent and rinse agents recommended for use in an automatic dishwasher.

  • Page 8: Product Overview

    ENGLISH • To save energy, in standby mode, the appliance will switch off automatically while there is no any operation in 30 minutes. • The maximum number of place settings to be washed is 9. • The maximum permissible inlet water pressure is 1MPa.
  • Page 9 ENGLISH 1. Inner pipe 4. Upper Spray arm 2. Salt container 5. Lower spray arm 3. Dispenser 6. Filter assembly Cup rack Cutlery Upper rack spray arm Cutlery basket Upper basket Lower basket NOTE: Pictures are only for reference, different models may be different.

  • Page 10: Technical Information

    ENGLISH TECHNICAL INFORMATION Height (H) 845mm Width (W) 448mm Depth (DI) 600mm (with the door closed) Depth (D2) 1175mm (with the door opened 90° ) GB-9...
  • Page 11 ENGLISH Product fiche Sheet of household dishwasher according to EU Directive 1016/2010 & 1059/2010: Manufacturer Type/Description LV10C49M21W Standard place settings Energy efficiency class A+ +  Annual energy 211 kWh consumption  Energy consumption of the standard cleaning 0.741 kWh...
  • Page 12 ENGLISH Drying efficiency class  Standard cleaning cycle ECO 45°C  Program duration of the 235 min standard cleaning cycle Noise level 49 dB(A) re 1 pW Mounting Free standing Could be built-in Power consumption 1760-2100W Rated voltage/frequency 220-240V/50Hz Water pressure (flow 0.04-1.0MPa=0.4- pressure) 10 bar...
  • Page 13 ENGLISH NOTE: 1. A + + + (highest efficiency) to D (lowest efficiency) 2. Energy consumption based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
  • Page 14 ENGLISH Product information sheet (EN60436) Supplier’s name or trade mark: FAR Supplier’s address ( ): 80 Boulevard du Mandinet Lognes 77432 Marne la Vallée Cedex 2 FRANCE Model identifier: LV10C49M21W General product parameters: Parameter Value Parameter Value Height 84,5 Rated capacity (...
  • Page 15 ENGLISH Minimum duration of the guarantee offered by the supplier ( Additional information: Weblink to the supplier’s website, where the information in point 6 of Annex II to Commission Regulation (EU) 2019/2022(1) ( is found: ) for the eco program. ) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.

  • Page 16: Quick User Guide

    ENGLISH QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. Install the dishwasher NOTE: Please check section «INSTALLATION INSTRUCTION” GB-15...
  • Page 17 ENGLISH Inside Outside Removing the larger Loading the baskets residue on the cutlery Filling the dispenser Selecting a program and running the dishwasher GB-16...
  • Page 18 ENGLISH INSTALLATION INSTRUCTION WARNING! Electrical Shock Hazard Disconnect electrical power before installing dishwasher. Failure to do so could result in death or electrical shock. ATTENTION! The installation of the pipes and electrical equipments should be done by professionals. ABOUT POWER CONNECTION WARNING! For personal safety: •...
  • Page 19 ENGLISH Electrical requirements Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance. Electrical connection Ensure the voltage and frequency of the power being corresponds to those on the rating plate.
  • Page 20 ENGLISH WATER SUPPLY AND DRAIN Cold water connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear.
  • Page 21 ENGLISH About the safety supply hose The safety supply hose consists of the double walls. The hose’s system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.
  • Page 22 ENGLISH How to disconnect the safety supply hose 1. Turn off the water. 2. Unscrew the safety supply hose from the faucet. CONNECTION OF DRAIN HOSES Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it.
  • Page 23 ENGLISH How to drain excess water from hoses If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
  • Page 24 ENGLISH POSITION THE APPLIANCE Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.
  • Page 25 ENGLISH FREE STANDING INSTALLATION Fitting between existing cabinets The height of the dishwasher, 845 mm, has been designed in order to allow the machine to be fitted between existing cabinets of the same height in modern fitted kitchens. The feet can be adjusted so that correct height is reached.
  • Page 26 ENGLISH Underneath existing work top (When fitting beneath a work top) In most modern fitted kitchens there is only one single work top under which cabinets and electrical appliances are fitted. In this case remove the work top of the dishwasher by unscrewing the screws under the rear edge of the top (a).

  • Page 27: Using Your Dishwasher

    ENGLISH USING YOUR DISHWASHER Before using your dishwasher: Inside Outside 1. Set the water softener 2. Loading the salt into the softener 3. Loading the basket 4. Fill the dispenser NOTE: Please check section“Water Softener”, if you need to set the water softener. Loading The Salt Into The Softener NOTE: If your model does not have any water softener, you may skip this section.
  • Page 28 ENGLISH WARNING! • Only use salt specifically designed for dishwashers use! Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.
  • Page 29 ENGLISH 2. Place the end of the funnel (supplied) into the hole and pour in about 1.5kg of dishwasher salt. 3. Fill the salt container to its maximum limit with water. It is normal for a small amount of water to come out of the salt container. 4.
  • Page 30 ENGLISH (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run. • If salt has spilled, run a soak or quick program to remove it. BASKET USED TIPS Adjusting the upper basket Type 1: The height of the upper basket can be easily...
  • Page 31 ENGLISH upper position Re-attach the upper Push in the upper basket to upper or basket. lower rollers. Folding back the cup shelves To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use.
  • Page 32 ENGLISH Folding back the rack shelves The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items. raise upwards fold backwards CONTROL PANEL GB-31...
  • Page 33 ENGLISH Operation (Button) 1 Power Press this button to turn on your dishwasher, the screen lights up. 2 Program Select the appropriate washing program, the selected program indicator will oe nt. Intensive Heavily soiled items include pots and pans. With dried on food.
  • Page 34 ENGLISH 90 min For normally soiled loads that need quick wash. Rapid A snorter wash for lightly soiled loads that do not need drying. 3 Child This option allows you to lock lock the buttons on the control panel, so children cannot accidently start the dishwasher by pressing the buttons on the panel.
  • Page 35 ENGLISH 4 Half- When you have about or less load than 6 place setting dishware to wash, you can choose this function to save energy and water. (It can only be used with Intensive, Normal, ECO and 90 min.) 5 Delay Press the button to set the delay time (3h, 6h, 9h), corresponding indicator will be...
  • Page 36 ENGLISH Salt If the indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled. WATER SOFTENER The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.
  • Page 37 ENGLISH Adjusting salt consumption The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption. Please follow the steps below for adjustment in salt consumption.
  • Page 38 ENGLISH WATER HARDNESS Salt Water softener level consumption German French British ° Mmol/I (gram/ cycle) °dH Clarke Hl->Rapid Light 0 - 0.94 bright H2->90 min Light 6- 11 10-20 7-14 1.0-2.0 bright H3->Rapid, 90 min 12- 17 21-30 15-21 2.1 -3.0 Light bright H4-ÆCO Light 18-22...
  • Page 39 ENGLISH Water Softener The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.
  • Page 40 ENGLISH • Crystal glass • Steel items subject to rusting • Wooden platters • Items made from synthetic fibres Are of limited suitability • Some types of glasses can become dull after a large number of washes • Silver and aluminum parts have a tendency to discolour during washing •...
  • Page 41 ENGLISH (Features and appearance of baskets and cutlery baskets may vary from your model.) Place objects in the dishwasher in following way: • Items such as cups, glasses, pots/pans, etc. are faced downwards. • Curved items, or ones with recesses, should be loaded aslant so that water can run off.
  • Page 42 ENGLISH • Long and I or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. • Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
  • Page 43 ENGLISH LOADING THE UPPER BASKET The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).Position the dishes and cookware so that they will not get moved by the spray of water.
  • Page 44 ENGLISH LOADING THE CUTLERY BASKET Cutlery should be placed in the cutlery rack separately from each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance. WARNING! Do not let any item extend through the bottom.
  • Page 45 ENGLISH FUNCTION OF THE RINSE AID AND DETERGENT The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes.
  • Page 46 ENGLISH As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below. Full 3/4 full 1/2 full 1/4 full Empty Function of detergent The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher.
  • Page 47 ENGLISH FILLING THE RINSE AID RESERVOIR Rinse-Aid indicator Remove the rinse aid Carefully pour reservoir c by rotating in the rinse- aid it counterclockwise. into its dispenser, whilst avoiding it to overflow. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the...
  • Page 48 ENGLISH Adjusting the rinse aid reservoir. Turn the rinse aid indicator dial to a number between 1 and 6. The higher the number, the more rinse aid the dishwasher uses. If the Adjust lever (Rinse) dishes are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free.
  • Page 49 ENGLISH FILLING THE DETERGENT DISPENSER Press the release catch Add detergent into on the detergent the larger cavity dispenser to open the (A) for the main cover. wash cycle. For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle.

  • Page 50: Maintenance And Cleaning

    ENGLISH NOTE: • Be aware that depending on the soiling of water, setting may be different. • Please observe the manufacturer’s recommendations on the detergent packaging. MAINTENANCE AND CLEANING External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits.
  • Page 51 ENGLISH WARNING! • To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind. • Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish.
  • Page 52 ENGLISH Open Hold the coarse filter and rotate i anticlockwise to unlock the filter. Lift the filter upwards and out of the dishwasher. Coarse filter Main filter Fine filter The fine filter can be pulled off the bottom of the filter assembly.
  • Page 53 ENGLISH Larger food remnants can be cleaned by rinsing the filter under running water. For a more thorough clean, use a soft cleaning brush. Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.
  • Page 54 ENGLISH WARNING! • Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage. • Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.
  • Page 55 ENGLISH To clean the spray arms, follow the instructions below: To remove the upper spray arm, hold the nut in the center still and rotate the spray arm counterclockwise to remove it. To remove the lower spray arm, pull out the spray arm upward.

  • Page 56: Caring Forthe Dishwasher

    ENGLISH Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly. CARING FORTHE DISHWASHER Frost precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows: 1.
  • Page 57 ENGLISH 5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump. After every wash After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside.
  • Page 58 ENGLISH When not in use for a longtime It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open.

  • Page 59: Loading The Baskets According To En60436

    ENGLISH LOADING THE BASKETS ACCORDING TO EN60436: 1. Upper basket: Item Cups Saucers Glasses Mugs Dessert bowls Glass bowl 2. Lower basket: Item Dessert plates Dinner plates Soup plates 10 Melamine dessert plates 11 Melamine bowl 12 Oval platter 13 Small pot 14 Cutlery basket GB-58...
  • Page 60 ENGLISH 3.Cutlery rack: NOTE: Please place the light flat wares on the shelf. The total weight is less than 1.5kg. GB-59...
  • Page 61 ENGLISH 4.Cutlery basket: Item Soup spoons Forks 4 4 4 Knives Tea spoons Information for Dessert spoons comparability tests Serving spoons in accordance with Serving fork EN60436 Capacity: 10 Gravy ladle place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: MAX Softener setting: GB-60...

  • Page 62: Programming The Dishwasher

    ENGLISH PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also shows various information about the programs. ( ) Means: need to fill rinse into the Rinse-Aid Dispenser.
  • Page 63 ENGLISH NOTE: EN 60436: This program is the test cycle. The information for comparability test in accordance with EN 60436. Starting A Cycle Wash 1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.
  • Page 64 ENGLISH Changing The Program Mid-cycle A wash cycle can only be changed if it has been running for a short time otherwise, the detergent may have already been released and the dishwasher may have already drained the wash water. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled.
  • Page 65 ENGLISH 1. Press the Start/Pause button to pause the washing. 2. Wait 5 seconds then open the door. 3. Add the forgotten dishes. 4. Close the door. 5. Press the Start/Pause button after 10 seconds, the dishwasher will start. After 5 sec WARNING! It is dangerous to open the door mid-cycle, as hot steam may scald...

  • Page 66: Error Codes

    ENGLISH ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these: Codes Meanings Possible Causes The faucets are not opened, or The Rapid Longer inlet water intake is light flicker time, restricted, or fleetly water pressure is too low.

  • Page 67: Troubleshooting Tips

    ENGLISH WARNING! • If overflow occurs, turn off the main water supply before calling a service. • If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages...
  • Page 68 ENGLISH Problem Possible Causes What To Do Twisted or trapped Check the drain hose. drain hose. Filter clogged. Check coarse the filter. Water not pumped form Check the kitchen sink to make sure dishwasher it is draining well. If the problem is Kitchen sink the kitchen sink that is not draining , clogged.
  • Page 69 ENGLISH Problem Possible Causes What To Do The affected items Avoid washing items that are not are not corrosion corrosion resistant in the dishwasher. resistant. A program was not run after dishwasher Always runa wash program without There are rust salt was added.
  • Page 70 ENGLISH Problem Possible Causes What To Do Not enough Use more detergent, or change your detergent was detergent. dispensed. Items are blocking Rearrange the items so that the spray the movement of the can rotate freely. spray arms. The dishes are not clean.
  • Page 71 ENGLISH Problem Possible Causes What To Do Load the dishwasher as suggested in Improper loading the directions. Do not empty your dishwasher immediately after washing. Open the The dishes aren't door slightly so that the steam can drying Dishes are removed come out.

  • Page 72: Disposal Of Old Electrical Appliances

    ENGLISH DISPOSAL OF OLD ELECTRICAL APPLIANCES The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.
  • Page 73 CONFORAMA France SA 80 Boulevard du Mandinet Lognes 77432 Marne la Vallée Cedex 2 FRANCE...
